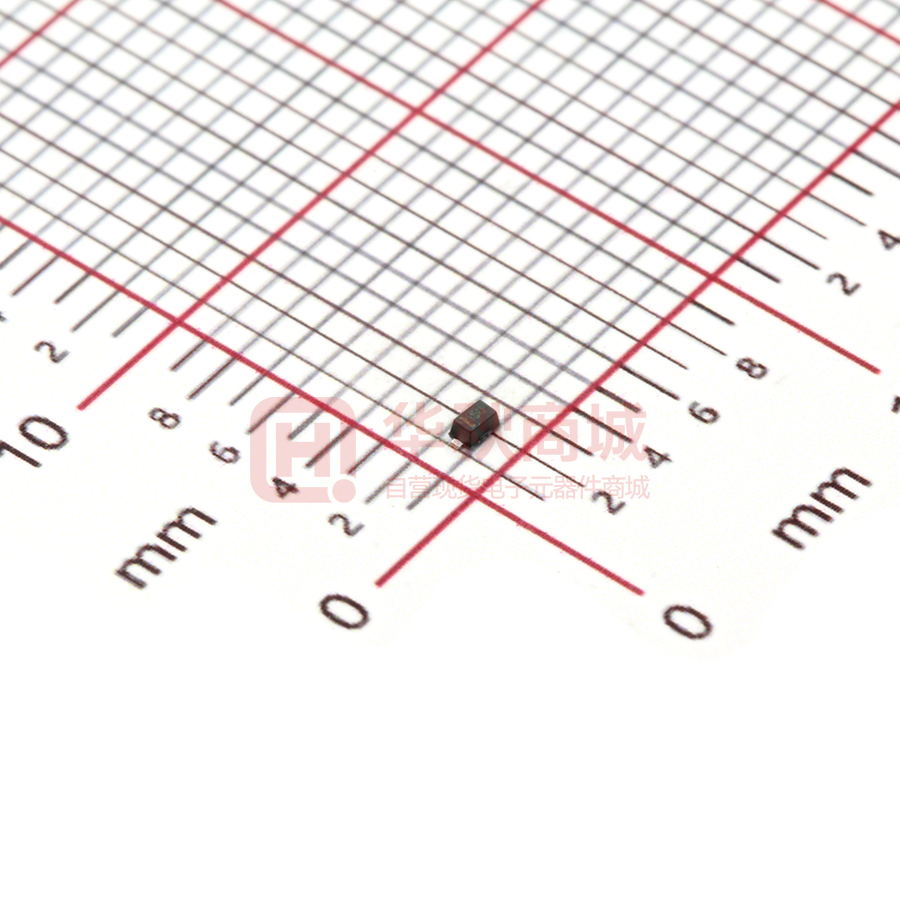

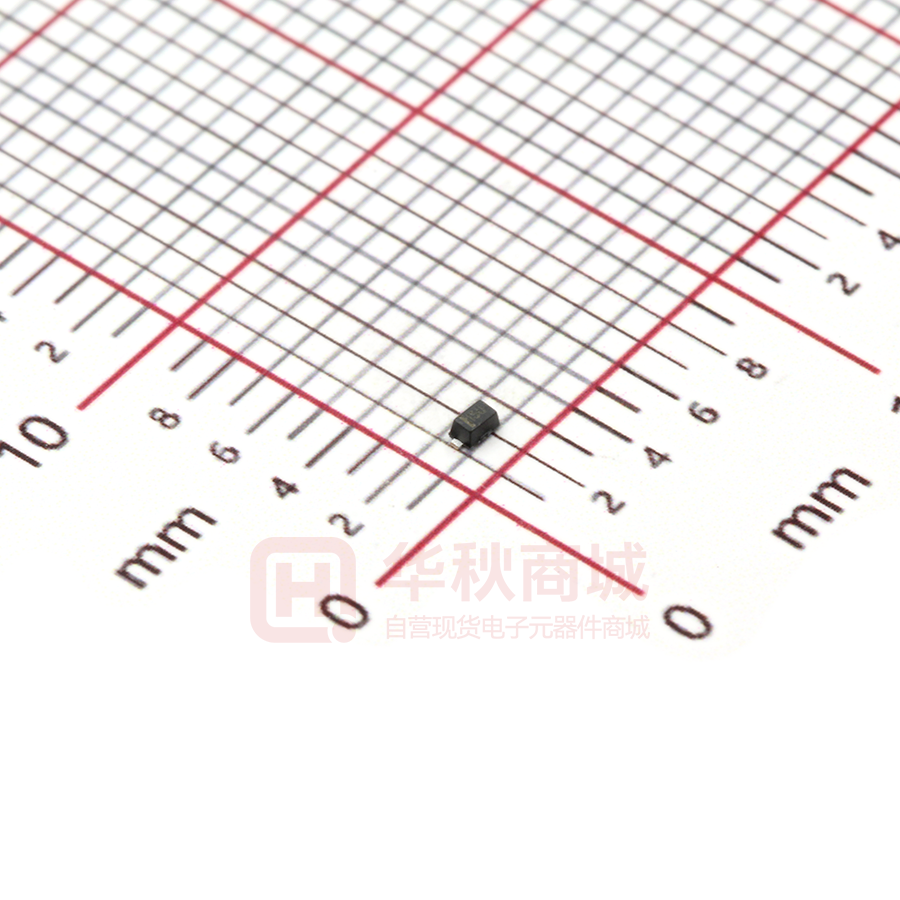

PESD15VS1UB-N

PESD15VS1UB-N ESD Protection Diode »Features ■ 230Watts peak pulse power (tp = 8/20μs) ■ Unidirectional configurations ■ Solid-state silicon-avalanche technology ■ Low clamping voltage ■ Low leakage current ■ IEC 61000-4-2 ±8kV contact ±15kV air ■ IEC 61000-4-4 (EFT) 40A (5/50ns) ■ IEC 61000-4-5 (Lightning) 6A (8/20μs) »Applications »Mechanical Data ■ Microprocessor based equipment ■ SOD523 package ■ Personal Digital Assistants (PDA’s) ■ Molding compound flammability rating: UL 94V-0 ■ Notebooks, Desktops, and Servers ■ Packaging: Tape and Reel ■ Portable Instrumentation ■ RoHS/WEEE Compliant ■ Pagers Peripherals »Schematic & PIN Configuration SOD-523 Revision 2018 www.born-tw.com 1/4 PESD15VS1UB-N »Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power ( tp =8/20μs) PPP 230 Watts Peak Pulse Current ( tp =8/20μs ) (note1) Ipp 6 A VESD 15 8 kV Lead Soldering Temperature TL 260(10seconds) ℃ Junction Temperature TJ -55 to + 150 ℃ Storage Temperature Tstg -55 to + 150 ℃ ESD per IEC 61000-4-2 (Air) ESD per IEC 61000-4-2 (Contact) »Electrical Characteristics Parameter Symbol Reverse Stand-Off Voltage Reverse Breakdown Voltage Conditions Min Typical VRWM Max Units 15.0 V V VBR IT=1mA 16.7 Reverse Leakage Current IR VRWM=15V,T=25℃ 1 uA Clamping Voltage VC IPP=6A,tp=8/20μs 38 V Junction Capacitance Cj VR = 0V, f = 1MHz 50 pF »Electrical Parameters (TA = 25°C unless otherwise noted) Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP V RW M IR V BR IT I IF Working Peak Reverse Voltage Maximum Reverse Leakage Current @ V RW M VC VBR VRWM IR VF IT Breakdown Voltage @ IT V Test Current IPP Note:. 8/20μs pulsewaveform. Revision 2018 www.born-tw.com 2/4 PESD15VS1UB-N »Typical Characteristics Figure 1: Peak Pulse Power vs. Pulse Time Figure 2: Power Derating Curve 110 Percent of Rated Power for Ipp Ppp – Peak Pulse Power - Ppp(KW) 10 230w 8/20µs waveform 1 0.1 0.01 0.1 1 10 100 100 90 80 70 60 50 40 30 20 10 0 1,000 td – Pulse Duration - µs 90 Ipp 80 Percent 100 e-1 50 40 td=Ipp/2 0 5 Revision 2018 10 15 150 35 30 25 Test Waveform Paramters tr=8µs td=20µs 20 15 10 5 10 0 125 40 Clamping Voltage–VC (V) 100 20 75 45 Waveform Paramters tr=8µs td=20µs 30 50 Figure 4: Clamping Voltage vs.Ipp 110 60 25 Ambient Temperature - TA (℃) Figure3: Pulse Waveform 70 0 Time (µs) 20 25 30 0 2 4 6 8 10 Peak Pulse Current–IPP (A) www.born-tw.com 3/4 PESD15VS1UB-N »Outline Drawing – SOD523 D -X-YE 1 DIMENSIONS 2 SYMBOL b 2x 0.08 (0.0032) X A b C D E HE L Y A C HE L MILLIMETER INCHES MIN MAX MIN MAX 0.50 0.25 0.07 1.10 0.70 1.50 0.15 0.70 0.35 0.20 1.30 0.90 1.70 0.25 0.020 0.010 0.0028 0.043 0.028 0.059 0.006 0.028 0.014 0.0079 0.051 0.035 0.067 0.010 »Marking 1 15U 2 »Ordering information Order code PESD15VS1UB-N Revision 2018 Package Base qty Delivery mode SOD523 5000 Tape and reel www.born-tw.com 4/4
