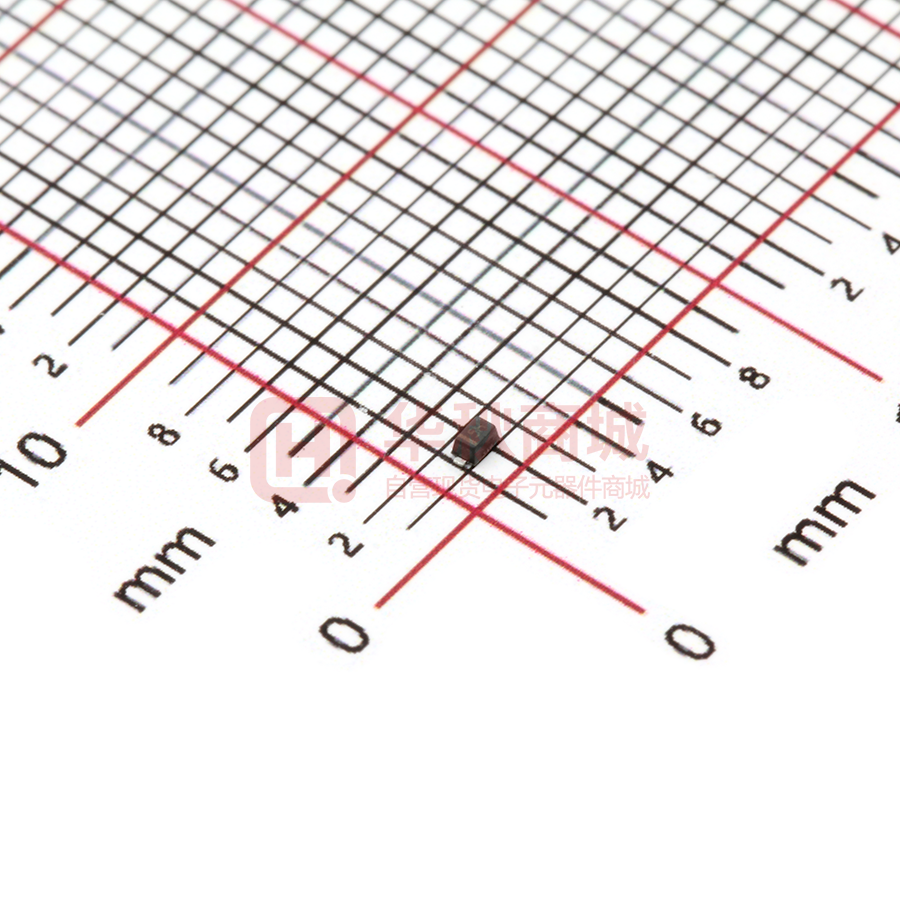

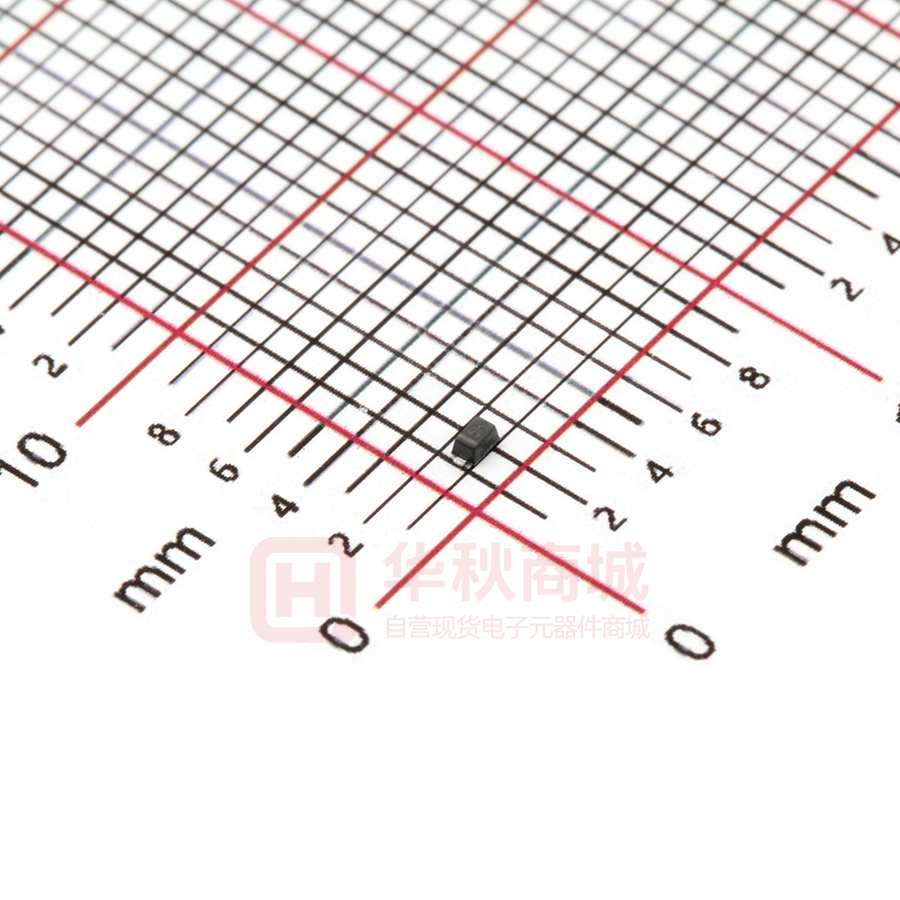

BSD5A051V

BSD5A051V Transient Voltage Suppressors ROHS Features 100 Watts Peak Pulse Power per Line (tp = 8/20μs) Replacement for MLV (0603) Protects one I/O or power line Low Clamping Voltage Working Voltage: 05V Low Leakage Current Response Time is Typically < 1 ns IEC COMPATIBILITY (EN61000-4) IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 8A (8/20μs) Mechanical Characteristics Applications JEDEC SOD-523 package Cellular Handsets & Accessories Molding compound flammability rating: Personal Digital Assistants (PDAs) UL 94V-0 Notebooks & Handhelds Marking : Marking Code Portable Instrumentation Packaging : Tape and Reel per EIA 481 Digital Cameras RoHS Compliant MP3 players Schematic & PIN Configuration 1/4 BSD5A051V Transient Voltage Suppressors ROHS Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power ( tp =8/20μs ) PPP 100 Watts Peak Forward Voltage ( IF = 1A, tp =8/20μs ) VFP 1.4 V TJ -55 to + 125 °C TSTG -55 to +150 °C Operating Temperature Storage Temperature Electrical Parameters (T=25°C) Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM IR VBR Working Peak Reverse Voltage Maximum Reverse Leakage Current @ VRWM Breakdown Voltage @ IT IT Test Current IF Forward Current VF Forward Voltage @ IF Electrical Characteristics Part Number BSD5A051V Reverse Stand off Voltage VRWM Minimum Breakdown Voltage VBR@1mA Maximum Clamping Voltage Vc @IPP Maximum Peak Pulse Current Ipp (Volts) (Volts) (Volts) (Amps) 05 6 12 8.0 Maximum Reverse Leakage current IR@VRWM(μA) Typical Capacitance DC=0V CJ@ 1 MHz 1 30 (pF) 2/4 BSD5A051V Transient Voltage Suppressors ROHS Typical Characteristics Figure 2: Power DeratingCurve 10 Percent of Rated Power for Ipp Ppp – Peak Pulse Power - Ppp(KW) Figure 1: Peak Pulse Power Vs Pulse Time 1 100W 8/20µs Waveform 0.1 0.01 0.1 1 10 100 110 100 90 80 70 60 50 40 30 20 10 0 0 1,000 td – Pulse Duration -µs 75 100 125 150 Figure 4: Normalized Junction Capacitance vs. Reverse Voltage 1.1 14 13 12 11 1.0 0.9 Cj(VR)/Cj(VR=0) Clamping Voltage -Vc(V) 50 Ambient Temperature - TA (℃) Figure 3: Clamping Voltage vs. Peak Pulse Current 10 9 8 7 6 5 4 3 2 1 0 F=1MHz 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 1 2 3 4 5 6 7 8 9 10 Peak Pulse Current -Ipp(A) 0 0 1 2 3 4 5 Reverse Voltage -VR (V) Figure 6: ESD Clamping( 8kV Contact per IEC 61000-4-2) Tek Run: 2.50GS/s Sample Figure 5: PulseWaveform 110 Waveform Paramters tr=8 sµ td=20 sµ 100 90 80 Percent Ipp 25 70 e-t 60 50 40 td=Ipp/2 30 20 10 0 0 5 10 15 20 25 30 CH1 10.0 VΩ M 20.0ns Ch1 7.1V Time (µs) 3/4 BSD5A051V Transient Voltage Suppressors ROHS Outline Drawing – SOD-523 PACKAGE OUTLINE SOD-523 DIMENSIONS SYMBOL A b C D E HE L MILLIMETER MIN 0.50 0.25 0.07 1.10 0.70 1.50 0.15 MAX 0.70 0.35 0.20 1.30 0.90 1.70 0.25 INCHES MIN 0.020 0.010 0.0028 0.043 0.028 0.059 0.006 MAX 0.028 0.014 0.0079 0.051 0.035 0.067 0.010 Notes 1. Controlling Dimensions in Millimeters. 2. Dimensions are exclusive of mold flash and metal burrs. Marking Codes 5H Package Information Qty：5k/Reel 4/4
