SMF Series Datasheet
Description
The SMF series is designed specifically to protect sensitive electronic equipment from voltage transients
induced by lightning and other transient voltage events. SMF package is 50% smaller in footprint when compare to
SMA package and deliverying one of the low height profiles (1.1mm) in the industry.
Features
⚫
IEC61000-4-2 ESD 15KV Air, 8KV contact compliance
⚫

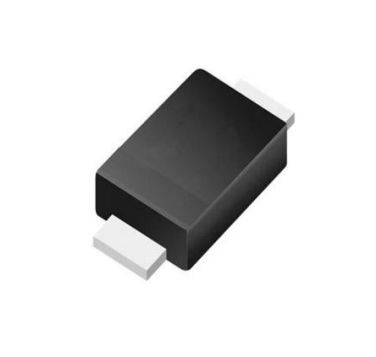

SOD-123FL surface mount package
⚫
Protects one I/O line
⚫
Peak power dissipation of 1000W under 8/20μs waveform
⚫
Low leakage current
⚫
Solid-state silicon avalanche technology
⚫
RoHS compliant
⚫
Solder reflow temperature: Pure Tin-Sn, 260~270℃
⚫
Flammability rating UL 94V-0
⚫
Meets MSL level 1, per J-STD-020
Applications
SMF devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuit used in cellular
phones, portable devices, business machines, power supplies and other consumer applications.
Maximum Ratings and Characteristics
Ratings at 25℃ ambient temperature unless otherwise specified.
Rating
Symbol
Value
Units
Peak pulse power dissipation at 10/1000μs waveform
(Note1, Note2, Fig.1)
PPPM
Minimum 200
Watts
Peak pulse power (tp=8/20μs waveform)
PPPM
Minimum 1000
Watts
Peak pulse current of at 10/1000μs waveform (Note 1, Fig.3)
IPPM
See Table
Amps
PM(AV)
1.0
Watts
VF
3.5
V
IFSM
20
Amps
TJ,TSTG
-55 to +150
℃
Typical thermal resistance junction to lead
RθJL
100
℃/W
Typical thermal resistance junction to ambient
RθJA
220
℃/W
Steady state power dissipation at TL=75℃ (Fig.5)
Maximum Instantaneous Forward Voltage at 12A for
Unidirectional Only
Peak forward surge current, 8.3ms single half sine-wave
superimposed on rated load, (JEDEC Method) (Note3, Fig.6)
Operating junction and Storage Temperature Ranges.
Notes: 1. Non-repetitive current pulse, per Fig.3 and Derating above TA=25℃ per Fig.2.
2. Each terminal is surface Mounted on the 5.0mm×5.0mm (0.03mm thick) copper pads.
3. 8.3ms single half sine-wave or equivalent square wave, duty cycle=4 pulses per minutes maximum.
www.liownsemi.com
掌握芯技术 Core Technology
(V0)
Liown Semiconductor Co.,Ltd.
里阳半导体有限公司
浙江省玉环市半导体科技产业园
Tel:0576-8071-1338
Fax:0576-8071-1339
Dimensions (SOD123FL)
Inches
Dimensions
Millimeters
Min.
Max.
Min.
Max.
A
0.138
0.154
3.50
3.90
B
0.102
0.118
2.60
3.00
C
0.030
0.043
0.75
1.10
D
0.063
0.079
1.60
2.00
D
C
F
B
A
Soldering Pad Layout Recommended
1.00
H
0.031Typ.
F
1.10
h
2.00
0.80Typ.
H
0.035
0.053
0.90
1.35
h
0.005
0.009
0.12
0.22
Electrical Characteristics (TA=25℃)
Part Number
Device
Reverse
Breakdown
Marking
Stand-Off
Voltage
Code
Voltage
@IT
Maximum
Test
Clamping
Current
Voltage
@IPP
Peak
Reverse
Pulse
Leakage
Current
@VR
Uni
Bi
UNI
BI
VR(V)
Min(V)
Max(V)
IT(mA)
VC(V)
IPP(A)
IR(μA)
SMF5.0A
SMF5.0CA
KE
AE
6.4
7
10
5
500
21.8
9.2
SMF6.0A
SMF6.0CA
KG
AG
6.67
7.37
10
6
400
19.4
10.3
SMF6.5A
SMF6.5CA
KK
AK
7.22
7.98
10
6.5
350
17.9
11.2
SMF7.0A
SMF7.0CA
KM
AM
7.78
8.6
10
7
200
16.7
12.0
SMF7.5A
SMF7.5CA
KP
AP
8.33
9.21
1
7.5
100
15.5
12.9
SMF8.0A
SMF8.0CA
KR
AR
8.89
9.83
1
8
50
14.7
13.6
SMF8.5A
SMF8.5CA
KT
AT
9.44
10.4
1
8.5
20
13.9
14.4
SMF9.0A
SMF9.0CA
KV
AV
10
11.1
1
9
10
13.0
15.4
SMF10A
SMF10CA
KX
AX
11.1
12.3
1
10
5
11.8
17.0
SMF11A
SMF11CA
KZ
AZ
12.2
13.5
1
11
3
11.0
18.2
SMF12A
SMF12CA
LE
BE
13.3
14.7
1
12
1
10.1
19.9
SMF13A
SMF13CA
LG
BG
14.4
15.9
1
13
1
9.3
21.5
SMF14A
SMF14CA
LK
BK
15.6
17.2
1
14
1
8.6
23.2
SMF15A
SMF15CA
LM
BM
16.7
18.5
1
15
1
8.2
24.4
SMF16A
SMF16CA
LP
BP
17.8
19.7
1
16
1
7.7
26.0
SMF17A
SMF17CA
LR
BR
18.9
20.9
1
17
1
7.3
27.6
SMF18A
SMF18CA
LT
BT
20
22.1
1
18
1
6.9
29.2
SMF20A
SMF20CA
LV
BV
22.2
24.5
1
20
1
6.2
32.4
SMF22A
SMF22CA
LX
BX
24.4
26.9
1
22
1
5.7
35.5
SMF24A
SMF24CA
LZ
BZ
26.7
29.5
1
24
1
5.2
38.9
SMF26A
SMF26CA
ME
CE
28.9
31.9
1
26
1
4.8
42.1
SMF28A
SMF28CA
MG
CG
31.1
34.4
1
28
1
4.4
45.4
SMF30A
SMF30CA
MK
CK
33.3
36.8
1
30
1
4.2
48.4
SMF33A
SMF33CA
MM
CM
36.7
40.6
1
33
1
3.8
53.3
www.liownsemi.com
掌握芯技术 Core Technology
(V0)
Liown Semiconductor Co.,Ltd.
里阳半导体有限公司
浙江省玉环市半导体科技产业园
Tel:0576-8071-1338
Fax:0576-8071-1339
Electrical Characteristics (TA=25℃)
Part Number
Device
Reverse
Breakdown
Marking
Stand-Off
Voltage
Code
Voltage
@IT
Maximum
Test
Clamping
Current
Voltage
@IPP
Peak
Reverse
Pulse
Leakage
Current
@VR
Uni
Bi
UNI
BI
VR(V)
Min(V)
Max(V)
IT(mA)
VC(V)
IPP(A)
IR(μA)
SMF36A
SMF36CA
MP
CP
40
44.2
1
36
1
3.5
58.1
SMF40A
SMF40CA
MR
CR
44.4
49.1
1
40
1
3.1
64.5
SMF43A
SMF43CA
MT
CT
47.8
52.8
1
43
1
2.9
69.4
SMF45A
SMF45CA
MV
CV
50
55.3
1
45
1
2.8
72.7
SMF48A
SMF48CA
MX
CX
53.3
58.9
1
48
1
2.6
77.4
SMF51A
SMF51CA
MZ
CZ
56.7
62.7
1
51
1
2.5
82.4
SMF54A
SMF54CA
NE
DE
60
66.3
1
54
1
2.3
87.1
SMF58A
SMF58CA
NG
DG
64.4
71.2
1
58
1
2.2
93.6
SMF60A
SMF60CA
NK
DK
66.7
73.7
1
60
1
2.1
96.8
SMF64A
SMF64CA
NM
DM
71.1
78.6
1
64
1
2.0
103.0
SMF70A
SMF70CA
NP
DP
77.8
86
1
70
1
1.8
113.0
SMF75A
SMF75CA
NR
DR
83.3
92.1
1
75
1
1.7
121.0
SMF78A
SMF78CA
NT
DT
86.7
95.8
1
78
1
1.6
126.0
SMF85A
SMF85CA
NV
DV
94.4
104
1
85
1
1.5
137.0
SMF90A
SMF90CA
NX
DX
100
111
1
90
1
1.4
146.0
SMF100A
SMF100CA
NZ
DZ
111
123
1
100
1
1.3
162.0
SMF110A
SMF110CA
PE
EE
122
135
1
110
1
1.2
177.0
SMF120A
SMF120CA
PG
EG
133
147
1
120
1
1.1
193.0
SMF130A
SMF130CA
PK
EK
144
159
1
130
1
1.0
209.0
SMF150A
SMF150CA
PM
EM
167
185
1
150
1
0.8
243.0
SMF160A
SMF160CA
PP
EP
178
197
1
160
1
0.8
259.0
SMF170A
SMF170CA
PR
ER
189
209
1
170
1
0.8
275.0
www.liownsemi.com
掌握芯技术 Core Technology
(V0)
Liown Semiconductor Co.,Ltd.
里阳半导体有限公司
浙江省玉环市半导体科技产业园
Tel:0576-8071-1338
Fax:0576-8071-1339
Ratings and Characteristic Curves (Ta=25℃ unless otherwise noted)
Figure 1. Peak Pulse Power Rating Curve
Figure 2. Pulse Derating Curve
Peak Pulse Power (PPP) or Current (IPP)
Derating in Percentage %
PPP - Peak Pulse Power (W)
10000
1000
100
10
0.1
1
10
100
1000
tP-Pulse Duration (µs)
80
Tjmax=175
60
Tjmax=150
40
20
0
0
10000
Figure 3. Pulse Waveform
25
50
75
100 125 150
TA-Ambient Temperature ( )
175
Figure 4. Typical Junction Capacitance
10000
150
TJ=25
Pulse Width(td ) is defined as
the point where the peak
current decays to 50% of IPP M
tr=10µs
1000
Uni-directional V=0V
Peak Value IPPM
100
Cj (pF)
Peak Pulse Current, %IRSM
100
Half Value IPPM (IPPM/2)
100
Bi-directional V=0V
50
10/1000µs Waveform
as defined by R.E.A
10
td
0
0
1.0
2.0
3.0
TJ=25
f=1.0MHz
Vsig=50mVp-p
1
4.0
1
Time (ms)
Figure 6. Maximum Non-Repetitive Forward
Surge Current Uni-Directional Only
1.0
35
0.75
Peak Forward Surve Current (A)
PM(AV), Steady State Power Dissipation (W)
Figure 5. Steady State Power Dissipation Derating
Curve
10
100
1000
VBR-Reverse Breakdown Voltage (V)
Tjmax=175
0.50
Tjmax=150
0.25
0
0
25
www.liownsemi.com
50
75
100 125 150
TL-Lead Temperature( )
175
Tj = Tj max.
8.3 ms Single Half Sine-Wave
30
25
20
15
10
5
0
掌握芯技术 Core Technology
1
10
5
50
Number of Cycles at 60Hz
100
(V0)
Liown Semiconductor Co.,Ltd.
里阳半导体有限公司
浙江省玉环市半导体科技产业园
Tel:0576-8071-1338
Fax:0576-8071-1339
Marking Code
Cathode Marking
XY
XY
XY
Device Code
Device Code
Part Number Code
SMF
XX C A
A:5% VBR Tolerance
C:Bidirectional;No C:Unidirectional
VR Voltage
200W Series Code
Soldering Parameters
www.liownsemi.com
掌握芯技术 Core Technology
(V0)
Liown Semiconductor Co.,Ltd.
里阳半导体有限公司
浙江省玉环市半导体科技产业园
Tel:0576-8071-1338
Fax:0576-8071-1339
Packaging Specification
Tape
For Uni-Devices
7 Inches Reel
D
Φ178.0±2.0
d
Φ13.0
W
9.5
d
D
www.liownsemi.com
W
Quantity: 3000PCS/Reel
掌握芯技术 Core Technology
(V0)
