PMEG2010BEA
1 A very low VF MEGA Schottky barrier rectifier
15 July 2020
Product data sheet
1. General description
Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated
guard ring for stress protection, encapsulated in a very small SOD323 (SC-76) Surface-Mounted
Device (SMD) plastic package.
2. Features and benefits
•
•
•
•
•
Forward current: 1 A
Reverse voltage: 20 V
Very low forward voltage
Very small plastic SMD package
AEC-Q101 qualified
3. Applications
•
•
•
•
•
•
High efficiency DC-to-DC conversion
Voltage clamping
Protection circuits
Low voltage rectification
Blocking diode
Low power consumption applications
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
Conditions
IF
forward current
Tsp ≤ 55 °C
VR
reverse voltage
Tj = 25 °C
[1]
[1]
Min
Typ
Max
Unit
-
-
1
A
-
-
20
V
Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint.
PMEG2010BEA
Nexperia
1 A very low VF MEGA Schottky barrier rectifier
5. Pinning information
Table 2. Pinning information
Pin
Symbol
Description
1
K
cathode
2
A
anode
Simplified outline
1
Graphic symbol
2
K
A
sym001

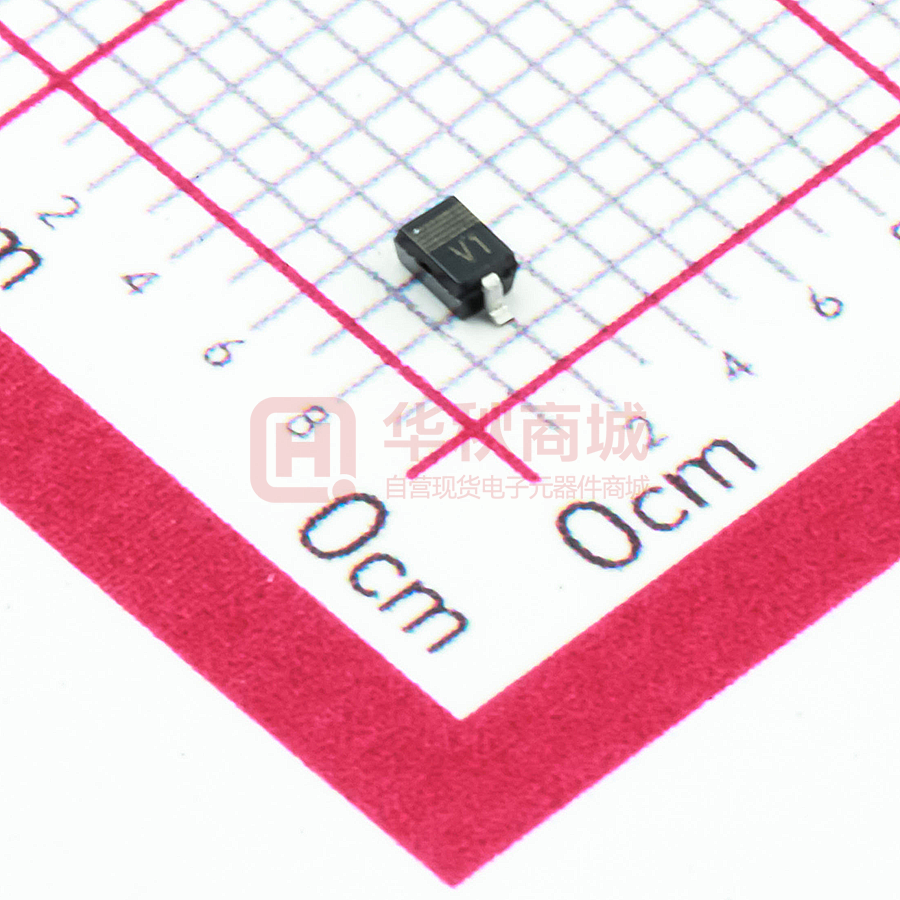

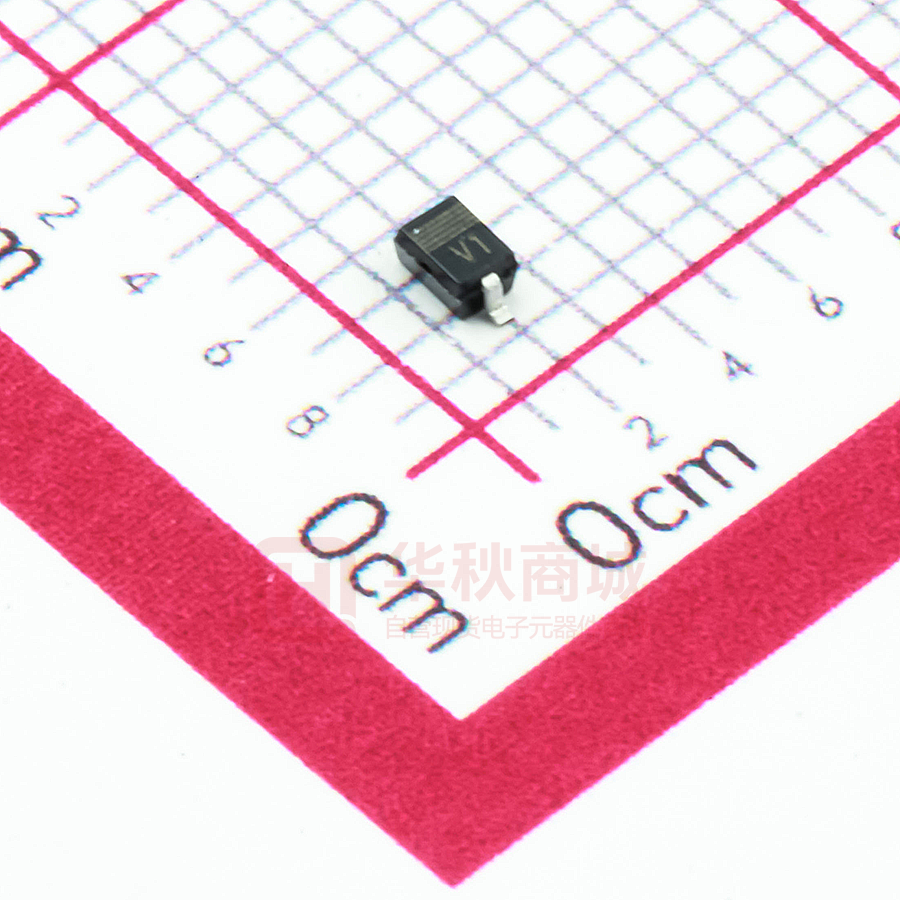

SOD323
6. Ordering information
Table 3. Ordering information
Type number
Package
PMEG2010BEA
Name
Description
Version
SOD323
plastic, surface-mounted package; 2 leads; 1.3 mm pitch; 1.7
mm x 1.25 mm x 0.95 mm body
SOD323
7. Marking
Table 4. Marking codes
Type number
Marking code
PMEG2010BEA
V1
PMEG2010BEA
Product data sheet
All information provided in this document is subject to legal disclaimers.
15 July 2020
©
Nexperia B.V. 2020. All rights reserved
2 / 10
PMEG2010BEA
Nexperia
1 A very low VF MEGA Schottky barrier rectifier
8. Limiting values
Table 5. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol
Parameter
Conditions
Min
Max
Unit
VR
reverse voltage
Tj = 25 °C
-
20
V
IF
forward current
Tsp ≤ 55 °C
-
1
A
IFRM
repetitive peak forward
current
tp ≤ 1 ms; δ ≤ 0.5
-
3.5
A
IFSM
non-repetitive peak
forward current
tp = 8 ms; square wave
-
10
A
Tj
junction temperature
[2]
-
150
°C
Tamb
ambient temperature
[2]
-65
150
°C
Tstg
storage temperature
-65
150
°C
[1]
[2]
[1]
Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint.
For Schottky barrier diodes thermal runaway has to be considered, as in some applications the reverse power losses PR are a
significant part of the total power losses. Nomograms for determining the reverse power losses PR and IF(AV) rating will be available on
request.
9. Thermal characteristics
Table 6. Thermal characteristics
Symbol
Parameter
Rth(j-a)
Rth(j-sp)
[1]
[2]
[3]
[4]
Conditions
Min
Typ
Max
Unit
thermal resistance from in free air
junction to ambient
[1] [2]
-
-
450
K/W
[1] [3]
-
-
210
K/W
thermal resistance from
junction to solder point
[4]
-
-
90
K/W
For Schottky barrier diodes thermal runaway has to be considered, as in some applications the reverse power losses PR are a
significant part of the total power losses. Nomograms for determining the reverse power losses PR and IF(AV) rating will be available on
request.
Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint.
2
Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for cathode 1 cm .
Soldering point of cathode tab.
PMEG2010BEA
Product data sheet
All information provided in this document is subject to legal disclaimers.
15 July 2020
©
Nexperia B.V. 2020. All rights reserved
3 / 10
PMEG2010BEA
Nexperia
1 A very low VF MEGA Schottky barrier rectifier
10. Characteristics
Table 7. Characteristics
Tamb = 25 °C unless otherwise specified.
Symbol
Parameter
Conditions
VF
forward voltage
IF = 0.1 mA
IR
reverse current
Cd
diode capacitance
[1]
Min
Typ
Max
Unit
[1]
-
90
130
mV
IF = 1 mA
[1]
-
150
190
mV
IF = 10 mA
[1]
-
210
240
mV
IF = 100 mA
[1]
-
280
330
mV
IF = 500 mA
[1]
-
355
390
mV
IF = 1000 mA; Tamb = 25 °C
[1]
-
420
500
mV
VR = 10 V
[1]
-
15
40
µA
VR = 20 V
[1]
-
40
200
µA
-
66
80
pF
VR = 1 V; f = 1 MHz
Pulsed test: tp ≤ 300 μs; δ ≤ 0.02
mhc673
104
IF
(mA)
IR
(µA)
103
(1)
104
(1)
102
(2)
(3)
103
10
102
1
10
10- 1
0
0.2
0.4
VF (V)
1
0.6
Forward current as a function of forward
voltage; typical values
PMEG2010BEA
Product data sheet
(2)
(3)
0
5
10
15
VR (V)
20
Pulsed condition
(1) Tamb = 150 °C
(2) Tamb = 85 °C
(3) Tamb = 25 °C
Pulsed condition
(1) Tamb = 150 °C
(2) Tamb = 85 °C
(3) Tamb = 25 °C
Fig. 1.
mhc674
105
Fig. 2.
Reverse current as a function of reverse
voltage; typical values
All information provided in this document is subject to legal disclaimers.
15 July 2020
©
Nexperia B.V. 2020. All rights reserved
4 / 10
PMEG2010BEA
Nexperia
1 A very low VF MEGA Schottky barrier rectifier
mhc675
140
Cd
(pF)
120
100
80
60
40
20
0
0
5
10
15
VR (V)
20
Tamb = 25 °C; f = 1 MHz
Fig. 3.
Diode capacitance as a function of reverse voltage; typical values
11. Test information
Quality information
This product has been qualified in accordance with the Automotive Electronics Council (AEC)
standard Q101 - Stress test qualification for discrete semiconductors, and is suitable for use in
automotive applications.
PMEG2010BEA
Product data sheet
All information provided in this document is subject to legal disclaimers.
15 July 2020
©
Nexperia B.V. 2020. All rights reserved
5 / 10
PMEG2010BEA
Nexperia
1 A very low VF MEGA Schottky barrier rectifier
12. Package outline
Plastic surface-mounted package; 2 leads
SOD323
A
D
E
X
v
HD
1
M
A
Q
2
bp
A
A1
(1)
c
detail X
0
1
Lp
2 mm
scale
DIMENSIONS (mm are the original dimensions)
UNIT
A
A1
max
bp
c
D
E
HD
Lp
Q
v
mm
1.1
0.8
0.05
0.40
0.25
0.25
0.10
1.8
1.6
1.35
1.15
2.7
2.3
0.45
0.15
0.25
0.15
0.2
Note
1. The marking bar indicates the cathode
OUTLINE
VERSION
REFERENCES
IEC
SOD323
Fig. 4.
JEDEC
JEITA
EUROPEAN
PROJECTION
ISSUE DATE
03-12-17
06-03-16
SC-76
Package outline SOD323
PMEG2010BEA
Product data sheet
All information provided in this document is subject to legal disclaimers.
15 July 2020
©
Nexperia B.V. 2020. All rights reserved
6 / 10
PMEG2010BEA
Nexperia
1 A very low VF MEGA Schottky barrier rectifier
13. Soldering
3.05
2.1
solder lands
solder resist
1.65 0.95
0.5 (2×)
0.6 (2×)
solder paste
occupied area
2.2
Dimensions in mm
0.5
(2×)
0.6
(2×)
Fig. 5.
sod323_fr
Reflow soldering footprint for SOD323
5
2.9
1.5 (2×)
solder lands
solder resist
occupied area
1.2
2.75
(2×)
Dimensions in mm
preferred transport
direction during soldering
sod323_fw
Fig. 6.
Wave soldering footprint for SOD323
PMEG2010BEA
Product data sheet
All information provided in this document is subject to legal disclaimers.
15 July 2020
©
Nexperia B.V. 2020. All rights reserved
7 / 10
PMEG2010BEA
Nexperia
1 A very low VF MEGA Schottky barrier rectifier
14. Revision history
Table 8. Revision history
Data sheet ID
Release date
Data sheet status
Change notice
Supersedes
PMEG2010BEA v.3
20200715
Product data sheet
-
PMEGXX10BEA_
PMEGXX10BEV v.2
Modifications:
•
•
•
Family data sheet reduced to single type data sheet.
The format of this data sheet has been redesigned to comply with the identity guidelines of
Nexperia.
Legal texts have been adapted to the new company name where appropriate.
PMEGXX10BEA_
PMEGXX10BEV v.2
200406142
Product data sheet
-
PMEGXX10BEA_
PMEGXX10BEV v.1
PMEGXX10BEA_
PMEGXX10BEV v.1
20040402
Product data sheet
-
-
PMEG2010BEA
Product data sheet
All information provided in this document is subject to legal disclaimers.
15 July 2020
©
Nexperia B.V. 2020. All rights reserved
8 / 10
PMEG2010BEA
Nexperia
1 A very low VF MEGA Schottky barrier rectifier
equipment, nor in applications where failure or malfunction of an Nexperia
product can reasonably be expected to result in personal injury, death or
severe property or environmental damage. Nexperia and its suppliers accept
no liability for inclusion and/or use of Nexperia products in such equipment or
applications and therefore such inclusion and/or use is at the customer's own
risk.
15. Legal information
Data sheet status
Document status
[1][2]
Product
status [3]
Definition
Quick reference data — The Quick reference data is an extract of the
product data given in the Limiting values and Characteristics sections of this
document, and as such is not complete, exhaustive or legally binding.
Objective [short]
data sheet
Development
This document contains data from
the objective specification for
product development.
Preliminary [short]
data sheet
Qualification
This document contains data from
the preliminary specification.
Applications — Applications that are described herein for any of these
products are for illustrative purposes only. Nexperia makes no representation
or warranty that such applications will be suitable for the specified use
without further testing or modification.
Product [short]
data sheet
Production
This document contains the product
specification.
[1]
[2]
[3]
Please consult the most recently issued document before initiating or
completing a design.
The term 'short data sheet' is explained in section "Definitions".
The product status of device(s) described in this document may have
changed since this document was published and may differ in case of
multiple devices. The latest product status information is available on
the internet at https://www.nexperia.com.
Definitions
Draft — The document is a draft version only. The content is still under
internal review and subject to formal approval, which may result in
modifications or additions. Nexperia does not give any representations or
warranties as to the accuracy or completeness of information included herein
and shall have no liability for the consequences of use of such information.
Short data sheet — A short data sheet is an extract from a full data sheet
with the same product type number(s) and title. A short data sheet is
intended for quick reference only and should not be relied upon to contain
detailed and full information. For detailed and full information see the relevant
full data sheet, which is available on request via the local Nexperia sales
office. In case of any inconsistency or conflict with the short data sheet, the
full data sheet shall prevail.
Product specification — The information and data provided in a Product
data sheet shall define the specification of the product as agreed between
Nexperia and its customer, unless Nexperia and customer have explicitly
agreed otherwise in writing. In no event however, shall an agreement be
valid in which the Nexperia product is deemed to offer functions and qualities
beyond those described in the Product data sheet.
Disclaimers
Limited warranty and liability — Information in this document is believed
to be accurate and reliable. However, Nexperia does not give any
representations or warranties, expressed or implied, as to the accuracy
or completeness of such information and shall have no liability for the
consequences of use of such information. Nexperia takes no responsibility
for the content in this document if provided by an information source outside
of Nexperia.
In no event shall Nexperia be liable for any indirect, incidental, punitive,
special or consequential damages (including - without limitation - lost
profits, lost savings, business interruption, costs related to the removal
or replacement of any products or rework charges) whether or not such
damages are based on tort (including negligence), warranty, breach of
contract or any other legal theory.
Customers are responsible for the design and operation of their applications
and products using Nexperia products, and Nexperia accepts no liability for
any assistance with applications or customer product design. It is customer’s
sole responsibility to determine whether the Nexperia product is suitable
and fit for the customer’s applications and products planned, as well as
for the planned application and use of customer’s third party customer(s).
Customers should provide appropriate design and operating safeguards to
minimize the risks associated with their applications and products.
Nexperia does not accept any liability related to any default, damage, costs
or problem which is based on any weakness or default in the customer’s
applications or products, or the application or use by customer’s third party
customer(s). Customer is responsible for doing all necessary testing for the
customer’s applications and products using Nexperia products in order to
avoid a default of the applications and the products or of the application or
use by customer’s third party customer(s). Nexperia does not accept any
liability in this respect.
Limiting values — Stress above one or more limiting values (as defined in
the Absolute Maximum Ratings System of IEC 60134) will cause permanent
damage to the device. Limiting values are stress ratings only and (proper)
operation of the device at these or any other conditions above those
given in the Recommended operating conditions section (if present) or the
Characteristics sections of this document is not warranted. Constant or
repeated exposure to limiting values will permanently and irreversibly affect
the quality and reliability of the device.
Terms and conditions of commercial sale — Nexperia products are
sold subject to the general terms and conditions of commercial sale, as
published at http://www.nexperia.com/profile/terms, unless otherwise agreed
in a valid written individual agreement. In case an individual agreement is
concluded only the terms and conditions of the respective agreement shall
apply. Nexperia hereby expressly objects to applying the customer’s general
terms and conditions with regard to the purchase of Nexperia products by
customer.
No offer to sell or license — Nothing in this document may be interpreted
or construed as an offer to sell products that is open for acceptance or the
grant, conveyance or implication of any license under any copyrights, patents
or other industrial or intellectual property rights.
Export control — This document as well as the item(s) described herein
may be subject to export control regulations. Export might require a prior
authorization from competent authorities.
Translations — A non-English (translated) version of a document is for
reference only. The English version shall prevail in case of any discrepancy
between the translated and English versions.
Trademarks
Notice: All referenced brands, product names, service names and
trademarks are the property of their respective owners.
Notwithstanding any damages that customer might incur for any reason
whatsoever, Nexperia’s aggregate and cumulative liability towards customer
for the products described herein shall be limited in accordance with the
Terms and conditions of commercial sale of Nexperia.
Right to make changes — Nexperia reserves the right to make changes
to information published in this document, including without limitation
specifications and product descriptions, at any time and without notice. This
document supersedes and replaces all information supplied prior to the
publication hereof.
Suitability for use in automotive applications — This Nexperia product
has been qualified for use in automotive applications. Unless otherwise
agreed in writing, the product is not designed, authorized or warranted to
be suitable for use in life support, life-critical or safety-critical systems or
PMEG2010BEA
Product data sheet
All information provided in this document is subject to legal disclaimers.
15 July 2020
©
Nexperia B.V. 2020. All rights reserved
9 / 10
PMEG2010BEA
Nexperia
1 A very low VF MEGA Schottky barrier rectifier
Contents
1. General description...................................................... 1
2. Features and benefits.................................................. 1
3. Applications.................................................................. 1
4. Quick reference data....................................................1
5. Pinning information......................................................2
6. Ordering information....................................................2
7. Marking.......................................................................... 2
8. Limiting values............................................................. 3
9. Thermal characteristics............................................... 3
10. Characteristics............................................................ 4
11. Test information.......................................................... 5
12. Package outline.......................................................... 6
13. Soldering..................................................................... 7
14. Revision history..........................................................8
15. Legal information........................................................9
©
Nexperia B.V. 2020. All rights reserved
For more information, please visit: http://www.nexperia.com
For sales office addresses, please send an email to: salesaddresses@nexperia.com
Date of release: 15 July 2020
PMEG2010BEA
Product data sheet
All information provided in this document is subject to legal disclaimers.
15 July 2020
©
Nexperia B.V. 2020. All rights reserved
10 / 10
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Nexperia:
PMEG2010BEA,115
