BAT86
Schottky barrier single diode
25 July 2012
Product data sheet
1. Product profile
1.1 General description
Planar Schottky barrier diode with an integrated guard ring for stress protection,

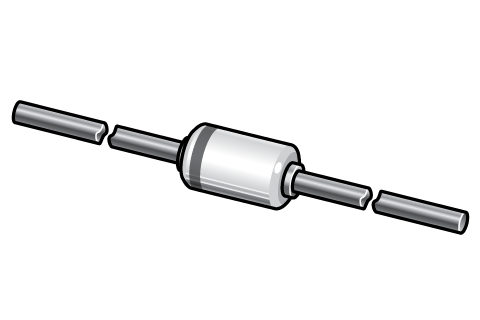

encapsulated in a hermetically-sealed subminiature SOD68 (DO-34) package. The diode
is suitable for mounting on a 2 E (5.08 mm) pitch.
1.2 Features and benefits
• Low forward voltage
• Guard ring protected
• Hermetically-sealed leaded glass package
1.3 Applications
• Ultra high-speed switching
• Voltage clamping
• Protection circuits
• Blocking diodes
1.4 Quick reference data
Table 1.
Quick reference data
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
IF(AV)
average forward
current
δ = 0.5 ; f = 20 kHz; Tamb ≤ 50 °C; PCB
-
-
200
mA
-
-
50
V
-
-
450
mV
VR
reverse voltage
VF
forward voltage
mounting, lead length = 4 mm
IF = 10 mA; Tamb = 25 °C
2. Pinning information
Table 2.
Pinning information
Pin
Symbol Description
1
K
cathode[1]
2
A
anode
[1]
Simplified outline
k
Graphic symbol
a
DO-34 (SOD68)
The marking band indicates the cathode.
K
A
aaa-003679
Nexperia
BAT86
Schottky barrier single diode
3. Ordering information
Table 3.
Ordering information
Type number
Package
BAT86
Name
Description
Version
DO-34
hermetically sealed glass package; axial leaded; 2 leads
SOD68
4. Marking
Table 4.
Marking codes
Type number
Marking code
BAT86
marking band
5. Limiting values
Table 5.
Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol
Parameter
VR
Conditions
Min
Max
Unit
reverse voltage
-
50
V
IF
forward current
-
200
mA
IF(AV)
average forward current
-
200
mA
δ = 0.5 ; f = 20 kHz; Tamb ≤ 50 °C; PCB
mounting, lead length = 4 mm
IFRM
repetitive peak forward current
tp ≤ 1 s; δ ≤ 0.5
-
500
mA
IFSM
non-repetitive peak forward
current
tp ≤ 10 ms; Tj(init) = 25 °C
-
5
A
Tj
junction temperature
-
125
°C
Tamb
ambient temperature
-65
125
°C
Tstg
storage temperature
-65
150
°C
Min
Typ
Max
Unit
-
-
320
K/W
6. Thermal characteristics
Table 6.
Thermal characteristics
Symbol
Parameter
Conditions
Rth(j-a)
thermal resistance
from junction to
ambient
in free air
[1]
BAT86
Product data sheet
[1]
Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard
footprint.
All information provided in this document is subject to legal disclaimers.
25 July 2012
© Nexperia B.V. 2012. All rights reserved
2/8
Nexperia
BAT86
Schottky barrier single diode
7. Characteristics
Table 7.
Characteristics
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
VF
forward voltage
IF = 0.1 mA; Tamb = 25 °C
-
-
300
mV
IF = 1 mA; Tamb = 25 °C
-
-
380
mV
IF = 10 mA; Tamb = 25 °C
-
-
450
mV
IF = 30 mA; Tamb = 25 °C
-
-
600
mV
IF = 100 mA; Tamb = 25 °C
-
-
900
mV
VR = 40 V; Tamb = 25 °C; pulsed;
-
-
5
µA
IR
reverse current
tp = 300 µs; δ = 0.02
Cd
diode capacitance
f = 1 MHz; Tamb = 25 °C; VR = 1 V
-
-
8
pF
trr
reverse recovery time
IF = 10 mA; IR = 10 mA; RL = 100 Ω;
-
-
4
ns
IR(meas) = 1 mA; Tamb = 25 °C
mld357
103
IF
(mA)
(1) (2) (3)
mgc686
105
IR
(nA)
104
(1)
103
(2)
102
102
10
(1)
1
10
(2) (3)
(3)
1
10- 1
0
0.4
0.8
VF (V)
10- 1
1.2
30
40
VR (V)
50
(3) Tamb = −40 °C
(3) Tamb = 25 °C
Forward current as a function of forward
voltage; typical values
Product data sheet
20
(2) Tamb = 25 °C
(2) Tamb = 85 °C
BAT86
10
(1) Tamb = 85 °C
(1) Tamb = 125 °C
Fig. 1.
0
Fig. 2.
Reverse current as a function of reverse
voltage; typical values
All information provided in this document is subject to legal disclaimers.
25 July 2012
© Nexperia B.V. 2012. All rights reserved
3/8
Nexperia
BAT86
Schottky barrier single diode
mgc687
12
mra540
250
IF(AV)
(mA)
Cd
(pF)
200
8
150
100
4
50
0
0
10
20
30
40
VR (V)
0
50
50
100
Tamb (°C)
150
FR4 PCB, standard footprint
Tamb = 25 °C; f = 1 MHz
Fig. 3.
0
Fig. 4.
Diode capacitance as a function of reverse
voltage; typical values
Average forward current as a function of
ambient temperature; derating curve
8. Test information
tr
D.U.T.
RS = 50 Ω
V = VR + IF × RS
IF
tp
10 %
t
+ IF
SAMPLING
OSCILLOSCOPE
trr
t
Ri = 50 Ω
mga881
VR
(1)
90 %
input signal
output signal
(1) IR = 1 mA
Fig. 5.
Reverse recovery time test circuit and waveforms
BAT86
Product data sheet
All information provided in this document is subject to legal disclaimers.
25 July 2012
© Nexperia B.V. 2012. All rights reserved
4/8
Nexperia
BAT86
Schottky barrier single diode
9. Package outline
0.55
max
25.4
min
3.04
max
25.4
min
1.6
max
Dimensions in mm
Fig. 6.
97-06-09
DO-34 (SOD68)
10. Revision history
Table 8.
Revision history
Data sheet ID
Release date
Data sheet status
Change notice
Supersedes
BAT86 v.3
20120725
Product data sheet
-
BAT86 v.2
Modifications:
•
•
•
•
•
The format of this document has been redesigned to comply with the new identity guidelines
of NXP Semiconductors.
Legal texts have been adapted to the new company name where appropriate.
Section "Marking" added
Package outline drawing replaced by minimized package outline drawing
Section "Test information" added
BAT86 v.2
20000525
Product specification
-
BAT86 v.1
BAT86 v.1
19960320
Product specification
-
-
BAT86
Product data sheet
All information provided in this document is subject to legal disclaimers.
25 July 2012
© Nexperia B.V. 2012. All rights reserved
5/8
Nexperia
BAT86
Schottky barrier single diode
In no event shall Nexperia be liable for any indirect, incidental, punitive,
special or consequential damages (including - without limitation -lost profits,
lost savings, business interruption, costs related to the removal or
replacement of any products or rework charges) whether or not such
damages are based on tort (including negligence), warranty, breach of
contract or any other legal theory.
11. Legal information
11.1 Data sheet status
Notwithstanding any damages that customer might incur for any reason
whatsoever, Nexperia' s aggregate and cumulative liability towards customer
for the products described herein shall be limited in accordance with the
Terms and conditions of commercial sale of Nexperia.
Document
status [1][2]
Product
status [3]
Objective
[short] data
sheet
Development This document contains data from
the objective specification for product
development.
Preliminary
[short] data
sheet
Qualification
This document contains data from the
preliminary specification.
Product
[short] data
sheet
Production
This document contains the product
specification.
[1]
Definition
Right to make changes — Nexperia reserves the right to make changes to
information published in this document, including without limitation
specifications and product descriptions, at any time and without notice. This
document supersedes and replaces all information supplied prior to the
publication hereof.
Please consult the most recently issued document before initiating or
completing a design.
The term 'short data sheet' is explained in section "Definitions".
The product status of device(s) described in this document may have
changed since this document was published and may differ in case of
multiple devices. The latest product status information is available on
the Internet at URL http://www.nexperia.com.
[2]
[3]
11.2 Definitions
Preview — The document is a preview version only. The document is still
subject to formal approval, which may result in modifications or additions.
Nexperia does not give any representations or warranties as to the accuracy
or completeness of information included herein and shall have no liability for
the consequences of use of such information.
Draft — The document is a draft version only. The content is still under
internal review and subject to formal approval, which may result in
modifications or additions. Nexperia does not give any representations or
warranties as to the accuracy or completeness of information included herein
and shall have no liability for the consequences of use of such information.
Short data sheet — A short data sheet is an extract from a full data sheet
with the same product type number(s) and title. A short data sheet is
intended for quick reference only and should not be relied upon to contain
detailed and full information. For detailed and full information see the
relevant full data sheet, which is available on request via the local Nexperia
sales office. In case of any inconsistency or conflict with the short data
sheet, the full data sheet shall prevail.
Product specification — The information and data provided in a Product
data sheet shall define the specification of the product as agreed between
Nexperia and its customer, unless Nexperia and customer have explicitly
agreed otherwise in writing. In no event however, shall an agreement be
valid in which the Nexperia product
is deemed to offer functions and qualities beyond those described in the
Product data sheet.
11.3 Disclaimers
Limited warranty and liability — Information in this document is believed
to be accurate and reliable. However, Nexperia does not give any
representations or warranties, expressed or implied, as to the accuracy or
completeness of such information and shall have no liability for the
consequences of use of such information. Nexperia takes no responsibility
for the content in this document if provided by an information source
outside of Nexperia.
BAT86
Product data sheet
Suitability for use — Nexperia products are not designed, authorized or
warranted to be suitable for use in life support, life-critical or safety-critical
systems or equipment, nor in applications where failure or malfunction of an
Nexperia product can reasonably be expected to result in personal injury,
death or severe property or environmental damage. Nexperia and its
suppliers accept no liability for inclusion and/or use of Nexperia products in
such equipment or applications and therefore such inclusion and/or use is at
the customer’s own risk.
Quick reference data — The Quick reference data is an extract of the
product data given in the Limiting values and Characteristics sections of this
document, and as such is not complete, exhaustive or legally binding.
Applications — Applications that are described herein for any of these
products are for illustrative purposes only. Nexperia makes no representation
or warranty that such applications will be suitable for the specified use without
further testing or modification.
Customers are responsible for the design and operation of their applications
and products using Nexperia products, and Nexperia accepts no liability for
any assistance with applications or customer product design. It is customer’s
sole responsibility to determine whether the Nexperia product is suitable and
fit for the customer’s applications and products planned, as well as for the
planned application and use of customer’s third party customer(s). Customers
should provide appropriate design and operating safeguards to minimize the
risks associated with their applications and products.
Nexperia does not accept any liability related to any default, damage, costs or
problem which is based on any weakness or default
in the customer’s applications or products, or the application or use by
customer’s third party customer(s). Customer is responsible for doing all
necessary testing for the customer’s applications and products using
Nexperia products in order to avoid a default of the applications
and the products or of the application or use by customer’s third party
customer(s). Nexperia does not accept any liability in this respect.
Limiting values — Stress above one or more limiting values (as defined in
the Absolute Maximum Ratings System of IEC 60134) will cause permanent
damage to the device. Limiting values are stress ratings only and (proper)
operation of the device at these or any other conditions above those
given in the Recommended operating conditions section (if present) or the
Characteristics sections of this document is not warranted. Constant or
repeated exposure to limiting values will permanently and irreversibly affect
the quality and reliability of the device.
Terms and conditions of commercial sale — Nexperia products are sold
subject to the general terms and conditions of commercial sale, as published
at http://www.nexperia.com/profile/terms, unless otherwise agreed in a valid
written individual agreement. In case an individual agreement is concluded
only the terms and conditions of the respective agreement shall apply.
Nexperia hereby expressly objects to applying the customer’s general terms
and conditions with regard to the purchase of Nexperia products by customer.
No offer to sell or license — Nothing in this document may be interpreted or
construed as an offer to sell products that is open for acceptance or the
All information provided in this document is subject to legal disclaimers.
25 July 2012
© Nexperia B.V. 2012. All rights reserved
6/8
Nexperia
BAT86
Schottky barrier single diode
grant, conveyance or implication of any license under any copyrights, patents
or other industrial or intellectual property rights.
Export control — This document as well as the item(s) described herein
may be subject to export control regulations. Export might require a prior
authorization from competent authorities.
Non-automotive qualified products — Unless this data sheet expressly
states that this specific Nexperia product is automotive qualified, the product
is not suitable for automotive use. It is neither qualified nor tested in
accordance with automotive testing or application requirements. Nexperia
accepts no liability for inclusion and/or use of non-automotive qualified
products in automotive equipment or applications.
In the event that customer uses the product for design-in and use in
automotive applications to automotive specifications and standards, customer
(a) shall use the product without Nexperia's warranty of the product for such
automotive applications, use and specifications, and (b) whenever customer
uses the product for automotive applications beyond Nexperia's specifications
such use shall be solely at customer’s own risk, and (c) customer fully
indemnifies Nexperia for any liability, damages or failed product claims
resulting from customer design and use of the product for automotive
applications beyond Nexperia's standard warranty and Nexperia's product
specifications.
Translations — A non-English (translated) version of a document is for
reference only. The English version shall prevail in case of any discrepancy
between the translated and English versions.
11.4 Trademarks
Notice: All referenced brands, product names, service names and
trademarks are the property of their respective owners.
BAT86
Product data sheet
All information provided in this document is subject to legal disclaimers.
25 July 2012
© Nexperia B.V. 2012. All rights reserved
7/8
Nexperia
BAT86
Schottky barrier single diode
12. Contents
1
1.1
1.2
1.3
1.4
Product profile ....................................................... 1
General description .............................................. 1
Features and benefits ...........................................1
Applications .......................................................... 1
Quick reference data ............................................ 1
2
Pinning information ............................................... 1
3
Ordering information ............................................. 2
4
Marking ................................................................... 2
5
Limiting values .......................................................2
6
Thermal characteristics .........................................2
7
Characteristics ....................................................... 3
8
Test information ..................................................... 4
9
Package outline ..................................................... 5
10
Revision history ..................................................... 5
11
11.1
11.2
11.3
11.4
Legal information ...................................................6
Data sheet status ................................................. 6
Definitions .............................................................6
Disclaimers ...........................................................6
Trademarks .......................................................... 7
© Nexperia B.V. 2012. All rights reserved
For more information, please visit: http://www.nexperia.com
For sales office addresses, please send an email to:
salesaddresses@nexperia.com Date of release: 25 July 2012
BAT86
Product data sheet
All information provided in this document is subject to legal disclaimers.
25 July 2012
© Nexperia B.V. 2012. All rights reserved
8/8
