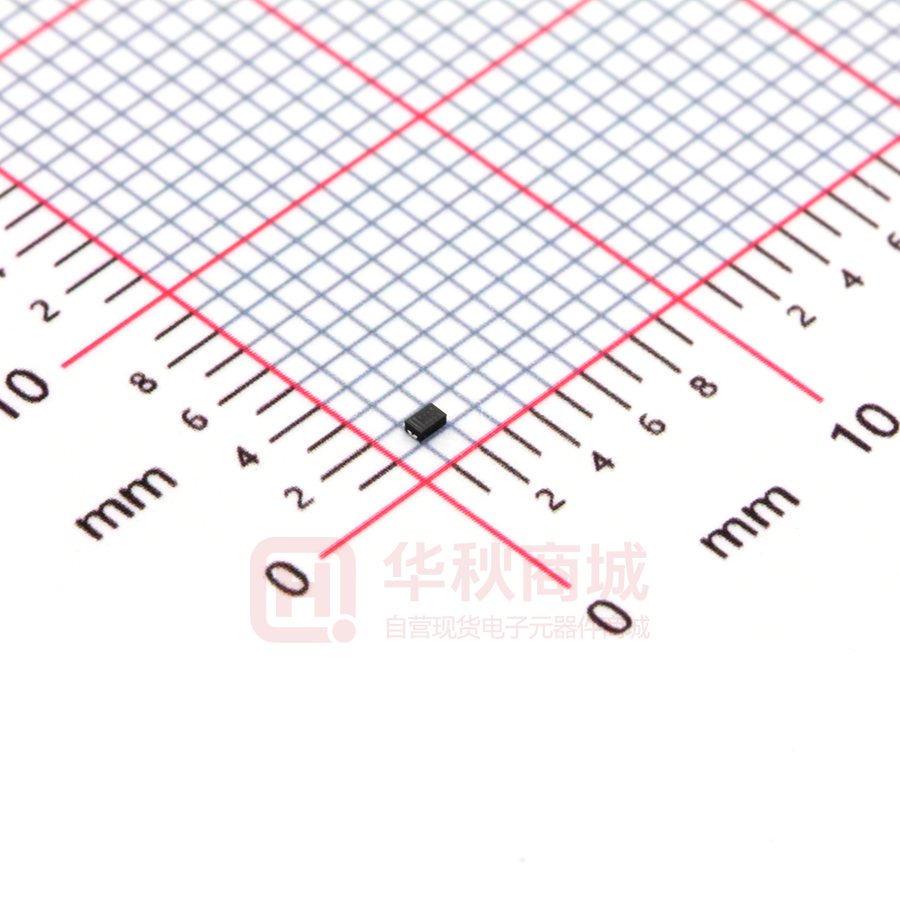

BAS16LD,315

BAS16LD Single high-speed switching diode Rev. 1 — 12 October 2010 Product data sheet 1. Product profile 1.1 General description Single high-speed switching diode, encapsulated in a SOD882D leadless ultra small Surface-Mounted Device (SMD) plastic package with visible and solderable side pads. 1.2 Features and benefits „ High switching speed: trr ≤ 4 ns „ Low leakage current „ Repetitive peak reverse voltage: VRRM ≤ 100 V „ AEC-Q101 qualified „ Low capacitance „ Reverse voltage: VR ≤ 100 V „ Ultra small and leadless SMD plastic package „ Solderable side pads 1.3 Applications „ High-speed switching „ General-purpose switching 1.4 Quick reference data Table 1. Symbol Quick reference data Parameter IF forward current IR reverse current VR reverse voltage trr reverse recovery time Conditions [1] VR = 80 V [2] Min Typ Max Unit - - 215 mA - - 0.5 μA - - 100 V - - 4 ns [1] Device mounted on an FR4 Printed-Circuit Board (PCB) with 60 μm copper strip line. [2] When switched from IF = 10 mA to IR =10 mA; RL = 100 Ω; measured at IR = 1 mA. BAS16LD Nexperia Single high-speed switching diode 2. Pinning information Table 2. Pinning Pin Description 1 cathode 2 anode Simplified outline Graphic symbol [1] 1 2 1 2 006aab040 Transparent top view [1] The marking bar indicates the cathode. 3. Ordering information Table 3. Ordering information Type number BAS16LD Package Name Description Version - leadless ultra small plastic package; 2 terminals; body 1.0 × 0.6 × 0.4 mm SOD882D 4. Marking Table 4. Marking codes Type number Marking code[1] BAS16LD 1000 0000 [1] For SOD882D binary marking code description, see Figure 1. 4.1 Binary marking code description CATHODE BAR READING DIRECTION VENDOR CODE READING EXAMPLE: 0111 1011 MARKING CODE (EXAMPLE) READING DIRECTION 006aac477 Fig 1. BAS16LD Product data sheet SOD882D binary marking code description All information provided in this document is subject to legal disclaimers. Rev. 1 — 12 October 2010 © Nexperia B.V. 2010. All rights reserved. 2 of 11 BAS16LD Nexperia Single high-speed switching diode 5. Limiting values Table 5. Limiting values In accordance with the Absolute Maximum Rating System (IEC 60134). Symbol Parameter VRRM repetitive peak reverse voltage VR reverse voltage Conditions Min Max Unit - 100 V - 100 V 215 mA - 500 mA tp = 1 μs - 4 A tp = 1 ms - 1 A - 0.5 A - 250 mW [1] IF forward current IFRM repetitive peak forward current tp ≤ 0.5 μs; δ ≤ 0.25 IFSM non-repetitive peak forward current square wave [2] tp = 1 s Tamb ≤ 25 °C [1][3] Ptot total power dissipation Tj junction temperature - 150 °C Tamb ambient temperature −55 +150 °C Tstg storage temperature −65 +150 °C [1] Device mounted on an FR4 PCB with 60 μm copper strip line. [2] Tj = 25 °C prior to surge. [3] Reflow soldering is the only recommended soldering method. 6. Thermal characteristics Table 6. Symbol Rth(j-a) BAS16LD Product data sheet Thermal characteristics Parameter thermal resistance from junction to ambient Conditions in free air [1] Device mounted on an FR4 PCB with 60 μm copper strip line. [2] Reflow soldering is the only recommended soldering method. All information provided in this document is subject to legal disclaimers. Rev. 1 — 12 October 2010 [1][2] Min Typ Max Unit - - 500 K/W © Nexperia B.V. 2010. All rights reserved. 3 of 11 BAS16LD Nexperia Single high-speed switching diode 7. Characteristics Table 7. Characteristics Tamb = 25 °C unless otherwise specified. Symbol VF IR Product data sheet Conditions Min Typ Max IF = 1 mA - - 715 mV IF = 10 mA - - 855 mV IF = 50 mA - - 1 V IF = 150 mA - - 1.25 V VR = 25 V - - 30 nA VR = 80 V - - 0.5 μA VR =25 V; Tj = 150 °C - - 30 μA VR =80 V; Tj = 150 °C - - 50 μA forward voltage reverse current Unit [1] Cd diode capacitance - - 1.5 pF trr reverse recovery time [2] - - 4 ns forward recovery voltage [3] - - 1.75 V VFR BAS16LD Parameter f = 1 MHz; VR = 0 V [1] Pulse test: tp ≤ 300 μs; δ ≤ 0.02. [2] When switched from IF = 10 mA to IR =10 mA; RL = 100 Ω; measured at IR = 1 mA. [3] When switched from IF =10 mA; tr = 20 ns. All information provided in this document is subject to legal disclaimers. Rev. 1 — 12 October 2010 © Nexperia B.V. 2010. All rights reserved. 4 of 11 BAS16LD Nexperia Single high-speed switching diode 006aab132 103 IF (mA) mbg704 102 IFSM (A) 102 10 10 1 (1) (2) (3) (4) 1 10−1 10−1 0 0.2 0.4 0.6 0.8 1.0 1 1.2 1.4 VF (V) 10 102 103 104 tp (μs) (1) Tamb = 150 °C Based on square wave currents. (2) Tamb = 85 °C Tj = 25 °C; prior to surge (3) Tamb = 25 °C (4) Tamb = −40 °C Fig 2. Forward current as a function of forward voltage; typical values Fig 3. 006aab133 102 IR (μA) 10 (1) 1 (2) Non-repetitive peak forward current as a function of pulse duration; maximum values mbg446 0.8 Cd (pF) 0.6 10−1 0.4 (3) 10−2 10−3 0.2 10−4 (4) 10−5 0 0 20 40 60 80 0 100 4 8 VR (V) (1) Tamb = 150 °C 12 VR (V) 16 f =1 MHz; Tamb = 25 °C (2) Tamb = 85 °C (3) Tamb = 25 °C (4) Tamb = −40 °C Fig 4. Reverse current as a function of reverse voltage; typical values BAS16LD Product data sheet Fig 5. Diode capacitance as a function of reverse voltage; typical values All information provided in this document is subject to legal disclaimers. Rev. 1 — 12 October 2010 © Nexperia B.V. 2010. All rights reserved. 5 of 11 BAS16LD Nexperia Single high-speed switching diode 8. Test information tr tp t D.U.T. 10 % + IF IF RS = 50 Ω SAMPLING OSCILLOSCOPE trr t Ri = 50 Ω V = VR + IF × RS (1) 90 % VR mga881 input signal output signal (1) IR = 1 mA Input signal: reverse pulse rise time tr = 0.6 ns; reverse voltage pulse duration tp = 100 ns; duty cycle δ = 0.05 Oscilloscope: rise time tr = 0.35 ns Fig 6. Reverse recovery time test circuit and waveforms I 1 kΩ RS = 50 Ω D.U.T. 450 Ω I V 90 % OSCILLOSCOPE VFR Ri = 50 Ω 10 % t tr t tp input signal output signal mga882 Input signal: forward pulse rise time tr = 20 ns; forward current pulse duration tp ≥ 100 ns; duty cycle δ ≤ 0.005 Fig 7. Forward recovery voltage test circuit and waveforms BAS16LD Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 1 — 12 October 2010 © Nexperia B.V. 2010. All rights reserved. 6 of 11 BAS16LD Nexperia Single high-speed switching diode 9. Package outline 0.65 0.55 0.4 max 2 0.30 0.22 0.65 1.05 0.95 1 0.30 0.22 0.55 0.45 cathode marking on top side Dimensions in mm Fig 8. 10-08-06 Package outline BAS16LD (SOD882D) 10. Packing information Please refer to packing information on www.nexperia.com. 11. Soldering 1.4 0.2 solder lands 0.8 (2×) 0.6 (2×) 0.7 (2×) solder resist solder paste Dimensions in mm 0.3 0.4 1 1.3 sod882d_fr Reflow soldering is the only recommended soldering method. Fig 9. BAS16LD Product data sheet Reflow soldering footprint BAS16LD (SOD882D) All information provided in this document is subject to legal disclaimers. Rev. 1 — 12 October 2010 © Nexperia B.V. 2010. All rights reserved. 7 of 11 BAS16LD Nexperia Single high-speed switching diode 12. Revision history Table 9. Revision history Document ID Release date Data sheet status Change notice Supersedes BAS16LD v.1 20101012 Product data sheet - - BAS16LD Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 1 — 12 October 2010 © Nexperia B.V. 2010. All rights reserved. 8 of 11 BAS16LD Nexperia Single high-speed switching diode 13. Legal information 13.1 Data sheet status Document status[1][2] Product status[3] Definition Objective [short] data sheet Development This document contains data from the objective specification for product development. Preliminary [short] data sheet Qualification This document contains data from the preliminary specification. Product [short] data sheet Production This document contains the product specification. [1] Please consult the most recently issued document before initiating or completing a design. [2] The term ‘short data sheet’ is explained in section “Definitions”. [3] The product status of device(s) described in this document may have changed since this document was published and may differ in case of multiple devices. The latest product status information is available on the Internet at URL http://www.nexperia.com. 13.2 Definitions Draft — The document is a draft version only. The content is still under internal review and subject to formal approval, which may result in modifications or additions. Nexperia does not give any representations or warranties as to the accuracy or completeness of information included herein and shall have no liability for the consequences of use of such information. Short data sheet — A short data sheet is an extract from a full data sheet with the same product type number(s) and title. A short data sheet is intended for quick reference only and should not be relied upon to contain detailed and full information. For detailed and full information see the relevant full data sheet, which is available on request via the local Nexperia sales office. In case of any inconsistency or conflict with the short data sheet, the full data sheet shall prevail. Product specification — The information and data provided in a Product data sheet shall define the specification of the product as agreed between Nexperia and its customer, unless Nexperia and customer have explicitly agreed otherwise in writing. In no event however, shall an agreement be valid in which the Nexperia product is deemed to offer functions and qualities beyond those described in the Product data sheet. 13.3 Disclaimers Limited warranty and liability — Information in this document is believed to be accurate and reliable. However, Nexperia does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of use of such information. In no event shall Nexperia be liable for any indirect, incidental, punitive, special or consequential damages (including - without limitation - lost profits, lost savings, business interruption, costs related to the removal or replacement of any products or rework charges) whether or not such damages are based on tort (including negligence), warranty, breach of contract or any other legal theory. Notwithstanding any damages that customer might incur for any reason whatsoever, Nexperia's aggregate and cumulative liability towards customer for the products described herein shall be limited in accordance with the Terms and conditions of commercial sale of Nexperia. Right to make changes — Nexperia reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. This document supersedes and replaces all information supplied prior to the publication hereof. Suitability for use — Nexperia products are not designed, authorized or warranted to be suitable for use in life support, life-critical or safety-critical systems or equipment, nor in applications where failure or BAS16LD Product data sheet malfunction of an Nexperia product can reasonably be expected to result in personal injury, death or severe property or environmental damage. Nexperia accepts no liability for inclusion and/or use of Nexperia products in such equipment or applications and therefore such inclusion and/or use is at the customer’s own risk. Applications — Applications that are described herein for any of these products are for illustrative purposes only. Nexperia makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. Customers are responsible for the design and operation of their applications and products using Nexperia products, and Nexperia accepts no liability for any assistance with applications or customer product design. It is customer’s sole responsibility to determine whether the Nexperia product is suitable and fit for the customer’s applications and products planned, as well as for the planned application and use of customer’s third party customer(s). Customers should provide appropriate design and operating safeguards to minimize the risks associated with their applications and products. Nexperia does not accept any liability related to any default, damage, costs or problem which is based on any weakness or default in the customer’s applications or products, or the application or use by customer’s third party customer(s). Customer is responsible for doing all necessary testing for the customer’s applications and products using Nexperia products in order to avoid a default of the applications and the products or of the application or use by customer’s third party customer(s). Nexperia does not accept any liability in this respect. Limiting values — Stress above one or more limiting values (as defined in the Absolute Maximum Ratings System of IEC 60134) will cause permanent damage to the device. Limiting values are stress ratings only and (proper) operation of the device at these or any other conditions above those given in the Recommended operating conditions section (if present) or the Characteristics sections of this document is not warranted. Constant or repeated exposure to limiting values will permanently and irreversibly affect the quality and reliability of the device. Terms and conditions of commercial sale — Nexperia products are sold subject to the general terms and conditions of commercial sale, as published at http://www.nexperia.com/profile/terms, unless otherwise agreed in a valid written individual agreement. In case an individual agreement is concluded only the terms and conditions of the respective agreement shall apply. Nexperia hereby expressly objects to applying the customer’s general terms and conditions with regard to the purchase of Nexperia products by customer. No offer to sell or license — Nothing in this document may be interpreted or construed as an offer to sell products that is open for acceptance or the grant, conveyance or implication of any license under any copyrights, patents or other industrial or intellectual property rights. Export control — This document as well as the item(s) described herein may be subject to export control regulations. Export might require a prior authorization from national authorities. All information provided in this document is subject to legal disclaimers. Rev. 1 — 12 October 2010 © Nexperia B.V. 2010. All rights reserved. 9 of 11 BAS16LD Nexperia Single high-speed switching diode Quick reference data — The Quick reference data is an extract of the product data given in the Limiting values and Characteristics sections of this document, and as such is not complete, exhaustive or legally binding. BAS16LD Product data sheet 13.4 Trademarks Notice: All referenced brands, product names, service names and trademarks are the property of their respective owners. All information provided in this document is subject to legal disclaimers. Rev. 1 — 12 October 2010 © Nexperia B.V. 2010. All rights reserved. 10 of 11 BAS16LD Nexperia Single high-speed switching diode 14. Contents 1 1.1 1.2 1.3 1.4 2 3 4 4.1 5 6 7 8 9 10 11 12 13 13.1 13.2 13.3 13.4 Product profile . . . . . . . . . . . . . . . . . . . . . . . . . . 1 General description . . . . . . . . . . . . . . . . . . . . . 1 Features and benefits . . . . . . . . . . . . . . . . . . . . 1 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Quick reference data . . . . . . . . . . . . . . . . . . . . 1 Pinning information . . . . . . . . . . . . . . . . . . . . . . 2 Ordering information . . . . . . . . . . . . . . . . . . . . . 2 Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Binary marking code description. . . . . . . . . . . . 2 Limiting values. . . . . . . . . . . . . . . . . . . . . . . . . . 3 Thermal characteristics . . . . . . . . . . . . . . . . . . 3 Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Test information . . . . . . . . . . . . . . . . . . . . . . . . . 6 Package outline . . . . . . . . . . . . . . . . . . . . . . . . . 7 Packing information . . . . . . . . . . . . . . . . . . . . . 7 Soldering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . 8 Legal information. . . . . . . . . . . . . . . . . . . . . . . . 9 Data sheet status . . . . . . . . . . . . . . . . . . . . . . . 9 Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Disclaimers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . 10 14 Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Please be aware that important notices concerning this document and the product(s) described herein, have been included in section ‘Legal information’. © Nexperia B.V. 2010. All rights reserved. For more information, please visit: http://www.nexperia.com For sales office addresses, please send an email to: salesaddresses@nexperia.com Date of release: 12 October 2010 Document identifier: BAS16LD
