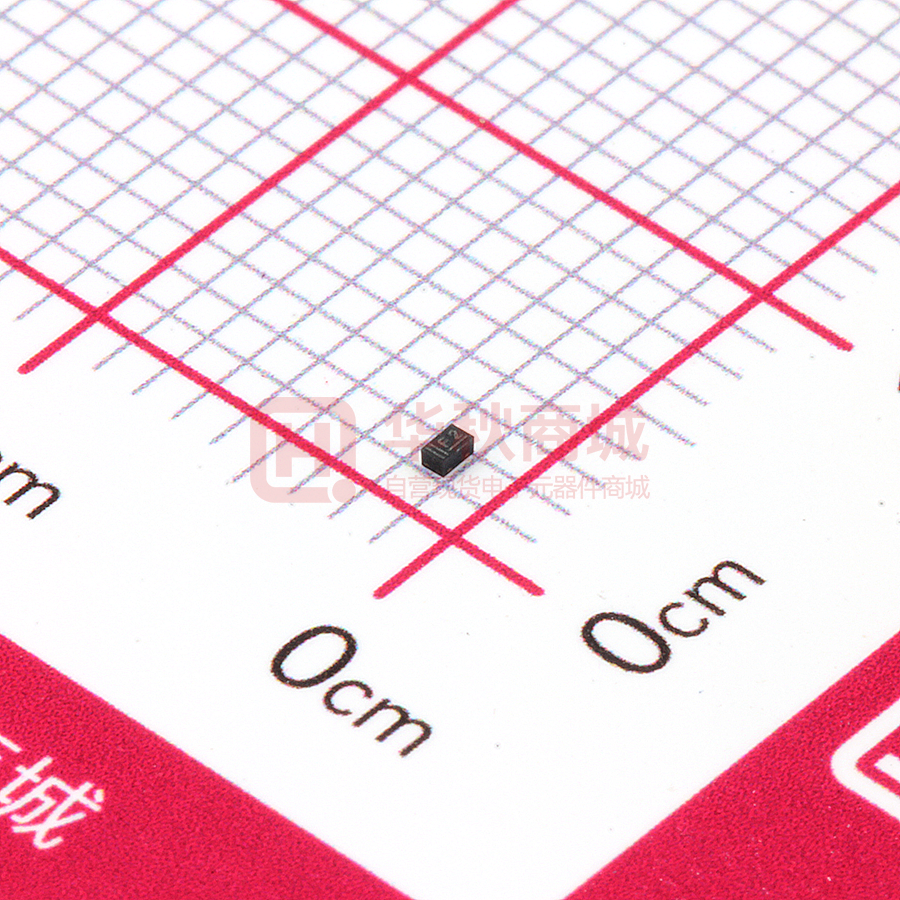

PMEG2005AEL,315

PMEG2005AEL 0.5 A ultra low VF MEGA Schottky barrier rectifier in leadless ultra small SOD882 package Rev. 03 — 15 January 2010 Product data sheet 1. Product profile 1.1 General description Planar Maximum Efficiency General Application (MEGA) Schottky barrier diode with an integrated guard ring for stress protection encapsulated in a SOD882 leadless ultra small plastic package. 1.2 Features „ „ „ „ „ Forward current: 0.5 A Reverse voltage: 20 V Ultra low forward voltage Leadless ultra small plastic package Power dissipation comparable to SOT23 1.3 Applications „ „ „ „ „ „ Ultra high-speed switching Voltage clamping Protection circuits Low voltage rectification High efficiency DC-to-DC conversion Low power consumption applications 1.4 Quick reference data Table 1. Quick reference data Symbol Parameter Value Unit IF forward current 0.5 A VR reverse voltage 20 V PMEG2005AEL Nexperia 0.5 A ultra low VF MEGA Schottky rectifier 2. Pinning information Table 2. Discrete pinning Pin Description 1 cathode 2 anode Simplified outline Symbol [1] 1 1 2 2 sym001 Bottom view Top view 001aaa332 [1] The marking bar indicates the cathode. 3. Ordering information Table 3. Ordering information Type number PMEG2005AEL Package Name Description Version - leadless ultra small plastic package; 2 terminals; body 1.0 × 0.6 × 0.5 mm SOD882 4. Marking Table 4. Marking Type number Marking code PMEG2005AEL F2 5. Limiting values Table 5. Limiting values In accordance with the Absolute Maximum Rating System (IEC 60134). Symbol Parameter Conditions Min Max Unit VR continuous reverse voltage - 20 V IF continuous forward current - 0.5 A IFRM repetitive peak forward current tp ≤ 1 ms; δ ≤ 0.25 - 2.5 A IFSM non-repetitive peak forward current - 3 A Tj junction temperature [1] - 150 °C Tamb operating ambient temperature [1] −65 +150 °C Tstg storage temperature −65 +150 °C t = 8 ms square wave PMEG2005AEL_3 Product data sheet Rev. 03 — 15 January 2010 2 of 8 © Nexperia B.V. 2017. All rights reserved PMEG2005AEL Nexperia 0.5 A ultra low VF MEGA Schottky rectifier [1] For Schottky barrier diodes thermal run-away has to be considered, as in some applications the reverse power losses PR are a significant part of the total power losses. Nomograms for determining the reverse power losses PR and IF(AV) rating will be available on request. 6. Thermal characteristics Table 6. Thermal characteristics Symbol Parameter Conditions Rth(j-a) thermal resistance from junction to ambient in free air [1][2] Value Unit 500 K/W [1] Refer to SOD882 standard mounting conditions (footprint), FR4 with 60 μm copper strip line. [2] For Schottky barrier diodes thermal run-away has to be considered, as in some applications the reverse power losses PR are a significant part of the total power losses. Nomograms for determining the reverse power losses PR and IF(AV) rating will be available on request. 7. Characteristics Table 7. Characteristics Tamb = 25 °C unless otherwise specified. Symbol Parameter Conditions VF continuous forward voltage see Figure 1; Typ Max Unit IF = 0.1 mA 25 60 mV IF = 1 mA 75 110 mV IF = 10 mA 135 190 mV IF = 100 mA 220 290 mV 375 440 mV VR = 10 V 210 600 μA VR = 20 V 370 1500 μA 19 25 pF IF = 500 mA IR Cd [1] continuous reverse current diode capacitance see Figure 2; VR = 1 V; f = 1 MHz; see Figure 3 [1] Pulse test: tp ≤ 300 μs; δ ≤ 0.02. PMEG2005AEL_3 Product data sheet Rev. 03 — 15 January 2010 3 of 8 © Nexperia B.V. 2017. All rights reserved PMEG2005AEL Nexperia 0.5 A ultra low VF MEGA Schottky rectifier 001aaa342 103 001aaa343 103 IR (mA) IF (mA) (1) 102 102 (2) (1) (2) (3) (4) 10 (3) 10 1 (4) 1 10−1 10−2 10−1 0 0.1 0.2 0.3 0 0.4 5 10 15 VF (V) (1) Tj = 150 °C (1) Tj = 150 °C (2) Tj = 125 °C (2) Tj = 125 °C (3) Tj = 85 °C (3) Tj = 85 °C (4) Tj = 25 °C Fig 1. 20 VR (V) (4) Tj = 25 °C Forward current as a function of forward voltage; typical values Fig 2. Reverse current as a function of reverse voltage; typical values 001aaa344 40 Cd (pF) 30 20 10 0 0 5 10 15 20 VR (V) Tamb = 25 °C; f = 1 MHz Fig 3. Diode capacitance as a function of reverse voltage; typical values PMEG2005AEL_3 Product data sheet Rev. 03 — 15 January 2010 4 of 8 © Nexperia B.V. 2017. All rights reserved PMEG2005AEL Nexperia 0.5 A ultra low VF MEGA Schottky rectifier 8. Package outline Leadless ultra small plastic package; 2 terminals; body 1.0 x 0.6 x 0.5 mm L SOD882 L 1 2 b e1 A A1 E D (2) 0 0.5 1 mm scale DIMENSIONS (mm are the original dimensions) UNIT A (1) A1 max. b D E e1 L mm 0.50 0.46 0.03 0.55 0.47 0.62 0.55 1.02 0.95 0.65 0.30 0.22 Notes 1. Including plating thickness 2. The marking bar indicates the cathode OUTLINE VERSION REFERENCES IEC JEDEC JEITA EUROPEAN PROJECTION ISSUE DATE 03-04-16 03-04-17 SOD882 Fig 4. Package outline PMEG2005AEL_3 Product data sheet Rev. 03 — 15 January 2010 5 of 8 © Nexperia B.V. 2017. All rights reserved PMEG2005AEL Nexperia 0.5 A ultra low VF MEGA Schottky rectifier 9. Revision history Table 8. Revision history Document ID Release date Data sheet status Change notice Supersedes PMEG2005AEL_3 20100115 Product data - PMEG2005AEL_2 Modifications: • This data sheet was changed to reflect the new company name NXP, including new legal definitions and disclaimers. No changes were made to the technical content. PMEG2005AEL_2 20040427 Product data - PMEG2005AEL_1 PMEG2005AEL_1 20040419 Product data - - PMEG2005AEL_3 Product data sheet Rev. 03 — 15 January 2010 6 of 8 © Nexperia B.V. 2017. All rights reserved PMEG2005AEL Nexperia 0.5 A ultra low VF MEGA Schottky rectifier 10. Legal information 10.1 Data sheet status Document status[1][2] Product status[3] Objective [short] data sheet Development This document contains data from the objective specification for product development. Preliminary [short] data sheet Qualification This document contains data from the preliminary specification. Product [short] data sheet Production This document contains the product specification. Definition [1] Please consult the most recently issued document before initiating or completing a design. [2] The term ‘short data sheet’ is explained in section “Definitions”. [3] The product status of device(s) described in this document may have changed since this document was published and may differ in case of multiple devices. The latest product status information is available on the Internet at URL http://www.nexperia.com. 10.2 Definitions Draft — The document is a draft version only. The content is still under internal review and subject to formal approval, which may result in modifications or additions. Nexperia does not give any representations or warranties as to the accuracy or completeness of information included herein and shall have no liability for the consequences of use of such information. Short data sheet — A short data sheet is an extract from a full data sheet with the same product type number(s) and title. A short data sheet is intended for quick reference only and should not be relied upon to contain detailed and full information. For detailed and full information see the relevant full data sheet, which is available on request via the local Nexperia sales office. In case of any inconsistency or conflict with the short data sheet, the full data sheet shall prevail. 10.3 Disclaimers General — Information in this document is believed to be accurate and reliable. However, Nexperia does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of use of such information. Right to make changes — Nexperia reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. This document supersedes and replaces all information supplied prior to the publication hereof. Suitability for use — Nexperia products are not designed, authorized or warranted to be suitable for use in medical, military, aircraft, space or life support equipment, nor in applications where failure or malfunction of a Nexperia product can reasonably be expected to result in personal injury, death or severe property or environmental damage. Nexperia accepts no liability for inclusion and/or use of Nexperia products in such equipment or applications and therefore such inclusion and/or use is at the customer’s own risk. Applications — Applications that are described herein for any of these products are for illustrative purposes only. Nexperia makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. Limiting values — Stress above one or more limiting values (as defined in the Absolute Maximum Ratings System of IEC 60134) may cause permanent damage to the device. Limiting values are stress ratings only and operation of the device at these or any other conditions above those given in the Characteristics sections of this document is not implied. Exposure to limiting values for extended periods may affect device reliability. Terms and conditions of sale — Nexperia products are sold subject to the general terms and conditions of commercial sale, as published at http://www.nexperia.com/profile/terms, including those pertaining to warranty, intellectual property rights infringement and limitation of liability, unless explicitly otherwise agreed to in writing by Nexperia. In case of any inconsistency or conflict between information in this document and such terms and conditions, the latter will prevail. No offer to sell or license — Nothing in this document may be interpreted or construed as an offer to sell products that is open for acceptance or the grant, conveyance or implication of any license under any copyrights, patents or other industrial or intellectual property rights. Export control — This document as well as the item(s) described herein may be subject to export control regulations. Export might require a prior authorization from national authorities. Quick reference data — The Quick reference data is an extract of the product data given in the Limiting values and Characteristics sections of this document, and as such is not complete, exhaustive or legally binding. 10.4 Trademarks Notice: All referenced brands, product names, service names and trademarks are the property of their respective owners. 11. Contact information For more information, please visit: http://www.nexperia.com For sales office addresses, please send an email to: salesaddresses@nexperia.com PMEG2005AEL_3 Product data sheet Rev. 03 — 15 January 2010 7 of 8 © Nexperia B.V. 2017. All rights reserved PMEG2005AEL Nexperia 0.5 A ultra low VF MEGA Schottky rectifier 12. Contents 1 1.1 1.2 1.3 1.4 2 3 4 5 6 7 8 9 10 10.1 10.2 10.3 10.4 11 12 © Product profile . . . . . . . . . . . . . . . . . . . . . . . . . . General description . . . . . . . . . . . . . . . . . . . . . Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . Quick reference data . . . . . . . . . . . . . . . . . . . . Pinning information . . . . . . . . . . . . . . . . . . . . . . Ordering information . . . . . . . . . . . . . . . . . . . . . Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Limiting values. . . . . . . . . . . . . . . . . . . . . . . . . . Thermal characteristics . . . . . . . . . . . . . . . . . . Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . Package outline . . . . . . . . . . . . . . . . . . . . . . . . . Revision history . . . . . . . . . . . . . . . . . . . . . . . . . Legal information. . . . . . . . . . . . . . . . . . . . . . . . Data sheet status . . . . . . . . . . . . . . . . . . . . . . . Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Disclaimers . . . . . . . . . . . . . . . . . . . . . . . . . . . . Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . . Contact information. . . . . . . . . . . . . . . . . . . . . . Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Nexperia B.V. 2017. All rights reserved For more information, please visit: http://www.nexperia.com For sales office addresses, please send an email to: salesaddresses@nexperia.com Date of release: 15 January 2010 1 1 1 1 1 2 2 2 2 3 3 5 6 7 7 7 7 7 7 8
