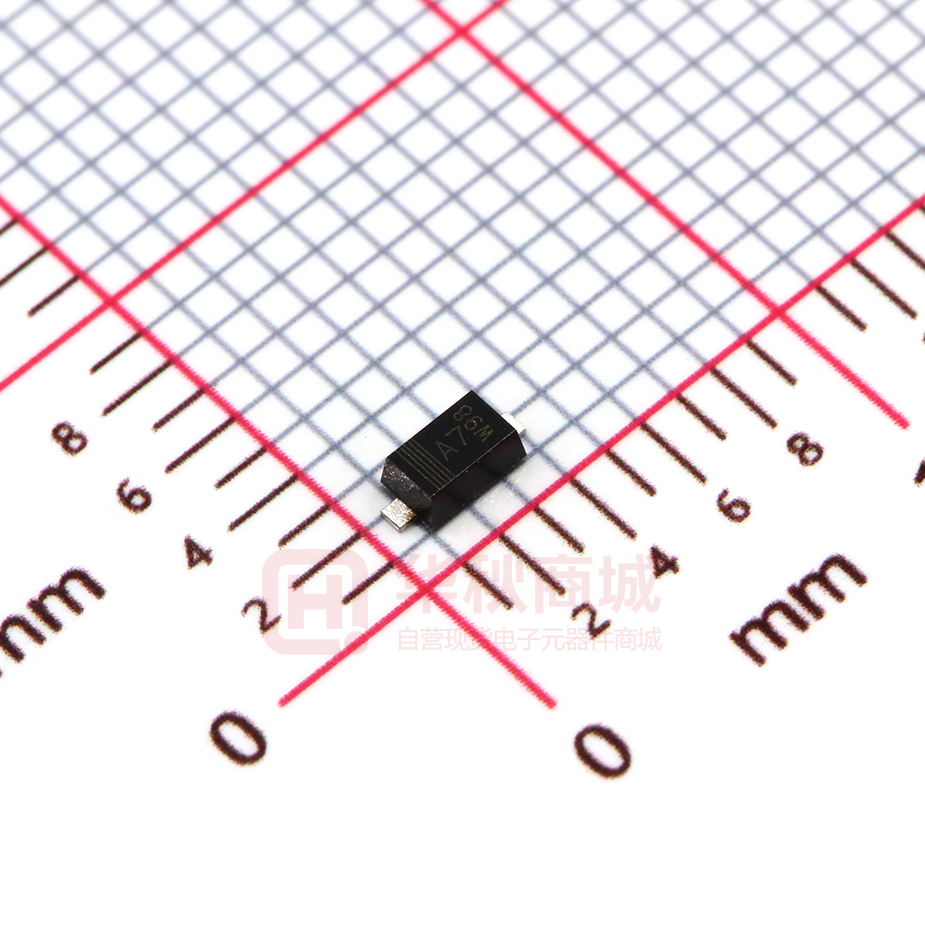

PMEG3020EH,115

PMEG3020EH; PMEG3020EJ 30 V, 2 A ultra low VF MEGA Schottky barrier rectifiers Rev. 04 — 4 February 2010 Product data sheet 1. Product profile 1.1 General description Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifiers with an integrated guard ring for stress protection encapsulated in small SMD plastic packages. Table 1. Product overview Type number Package Configuration Nexperia JEITA PMEG3020EH SOD123F - single isolated diodes PMEG3020EJ SOD323F SC-90 single isolated diodes 1.2 Features „ „ „ „ Forward current: 2 A Reverse voltage: 30 V Ultra low forward voltage Small and flat lead SMD package 1.3 Applications „ „ „ „ „ Low voltage rectification High efficiency DC-to-DC conversion Switched-mode power supply Inverse polarity protection Low power consumption applications 1.4 Quick reference data Table 2. Quick reference data Symbol Parameter Conditions Min Typ Max Unit IF forward current Tsp ≤ 55 °C - - 2 A VR reverse voltage - - 30 V - 510 620 mV VF [1] forward voltage Pulse test: tp ≤ 300 μs; δ ≤ 0.02. IF = 2000 mA [1] PMEG3020EH; PMEG3020EJ Nexperia 30 V, 2 A ultra low VF MEGA Schottky barrier rectifiers 2. Pinning information Table 3. Pinning Pin Description 1 cathode 2 anode Simplified outline Symbol [1] 1 1 2 2 sym001 001aab540 [1] The marking bar indicates the cathode. 3. Ordering information Table 4. Ordering information Type number Package Name Description Version PMEG3020EH - plastic surface mounted package; 2 leads SOD123F PMEG3020EJ SC-90 plastic surface mounted package; 2 leads SOD323F 4. Marking Table 5. Marking codes Type number Marking code PMEG3020EH A7 PMEG3020EJ E9 © PMEG3020EH_EJ_4 Product data sheet Rev. 04 — 4 February 2010 Nexperia B.V. 2017. All rights reserved 2 of 9 PMEG3020EH; PMEG3020EJ Nexperia 30 V, 2 A ultra low VF MEGA Schottky barrier rectifiers 5. Limiting values Table 6. Limiting values In accordance with the Absolute Maximum Rating System (IEC 60134). Symbol Parameter Conditions Min Max Unit - 30 V VR reverse voltage IF forward current Tsp ≤ 55 °C - 2 A IFRM repetitive peak forward current tp ≤ 1 ms; δ ≤ 0.25 - 4.5 A IFSM non-repetitive peak forward current t = 8 ms; square wave [1] - 9 A Ptot total power dissipation Tamb ≤ 25 °C [1] - 375 mW [2] - 830 mW [1] - 360 mW [2] - 830 mW PMEG3020EH PMEG3020EJ Tj junction temperature - 150 °C Tamb ambient temperature −65 +150 °C Tstg storage temperature −65 +150 °C [1] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint. [2] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for cathode 1cm2. 6. Thermal characteristics Table 7. Thermal characteristics Symbol Parameter Conditions Min Typ Max Unit Rth(j-a) thermal resistance from junction to ambient in free air [1][2] - - 330 K/W [2][3] - - 150 K/W [1][2] - - 350 K/W [2][3] - - 150 K/W PMEG3020EH - - 60 K/W PMEG3020EJ - - 55 K/W PMEG3020EH PMEG3020EJ Rth(j-sp) thermal resistance from junction to solder point [1] Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint. [2] For Schottky barrier diodes thermal run-away has to be considered, as in some applications the reverse power losses PR are a significant part of the total power losses. Nomograms for determining the reverse power losses PR and IF(AV) rating will be available on request. [3] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for cathode 1cm2. © PMEG3020EH_EJ_4 Product data sheet Rev. 04 — 4 February 2010 Nexperia B.V. 2017. All rights reserved 3 of 9 PMEG3020EH; PMEG3020EJ Nexperia 30 V, 2 A ultra low VF MEGA Schottky barrier rectifiers 7. Characteristics Table 8. Characteristics Tamb = 25 °C unless otherwise specified. Symbol Parameter Min Typ reverse current IR diode capacitance Cd Max Unit IF = 1 mA - 125 160 mV IF = 10 mA - 185 220 mV IF = 100 mA - 255 290 mV IF = 500 mA - 330 380 mV IF = 1000 mA - 400 480 mV IF = 2000 mA - 510 620 mV VR = 10 V - 60 150 μA VR = 30 V - 400 1000 μA VR = 1 V; f = 1 MHz - 60 72 pF [1] forward voltage VF [1] Conditions Pulse test: tp ≤ 300 μs; δ ≤ 0.02. 006aaa293 104 IF (mA) 006aaa294 106 IR (μA) 105 (1) 103 (2) 104 (3) (1) 102 (2) (3) (4) 103 (5) 102 10 (4) 10 1 1 (5) 10−1 10−1 10−2 0 0.1 0.2 0.3 0.4 0.5 VF (V) 0.6 0 5 10 (1) Tamb = 150 °C (1) Tamb = 150 °C (2) Tamb = 125 °C (2) Tamb = 125 °C (3) Tamb = 85 °C (3) Tamb = 85 °C (4) Tamb = 25 °C (4) Tamb = 25 °C (5) Tamb = −40 °C (5) Tamb = −40 °C Fig 1. Forward current as a function of forward voltage; typical values Fig 2. 20 25 30 VR (V) 35 Reverse current as a function of reverse voltage; typical values © PMEG3020EH_EJ_4 Product data sheet 15 Rev. 04 — 4 February 2010 Nexperia B.V. 2017. All rights reserved 4 of 9 PMEG3020EH; PMEG3020EJ Nexperia 30 V, 2 A ultra low VF MEGA Schottky barrier rectifiers 006aaa295 140 Cd (pF) 120 100 80 60 40 20 0 0 5 10 15 20 25 30 VR (V) Tamb = 25 °C; f = 1 MHz Fig 3. Diode capacitance as a function of reverse voltage; typical values 8. Package outline 1.7 1.5 1.2 1.0 1.35 1.15 1 0.80 0.65 0.5 0.3 1 0.55 0.35 3.6 3.4 2.7 2.3 2.7 2.5 1.8 1.6 2 2 0.70 0.55 Dimensions in mm Fig 4. 04-11-29 Package outline SOD123F 0.25 0.10 0.40 0.25 0.25 0.10 Dimensions in mm Fig 5. 04-09-13 Package outline SOD323F (SC-90) 9. Packing information Table 9. Packing methods The -xxx numbers are the last three digits of the 12NC ordering code.[1] Type number Package Description Packing quantity 3000 10000 PMEG3020EH SOD123F 4 mm pitch, 8 mm tape and reel -115 -135 PMEG3020EJ SOD323F 4 mm pitch, 8 mm tape and reel -115 -135 [1] For further information and the availability of packing methods, see Section 13. © PMEG3020EH_EJ_4 Product data sheet Rev. 04 — 4 February 2010 Nexperia B.V. 2017. All rights reserved 5 of 9 PMEG3020EH; PMEG3020EJ Nexperia 30 V, 2 A ultra low VF MEGA Schottky barrier rectifiers 10. Soldering 4.4 4 2.9 1.6 solder lands solder resist 2.1 1.6 1.1 1.2 solder paste occupied area 1.1 (2×) Reflow soldering is the only recommended soldering method. Dimensions in mm Fig 6. Reflow soldering footprint SOD123F 3.05 2.80 2.10 1.60 solder lands solder resist 1.65 0.95 0.50 0.60 occupied area solder paste 0.50 (2×) msa433 Reflow soldering is the only recommended soldering method. Dimensions in mm Fig 7. Reflow soldering footprint SOD323F (SC-90) © PMEG3020EH_EJ_4 Product data sheet Rev. 04 — 4 February 2010 Nexperia B.V. 2017. All rights reserved 6 of 9 PMEG3020EH; PMEG3020EJ Nexperia 30 V, 2 A ultra low VF MEGA Schottky barrier rectifiers 11. Revision history Table 10. Revision history Document ID Release date Data sheet status Change notice Supersedes PMEG3020EH_EJ_4 20100204 Product data sheet - PMEG3020EH_EJ_3 Modifications: • This data sheet was changed to reflect the new company name NXP Semiconductors, including new legal definitions and disclaimers. No changes were made to the technical content. PMEG3020EH_EJ_3 20050531 Product data sheet - PMEG3020EH_EJ_2 PMEG3020EH_EJ_2 20050404 Product data sheet - PMEG3020EJ_1 PMEG3020EJ_1 20050125 Product data sheet - - © PMEG3020EH_EJ_4 Product data sheet Rev. 04 — 4 February 2010 Nexperia B.V. 2017. All rights reserved 7 of 9 PMEG3020EH; PMEG3020EJ Nexperia 30 V, 2 A ultra low VF MEGA Schottky barrier rectifiers 12. Legal information 12.1 Data sheet status Document status[1][2] Product status[3] Definition Objective [short] data sheet Development This document contains data from the objective specification for product development. Preliminary [short] data sheet Qualification This document contains data from the preliminary specification. Product [short] data sheet Production This document contains the product specification. [1] Please consult the most recently issued document before initiating or completing a design. [2] The term ‘short data sheet’ is explained in section “Definitions”. [3] The product status of device(s) described in this document may have changed since this document was published and may differ in case of multiple devices. The latest product status information is available on the Internet at URL http://www.nexperia.com. 12.2 Definitions Draft — The document is a draft version only. The content is still under internal review and subject to formal approval, which may result in modifications or additions. Nexperia does not give any representations or warranties as to the accuracy or completeness of information included herein and shall have no liability for the consequences of use of such information. Short data sheet — A short data sheet is an extract from a full data sheet with the same product type number(s) and title. A short data sheet is intended for quick reference only and should not be relied upon to contain detailed and full information. For detailed and full information see the relevant full data sheet, which is available on request via the local Nexperia sales office. In case of any inconsistency or conflict with the short data sheet, the full data sheet shall prevail. 12.3 Disclaimers General — Information in this document is believed to be accurate and reliable. However, Nexperia does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of use of such information. Right to make changes — Nexperia reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. This document supersedes and replaces all information supplied prior to the publication hereof. Suitability for use — Nexperia products are not designed, authorized or warranted to be suitable for use in medical, military, aircraft, space or life support equipment, nor in applications where failure or malfunction of a Nexperia product can reasonably be expected to result in personal injury, death or severe property or environmental damage. Nexperia accepts no liability for inclusion and/or use of Nexperia products in such equipment or applications and therefore such inclusion and/or use is at the customer’s own risk. Applications — Applications that are described herein for any of these products are for illustrative purposes only. Nexperia makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. Limiting values — Stress above one or more limiting values (as defined in the Absolute Maximum Ratings System of IEC 60134) may cause permanent damage to the device. Limiting values are stress ratings only and operation of the device at these or any other conditions above those given in the Characteristics sections of this document is not implied. Exposure to limiting values for extended periods may affect device reliability. Terms and conditions of sale — Nexperia products are sold subject to the general terms and conditions of commercial sale, as published at http://www.nexperia.com/profile/terms, including those pertaining to warranty, intellectual property rights infringement and limitation of liability, unless explicitly otherwise agreed to in writing by Nexperia. In case of any inconsistency or conflict between information in this document and such terms and conditions, the latter will prevail. No offer to sell or license — Nothing in this document may be interpreted or construed as an offer to sell products that is open for acceptance or the grant, conveyance or implication of any license under any copyrights, patents or other industrial or intellectual property rights. Export control — This document as well as the item(s) described herein may be subject to export control regulations. Export might require a prior authorization from national authorities. Quick reference data — The Quick reference data is an extract of the product data given in the Limiting values and Characteristics sections of this document, and as such is not complete, exhaustive or legally binding. 12.4 Trademarks Notice: All referenced brands, product names, service names and trademarks are the property of their respective owners. 13. Contact information For more information, please visit: http://www.nexperia.com For sales office addresses, please send an email to: salesaddresses@nexperia.com © PMEG3020EH_EJ_4 Product data sheet Rev. 04 — 4 February 2010 Nexperia B.V. 2017. All rights reserved 8 of 9 Nexperia PMEG3020EH; PMEG3020EJ 30 V, 2 A ultra low VF MEGA Schottky barrier rectifiers 14. Contents 1 1.1 1.2 1.3 1.4 2 3 4 5 6 7 8 9 10 11 12 12.1 12.2 12.3 12.4 13 14 © Product profile . . . . . . . . . . . . . . . . . . . . . . . . . . General description . . . . . . . . . . . . . . . . . . . . . Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . Quick reference data . . . . . . . . . . . . . . . . . . . . Pinning information . . . . . . . . . . . . . . . . . . . . . . Ordering information . . . . . . . . . . . . . . . . . . . . . Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Limiting values. . . . . . . . . . . . . . . . . . . . . . . . . . Thermal characteristics . . . . . . . . . . . . . . . . . . Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . Package outline . . . . . . . . . . . . . . . . . . . . . . . . . Packing information . . . . . . . . . . . . . . . . . . . . . Soldering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Revision history . . . . . . . . . . . . . . . . . . . . . . . . . Legal information. . . . . . . . . . . . . . . . . . . . . . . . Data sheet status . . . . . . . . . . . . . . . . . . . . . . . Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Disclaimers . . . . . . . . . . . . . . . . . . . . . . . . . . . . Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . . Contact information. . . . . . . . . . . . . . . . . . . . . . Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Nexperia B.V. 2017. All rights reserved For more information, please visit: http://www.nexperia.com For sales office addresses, please send an email to: salesaddresses@nexperia.com Date of release: 04 February 2010 1 1 1 1 1 2 2 2 3 3 4 5 5 6 7 8 8 8 8 8 8 9
