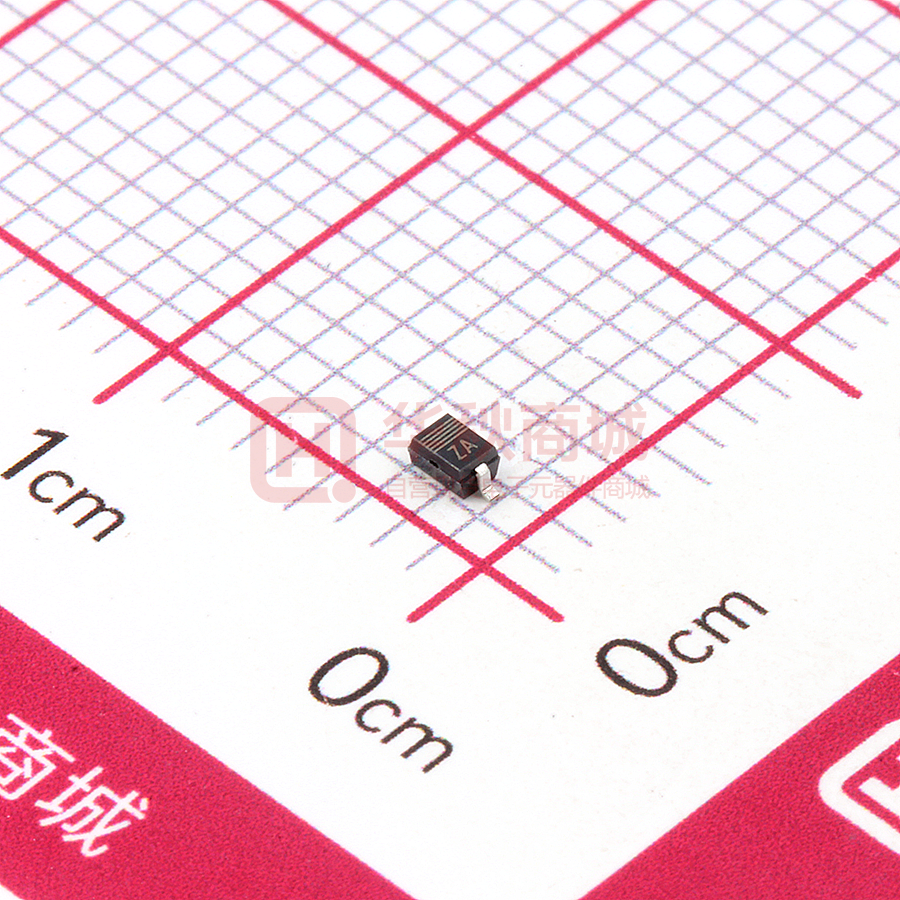

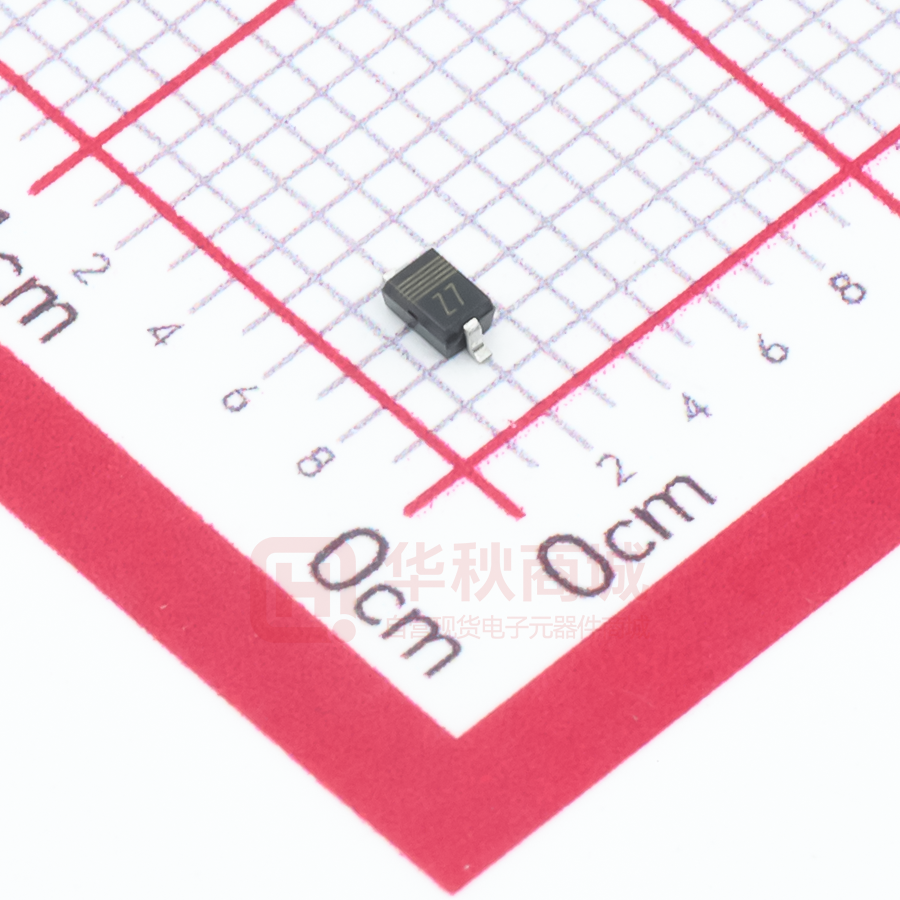

PDZ6.2B,115

PDZ-B series Single Zener diodes Rev. 3 — 5 March 2019 Product data sheet 1. Product profile 1.1. General description Low-power general purpose voltage regulator diodes in a small plastic SMD SOD323 (SC-76) package. 1.2. Features and benefits • • • • Total power dissipation: Ptot ≤ 400 mW Small plastic package suitable for surface mounted design Wide variety of voltage ranges: nominal 2.4 V to 36 V (E24 range) Tolerance approximately ± 2 % 1.3. Applications • General voltage regulation 1.4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit VF forward voltage IF = 10 mA [1] - - 0.9 V Ptot total power dissipation Tamb ≤ 25 °C [2] - - 400 mW [1] [2] Pulse test: tp ≤ 300 μs; δ ≤ 0.02. Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint. PDZ-B series Nexperia Single Zener diodes 2. Pinning information Table 2. Pinning Pin Symbol Description 1 K cathode[1] 2 A anode Simplified outline 1 Graphic symbol 2 A K 006aaa152 [1] The marking bar indicates the cathode. 3. Ordering information Table 3. Ordering information Type number Package PDZ2.4B to PDZ36B[1] [1] Name Description Version - plastic surface-mounted package; 2 leads SOD323 The series consists of 29 types with nominal working voltages from 2.4 V to 36 V. 4. Marking Table 4. Marking Codes Type number Marking Code Type number Marking Code Type number Marking Code PDZ2.4B Z0 PDZ6.2B ZA PDZ16B ZL PDZ2.7B Z1 PDZ6.8B ZB PDZ18B ZM PDZ3.0B Z2 PDZ7.5B ZC PDZ20B ZN PDZ3.3B Z3 PDZ8.2B ZD PDZ22B ZP PDZ3.6B Z4 PDZ9.1B ZE PDZ24B ZQ PDZ3.9B Z5 PDZ10B ZF PDZ27B ZR PDZ4.3B Z6 PDZ11B ZG PDZ30B ZS PDZ4.7B Z7 PDZ12B ZH PDZ33B ZT PDZ5.1B Z8 PDZ13B ZJ PDZ36B ZU PDZ5.6B Z9 PDZ15B ZK PDZ-B_SER Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 3 — 5 March 2019 © Nexperia B.V. 2019. All rights reserved 2 / 11 PDZ-B series Nexperia Single Zener diodes 5. Limiting values Table 5. Limiting values In accordance with the Absolute Maximum Rating System (IEC 60134). Symbol Parameter IF continuous forward current IZSM non-repetitive peak reverse current tp = 100 µs; square wave; Tamb = 25 °C prior to surge Ptot total power dissipation Tamb = 25 °C Tstg storage temperature Tj junction temperature [1] Conditions Min Max Unit - 200 mA - see characteristics table [1] - 400 mW −65 +150 °C - +150 °C Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint. 6. Thermal characteristics Table 6. Thermal characteristics Symbol Parameter Conditions Min Typ Max Unit Rth(j-sp) thermal resistance from junction to solder point in free air - - 130 K/W Rth(j-a) thermal resistance from junction to ambient [1] - - 340 K/W Typ Max Unit [1] Device mounted on an FR4 Printed-Circuit Board (PCB),single-sided copper, tin-plated and standard footprint. 7. Characteristics Table 7. Characteristics Tj = 25 °C unless otherwise specified. Symbol Parameter Conditions VF forward voltage IF = 10 mA [1] - - 0.9 V VF forward voltage IF = 100 mA [1] - - 1.1 V [1] Min Pulse test: tp ≤ 300 μs; δ ≤ 0.02. Table 8. Characteristics per type; PDZ2.4B to PDZ36B Tj = 25 °C unless otherwise specified. Type Temperature coefficient SZ (mV/K); IZ = 5 mA Diode capacitance Cd (pF)[1] Nonrepetitive peak reverse current IZSM (A)[2] Typ Max Max 50 VR (V) 1.0 −1.6 450 8.0 100 20 1.0 −2.0 440 8.0 1000 95 10 1.0 −2.1 425 8.0 3.53 1000 95 5 1.0 −2.4 410 8.0 3.85 500 @ 1 mA 90 5 1.0 −2.4 390 8.0 3.89 4.16 500 @ 1 mA 90 3 1.0 −2.5 370 8.0 4.17 4.48 600 @ 1 mA 90 3 1.0 −2.5 350 8.0 Working voltage VZ (V); IZ = 5 mA Maximum differential resistance rdif (Ω) Reverse current IR (μA) Min Max Max PDZ2.4B 2.43 2.63 IZ = 0.5 mA IZ = 5 mA 1000 100 PDZ2.7B 2.69 2.91 1000 PDZ3.0B 2.85 3.07 PDZ3.3B 3.32 PDZ3.6B 3.60 PDZ3.9B PDZ4.3B PDZ-B_SER Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 3 — 5 March 2019 © Nexperia B.V. 2019. All rights reserved 3 / 11 PDZ-B series Nexperia Single Zener diodes Temperature coefficient SZ (mV/K); IZ = 5 mA Diode capacitance Cd (pF)[1] Typ Max 2 VR (V) 1.0 Nonrepetitive peak reverse current IZSM (A)[2] Max −1.4 325 8.0 2 1.5 0.3 300 5.5 50 1 2.5 1.9 275 5.5 80 50 0.5 3.0 2.7 250 5.5 6.93 60 40 0.5 3.5 3.4 215 5.5 7.28 7.60 60 10 0.5 4.0 4.0 170 3.5 8.02 8.36 60 10 0.5 5.0 4.6 150 3.5 PDZ9.1B 8.85 9.23 60 10 0.5 6.0 5.5 120 3.5 PDZ10B 9.77 10.21 60 10 0.1 7.0 6.4 110 3.5 PDZ11B 10.78 11.22 60 10 0.1 8.0 7.4 108 3.0 PDZ12B 11.74 12.24 80 10 0.1 9.0 8.4 105 3.0 PDZ13B 12.91 13.49 80 10 0.1 10.0 9.4 103 2.5 PDZ15B 14.34 14.98 80 15 0.05 11.0 11.4 99 2.0 PDZ16B 15.85 16.51 80 20 0.05 12.0 12.4 97 1.5 PDZ18B 17.56 18.35 80 20 0.05 13.0 14.4 93 1.5 PDZ20B 19.52 20.39 100 20 0.05 15.0 16.4 88 1.5 PDZ22B 21.54 22.47 100 25 0.05 17.0 18.4 84 1.3 PDZ24B 23.72 24.78 120 30 0.05 19.0 20.4 80 1.3 PDZ27B 26.19 27.53 150 40 0.05 21.0 23.4 73 1.0 PDZ30B 29.19 30.69 200 40 0.05 23.0 26.6 66 1.0 PDZ33B 32.15 33.79 250 40 0.05 25.0 29.7 60 0.9 PDZ36B 35.07 36.87 300 60 0.05 27.0 33.0 59 0.8 Type Working voltage VZ (V); IZ = 5 mA Maximum differential resistance rdif (Ω) Reverse current IR (μA) Min Max IZ = 0.5 mA IZ = 5 mA Max PDZ4.7B 4.55 4.75 600 @ 1 mA 90 PDZ5.1B 4.96 5.20 250 60 PDZ5.6B 5.48 5.73 100 PDZ6.2B 6.06 6.33 PDZ6.8B 6.65 PDZ7.5B PDZ8.2B [1] [2] f = 1 MHz; VR = 0 V. tp = 100 μs; Tamb = 25 °C. PDZ-B_SER Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 3 — 5 March 2019 © Nexperia B.V. 2019. All rights reserved 4 / 11 PDZ-B series Nexperia Single Zener diodes mbk245 500 mbg781 300 Ptot (mW) IF (mA) 400 200 300 200 100 100 0 0 50 100 0 0.6 150 200 Tamb (°C) Non-repetitive peak reverse power dissipation as a function of pulse duration; maximum values Fig. 2. mgl273 0 SZ (mV/K) VF (V) 1 Tj = 25 °C Tj = 25 °C (prior to surge) Fig. 1. 0.8 mgl274 10 12 SZ (mV/K) 4.3 -1 Forward current as a function of forward voltage; typical values 11 10 9.1 8.2 7.5 6.8 5 3.9 3.6 -2 3.3 6.2 5.6 5.1 0 4.7 3.0 2.4 2.7 -3 0 20 40 IZ (mA) -5 60 PDZ2.4B to PDZ4.3B Tj = 25 °C to 150 °C Fig. 3. Product data sheet 4 8 12 16 IZ (mA) 20 PDZ4.7B to PDZ12B Tj = 25 °C to 150 °C Temperature coefficient as a function of working current; typical values PDZ-B_SER 0 Fig. 4. Temperature coefficient as a function of working current; typical values All information provided in this document is subject to legal disclaimers. Rev. 3 — 5 March 2019 © Nexperia B.V. 2019. All rights reserved 5 / 11 PDZ-B series Nexperia Single Zener diodes 006aab246 102 IZ (mA) VZ(nom) (V) = 4.7 IZ (mA) VZ(nom) (V) = 2.4 10 006aab247 102 2.7 3.0 3.6 3.3 3.9 4.3 10 5.6 6.8 6.2 1 1 10- 1 10- 1 10- 2 10- 2 10- 3 0 1 2 3 4 VZ (V) 10- 3 5 PDZ2.4B to PDZ4.3B Tj = 25 °C Fig. 5. 5.1 0 2 4 9.1 8.2 7.5 6 8 11 10 10 12 12 14 VZ (V) PDZ4.7B to PDZ12B Tj = 25 °C Working current as a function of working voltage; typical values Fig. 6. Working current as a function of working voltage; typical values aaa-026621 102 IZ (mA) VZ(nom) (V) = 13 10 1 15 16 18 22 20 27 24 33 30 36 10 -1 10 -2 10 -3 10 20 30 VZ (V) 40 PDZ13B to PDZ36B Tj = 25 °C Fig. 7. Working current as a function of working voltage; typical values 8. Test information Quality information This product has been qualified in accordance with the Automotive Electronics Council (AEC) standard Q101 - Stress test qualification for discrete semiconductors, and is suitable for use in automotive applications. PDZ-B_SER Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 3 — 5 March 2019 © Nexperia B.V. 2019. All rights reserved 6 / 11 PDZ-B series Nexperia Single Zener diodes 9. Package outline Plastic surface-mounted package; 2 leads SOD323 A D E X v HD 1 M A Q 2 bp A A1 (1) c detail X 0 1 Lp 2 mm scale DIMENSIONS (mm are the original dimensions) UNIT A A1 max bp c D E HD Lp Q v mm 1.1 0.8 0.05 0.40 0.25 0.25 0.10 1.8 1.6 1.35 1.15 2.7 2.3 0.45 0.15 0.25 0.15 0.2 Note 1. The marking bar indicates the cathode OUTLINE VERSION REFERENCES IEC SOD323 Fig. 8. JEDEC JEITA EUROPEAN PROJECTION ISSUE DATE 03-12-17 06-03-16 SC-76 Package outline SOD323 PDZ-B_SER Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 3 — 5 March 2019 © Nexperia B.V. 2019. All rights reserved 7 / 11 PDZ-B series Nexperia Single Zener diodes 10. Soldering 3.05 2.1 solder lands solder resist 1.65 0.95 0.5 (2×) 0.6 (2×) solder paste occupied area 2.2 Dimensions in mm 0.5 (2×) 0.6 (2×) Fig. 9. sod323_fr Reflow soldering footprint SOD323 5 2.9 1.5 (2×) solder lands solder resist occupied area 1.2 2.75 (2×) Dimensions in mm preferred transport direction during soldering sod323_fw Fig. 10. Wave soldering footprint SOD323 PDZ-B_SER Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 3 — 5 March 2019 © Nexperia B.V. 2019. All rights reserved 8 / 11 PDZ-B series Nexperia Single Zener diodes 11. Revision history Table 9. Revision history Document ID Release date Data sheet status Change notice Supersedes PDZ-B_SER v.3 20190305 Product data sheet - PDZ-B_SER v.2 Modifications: • • The format of this data sheet has been redesigned to comply with the identity guidelines of Nexperia. Legal texts have been adapted to the new company name where appropriate. PDZ-B_SER v.2 20040322 Product data sheet - PDZ-B_SER v.1 PDZ-B_SER v.1 20020218 Product data sheet - - PDZ-B_SER Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 3 — 5 March 2019 © Nexperia B.V. 2019. All rights reserved 9 / 11 PDZ-B series Nexperia Single Zener diodes equipment, nor in applications where failure or malfunction of an Nexperia product can reasonably be expected to result in personal injury, death or severe property or environmental damage. Nexperia and its suppliers accept no liability for inclusion and/or use of Nexperia products in such equipment or applications and therefore such inclusion and/or use is at the customer's own risk. 12. Legal information Data sheet status Document status [1][2] Product status [3] Definition Quick reference data — The Quick reference data is an extract of the product data given in the Limiting values and Characteristics sections of this document, and as such is not complete, exhaustive or legally binding. Objective [short] data sheet Development This document contains data from the objective specification for product development. Preliminary [short] data sheet Qualification This document contains data from the preliminary specification. Applications — Applications that are described herein for any of these products are for illustrative purposes only. Nexperia makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. Product [short] data sheet Production This document contains the product specification. [1] [2] [3] Please consult the most recently issued document before initiating or completing a design. The term 'short data sheet' is explained in section "Definitions". The product status of device(s) described in this document may have changed since this document was published and may differ in case of multiple devices. The latest product status information is available on the internet at https://www.nexperia.com. Definitions Draft — The document is a draft version only. The content is still under internal review and subject to formal approval, which may result in modifications or additions. Nexperia does not give any representations or warranties as to the accuracy or completeness of information included herein and shall have no liability for the consequences of use of such information. Short data sheet — A short data sheet is an extract from a full data sheet with the same product type number(s) and title. A short data sheet is intended for quick reference only and should not be relied upon to contain detailed and full information. For detailed and full information see the relevant full data sheet, which is available on request via the local Nexperia sales office. In case of any inconsistency or conflict with the short data sheet, the full data sheet shall prevail. Product specification — The information and data provided in a Product data sheet shall define the specification of the product as agreed between Nexperia and its customer, unless Nexperia and customer have explicitly agreed otherwise in writing. In no event however, shall an agreement be valid in which the Nexperia product is deemed to offer functions and qualities beyond those described in the Product data sheet. Disclaimers Limited warranty and liability — Information in this document is believed to be accurate and reliable. However, Nexperia does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of use of such information. Nexperia takes no responsibility for the content in this document if provided by an information source outside of Nexperia. In no event shall Nexperia be liable for any indirect, incidental, punitive, special or consequential damages (including - without limitation - lost profits, lost savings, business interruption, costs related to the removal or replacement of any products or rework charges) whether or not such damages are based on tort (including negligence), warranty, breach of contract or any other legal theory. Customers are responsible for the design and operation of their applications and products using Nexperia products, and Nexperia accepts no liability for any assistance with applications or customer product design. It is customer’s sole responsibility to determine whether the Nexperia product is suitable and fit for the customer’s applications and products planned, as well as for the planned application and use of customer’s third party customer(s). Customers should provide appropriate design and operating safeguards to minimize the risks associated with their applications and products. Nexperia does not accept any liability related to any default, damage, costs or problem which is based on any weakness or default in the customer’s applications or products, or the application or use by customer’s third party customer(s). Customer is responsible for doing all necessary testing for the customer’s applications and products using Nexperia products in order to avoid a default of the applications and the products or of the application or use by customer’s third party customer(s). Nexperia does not accept any liability in this respect. Limiting values — Stress above one or more limiting values (as defined in the Absolute Maximum Ratings System of IEC 60134) will cause permanent damage to the device. Limiting values are stress ratings only and (proper) operation of the device at these or any other conditions above those given in the Recommended operating conditions section (if present) or the Characteristics sections of this document is not warranted. Constant or repeated exposure to limiting values will permanently and irreversibly affect the quality and reliability of the device. Terms and conditions of commercial sale — Nexperia products are sold subject to the general terms and conditions of commercial sale, as published at http://www.nexperia.com/profile/terms, unless otherwise agreed in a valid written individual agreement. In case an individual agreement is concluded only the terms and conditions of the respective agreement shall apply. Nexperia hereby expressly objects to applying the customer’s general terms and conditions with regard to the purchase of Nexperia products by customer. No offer to sell or license — Nothing in this document may be interpreted or construed as an offer to sell products that is open for acceptance or the grant, conveyance or implication of any license under any copyrights, patents or other industrial or intellectual property rights. Export control — This document as well as the item(s) described herein may be subject to export control regulations. Export might require a prior authorization from competent authorities. Translations — A non-English (translated) version of a document is for reference only. The English version shall prevail in case of any discrepancy between the translated and English versions. Trademarks Notice: All referenced brands, product names, service names and trademarks are the property of their respective owners. Notwithstanding any damages that customer might incur for any reason whatsoever, Nexperia’s aggregate and cumulative liability towards customer for the products described herein shall be limited in accordance with the Terms and conditions of commercial sale of Nexperia. Right to make changes — Nexperia reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. This document supersedes and replaces all information supplied prior to the publication hereof. Suitability for use in automotive applications — This Nexperia product has been qualified for use in automotive applications. Unless otherwise agreed in writing, the product is not designed, authorized or warranted to be suitable for use in life support, life-critical or safety-critical systems or PDZ-B_SER Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 3 — 5 March 2019 © Nexperia B.V. 2019. All rights reserved 10 / 11 PDZ-B series Nexperia Single Zener diodes Contents 1. Product profile.............................................................. 1 1.1. General description......................................................1 1.2. Features and benefits..................................................1 1.3. Applications................................................................. 1 1.4. Quick reference data................................................... 1 2. Pinning information......................................................2 3. Ordering information....................................................2 4. Marking.......................................................................... 2 5. Limiting values............................................................. 3 6. Thermal characteristics............................................... 3 7. Characteristics.............................................................. 3 8. Test information............................................................6 9. Package outline............................................................ 7 10. Soldering..................................................................... 8 11. Revision history..........................................................9 12. Legal information......................................................10 © Nexperia B.V. 2019. All rights reserved For more information, please visit: http://www.nexperia.com For sales office addresses, please send an email to: salesaddresses@nexperia.com Date of release: 5 March 2019 PDZ-B_SER Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 3 — 5 March 2019 © Nexperia B.V. 2019. All rights reserved 11 / 11
