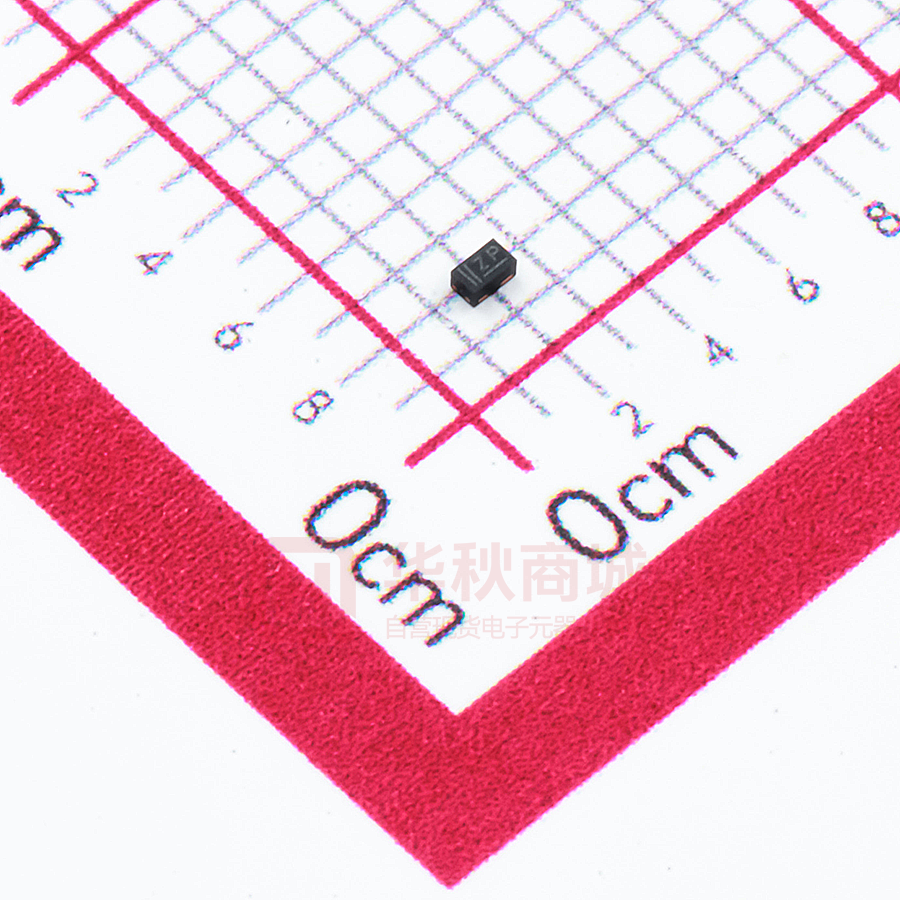

PMZ350UPEYL

PMZ350UPE 20 V, P-channel Trench MOSFET 14 May 2014 Product data sheet 1. General description P-channel enhancement mode Field-Effect Transistor (FET) in a leadless ultra small DFN1006-3 (SOT883) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology. 2. Features and benefits • • • • • Trench MOSFET technology Low threshold voltage Very fast switching ElectroStatic Discharge (ESD) protection > 1.8 kV HBM Leadless ultra small SMD plastic package: 1.0 × 0.6 × 0.48 mm 3. Applications • • • • Relay driver High-speed line driver High-side loadswitch Switching circuits 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit VDS drain-source voltage Tj = 25 °C - - -20 V VGS gate-source voltage -8 - 8 V ID drain current - - -1.4 A - 330 450 mΩ VGS = -4.5 V; Tamb = 25 °C; t ≤ 5 s [1] Static characteristics RDSon drain-source on-state resistance [1] VGS = -4.5 V; ID = -0.3 A; Tj = 25 °C Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated, mounting pad for 2 drain 1 cm . PMZ350UPE Nexperia 20 V, P-channel Trench MOSFET 5. Pinning information Table 2. Pinning information Pin Symbol Description Simplified outline 1 G gate 1 2 S source 2 3 D drain Graphic symbol D 3 Transparent top view G DFN1006-3 (SOT883) S 017aaa259 6. Ordering information Table 3. Ordering information Type number PMZ350UPE Package Name Description Version DFN1006-3 DFN1006-3: leadless ultra small plastic package; 3 solder lands SOT883 7. Marking Table 4. Marking codes Type number Marking code PMZ350UPE ZP PMZ350UPE Product data sheet All information provided in this document is subject to legal disclaimers. 14 May 2014 © Nexperia B.V. 2017. All rights reserved 2 / 14 PMZ350UPE Nexperia 20 V, P-channel Trench MOSFET 8. Limiting values Table 5. Limiting values In accordance with the Absolute Maximum Rating System (IEC 60134). Symbol Parameter Conditions Min Max Unit VDS drain-source voltage Tj = 25 °C - -20 V VGS gate-source voltage -8 8 V ID drain current VGS = -4.5 V; Tamb = 25 °C; t ≤ 5 s [1] - -1.4 A VGS = -4.5 V; Tamb = 25 °C [1] - -1 A VGS = -4.5 V; Tamb = 100 °C [1] - -0.7 A - -2.8 A [2] - 360 mW [1] - 715 mW - 3125 mW IDM peak drain current Tamb = 25 °C; single pulse; tp ≤ 10 µs Ptot total power dissipation Tamb = 25 °C Tsp = 25 °C Tj junction temperature -55 150 °C Tamb ambient temperature -55 150 °C Tstg storage temperature -65 150 °C Source-drain diode IS source current Tamb = 25 °C [1] - -0.8 A HBM [3] - 1800 V ESD maximum rating VESD electrostatic discharge voltage [1] [2] [3] PMZ350UPE Product data sheet Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated, mounting pad for 2 drain 1 cm . Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint. Measured between all pins. All information provided in this document is subject to legal disclaimers. 14 May 2014 © Nexperia B.V. 2017. All rights reserved 3 / 14 PMZ350UPE Nexperia 20 V, P-channel Trench MOSFET 017aaa123 120 Pder (%) Ider (%) 80 80 40 40 0 - 75 Fig. 1. 017aaa124 120 - 25 25 75 125 Tj (°C) 0 - 75 175 Normalized total power dissipation as a function of junction temperature Fig. 2. - 25 25 75 125 Tj (°C) 175 Normalized continuous drain current as a function of junction temperature 017aaa715 -10 Limit RDSon = VDS/ID ID (A) -1 tp = 1 ms -10-1 tp = 10 ms DC; Tsp = 25 °C tp = 100 ms DC; Tamb = 25 °C; drain mounting pad 1 cm2 -10-2 0 -1 -10 -102 VDS (V) IDM = single pulse Fig. 3. Safe operating area; junction to ambient; continuous and peak drain currents as a function of drainsource voltage 9. Thermal characteristics Table 6. Thermal characteristics Symbol Parameter Conditions Rth(j-a) thermal resistance from junction to ambient in free air PMZ350UPE Product data sheet All information provided in this document is subject to legal disclaimers. 14 May 2014 Min Typ Max Unit [1] - 304 350 K/W [2] - 150 175 K/W [3] - 90 103 K/W © Nexperia B.V. 2017. All rights reserved 4 / 14 PMZ350UPE Nexperia 20 V, P-channel Trench MOSFET Symbol Parameter Rth(j-sp) thermal resistance from junction to solder point [1] [2] [3] Conditions Min Typ Max Unit - 35 40 K/W Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint. 2 Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for drain 1 cm . 2 Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for drain 1 cm , t ≤ 5 s. 017aaa109 103 duty cycle = 1 Zth(j-a) (K/W) 0.75 0.5 102 0.33 0.25 0.2 0.1 0.05 0 0.02 0.01 10 10- 3 10- 2 10- 1 1 10 102 tp (s) 103 FR4 PCB, standard footprint Fig. 4. Transient thermal impedance from junction to ambient as a function of pulse duration; typical values 017aaa110 103 Zth(j-a) (K/W) duty cycle = 1 0.75 102 0.5 0.25 0.33 0.2 0.1 0 10 10- 3 0.05 0.02 0.01 10- 2 10- 1 FR4 PCB, mounting pad for drain 1 cm Fig. 5. 1 10 102 tp (s) 103 2 Transient thermal impedance from junction to ambient as a function of pulse duration; typical values PMZ350UPE Product data sheet All information provided in this document is subject to legal disclaimers. 14 May 2014 © Nexperia B.V. 2017. All rights reserved 5 / 14 PMZ350UPE Nexperia 20 V, P-channel Trench MOSFET 10. Characteristics Table 7. Characteristics Symbol Parameter Conditions Min Typ Max Unit Static characteristics V(BR)DSS drain-source breakdown voltage ID = -250 µA; VGS = 0 V; Tj = 25 °C -20 - - V VGSth gate-source threshold voltage ID = -250 µA; VDS = VGS; Tj = 25 °C -0.45 -0.7 -0.95 V IDSS drain leakage current VDS = -20 V; VGS = 0 V; Tj = 25 °C - - -1 µA VDS = -20 V; VGS = 0 V; Tj = 150 °C - - -10 µA VGS = -8 V; VDS = 0 V; Tj = 25 °C - - -10 µA VGS = 8 V; VDS = 0 V; Tj = 25 °C - - 10 µA VGS = -4.5 V; ID = -0.3 A; Tj = 25 °C - 330 450 mΩ VGS = -4.5 V; ID = -0.3 A; Tj = 150 °C - 478 645 mΩ VGS = -2.5 V; ID = -0.2 A; Tj = 25 °C - 420 645 mΩ VGS = -1.8 V; ID = -0.1 A; Tj = 25 °C - 520 940 mΩ VDS = -10 V; ID = -0.3 A; Tj = 25 °C - 1.4 - S total gate charge VDS = -10 V; ID = -0.3 A; VGS = -4.5 V; - 1.3 1.9 nC QGS gate-source charge Tj = 25 °C - 0.2 - nC QGD gate-drain charge - 0.25 - nC Ciss input capacitance VDS = -10 V; f = 1 MHz; VGS = 0 V; - 127 - pF Coss output capacitance Tj = 25 °C - 34 - pF Crss reverse transfer capacitance - 25 - pF td(on) turn-on delay time VDS = -10 V; ID = -0.3 A; VGS = -4.5 V; - 4 - ns tr rise time RG(ext) = 6 Ω; Tj = 25 °C - 5 - ns td(off) turn-off delay time - 26 - ns tf fall time - 9 - ns - -0.7 -1.2 V IGSS RDSon gfs gate leakage current drain-source on-state resistance forward transconductance Dynamic characteristics QG(tot) Source-drain diode VSD source-drain voltage PMZ350UPE Product data sheet IS = -0.1 A; VGS = 0 V; Tj = 25 °C All information provided in this document is subject to legal disclaimers. 14 May 2014 © Nexperia B.V. 2017. All rights reserved 6 / 14 PMZ350UPE Nexperia 20 V, P-channel Trench MOSFET 017aaa716 -3 ID (A) -8 V -3 V -4.5 V -2.5 V 017aaa143 -10 - 3 ID (A) VGS = -2.2 V -10 - 4 -2 -1.8 V -1 0 Fig. 6. (1) -1 -2 -3 VDS (V) -10 - 6 -0.2 -4 -0.4 -0.6 Tj = 25 °C Tj = 25 °C; VDS = -3 V Output characteristics: drain current as a function of drain-source voltage; typical values (1) minimum values (2) typical values (3) maximum values Fig. 7. 017aaa717 1200 -1.4 V -1.8 V (3) -10 - 5 -1.4 V 0 (2) -0.8 RDSon (mΩ) 017aaa718 RDSon (mΩ) 800 800 -2.5 V -3 V Tj = 150 °C -4.5 V 400 400 -8 V 0 0 -1 -2 ID (A) Tj = 25 °C 0 -3 Tj = 25 °C Fig. 8. -1.0 Sub-threshold drain current as a function of gate-source voltage 1200 -2.2 V VGS (V) Product data sheet -2 -4 VGS (V) -6 ID = -0.2 A Drain-source on-state resistance as a function of drain current; typical values PMZ350UPE 0 Fig. 9. Drain-source on-state resistance as a function of gate-source voltage; typical values All information provided in this document is subject to legal disclaimers. 14 May 2014 © Nexperia B.V. 2017. All rights reserved 7 / 14 PMZ350UPE Nexperia 20 V, P-channel Trench MOSFET 017aaa719 -3 017aaa720 1.50 a ID (A) 1.25 -2 Tj = 25 °C Tj = 150 °C 1.00 -1 0.75 0 0 -1 -2 VGS (V) 0.50 -60 -3 VDS > ID × RDSon Fig. 10. Transfer characteristics: drain current as a function of gate-source voltage; typical values VGS(th) (V) 60 120 Tj (°C) 180 Fig. 11. Normalized drain-source on-state resistance as a function of junction temperature; typical values 017aaa721 -1.2 0 017aaa722 103 C (pF) max -0.8 typ Ciss 102 min -0.4 Coss Crss 0 -60 0 60 120 Tj (°C) 10 180 ID = -0.25 mA; VDS = VGS Product data sheet -1 -10 VDS (V) -102 f = 1 MHz; VGS = 0 V Fig. 12. Gate-source threshold voltage as a function of junction temperature PMZ350UPE 0 Fig. 13. Input, output and reverse transfer capacitances as a function of drain-source voltage; typical values All information provided in this document is subject to legal disclaimers. 14 May 2014 © Nexperia B.V. 2017. All rights reserved 8 / 14 PMZ350UPE Nexperia 20 V, P-channel Trench MOSFET 017aaa723 -5 VDS VGS (V) ID -4 VGS(pl) -3 VGS(th) VGS -2 QGS1 QGS2 QGS -1 QGD QG(tot) 017aaa137 0 0 0.5 1.0 QG (nC) Fig. 15. Gate charge waveform definitions 1.5 ID = −0.3 A; VDS = −10 V; Tamb = 25 °C Fig. 14. Gate-source voltage as a function of gate charge; typical values 017aaa724 -3 IS (A) -2 -1 Tj = 150 °C 0 0 -0.5 Tj = 25 °C -1.0 VSD (V) -1.5 VGS = 0 V Fig. 16. Source current as a function of source-drain voltage; typical values 11. Test information P t2 duty cycle δ = t1 t2 t1 t 006aaa812 Fig. 17. Duty cycle definition PMZ350UPE Product data sheet All information provided in this document is subject to legal disclaimers. 14 May 2014 © Nexperia B.V. 2017. All rights reserved 9 / 14 PMZ350UPE Nexperia 20 V, P-channel Trench MOSFET 12. Package outline 0.62 0.55 0.55 0.47 0.50 0.46 3 0.30 0.22 0.65 0.30 0.22 2 0.20 0.12 1.02 0.95 1 0.35 Dimensions in mm 03-04-03 Fig. 18. Package outline DFN1006-3 (SOT883) 13. Soldering 1.3 0.7 R0.05 (12×) solder lands 0.9 0.6 0.7 solder resist solder paste 0.25 (2×) occupied area 0.3 (2×) 0.3 0.4 (2×) 0.4 Dimensions in mm sot883_fr Fig. 19. Reflow soldering footprint for DFN1006-3 (SOT883) PMZ350UPE Product data sheet All information provided in this document is subject to legal disclaimers. 14 May 2014 © Nexperia B.V. 2017. All rights reserved 10 / 14 PMZ350UPE Nexperia 20 V, P-channel Trench MOSFET 14. Revision history Table 8. Revision history Data sheet ID Release date Data sheet status Change notice Supersedes PMZ350UPE v.1 20140514 Product data sheet - - PMZ350UPE Product data sheet All information provided in this document is subject to legal disclaimers. 14 May 2014 © Nexperia B.V. 2017. All rights reserved 11 / 14 PMZ350UPE Nexperia 20 V, P-channel Trench MOSFET In no event shall Nexperia be liable for any indirect, incidental, punitive, special or consequential damages (including - without limitation lost profits, lost savings, business interruption, costs related to the removal or replacement of any products or rework charges) whether or not such damages are based on tort (including negligence), warranty, breach of contract or any other legal theory. 15. Legal information 15.1 Data sheet status Notwithstanding any damages that customer might incur for any reason whatsoever, Nexperia’s aggregate and cumulative liability towards customer for the products described herein shall be limited in accordance with the Terms and conditions of commercial sale of Nexperia. Document status [1][2] Product status [3] Objective [short] data sheet Development This document contains data from the objective specification for product development. Preliminary [short] data sheet Qualification This document contains data from the preliminary specification. Product [short] data sheet Production This document contains the product specification. [1] [2] [3] Definition Right to make changes — Nexperia reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. This document supersedes and replaces all information supplied prior to the publication hereof. Please consult the most recently issued document before initiating or completing a design. The term 'short data sheet' is explained in section "Definitions". The product status of device(s) described in this document may have changed since this document was published and may differ in case of multiple devices. The latest product status information is available on the Internet at URL http://www.nexperia.com. 15.2 Definitions Preview — The document is a preview version only. The document is still subject to formal approval, which may result in modifications or additions. Nexperia does not give any representations or warranties as to the accuracy or completeness of information included herein and shall have no liability for the consequences of use of such information. Draft — The document is a draft version only. The content is still under internal review and subject to formal approval, which may result in modifications or additions. Nexperia does not give any representations or warranties as to the accuracy or completeness of information included herein and shall have no liability for the consequences of use of such information. Short data sheet — A short data sheet is an extract from a full data sheet with the same product type number(s) and title. A short data sheet is intended for quick reference only and should not be relied upon to contain detailed and full information. For detailed and full information see the relevant full data sheet, which is available on request via the local Nexperia sales office. In case of any inconsistency or conflict with the short data sheet, the full data sheet shall prevail. Product specification — The information and data provided in a Product data sheet shall define the specification of the product as agreed between Nexperia and its customer, unless Nexperia and customer have explicitly agreed otherwise in writing. In no event however, shall an agreement be valid in which the Nexperia product is deemed to offer functions and qualities beyond those described in the Product data sheet. 15.3 Disclaimers Limited warranty and liability — Information in this document is believed to be accurate and reliable. However, Nexperia does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of use of such information. Nexperia takes no responsibility for the content in this document if provided by an information source outside of Nexperia. PMZ350UPE Product data sheet Suitability for use — Nexperia products are not designed, authorized or warranted to be suitable for use in life support, life-critical or safety-critical systems or equipment, nor in applications where failure or malfunction of a Nexperia product can reasonably be expected to result in personal injury, death or severe property or environmental damage. Nexperia and its suppliers accept no liability for inclusion and/or use of Nexperia products in such equipment or applications and therefore such inclusion and/or use is at the customer’s own risk. Quick reference data — The Quick reference data is an extract of the product data given in the Limiting values and Characteristics sections of this document, and as such is not complete, exhaustive or legally binding. Applications — Applications that are described herein for any of these products are for illustrative purposes only. Nexperia makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. Customers are responsible for the design and operation of their applications and products using Nexperia products, and Nexperia accepts no liability for any assistance with applications or customer product design. It is customer’s sole responsibility to determine whether the Nexperia product is suitable and fit for the customer’s applications and products planned, as well as for the planned application and use of customer’s third party customer(s). Customers should provide appropriate design and operating safeguards to minimize the risks associated with their applications and products. Nexperia does not accept any liability related to any default, damage, costs or problem which is based on any weakness or default in the customer’s applications or products, or the application or use by customer’s third party customer(s). Customer is responsible for doing all necessary testing for the customer’s applications and products using Nexperia products in order to avoid a default of the applications and the products or of the application or use by customer’s third party customer(s). Nexperia does not accept any liability in this respect. Limiting values — Stress above one or more limiting values (as defined in the Absolute Maximum Ratings System of IEC 60134) will cause permanent damage to the device. Limiting values are stress ratings only and (proper) operation of the device at these or any other conditions above those given in the Recommended operating conditions section (if present) or the Characteristics sections of this document is not warranted. Constant or repeated exposure to limiting values will permanently and irreversibly affect the quality and reliability of the device. Terms and conditions of commercial sale — Nexperia products are sold subject to the general terms and conditions of commercial sale, as published at http://www.nexperia.com/profile/terms, unless otherwise agreed in a valid written individual agreement. In case an individual agreement is concluded only the terms and conditions of the respective agreement shall apply. Nexperia hereby expressly objects to applying the customer’s general terms and conditions with regard to the purchase of Nexperia products by customer. No offer to sell or license — Nothing in this document may be interpreted or construed as an offer to sell products that is open for acceptance or the All information provided in this document is subject to legal disclaimers. 14 May 2014 © Nexperia B.V. 2017. All rights reserved 12 / 14 PMZ350UPE Nexperia 20 V, P-channel Trench MOSFET grant, conveyance or implication of any license under any copyrights, patents or other industrial or intellectual property rights. Export control — This document as well as the item(s) described herein may be subject to export control regulations. Export might require a prior authorization from competent authorities. Non-automotive qualified products — Unless this data sheet expressly states that this specific Nexperia product is automotive qualified, the product is not suitable for automotive use. It is neither qualified nor tested in accordance with automotive testing or application requirements. Nexperia accepts no liability for inclusion and/or use of nonautomotive qualified products in automotive equipment or applications. In the event that customer uses the product for design-in and use in automotive applications to automotive specifications and standards, customer (a) shall use the product without Nexperia’s warranty of the product for such automotive applications, use and specifications, and (b) whenever customer uses the product for automotive applications beyond Nexperia’s specifications such use shall be solely at customer’s own risk, and (c) customer fully indemnifies Nexperia for any liability, damages or failed product claims resulting from customer design and use of the product for automotive applications beyond Nexperia’s standard warranty and Nexperia’s product specifications. Translations — A non-English (translated) version of a document is for reference only. The English version shall prevail in case of any discrepancy between the translated and English versions. 15.4 Trademarks Notice: All referenced brands, product names, service names and trademarks are the property of their respective owners. PMZ350UPE Product data sheet All information provided in this document is subject to legal disclaimers. 14 May 2014 © Nexperia B.V. 2017. All rights reserved 13 / 14 PMZ350UPE Nexperia 20 V, P-channel Trench MOSFET 16. Contents 1 General description ............................................... 1 2 Features and benefits ............................................1 3 Applications ........................................................... 1 4 Quick reference data ............................................. 1 5 Pinning information ............................................... 2 6 Ordering information ............................................. 2 7 Marking ................................................................... 2 8 Limiting values .......................................................3 9 Thermal characteristics .........................................4 10 Characteristics ....................................................... 6 11 Test information ..................................................... 9 12 Package outline ................................................... 10 13 Soldering .............................................................. 10 14 Revision history ................................................... 11 15 15.1 15.2 15.3 15.4 Legal information .................................................12 Data sheet status ............................................... 12 Definitions ...........................................................12 Disclaimers .........................................................12 Trademarks ........................................................ 13 © Nexperia B.V. 2017. All rights reserved For more information, please visit: http://www.nexperia.com For sales office addresses, please send an email to: salesaddresses@nexperia.com Date of release: 14 May 2014 PMZ350UPE Product data sheet All information provided in this document is subject to legal disclaimers. 14 May 2014 © Nexperia B.V. 2017. All rights reserved 14 / 14
