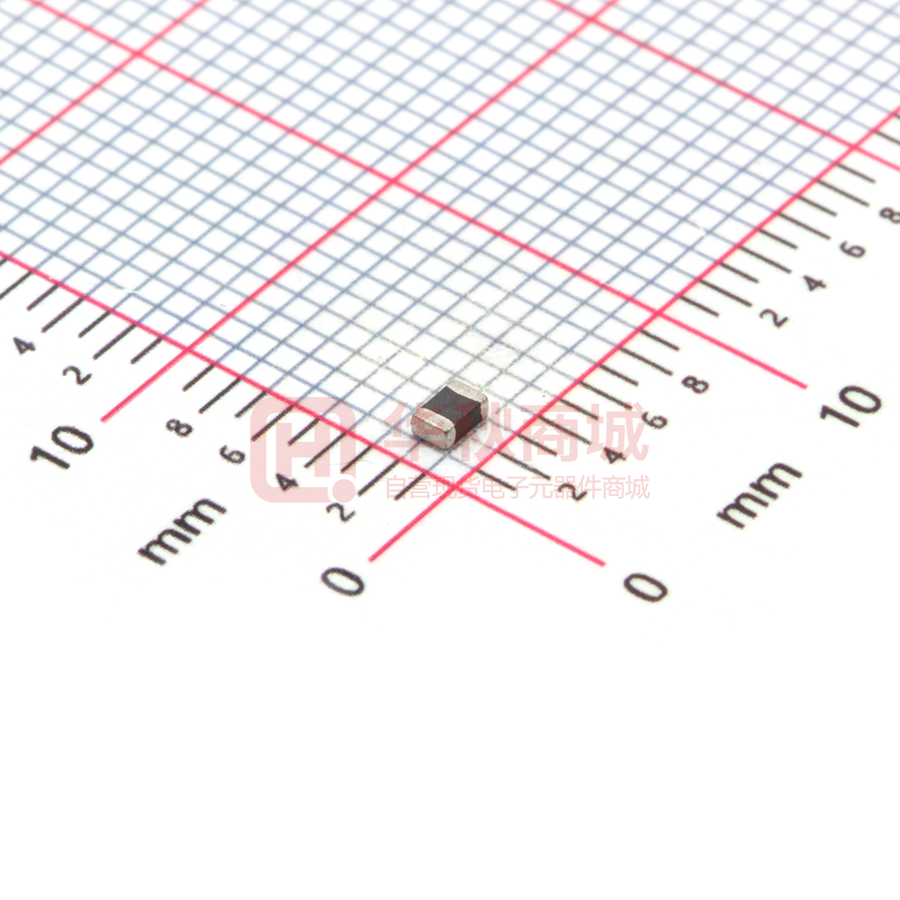

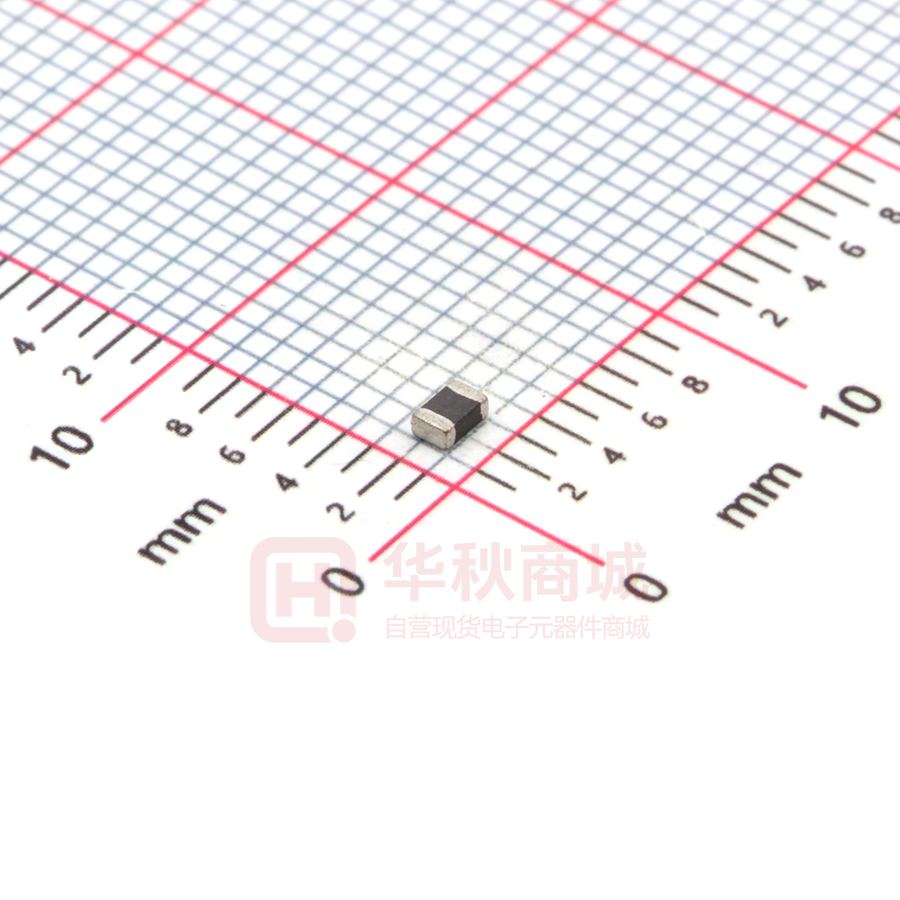

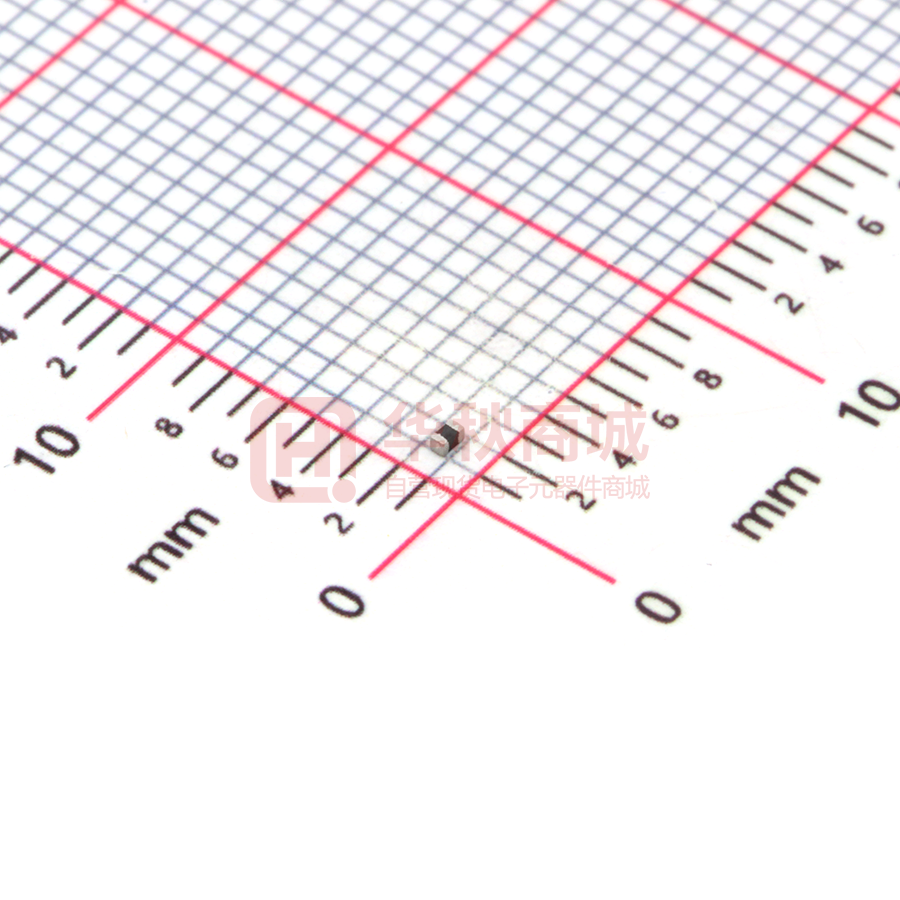

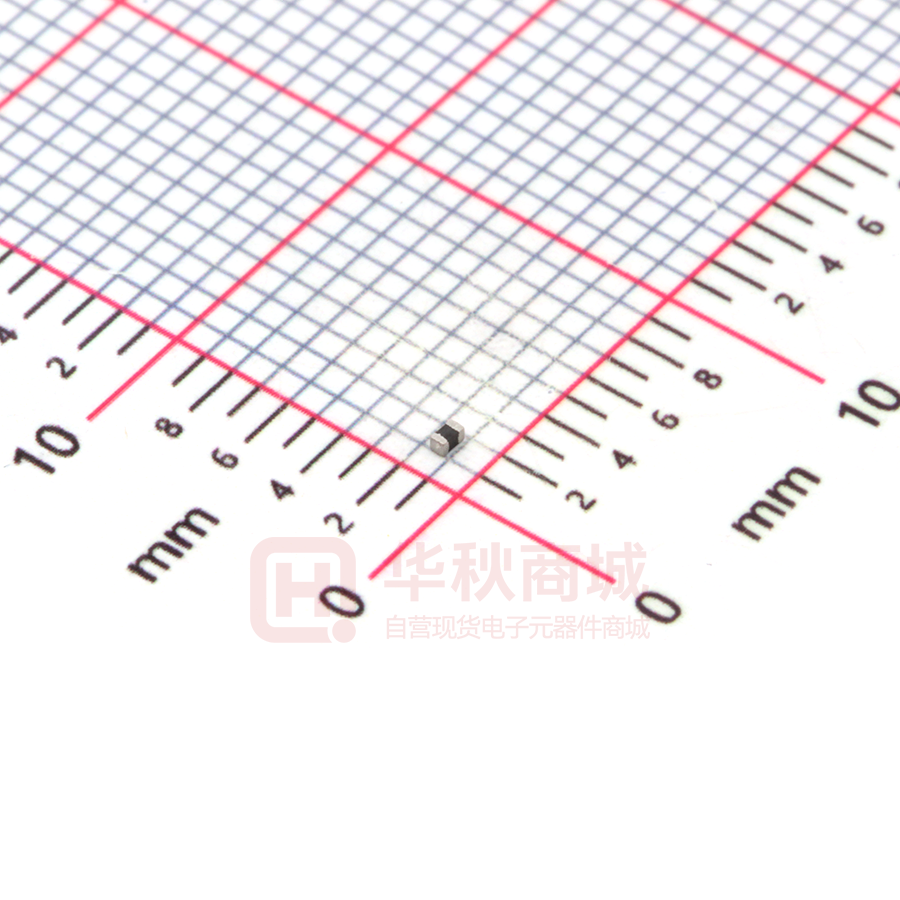

SZ2012G601TF

Multilayer Chip Ferrite Bead – SZ Series Operating Temp. : -55℃~+125℃ FEATURES ● Internal silver printed layers and magnetic shielded structures to minimize crosstalk ● It has sharp impedance characteristics at desirable frequency and does not affect the signal frequency ● Three types material and wide range of impedance values for various applications APPLICATIONS Noise suppression for high speed signal of electric equipments such as computers and peripheral devices, DVD cameras, LCD TVs, communication equipments, OA equipments, etc. ● PRODUCT IDENTIFICATION SZ 1608 G 121 T F ① ② ③ ④ ⑤ ⑥ ① ② Type SZ Chip Ferrite Bead For High Speed ④ ③ External Dimensions (L×W) (mm) 0603 [0201] 0.6×0.3 1005 [0402] 1.0×0.5 1608 [0603] 1.6×0.8 2012 [0805] 2.0×1.25 Material Code F, G, K Nominal Impedance Example Nominal Value 300 30Ω 121 120Ω 102 1000Ω ⑥ ⑤ Hazardous Substance Free Products F Packing T Tape & Reel SHAPE AND DIMENSIONS Unit: mm [inch] 规格特性 Sunlord Type L W T a SZ0603 [0201] 0.6±0.05 [.024±.002] 0.3±0.05 [.012±.002] 0.3±0.05 [.012±.002] 0.15±0.05 [.006±.002] SZ1005 [0402] 1.0±0.15 [.039±.006] 0.5±0.15 [.020±.006] 0.5±0.15 [.020±.006] 0.25±0.1 [.010±.004] SZ1608 [0603] 1.6±0.15 [.063±.006] 0.8±0.15 [.031±.006] 0.8±0.15 [.031±.006] 0.3±0.2 [.012±.008] SZ2012 [0805] 2.0 (+0.3, -0.1) [.079 (+.012, -.004)] 1.25±0.2 [.049±.008] 0.85±0.2 [.033±.008] 0.5±0.3 [.020±.012] Specifications subject to change without notice. Please check our website for latest information. Revised 2017/04/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SZ0603 TYPE Part Number Impedance Z Test Frequency Max. DC Resistance Max. Rated Current Thickness Units Symbol SZ0603G100TF SZ0603G220TF SZ0603G330TF SZ0603G470TF SZ0603G560TF Ω Z 10±25% 22±25% 33±25% 47±25% 56±25% MHz Freq. 100 100 100 100 100 Ω DCR 0.25 0.45 0.55 0.70 1.00 mA Ir 200 200 150 150 100 mm [inch] T Part Number Impedance Z Test Frequency Max. DC Resistance Max. Rated Current Thickness Units Symbol SZ1005F050TF SZ1005F100TF SZ1005F330TF SZ1005F470TF SZ1005F560TF SZ1005G050TF SZ1005G300TF SZ1005G750TF SZ1005G121TF SZ1005G221TF SZ1005K750TF SZ1005K121TF SZ1005K221TF SZ1005K301TF SZ1005K421TF SZ1005K601TF SZ1005K102TF SZ1005K152TF SZ1005K182TF Ω Z 0~10 5~15 33±25% 47±25% 56±25% 0~15 30±25% 75±25% 120±25% 220±25% 75±25% 120±25% 220±25% 300±25% 420±25% 600±25% 1000±25% 1500±25% 1800±25% MHz Freq. 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 Ω DCR 0.10 0.20 0.40 0.60 0.80 0.15 0.15 0.30 0.40 0.70 0.30 0.40 0.70 0.80 1.00 1.10 1.20 1.40 1.80 mA Ir 300 300 300 200 200 600 600 600 400 200 600 400 200 200 150 100 100 100 50 mm [inch] T Part Number Impedance Z Test Frequency Max. DC Resistance Max. Rated Current Thickness Units Symbol SZ1608F050TF SZ1608F100TF SZ1608F220TF SZ1608F470TF SZ1608F750TF SZ1608F121TF SZ1608G050TF SZ1608G220TF SZ1608G600TF SZ1608G121TF SZ1608G221TF SZ1608G331TF SZ1608G471TF SZ1608G601TF SZ1608G102TF SZ1608K121TF Ω Z 0~10 5~15 22±25% 47±25% 75±25% 120±25% 0~15 22±25% 60±25% 120±25% 220±25% 330±25% 470±25% 600±25% 1000±25% 120±25% MHz Freq. 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 Ω DCR 0.20 0.25 0.35 0.55 0.70 0.90 0.10 0.20 0.30 0.45 0.55 0.70 0.80 1.10 1.20 0.40 mA Ir 500 500 500 300 300 200 800 800 600 600 500 500 400 200 150 600 mm [inch] T 0.3±0.05 [.012±.002] SZ1005 TYPE 0.5±0.15 [.020±.006] SZ1608 TYPE Sunlord Specifications subject to change without notice. Please check our website for latest information. 0.8±0.15 [.031±.006] Revised 2017/04/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SZ1608 TYPE Part Number Impedance Z Test Frequency Max. DC Resistance Max. Rated Current Thickness Units Symbol SZ1608K221TF SZ1608K331TF SZ1608K421TF SZ1608K471TF SZ1608K601TF SZ1608K102TF SZ1608K152TF SZ1608K202TF SZ1608K222TF SZ1608K252TF SZ1608K272TF Ω Z 220±25% 330±25% 420±25% 470±25% 600±25% 1000±25% 1500±25% 2000±25% 2200±25% 2500±25% 2700±25% MHz Freq. 100 100 100 100 100 100 100 100 100 100 100 Ω DCR 0.45 0.50 0.55 0.55 0.60 0.80 0.80 1.00 1.00 1.20 1.40 mA Ir 500 500 400 400 200 200 200 200 200 200 200 mm [inch] T Part Number Impedance Z Test Frequency Max. DC Resistance Max. Rated Current Thickness Units Symbol SZ2012G050TF SZ2012G300TF SZ2012G600TF SZ2012G121TF SZ2012G221TF SZ2012G421TF SZ2012G601TF SZ2012G102TF SZ2012K121TF SZ2012K221TF SZ2012K301TF SZ2012K601TF SZ2012K102TF SZ2012K152TF SZ2012K222TF SZ2012K252TF SZ2012K272TF Ω Z 0~15 30±25% 60±25% 120±25% 220±25% 420±25% 600±25% 1000±25% 120±25% 220±25% 300±25% 600±25% 1000±25% 1500±25% 2200±25% 2500±25% 2700±25% MHz Freq. 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 Ω DCR 0.07 0.10 0.20 0.25 0.30 0.40 0.45 0.50 0.20 0.25 0.30 0.35 0.40 0.45 0.60 0.70 0.80 mA Ir 1000 1000 800 600 600 600 600 500 600 600 600 600 500 200 200 200 200 mm [inch] T 0.8±0.15 [.031±.006] SZ2012 TYPE 0.85±0.2 [.033±.008] ※: Products with other electrical characteristics can be provided upon customer’s request. Please contact your local sales. TYPICAL ELECTRICAL CHARACTERISTICS F, G, K Material Comparison 15000 SZ1608F121TF Impedance(Ω) 12000 9000 SZ1608G121TF 6000 SZ1608K121TF 3000 0 1 10 100 1000 3000 Frequency(MHz) Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2017/04/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com DETAIL ELECTRICAL CHARACTERISTICS SZ0603 TYPE SZ0603G100TF SZ0603G220TF 120 SZ0603G330TF 300 400 240 300 Z R 60 X Z 180 R 120 X 30 60 0 1 10 100 0 3000 1000 1 10 Frequency(MHz) SZ0603G470TF R 200 100 0 3000 1000 X 1 10 100 1000 3000 Frequency(MHz) SZ0603G560TF 800 Z 600 Impedance(Ω) 450 Impedance(Ω) 100 Z Frequency(MHz) 600 R 300 150 Z R 400 200 X X 0 Impedance(Ω) Impedance(Ω) Impedance(Ω) 90 1 10 100 0 3000 1000 1 10 Frequency(MHz) 100 3000 1000 Frequency(MHz) SZ1005 TYPE SZ1005F100TF SZ1005F050TF SZ1005F330TF 200 120 1000 Z X 40 750 Z Impedance(Ω) Impedance(Ω) Impedance(Ω) 160 80 120 R 80 X R Z 500 250 40 R 0 1 10 100 1000 3000 1 10 1000 0 3000 SZ1005F470TF 1500 30 Z 1000 500 R X 10 R X 0 3000 1000 Frequency(MHz) Z 20 500 100 1 10 100 R X 1000 0 3000 1 10 SZ1005G750TF SZ1005G300TF 100 1000 3000 Frequency(MHz) Frequency(MHz) 250 3000 SZ1005G050TF Impedance(Ω) Impedance(Ω) 1000 X 1000 40 1500 Z 100 Frequency(MHz) 2000 10 10 SZ1005F560TF 2000 1 1 Frequency(MHz) Frequency(MHz) 0 100 Impedance(Ω) 0 SZ1005G121TF 500 800 200 R 100 600 Impedance(Ω) Impedance(Ω) Impedance(Ω) 375 Z 150 Z R 250 125 Z 400 200 50 0 1 10 100 1000 R X X 0 3000 1 10 Frequency(MHz) 100 X 1000 0 3000 1 10 Frequency(MHz) SZ1005G221TF 1000 3000 1000 3000 Frequency(MHz) SZ1005K121TF SZ1005K750TF 1600 100 250 400 200 300 Z 800 Impedance(Ω) Z Impedance(Ω) Impedance(Ω) 1200 150 R 100 400 Z R 200 100 50 R 0 1 10 100 Frequency(MHz) Sunlord X X X 1000 3000 0 1 10 100 1000 3000 0 1 10 Frequency(MHz) Specifications subject to change without notice. Please check our website for latest information. 100 Frequency(MHz) Revised 2017/04/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com DETAIL ELECTRICAL CHARACTERISTICS SZ1005 TYPE SZ1005K301TF SZ1005K221TF 1200 Z Impedance(Ω) 400 R 200 900 Impedance(Ω) 600 Z Impedance(Ω) SZ1005K421TF 800 600 R 400 200 X 0 1 10 100 R 300 X 0 Z 600 1000 3000 1 10 X 100 0 3000 1000 1 10 Frequency(MHz) Frequency(MHz) 1000 3000 Frequency(MHz) SZ1005K152TF SZ1005K102TF SZ1005K601TF 1600 100 2500 2000 2000 Z 800 1500 R 1000 R 400 Z Impedance(Ω) 1500 Z Impedance(Ω) Impedance(Ω) 1200 R 1000 500 500 X X X 0 1 10 100 0 3000 1000 1 10 Frequency(MHz) 0 100 1000 3000 1 10 100 1000 3000 Frequency(MHz) Frequency(MHz) SZ1005K182TF 3000 2400 Impedance(Ω) Z 1800 R 1200 600 X 0 1 10 100 3000 1000 Frequency(MHz) SZ1608 TYPE SZ1608F050TF SZ1608F100TF 160 600 Z 80 100 40 50 R 10 100 1000 0 1 10 SZ1608F470TF 16000 6000 12000 X 100 0 3000 1000 R 1 10 Frequency(MHz) SZ1608G050TF 100 1000 R X 0 3000 1 10 X 100 1000 SZ1608G600TF 800 600 Z 80 R 40 Z 400 200 R X R 0 1 10 100 Frequency(MHz) Sunlord 3000 Frequency(MHz) Impedance(Ω) 120 Impedance(Ω) 15 5 3000 Z SZ1608G220TF 160 Z 1000 4000 X Frequency(MHz) 20 10 100 8000 Z 2000 R 10 10 SZ1608F121TF 8000 4000 500 X R 1 Frequency(MHz) Impedance(Ω) Impedance(Ω) Z 1 0 3000 1000 SZ1608F750TF 1000 Impedance(Ω) 100 Frequency(MHz) 2000 1500 X R 3000 300 Impedance(Ω) 1 Z 150 X Frequency(MHz) 0 450 Impedance(Ω) 150 Z Impedance(Ω) Impedance(Ω) 120 0 SZ1608F220TF 200 1000 3000 0 1 10 100 1000 3000 0 1 10 Frequency(MHz) Specifications subject to change without notice. Please check our website for latest information. 100 X 1000 Frequency(MHz) Revised 2017/04/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com 3000 DETAIL ELECTRICAL CHARACTERISTICS SZ1608 TYPE SZ1608G121TF SZ1608G221TF 1600 SZ1608G331TF 5000 12000 4000 9000 800 Z 3000 Z Impedance(Ω) Z Impedance(Ω) Impedance(Ω) 1200 6000 2000 400 3000 1000 R 0 1 10 100 1000 0 3000 R X 1 10 100 Frequency(MHz) 1000 0 3000 1 10 100 Frequency(MHz) SZ1608G471TF 1000 3000 Frequency(MHz) SZ1608G102TF SZ1608G601TF 18000 X R X 7000 40000 6000 Z Z 30000 Impedance(Ω) Impedance(Ω) Impedance(Ω) 5000 12000 4000 3000 6000 2000 X R 1 10 100 10000 1000 0 3000 1 10 Frequency(MHz) SZ1608K121TF 1000 Impedance(Ω) 200 R 100 100 600 Z 300 R 1 10 Frequency(MHz) SZ1608K421TF 100 X 1000 0 3000 10 SZ1608K471TF Impedance(Ω) 750 R 250 900 R 500 250 1000 3000 1000 3000 R 600 300 1 10 Frequency(MHz) 100 X 1000 0 3000 1 10 Frequency(MHz) 100 Frequency(MHz) SZ1608K152TF SZ1608K102TF 2000 3000 Z X 0 1000 SZ1608K601TF Z X 100 100 1200 Impedance(Ω) Z 10 1 Frequency(MHz) 1000 1 R Frequency(MHz) 1000 0 400 200 0 3000 3000 Z X 1000 500 1000 SZ1608K331TF 150 750 100 Frequency(MHz) X 10 10 800 450 1 1 SZ1608K221TF Z Impedance(Ω) 0 3000 600 300 Impedance(Ω) 100 R Frequency(MHz) 400 0 X X R 1000 Impedance(Ω) 0 Z 20000 SZ1608K202TF 3000 3000 2500 2400 1500 Z 1800 1500 R Impedance(Ω) Z 1000 Z Impedance(Ω) Impedance(Ω) 2000 R R 1200 1000 500 600 500 X X 0 1 10 100 1000 0 3000 1 10 Frequency(MHz) 100 X 1000 0 3000 1 10 Frequency(MHz) SZ1608K222TF 4000 Impedance(Ω) Impedance(Ω) R Z R 2000 1200 Z 2700 Impedance(Ω) 3000 Z 3000 3600 2400 1800 1000 SZ1608K272TF SZ1608K252TF 3000 100 Frequency(MHz) 1800 1000 900 600 X X 0 1 10 100 Frequency(MHz) Sunlord 1000 3000 0 1 10 100 X R 1000 3000 0 1 10 Frequency(MHz) Specifications subject to change without notice. Please check our website for latest information. 100 1000 Frequency(MHz) Revised 2017/04/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com 3000 DETAIL ELECTRICAL CHARACTERISTICS SZ2012 TYPE SZ2012G050TF SZ2012G600TF SZ2012G300TF 30 300 800 240 Z X 10 600 Z 180 Impedance(Ω) Impedance(Ω) Impedance(Ω) 20 R 120 Z 400 200 R 60 X 0 1 10 100 0 3000 1000 1 10 100 Frequency(MHz) 9000 Z 4000 600 0 3000 1000 1 10 X 100 Frequency(MHz) SZ2012G601TF 1000 0 3000 1 10 SZ2012G102TF SZ2012K121TF 300 250 20000 Impedance(Ω) Z Impedance(Ω) Impedance(Ω) Z 15000 12000 100 Frequency(MHz) 25000 Z 3000 X R Frequency(MHz) 24000 1000 3000 R 100 Z 6000 2000 R X 3000 SZ2012G421TF Impedance(Ω) Impedance(Ω) 1200 1000 12000 6000 Z X 100 Impedance(Ω) 1800 18000 10 Frequency(MHz) 8000 10 1 SZ2012G221TF SZ2012G121TF 1 0 3000 Frequency(MHz) 2400 0 R 1000 10000 200 R 150 100 6000 5000 R 1 10 100 0 3000 1000 1 10 100 Frequency(MHz) SZ2012K221TF 10 Z R 300 R 500 250 X 1000 0 3000 Frequency(MHz) 1 10 100 X 1000 0 3000 Frequency(MHz) 1 10 2000 1000 3000 1500 R 1000 R 600 Z Z Impedance(Ω) 900 3000 2500 1500 Z 1000 SZ2012K222TF 2000 1200 100 Frequency(MHz) SZ2012K152TF SZ2012K102TF 1500 3000 Z 750 X 100 1000 SZ2012K601TF 150 100 100 Frequency(MHz) Impedance(Ω) Impedance(Ω) R 200 10 1 1000 450 300 1 X SZ2012K301TF Z Impedance(Ω) 3000 600 400 Impedance(Ω) 1000 0 Frequency(MHz) 500 0 50 X Impedance(Ω) 0 R X 1000 500 500 300 X 0 0 1 10 100 R X 1000 3000 1 10 100 1000 3000 Frequency(MHz) Frequency(MHz) SZ2012K252TF 0 1 10 X 100 Frequency(MHz) SZ2012K272TF 4000 3000 2400 3000 Impedance(Ω) Impedance(Ω) Z 1800 Z 2000 1200 1000 600 R 0 R X 0 1 10 100 Frequency(MHz) Sunlord 1000 3000 1 10 X 100 1000 3000 Frequency(MHz) Specifications subject to change without notice. Please check our website for latest information. Revised 2017/04/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com
