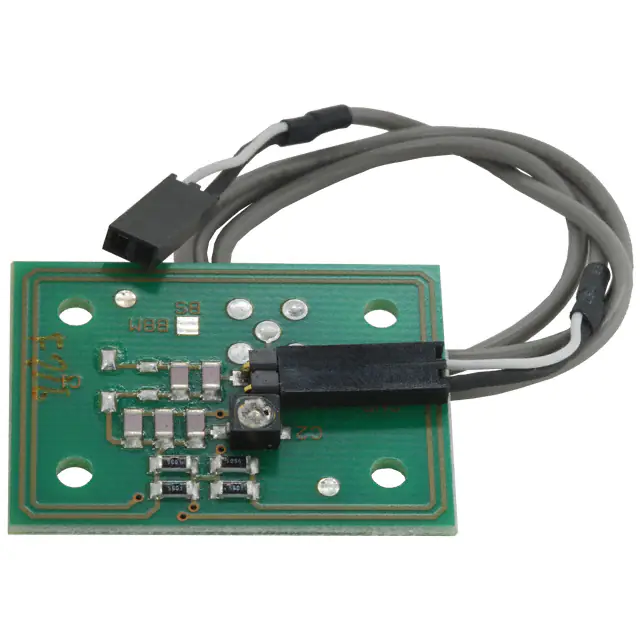

ID ISC.ANT40/30 & ID ISC.ANT100/100 HF-Antennas for RFID proximity reader • RFID antenna - Impedance: 50 Ω • Frequency: 13.56 MHz • Transmitting power: 1 W max. • Data transfer rate up to 424 kbits/s • Reading distance up to 5.87 in (14 cm) (ID ISC.ANT100.100)* • 2 pin or U.FL connector option Pictures show layout with U.FL connector • Vending • eTicketing • eMobility Specifications 3.94 in (100 mm) 2.76 in (70 mm) ID ISC.ANT40/30 Ø = 0.13 in Ø = 0.13 in 2.76 in (70 mm) 3.94 in (100 mm) U.FL connector Ø = 0.13 in Dimensions (W x H) Interface ID ISC.ANT40/30-A ID ISC.ANT40/30-U.FL-A 1.58 in x 1.18 in (40 mm x 30 mm) Operating frequency Impedance Transmitting power Max. reading distance Data transfer rate Power supply 13.56 MHz 50 Ω 1 W max. up to 2.76 in* (7 cm)* up to 424 kbit/s unneeded Environmental conditions Operation Storage Relative humidity -13°F - 158°F (-25 °C - 70 °C) -40°F - 185°F (-40 °C - 85 °C) 0 % - 95 % (noncondensing) 2-pin connector U.FL connector Ø = 0.13 in ID ISC.ANT100/100 Dimensions (W x H) 3.94 in x 3.94 in (100 mm x 100 mm) Interface ID ISC.ANT100/100-A 2-pin connector ID ISC.ANT100/100-U.FL-A U.FL connector 1.57 in (40 mm) 0.71 in(18 mm) 1.18 in (30 mm) 1.10 in (28 mm) Operation frequency Impedance Transmitting power Max. reading distance Data transfer rate Power supply 13.56 MHz 50 Ω 1 W max. up to 5.87 in* (14 cm)* up to 212 kbit/s unneeded Environmental conditions Operation Storage Relative humidity -13°F - 158°F (-25 °C - 70 °C) -40°F - 185°F (-40 °C - 85 °C) 0 % - 95 % (noncondensing) Ø = 0.13 in U.FL connector Pictures show layout with U.FL connector Certifications of conformity The external antennas ID ISC.ANT40/30 and ID ISC.ANT100/100 could be used with all supported HF reader modules of FEIG ELECTRONIC. Environment WEEE – 2002/96/EC RoHS – 2002/95/EC Supported products * The reading ranges depends on the used transponder. The ranges are based on an antenna inlay of 2.99 in x 1.77 in (76 mm x 45 mm). Order descriptions Article no. ID ISC.M02.M8-B ID ISC.MRM102-A ID ISC.MRM102-USB ID CPR74.x Description 1967.000.00 ID ISC.ANT 40/30-A 3674.000.00 ID ISC.ANT 40/30-U.FL 2-pin connector 1968.000.00 ID ISC.ANT 100/100-A 3673.000.00 ID ISC.ANT 100/100-U.FL 2-pin connector FEIG ELECTRONIC reserves the right to change specification without notice at any time. State of information: August 2017 FEIG ELECTRONIC GmbH • Lange Strasse 4 • D-35781 Weilburg Tel.: +49 6471 3109-0 • Fax: -99 • E-Mail: info@feig.de • www.feig.de
