1.15150.5060000

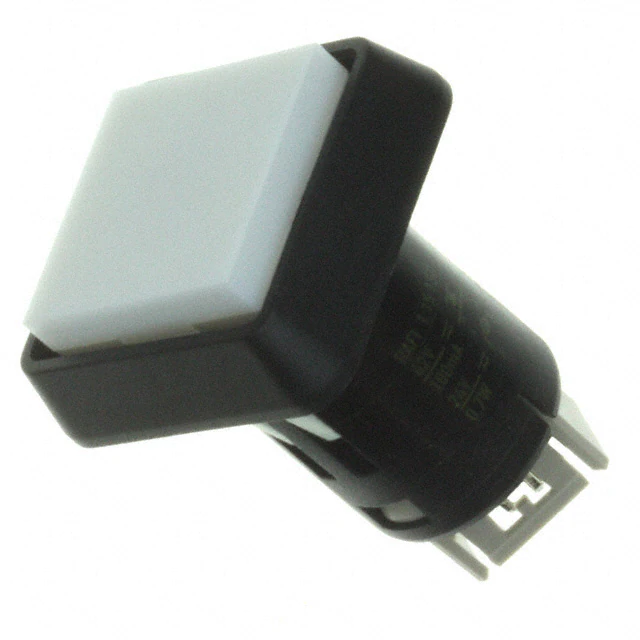

10.10.2016 LUMOTAST 25 - Illuminated pushbutton with flush lens, "Click" quick-assembly feature, housing 1.15.150.506/0000 Note when using LEDs: A notch on the lamp socket identifies the cathode side. Please include the desired lens in your order. General information Form of lens Form of collar flat lens square Dimensions Length of collar Width of collar Overall height Mounting depth with connector Mounting depth with plug-in socket Mounting hole 25 mm 25 mm 7.1 mm 30.7 mm 33.4 mm 16.2 mm Mechanical design Mounting Terminals Contact system Contact function Contact arrangement Contact materials Illumination Lamp socket click quick connection pin connector 4-pole / plug-in socket snap-action contact momentary 1 NO Au yes Bi-Pin T1 / T1¼ Mechanical characteristics Operating force max. Operating travel Switching travel Robustness max. 6N 3 mm 2 mm 100 N Electrical characteristics Rated voltage AC/DC max. Rated voltage AC/DC min. Rated current AC/DC max. Rated current AC/DC min. Contact resistance acc. to life max. Bouncing time max. 35 V 0.02 V 100 mA 0.01 mA 100 mΩ 5 ms Technical data are approximate and intended solely for general orientation in the selection of a product. Subject to modifications and errors. Images and other graphics may only be similar. For more information, refer to www.rafi.de chapter Imprint / Data Protection. 10.10.2016 Other specifications Operating life (operations) Degree of protection from front side Ambient temp. operating max. without lamp / LED Ambient temp. operating max. without lamp / LED Ambient temp. operating min. with lamp /LED Ambient temp. operating max. with lamp /LED Storage temperature min. Storage temperature max. Environmental restistance Weight ROHS compliant REACH compliant 1,000,000 cycle IP65 (DIN EN 60529) -25 °C +70 °C -25 °C +55 °C -40 °C +80 °C acc. to IEC 60068-2-14, -30, -33 and -78 7g yes yes Panel cut-out Technical data are approximate and intended solely for general orientation in the selection of a product. Subject to modifications and errors. Images and other graphics may only be similar. For more information, refer to www.rafi.de chapter Imprint / Data Protection. 10.10.2016 with socket connector Technical data are approximate and intended solely for general orientation in the selection of a product. Subject to modifications and errors. Images and other graphics may only be similar. For more information, refer to www.rafi.de chapter Imprint / Data Protection.
