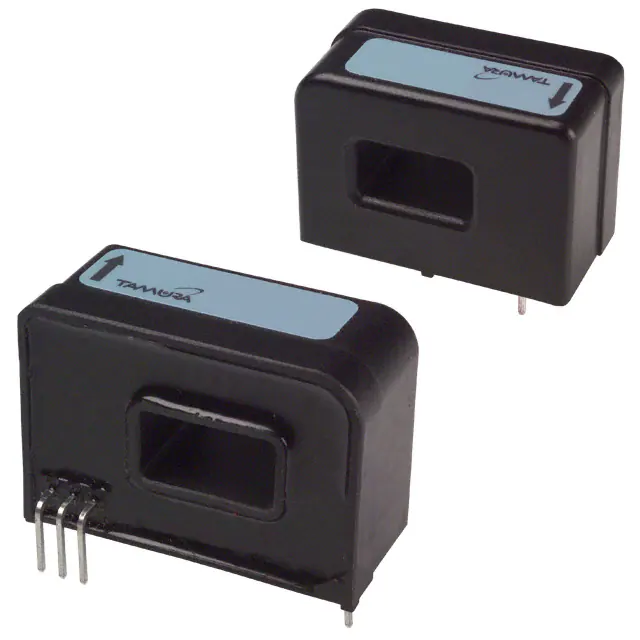

Issued by Module Components Div, TAMURA CORPORATION Hall Effect Current Sensors L01Z***S05 Series Features:      Advantage: Open Loop type Printed circuit board mounting Unipolar power supply Aperture for cable or bus bar Insulated plastic case according to UL94V0         Excellent accuracy Very good linearity Low temperature drift Wide frequency bandwidth No insertion loss High Immunity To External Interference Optimised response time Current overload capability Specifications Parameters TA=25ºC, VCC=+5V, RL=10kΩ Symbol L01Z050S05 L01Z100S05 L01Z150S05 L01Z200S05 L01Z300S05 L01Z400S05 L01Z500S05 L01Z600S05 Primary nominal current If 50AT 100AT 150AT 200AT 400AT Vof+1.5V ±0.045V VREF1 ±0.035V Rated output voltage (at If) Vo Offset voltage1(at If=0A) Vof Saturation output voltage Vo min/max Vo min ≤ 0.5V, 4.5V ≤ Vo max Output linearity2(0A～If) εL ≤ ±1% (at If) Power supply voltage VCC 5V ±2% Consumption current Icc ≤ 15mA tr ≤ 10μs (at di/dt = 100A / μs) Response time3 500AT 600AT ≥ ± If × 1.25 Ifmax Saturation current 300AT Vof+1.5V ± 0.035V VREF1 ± 0.030V Thermal drift of gain4 TcVo ≤ ± 2mV/ºC ≤ ± 1.5mV/ºC Thermal drift of offset TcVof ≤ ± 2mV/ºC ≤ ± 1.0mV/ºC Hysteresis error (at If=0A→If→0A) VOH Insulation voltage Vd AC2500V for 1minute (sensing current 0.5mA), inside of through hole  terminal Insulation resistance RIS ≥ 500MΩ (at DC500V), inside of through hole  terminal TA -10ºC~+80ºC TS -15ºC~+85ºC Ambient operation temperature Ambient storage temperature ≤ 8mV ≤ 4mV ≤ 6mV 1 VREF = VCC./ 2 (ratiometric). After removal of core hysteresis— 2 Without offset — 3 Time between 90% input current full scale and 90% of sensor output full scale — 4 Without Thermal drift of offset Electrical Performances Frequency characteristic(L01Z600S05) 5.0 4 4.5 2 4.0 Output voltage (V) Attenuation (dB) 6 0 -2 -4 -6 3.5 3.0 2.5 2.0 1.5 -8 1.0 -10 0.5 0.1 L01ZXXXS05revD, March 2012 1 10 Frequency characteristic(kHz) @ If=27AT(Arms) 100 Saturation characteristic(L01Z600S05) TA=25ºC Pulsed 0.0 -1000 -800 -600 -400 -200 0 200 400 600 800 Input current (A) Tamura reserve the right to modify its products in order to improve them without prior notice 1000 Issued by Module Components Div, TAMURA CORPORATION Hall Effect Current Sensors L01Z***S05 Series Mechanical dimensions Lot No. S05 L01Z 2.5 2.5 12 5.2 12.8 38 MAX 18.5 MAX 9 3 15 7.5 14.5 14.5 0.5 8 Terminal Number: 1. VOUT 2. GND 3. +Vcc(+5V) 4 4 9.5 27 MAX 2 - Ø1 NOTES 1. Unit is mm 2. Tolerance is 0.5mm 12 3 3 - □0.65 Terminal No. Electrical connection diagram 12 3 VOUT +If RL = 10kΩ -If +VCC GND Package & Weight Information L01ZXXXS05revD, March 2012 Weight Pcs/box Pcs/carton Pcs/pallet 45g 50 200 4800 Tamura reserve the right to modify its products in order to improve them without prior notice
