FCN12076_IRIS-SCREW

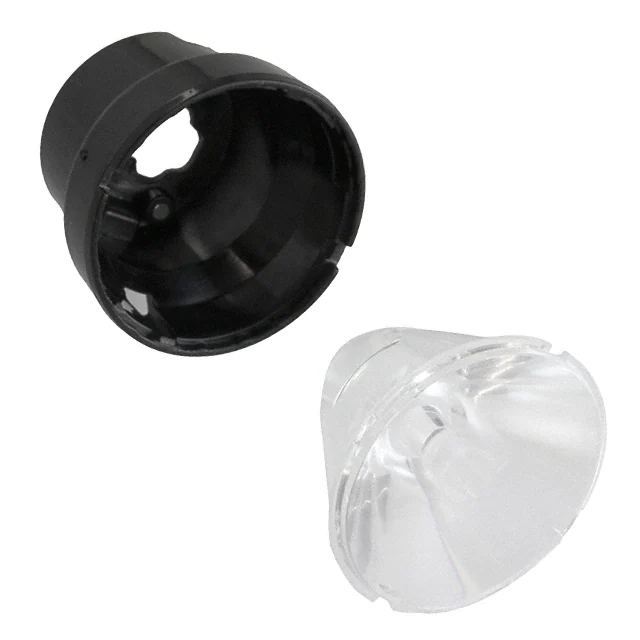

PRODUCT DATASHEET IRIS-SCREW IRIS-SCREW ~5° real spot beam with holder optimized for CREE XP-E. Assembly with screws. TECHNICAL SPECIFICATIONS: Dimensions Ø 38.0 mm Height 26.9 mm Fastening glue, pin, screw ROHS compliant yes MATERIAL SPECIFICATIONS: Component Type Material Colour F12075_IRIS Single lens PMMA clear C12202_IRIS-XP-HLD Holder PC black Finish ORDERING INFORMATION: Quantities for one set: Single lens 1 Holder 1 Last update: 22/09/2021 Subject to change without prior notice Published: 22/03/2022 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 1/13 PRODUCT DATASHEET IRIS-SCREW Component Qty in box MOQ MPQ Box weight (kg) F12075_IRIS » Box size: 480 x 280 x 300 mm Single lens 450 90 45 7.5 C12202_IRIS-XP-HLD » Box size: 480 x 280 x 300 mm Holder 1080 90 15 6.9 Last update: 22/09/2021 Subject to change without prior notice Published: 22/03/2022 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 2/13 PRODUCT DATASHEET IRIS-SCREW See also our general installation guide: www.ledil.com/installation_guide Last update: 22/09/2021 Subject to change without prior notice Published: 22/03/2022 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 3/13 PRODUCT DATASHEET IRIS-SCREW PHOTOMETRIC DATA (MEASURED): LED XHP35 HI FWHM / FWTM 7.6° / 17.0° Efficiency 90 % Peak intensity 35.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED XP-E FWHM / FWTM 4.0° / 9.0° Efficiency 93 % Peak intensity 87.4 cd/lm LEDs/each optic 1 Light colour White Required components: LED XP-G FWHM / FWTM 5.0° / 13.0° Efficiency 93 % Peak intensity 52 cd/lm LEDs/each optic 1 Light colour White Required components: LED XP-L HD FWHM / FWTM 8.5° / 20.0° Efficiency 93 % Peak intensity 22.2 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 22/09/2021 Subject to change without prior notice Published: 22/03/2022 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 4/13 PRODUCT DATASHEET IRIS-SCREW PHOTOMETRIC DATA (MEASURED): LED LUXEON Rebel FWHM / FWTM 5.0° / 9.0° Efficiency 93 % Peak intensity 75.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON Rebel ES FWHM / FWTM 7.0° / 14.0° Efficiency 93 % Peak intensity 38.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON V FWHM / FWTM 9.0° / 20.0° Efficiency 92 % Peak intensity 20.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED NCSxx19A FWHM / FWTM 5.0° / 11.0° Efficiency % LEDs/each optic 1 Light colour White Required components: Last update: 22/09/2021 Subject to change without prior notice Published: 22/03/2022 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 5/13 PRODUCT DATASHEET IRIS-SCREW PHOTOMETRIC DATA (MEASURED): LED NVSW219F FWHM / FWTM 7.0° / 17.0° Efficiency 93 % Peak intensity 34.8 cd/lm LEDs/each optic 1 Light colour White Required components: LED NVSW3x9A FWHM / FWTM 8.0° / 18.0° Efficiency 90 % Peak intensity 26.1 cd/lm LEDs/each optic 1 Light colour White Required components: LED NVSxx19A FWHM / FWTM 6.0° / 14.0° Efficiency 93 % Peak intensity 38.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED OSLON Square CSSRM2/CSSRM3 FWHM / FWTM 6.0° / 13.0° Efficiency 94 % Peak intensity 49.9 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 22/09/2021 Subject to change without prior notice Published: 22/03/2022 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 6/13 PRODUCT DATASHEET IRIS-SCREW PHOTOMETRIC DATA (MEASURED): LED OSLON SSL 150 FWHM / FWTM 4.0° / 11.0° Efficiency 93 % Peak intensity 76.8 cd/lm LEDs/each optic 1 Light colour White Required components: LED OSLON SSL 80 FWHM / FWTM 4.0° / 9.0° Efficiency 90 % Peak intensity 89 cd/lm LEDs/each optic 1 Light colour White Required components: LED Z5M3 FWHM / FWTM 7.0° / 16.0° Efficiency 92 % Peak intensity 3.1 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 22/09/2021 Subject to change without prior notice Published: 22/03/2022 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 7/13 PRODUCT DATASHEET IRIS-SCREW PHOTOMETRIC DATA (SIMULATED): LED XD16 FWHM / FWTM 6.0° / 14.0° Efficiency 91 % Peak intensity 47.1 cd/lm LEDs/each optic 1 Light colour White Required components: LED XHP35 HD FWHM / FWTM 10.0° / 22.0° Efficiency 93 % Peak intensity 18.4 cd/lm LEDs/each optic 1 Light colour White Required components: LED XHP35.2 HD FWHM / FWTM 8.0° / 18.0° Efficiency 90 % Peak intensity 24.4 cd/lm LEDs/each optic 1 Light colour White Required components: LED XHP35.2 HD FWHM / FWTM 12.0° / 25.0° Efficiency 86 % Peak intensity 13.5 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 22/09/2021 Subject to change without prior notice Published: 22/03/2022 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 8/13 PRODUCT DATASHEET IRIS-SCREW PHOTOMETRIC DATA (SIMULATED): LED XP-E2 FWHM / FWTM 6.0° / 12.0° Efficiency 93 % Peak intensity 67.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED XP-E2 FWHM / FWTM 5.9° / 13.0° Efficiency 94 % Peak intensity 56.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED XP-G2 FWHM / FWTM 6.7° / 15.0° Efficiency 94 % Peak intensity 44.3 cd/lm LEDs/each optic 1 Light colour White Required components: LED XP-G2 HE FWHM / FWTM 8.0° / 18.0° Efficiency 90 % Peak intensity 28.6 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 22/09/2021 Subject to change without prior notice Published: 22/03/2022 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 9/13 PRODUCT DATASHEET IRIS-SCREW PHOTOMETRIC DATA (SIMULATED): LED XP-G3 FWHM / FWTM 7.5° / 18.0° Efficiency 91 % Peak intensity 29.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED XQ-E HD FWHM / FWTM 5.5° / 12.0° Efficiency 94 % Peak intensity 74.2 cd/lm LEDs/each optic 1 Light colour White Required components: LED XQ-E HD FWHM / FWTM 5.0° / 11.5° Efficiency 93 % Peak intensity 80 cd/lm LEDs/each optic 1 Light colour White Required components: LED OSCONIQ P 3737 (2W version) FWHM / FWTM 6.5° / 13.0° Efficiency 94 % Peak intensity 46.4 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 22/09/2021 Subject to change without prior notice Published: 22/03/2022 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 10/13 PRODUCT DATASHEET IRIS-SCREW PHOTOMETRIC DATA (SIMULATED): LED OSCONIQ P 3737 (3W version) FWHM / FWTM 9.0° / 19.0° Efficiency 94 % Peak intensity 25.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED SFH 4716AS FWHM / FWTM 6.0° / 12.0° Efficiency 94 % LEDs/each optic 1 Light colour IR Required components: LED LH351B FWHM / FWTM 7.4° / 17.0° Efficiency 94 % Peak intensity 33.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED LH351D FWHM / FWTM 9.2° / 21.0° Efficiency 90 % Peak intensity 20.6 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 22/09/2021 Subject to change without prior notice Published: 22/03/2022 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 11/13 PRODUCT DATASHEET IRIS-SCREW PHOTOMETRIC DATA (SIMULATED): LED LM101B FWHM / FWTM 6.0° / 12.0° Efficiency 92 % Peak intensity 58.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED Z8Y22P FWHM / FWTM 8.0° Efficiency 98 % Peak intensity 29.9 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 22/09/2021 Subject to change without prior notice Published: 22/03/2022 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 12/13 PRODUCT DATASHEET IRIS-SCREW GENERAL INFORMATION: NOTE: The typical beam angle will be changed by different color, chip size and chip position tolerance. The typical total beam angle is the full angle measured where the luminous intensity is half of the peak value. MATERIALS: As part of our continuous research and improvement processes, and to ensure the best possible quality and availability of our products, LEDiL reserves the right to change material grades without notice. PRODUCT DATA USER AGREEMENT AND DISCLAIMER: The measured data in the provided downloadable LEDiL Product Datasheets and Mechanical 2D-Drawings is rounded and provided as reference for planning. LEDiL Oy's optical specifications have been verified by conducting performance testing of the products in accordance with the company's quality system. The reported data are averaged results of multiple measurements with typical variation. LEDiL Oy reserves the right to without prior notification make changes and improvements to its products. LEDiL Oy assumes neither warranty, nor guarantee nor any other liability of any kind for the contents and correctness of the provided data. The provided data has been generated with highest diligence but the provided data may in reality not represent the complete possible variation range of all intrinsic parameters. Therefore, in certain cases a deviation from the provided data could occur. LEDiL Oy Joensuunkatu 13 FI-24240 SALO Finland LEDiL Inc. 228 West Page Street Suite D Sycamore IL 60178 USA Ledil Optics Technology (Shenzhen) Co., Ltd. # 405 , Block B Casic Motor Building Shenzhen 518057 P.R.CHINA Local sales and technical support www.ledil.com/ where_to_buy Shipping locations Salo, Finland Hong Kong, China Distribution Partners www.ledil.com/ where_to_buy LEDiL Oy reserves the right to undertake technical changes of its products without further notification which could lead to changes in the provided data. LEDiL Oy assumes no liability of any kind for the possible deviation from any provided data or any other damage resulting from the usage of the provided data. The user agrees to this disclaimer and user agreement with the download or usage of the provided files. Last update: 22/09/2021 Subject to change without prior notice Published: 22/03/2022 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 13/13
