FP13031_LISA2-W-CLIP

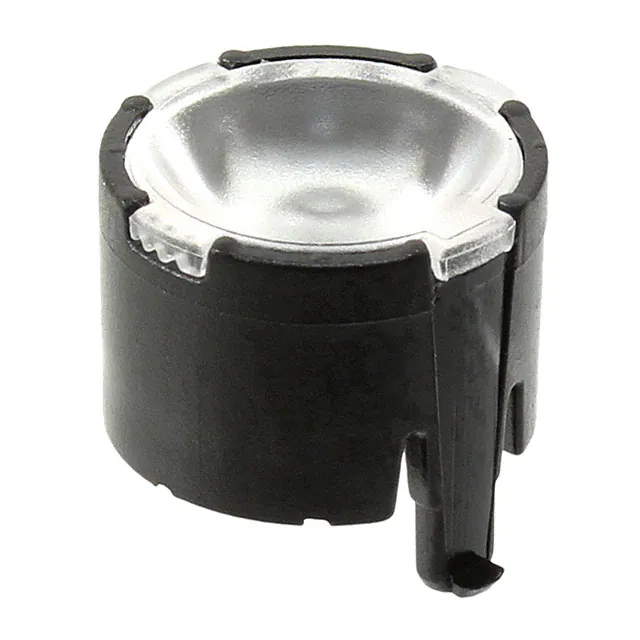

PRODUCT DATASHEET FP13031_LISA2-W-CLIP LISA2-W-CLIP ~35° wide beam optimized for CREE XP-E. 6.8 mm high variant with clip installation. TECHNICAL SPECIFICATIONS: Dimensions Height Fastening ROHS compliant Ø 9.9 mm 6.8 mm glue, clips yes MATERIAL SPECIFICATIONS: Component Type Material Colour LISA2-W Single lens PMMA clear LISA2-HLD-CLIP16-XP Holder PC black Finish ORDERING INFORMATION: Component FP13031_LISA2-W-CLIP » Box size: 310 x 230 x 60 mm Single lens Qty in box MOQ MPQ 2000 300 100 Last update: 12/01/2022 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. Box weight (kg) 1.4 1/8 PRODUCT DATASHEET FP13031_LISA2-W-CLIP See also our general installation guide: www.ledil.com/installation_guide Last update: 12/01/2022 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 2/8 PRODUCT DATASHEET FP13031_LISA2-W-CLIP PHOTOMETRIC DATA (MEASURED): LED XP-G2 FWHM / FWTM 36.0° / 55.0° Efficiency 88 % Peak intensity 2.2 cd/lm LEDs/each optic 1 Light colour White Required components: LED XP-G3 FWHM / FWTM 41.0° / 66.0° Efficiency 85 % Peak intensity 1.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED XT-E FWHM / FWTM 32.0° / 51.0° Efficiency 84 % Peak intensity 2.2 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON T FWHM / FWTM 36.0° / 58.0° Efficiency 86 % Peak intensity 2 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 12/01/2022 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 3/8 PRODUCT DATASHEET FP13031_LISA2-W-CLIP PHOTOMETRIC DATA (MEASURED): LED LUXEON TX FWHM / FWTM 34.0° / 55.0° Efficiency 88 % Peak intensity 2.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED NCSxx19B FWHM / FWTM 34.0° / 53.0° Efficiency 84 % Peak intensity 2.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED NVSxx19B/NVSxx19C FWHM / FWTM 38.0° / 61.0° Efficiency 87 % Peak intensity 1.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED OSLON Square EC FWHM / FWTM 33.0° / 57.0° Efficiency 85 % Peak intensity 2.4 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 12/01/2022 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 4/8 PRODUCT DATASHEET FP13031_LISA2-W-CLIP PHOTOMETRIC DATA (MEASURED): LED LH351B FWHM / FWTM 40.0° / 64.0° Efficiency 88 % Peak intensity 1.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED LH351Z FWHM / FWTM 38.0° / 60.0° Efficiency 88 % Peak intensity 2.1 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 12/01/2022 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 5/8 PRODUCT DATASHEET FP13031_LISA2-W-CLIP PHOTOMETRIC DATA (SIMULATED): LED XP-G2 HE FWHM / FWTM 43.0° / 68.0° Efficiency 88 % Peak intensity 1.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON H50-2 FWHM / FWTM 30.0° / 52.0° Efficiency 89 % Peak intensity 2.8 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON IR Compact FWHM / FWTM 34.0° / 47.0° Efficiency 83 % LEDs/each optic 1 Light colour White Required components: LED SFH 4715S FWHM / FWTM 22.0° / 36.0° Efficiency 90 % Peak intensity 5.1 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 12/01/2022 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 6/8 PRODUCT DATASHEET FP13031_LISA2-W-CLIP PHOTOMETRIC DATA (SIMULATED): LED Z8Y22P FWHM / FWTM 38.0° / 70.0° Efficiency 84 % Peak intensity 1.6 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 12/01/2022 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 7/8 PRODUCT DATASHEET FP13031_LISA2-W-CLIP GENERAL INFORMATION: NOTE: The typical beam angle will be changed by different color, chip size and chip position tolerance. The typical total beam angle is the full angle measured where the luminous intensity is half of the peak value. MATERIALS: As part of our continuous research and improvement processes, and to ensure the best possible quality and availability of our products, LEDiL reserves the right to change material grades without notice. PRODUCT DATA USER AGREEMENT AND DISCLAIMER: The measured data in the provided downloadable LEDiL Product Datasheets and Mechanical 2D-Drawings is rounded and provided as reference for planning. LEDiL Oy's optical specifications have been verified by conducting performance testing of the products in accordance with the company's quality system. The reported data are averaged results of multiple measurements with typical variation. LEDiL Oy reserves the right to without prior notification make changes and improvements to its products. LEDiL Oy assumes neither warranty, nor guarantee nor any other liability of any kind for the contents and correctness of the provided data. The provided data has been generated with highest diligence but the provided data may in reality not represent the complete possible variation range of all intrinsic parameters. Therefore, in certain cases a deviation from the provided data could occur. LEDiL Oy Joensuunkatu 13 FI-24240 SALO Finland LEDiL Inc. 228 West Page Street Suite D Sycamore IL 60178 USA Ledil Optics Technology (Shenzhen) Co., Ltd. # 405 , Block B Casic Motor Building Shenzhen 518057 P.R.CHINA Local sales and technical support www.ledil.com/ where_to_buy Shipping locations Salo, Finland Hong Kong, China Distribution Partners www.ledil.com/ where_to_buy LEDiL Oy reserves the right to undertake technical changes of its products without further notification which could lead to changes in the provided data. LEDiL Oy assumes no liability of any kind for the possible deviation from any provided data or any other damage resulting from the usage of the provided data. The user agrees to this disclaimer and user agreement with the download or usage of the provided files. Last update: 12/01/2022 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 8/8
