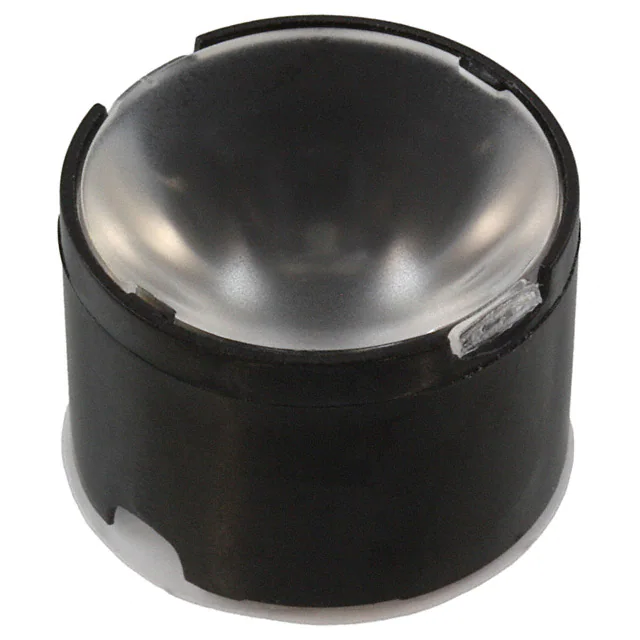

PRODUCT DATASHEET CA12665_LXB2-D LXB2-D ~14° diffused spot beam optimized for CREE XB-D. 14.6 mm high assembly with installation tape. TECHNICAL SPECIFICATIONS: Dimensions Height Ø 21.6 mm 14.6 mm Fastening ROHS compliant tape yes MATERIAL SPECIFICATIONS: Component Type Material Colour LXP2-D Single lens PMMA clear LXB2-LH1-TAPE Holder PC black HEIDI-TAPE Tape Acrylic foam black Finish ORDERING INFORMATION: Component CA12665_LXB2-D » Box size: 480 x 280 x 300 mm Qty in box Single lens 1680 MOQ MPQ 112 Last update: 24/01/2019 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. Box weight (kg) 9.4 1/4 See also our general installation guide: www.ledil.com/installation_guide PRODUCT DATASHEET CA12665_LXB2-D Last update: 24/01/2019 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 2/4 PRODUCT DATASHEET CA12665_LXB2-D PHOTOMETRIC DATA (MEASURED): LED XB-D FWHM / FWTM 12.0° / 26.0° Efficiency 80 % Peak intensity 11.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED XB-H FWHM / FWTM 12.0° / 25.0° Efficiency 86 % Peak intensity 13.3 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 24/01/2019 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 3/4 PRODUCT DATASHEET CA12665_LXB2-D GENERAL INFORMATION: NOTE: The typical beam angle will be changed by different color, chip size and chip position tolerance. The typical total beam angle is the full angle measured where the luminous intensity is half of the peak value. MATERIALS: As part of our continuous research and improvement processes, and to ensure the best possible quality and availability of our products, LEDiL reserves the right to change material grades without notice. PRODUCT DATA USER AGREEMENT AND DISCLAIMER: The measured data in the provided downloadable LEDiL Product Datasheets and Mechanical 2D-Drawings is rounded and provided as reference for planning. LEDiL Oy's optical specifications have been verified by conducting performance testing of the products in accordance with the company's quality system. The reported data are averaged results of multiple measurements with typical variation. LEDiL Oy reserves the right to without prior notification make changes and improvements to its products. LEDiL Oy assumes neither warranty, nor guarantee nor any other liability of any kind for the contents and correctness of the provided data. The provided data has been generated with highest diligence but the provided data may in reality not represent the complete possible variation range of all intrinsic parameters. Therefore, in certain cases a deviation from the provided data could occur. LEDiL Oy Joensuunkatu 13 FI-24240 SALO Finland LEDiL Inc. 228 West Page Street Suite D Sycamore IL 60178 USA Ledil Optics Technology (Shenzhen) Co., Ltd. # 405 , Block B Casic Motor Building Shenzhen 518057 P.R.CHINA Local sales and technical support www.ledil.com/ where_to_buy Shipping locations Salo, Finland Hong Kong, China Distribution Partners www.ledil.com/ where_to_buy LEDiL Oy reserves the right to undertake technical changes of its products without further notification which could lead to changes in the provided data. LEDiL Oy assumes no liability of any kind for the possible deviation from any provided data or any other damage resulting from the usage of the provided data. The user agrees to this disclaimer and user agreement with the download or usage of the provided files. Last update: 24/01/2019 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 4/4
