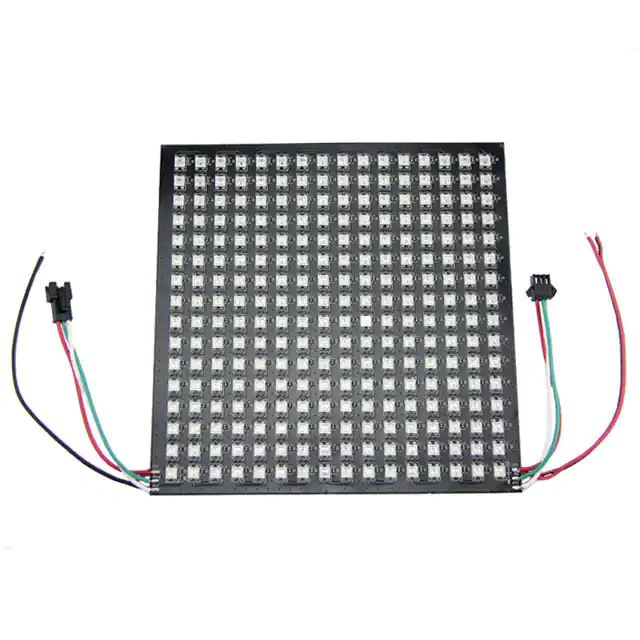

D256 16*16 pixel display panel Product Overview D25616*16 Pixel display panel is a LED dot matrix display product witch is specially designed for the field of LED-Clothing, it has many advantages as follow: Small size, light weight, arbitrary curved, easy to carry, Low-voltage drive, green energy, high brightness, low power, long life. D256 use our Company’s advance Intelligent LED driver IC, WS2812 as the basic unit. 16 Pixels are placed each line, and there are 16 lines on each panel. The space between each pixel is 1cm. This product is totally able to meet the basic requirement of Chinese character displaying. When used it with a controller additionally, it can also display numbers, English, video and so on. The Main Application areas ● LED-Clothing products ● Stage Lighting，decorating ● Require frequently disassembly. Occasions which need to be implemented in a limited space Unit :cm Mechanical Dimensions Dimensions（Unit Unit:cm :cm） http:// http://www.world-semi.com D256 16*16 pixel display panel Wire Connection PIN Funtion Funtion： No. Symbol PIN Funtion Description 1 +5V POWER 2 DIN Data Input 3 GND Earth 4 DOUT Data Output 5V power supply Input the control signal Earthing Output the control signal, connect to the next panel’s DIN Maximum Ratings Ratings（If not specified, TA=25℃,VSS=0V） Paramater Symbol Range Unit Power Voltage VDD +4.5~+5.3 V Logic input voltage VI -0.5～VDD+0.5 V Operating Temperature Topt -25～+80 ℃ Storage Temperature Tstg -40~+105 ℃ http:// http://www.world-semi.com D256 16*16 pixel display panel （If not specified，TA=-20～+70℃，VDD=4.5～5.5V,VSS=0V） Electrical parameters parameters（ Paramater Symbol Minimal Typical Maximum Unit Input Current ID 0.3A —— 15A A Operating Voltage VDD 4.5V 5.0v 5.3V V RGB Chip Characteristic parameters Color Model Wavelength（nm） Luminous intensity（mcd） Operating Voltage（V） Blue 13CBAUP 465-467 180-200 3.0-3.4 Green 13CGAUP 522-525 660-720 3.0-3.4 Red 10R1MUX 620-625 390-420 2.0-2.2 Data Transfer ( TH+TL=1.25µs±600ns) T0H Code 0， hight level 0.4µs ±150ns T1H Code 1， hight level 0.8 µs ±150ns T0L Code 0， low level 0.85µs ±150ns T1L Code 1， low level 0.45 µs ±150ns RES low level >50µs Timing Waveforms Input code: Connection Method Method： D1 D IN DO P IX 1 Data Transfer Method Method： http:// http://www.world-semi.com D2 D IN DO P IX 2 D3 D4 D IN DO P IX 3 D256 16*16 pixel display panel Note：The D1 on the figure above is the data sent by MCU，D2、D3、D4 are the data being transfered and adjusted by the next level circuit. 24bit data structure structure： G7 G6 G5 G4 G3 G2 G1 G0 R7 R6 R5 R4 R3 R2 R1 Note：High data bits are sent first.Sending data according the order: GRB http:// http://www.world-semi.com R0 B7 B6 B5 B4 B3 B2 B1 B0
