SURF1560

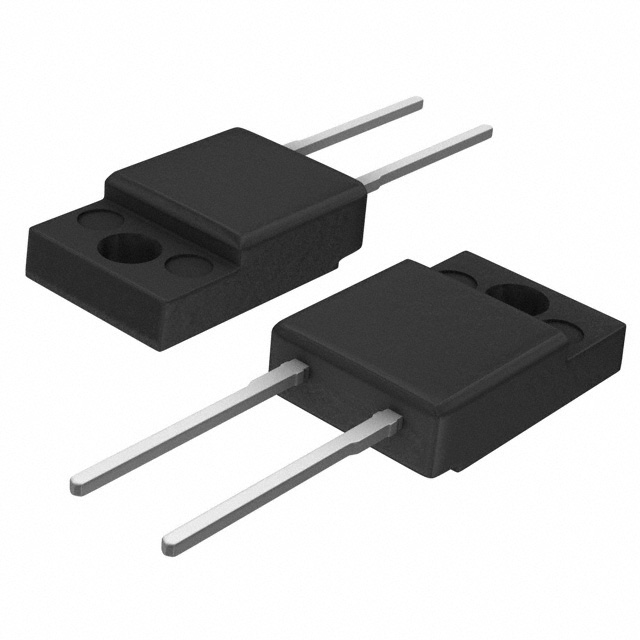

SURF1560 Technical Data Data Sheet N0417, Rev. A Applications: Green Products SURF1560 ULTRAFAST RECTIFIER         Antiparallel diode for high frequency switching devices Anti saturation diode Snubber diode Free wheeling diode in converters and motor control circuits Rectifiers in switch mode power supplies (SMPS) Inductive heating and melting Uninterruptible power supplies (UPS) Ultrasonic cleaners and welders         Ultra-Fast Switching High Current Capability Low Reverse Leakage Current High Surge Current Capability Plastic Material has UL Flammability Classification 94V-O This is a Pb − Free Device All SMC parts are traceable to the wafer lot Additional testing can be offered upon request Features: Mechanical Dimensions: In mm SYMBOL A A1 A2 A3 b b1 b2 c D E e e1 H1 L L1 L2 L3 L4 ΦP1(上口) ΦP2(下口) Q Θ1 Θ2 Θ3 Θ4 Θ5 MIN. 4.30 1.10 2.80 2.50 0.50 1.10 1.50 0.55 14.80 9.96 6.50 12.70 1.60 0.80 0.60 3.30 2.99 2.50 ITO-220AC(HD)  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com  TYP. 4.50 1.30 3.00 2.70 0.60 1.20 1.60 0.60 15.00 10.16 2.55 5.10 6.70 13.20 1.80 1.00 0.80 1.10 3.50 3.19 2.70 5° 4° 10° 5° 5° MAX. 4.70 1.50 3.20 2.90 0.75 1.35 1.75 0.75 15.20 10.36 6.90 13.70 2.00 1.20 1.00 1.50 3.70 3.39 2.90 SURF1560 Green Products Technical Data Data Sheet N0417, Rev. A Marking Diagram: Where XXXXX is YYWWL SUR F 15 60 SSG YY WW L = Device Type = Package Type = Forward Current (15A) = Reverse Voltage (600V) = SSG = Year = Week = Lot Number Cautions：Molding resin Epoxy resin UL:94V-0 Ordering Information: Device Package ITO-220AC (Pb-Free) SURF1560 Shipping 50pcs / tube For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specification. Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Symbol VRRM VRWM VR Condition Max. Units - 600 V Average Forward Current IF(AV) 50% duty cycle @TC =100℃ rectangular wave form 15 A Peak One Cycle Non-Repetitive Surge Current IFSM 8.3 ms, half Sine pulse 125 A  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com  SURF1560 Green Products Technical Data Data Sheet N0417, Rev. A Electrical Characteristics: Characteristics Forward Voltage Drop* Reverse Current* Symbol VF1 VF2 IR1 IR2 * Reverse Recovery Time trr Condition @ 15A, Pulse, TJ = 25℃ @ 15A, Pulse, TJ = 100℃ @VR = rated VR TJ = 25℃ @VR = rated VR TJ = 100℃ IF=500mA, IR=1A,and Irm=250mA Max. 2.4 2.0 5 Units V V A 50 A 50 ns Specification -55 to +150 -55 to +150 4.0 Units ℃ ℃ ℃/W 1.6 g Pulse Width < 300µs, Duty Cycle
