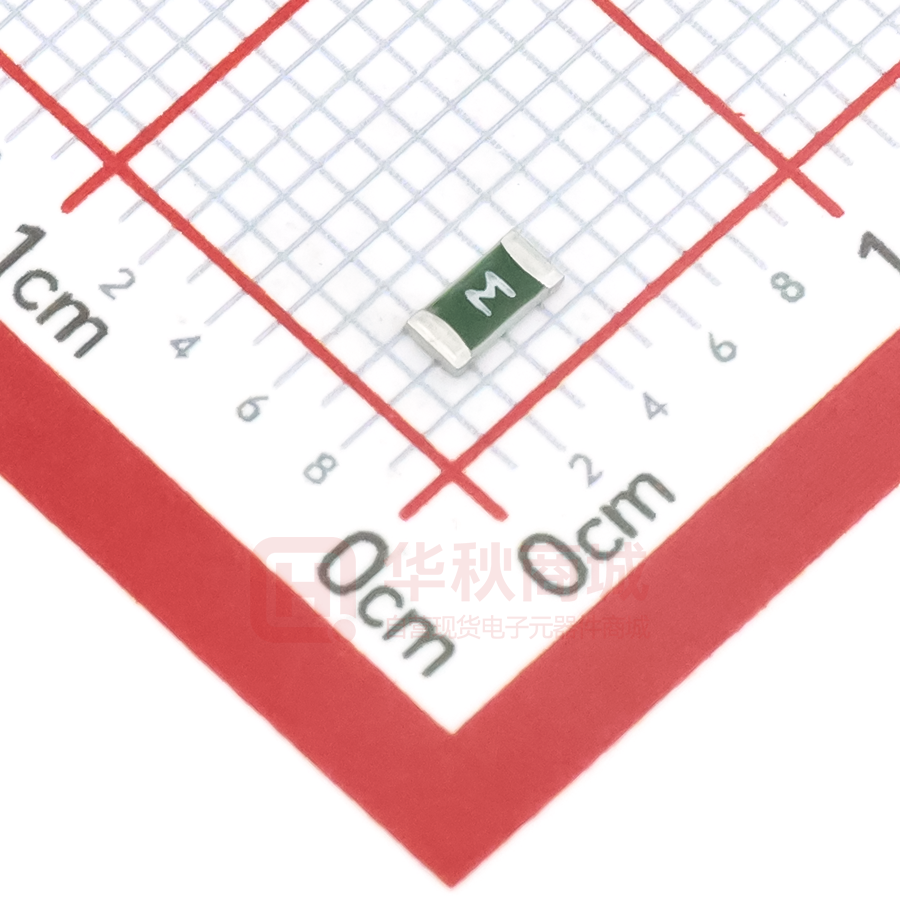

JFC1206-1800FS

PRODUCT DATASHEET JFC1206FS Series Fuse Surface Mount Fuses JFC1206FS Series Fuse Description JFC1206FS Series are the fuses set the industry standard for performance, reliability and quality. The solder‐free design provides excellent on‐off and temperature cycling characteristics during use and also makes our SMD fuses more heat and shock tolerant than typical subminiature fuses. Features ● Rapid interruption of excessive current ● Compatible with reflow and wave solder ● Ceramic and glass construction ● One time positive disconnect ● Lead Free and Halogen free material Electrical Characteristics Rated Current 1.0In 250mA~5A 4 hour min. 6A~30A 2.5In 3.5In 5 sec max. - - 5 sec max. Dimensions Topview JDT FUSE Electronics Corp. www.jdtfuse.com Sideview Page 1/4 JFC1206FS Series Fuse Performance Specification Part No. Rated Voltage DC Rated Current (A) Breaking Capacity 1 Typical Cold. Resistance (mOhms) 2 Typical Voltage Drop (mV) Typical Pre-Arcing I2t (A2Sec) 3 DC Aplha Marking JFC1206-0250FS 250mA 3608 1407 0.0004 .25 JFC1206-0375FS 375mA 1882 718 0.0008 E JFC1206-0500FS 500mA 1028 650 0.0022 0.5 JFC1206-0750FS 750mA 601 616 0.0057 .75 JFC1206-1100FS 1A 490 510 0.1 H 1.25A 165 184 0.021 ▲ 1.5A 240 367 0.15 K 144 316 0.41 N JFC1206-1125FS JFC1206-1150FS 63V JFC1206-1200FS 2A JFC1206-1250FS 2.5A 86 240 0.65 O JFC1206-1300FS 3A 53 187 1.39 P JFC1206-1350FS 3.5A 40 180 1.68 R JFC1206-1400FS 4A 35 173 1.73 S JFC1206-1450FS 4.5A 27 164 2.62 X 5A 22 141 2.89 T 6.5A 16 140 3.4 6.5 JFC1206-1700FS 7A 12 140 5.68 7 JFC1206-1800FS 8A 10 123 6.8 M JFC1206-2100FS 10A 4.4 59 10.6 U 3.8 67 11.5 12 JFC1206-1500FS JFC1206-1650FS JFC1206-2120FS 32V 24V 50A 150A 12A 15A 150A 2.9 66 16.5 15 JFC1206-2200FS 20A 200A 1.6 60 18.6 20 JFC1206-2250FS 25A 250A 1.4 57 28.4 25 JFC1206-2300FS 30A 300A 1 45 37.2 30 JFC1206-2150FS * DC Interrupting Rating (Measured at rated voltage, time constant of less than 50 microseconds, battery source) * DC Cold Resistance are measured at
