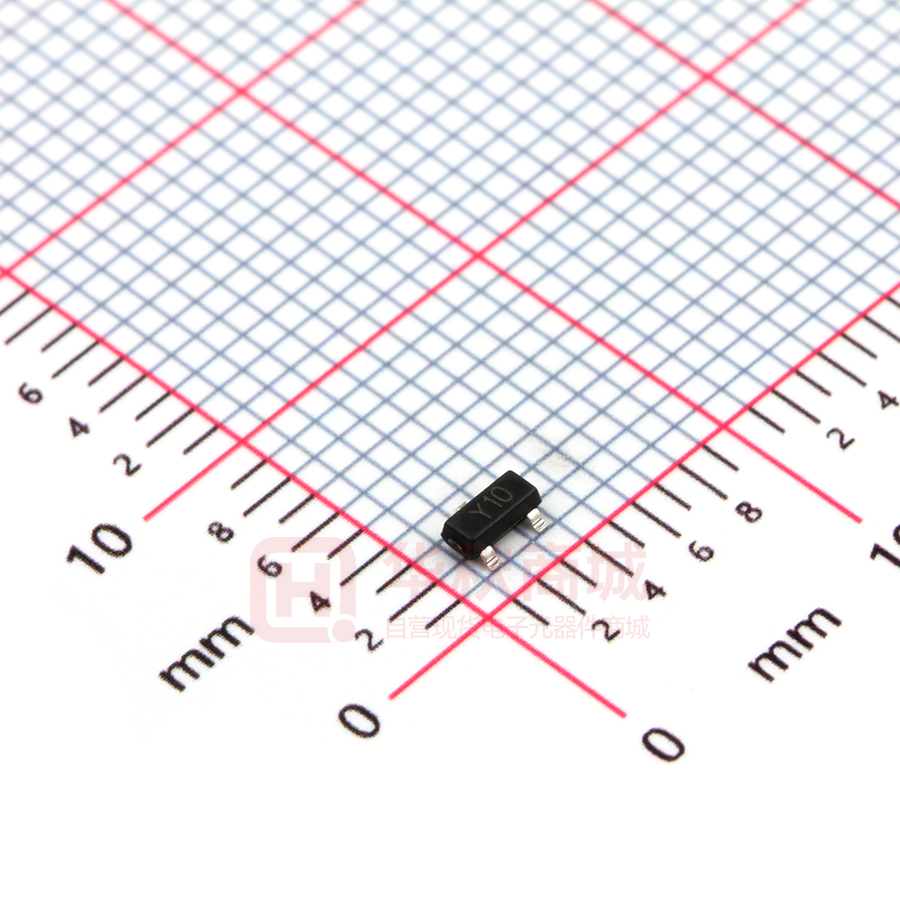

BZX84C27

BZX84C Series 350mW Surface Mount Zener Diode 3:cathode C: 5% tolerance SOT-23 1：ANODE Features 2 z Planar Die Construction. z 350mw Power Dissipation. z Zener Voltages From 2.4V -51V z Ideally Suited For Automated Assembly Prcesses. Applications z Dimensions in inches and (millimeters) 350Mw Surface mount zener diode Ordering Information Type No. BZX84C2V4-BZX84C51 Marking Package Code See Table on page2 SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Characteristic Symbol Value Unit = Forward Valtage@IF 10mA VF 0.9 V Power Dissipation Pd 350 mW Thermal Resistance, Junction to Ambient Air RθjA 357 ℃/W Operating and Storage Temperature Range Tj，Tstg -65 to+150 ℃ Notes: 1. Valid provided that device terminals are kept at ambient temperature. 2. Tested with pulses, 300μs pulse width, period = 5ms. 3. f = 1KHz. Revision:20170701-P1 ht t p : // www.lgesemi .c o m mail:lge@lgesemi.com BZX84C Series 350mW Surface Mount Zener Diode ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified Maximum Zener Zerner Voltage Range Type Marking Number Code VZ@IZT Impedance IZT ZZT@IZT Maximum Reverse Current ZZK@IZK IR VR Nom(V) Min(V) Max(V) (mA) (Ω) (Ω) (mA) (μA) (V) Typical Temperature Coefficient @IZT mV/℃ Min Max BZX84C2V4 Z11 2.4 2.2 2.6 5.0 100 600 1.0 50 1.0 -3.5 0 BZX84C2V7 Z12 2.7 2.5 2.9 5.0 100 600 1.0 20 1.0 -3.5 0 BZX84C3V0 Z13 3.0 2.8 3.2 5.0 95 600 1.0 10 1.0 -3.5 0 BZX84C3V3 Z14 3.3 3.1 3.5 5.0 95 600 1.0 5.0 1.0 -3.5 0 BZX84C3V6 Z15 3.6 3.4 3.8 5.0 90 600 1.0 5.0 1.0 -3.5 0 BZX84C3V9 Z16 3.9 3.7 4.1 5.0 90 600 1.0 3.0 1.0 -3.5 0 BZX84C4V3 Z17 4.3 4.0 4.6 5.0 90 600 1.0 3.0 1.0 -3.5 0 BZX84C4V7 Z1 4.7 4.4 5.0 5.0 80 500 1.0 3.0 2.0 -3.5 0.2 BZX84C5V1 Z2 5.1 4.8 5.4 5.0 60 480 1.0 2.0 2.0 -2.7 1.2 BZX84C5V6 Z3 5.6 5.2 6.0 5.0 40 400 1.0 1.0 2.0 -2.0 2.5 BZX84C6V2 Z4 6.2 5.8 6.6 5.0 10 150 1.0 3.0 4.0 0.4 3.7 BZX84C6V8 Z5 6.8 6.4 7.2 5.0 15 80 1.0 2.0 4.0 1.2 4.5 BZX84C7V5 Z6 7.5 7.0 7.9 5.0 15 80 1.0 1.0 5.0 2.5 5.3 BZX84C8V2 Z7 8.2 7.7 8.7 5.0 15 80 1.0 0.7 5.0 3.2 6.2 BZX84C9V1 Z8 9.1 8.5 9.6 5.0 15 100 1.0 0.5 6.0 3.8 7.0 BZX84C10 Z9 10 9.4 10.6 5.0 20 150 1.0 0.2 7.0 4.5 8.0 BZX84C11 Y1 11 10.4 11.6 5.0 20 150 1.0 0.1 8.0 5.4 9.0 Revision:20170701-P1 ht t p : // www.lgesemi .c o m mail:lge@lgesemi.com BZX84C Series 350mW Surface Mount Zener Diode Maximum Zener Zerner Voltage Range Type Marking Number Code VZ@IZT Impedance IZT ZZT@IZT Maximum Reverse Current ZZK@IZK IR Typical Temperature Coefficient @IZT mV/℃ VR Nom(V) Min(V) Max(V) (mA) (Ω) (Ω) (mA) (μA) (V) Min Max BZX84C12 Y2 12 11.4 12.7 5.0 25 150 1.0 0.1 8.0 6.0 10.0 BZX84C13 Y3 13 12.4 14.1 5.0 30 170 1.0 0.1 8.0 7.0 11.0 BZX84C15 Y4 15 13.8 15.6 5.0 30 200 1.0 0.1 10.5 9.2 13.0 BZX84C16 Y5 16 15.3 17.1 5.0 40 200 1.0 0.1 11.2 10.4 14.0 BZX84C18 Y6 18 16.8 19.1 5.0 45 225 1.0 0.1 12.6 12.4 16.0 BZX84C20 Y7 20 18.8 21.2 5.0 55 225 1.0 0.1 14.0 14.4 18.0 BZX84C22 Y8 22 20.8 23.3 5.0 55 250 1.0 0.1 15.4 16.4 20.0 BZX84C24 Y9 24 22.8 25.6 5.0 70 250 1.0 0.1 16.8 18.4 22.0 BZX84C27 Y10 27 25.1 28.9 2.0 80 300 0.5 0.1 18.9 21.4 25.3 BZX84C30 Y11 30 28.0 32.0 2.0 80 300 0.5 0.1 21.0 24.4 29.4 BZX84C33 Y12 33 31.0 35.0 2.0 80 325 0.5 0.1 23.1 27.4 33.4 BZX84C36 Y13 36 34.0 38.0 2.0 90 350 0.5 0.1 25.2 30.4 37.4 BZX84C39 Y14 39 37.0 41.0 2.0 130 350 0.5 0.1 27.3 33.4 41.2 BZX84C43 Y15 43 40.0 46.0 2.0 150 375 0.5 0.1 30.1 10.0 12.0 BZX84C47 Y16 47 44.0 50.0 2.0 170 375 0.5 0.1 32.9 10.0 12.0 BZX84C51 Y17 51 48.0 54.0 2.0 180 400 0.5 0.1 35.7 10.0 12.0 Revision:20170701-P1 ht t p : // www.lgesemi .c o m mail:lge@lgesemi.com BZX84C Series 350mW Surface Mount Zener Diode TYPICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified Revision:20170701-P1 PACKAGE SPQ/PCS CARTON SPQ/PCS CARTON SIZE/CM CARTON GW/KG CARTON NW/KG SOT- 23 3000/REEL 90000 40X20X22 5.00 4.00 ht t p : // www.lgesemi .c o m mail:lge@lgesemi.com BZX84C Series 350mW Surface Mount Zener Diode MOUNTING PAD LAYOUT 0.078(2.0) 0.035(0.9) SOT-23 0.031(0.8) 0.037(0.95) Unit: inch (mm) Revision:20170701-P1 ht t p : // www.lgesemi .c o m mail:lge@lgesemi.com
