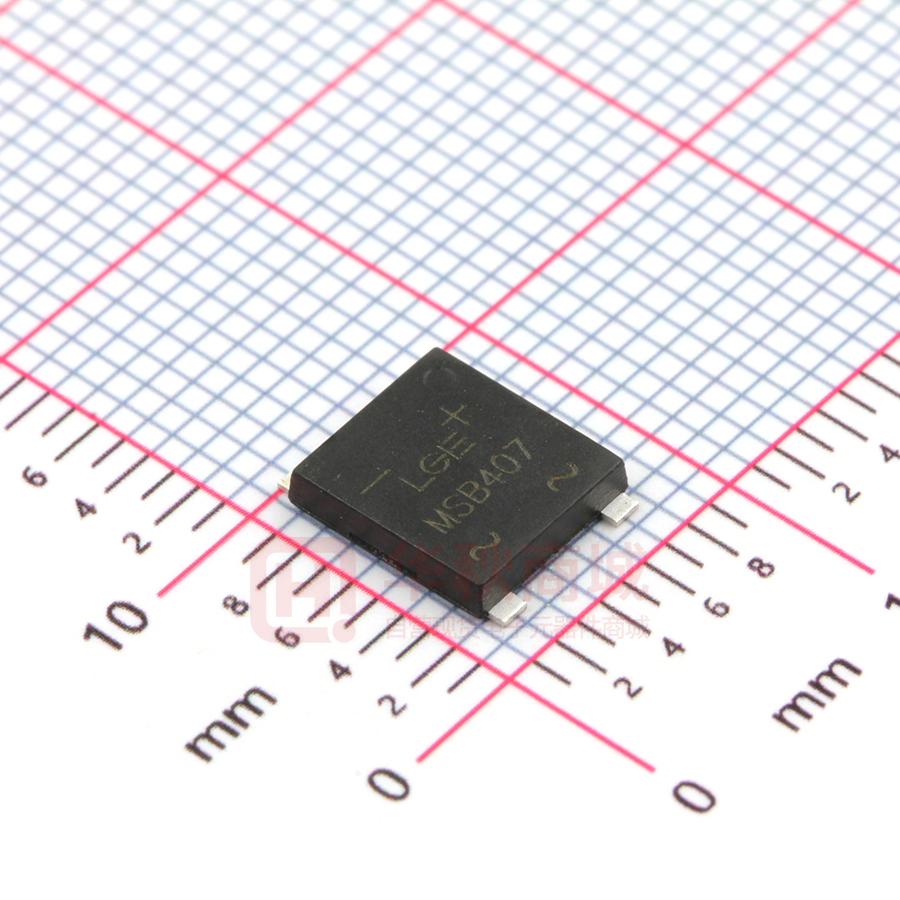

MSB401 thru MSB407 Recifiter Reverse Voltage 50V to 1000V MSB 4.0A Single-Phase GLass Passivated Bridge Rectifiers Features ●Glass passivated junction ●The plastic material used carries Underwriters Laboratory flammability recognition 94V-0 ●Suge overload ratings to 50 amperes peak ●Ideal for printed circuit board application ●High temperature soldering guaranteed 265℃/10 seconds at 5 lbs(2.3kg)tension Mechanical Data Case:Molded plastic Terminals:Platde leads solderable per MIL-STD-750, Method 2026 Polarity:Polarity symbols molded or Marked on body Mounting Position:Any Weight:0.007ounce,0.2 grams(approx) SPACING Maximum Ratings & Thermal Characteristics Rating at 25℃ ambient temperature unless otherwise specified,Resistive or inductive load,60HZ. For Capacitive load derate current by 20% Parameter Symbol MSB401 MSB402 MSB403MSB404 MSB405 MSB406 MSB407 Maximum repetitive peak reverse voltage VRRM Maximum RMS bridge input voltage VRMS VDC Maximum DC blocking voltage Maximum average forward rectified unit 50 100 200 400 600 800 1000 V 35 70 140 280 420 560 700 V 50 100 200 400 600 800 1000 V IF(AV) 4.0 A IFSM 90 A 10 Typical thermal resistance per element(1) I2 t ReJA 110 Typical thermal resistance per element(2) Cj 25.0 A2sec ℃/w PF Operating junction and stroage temperature TJ, -55to+150 ℃ output current at TA=40℃ Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method) Rating for fusing(t
