USB1135-15-9-L-B

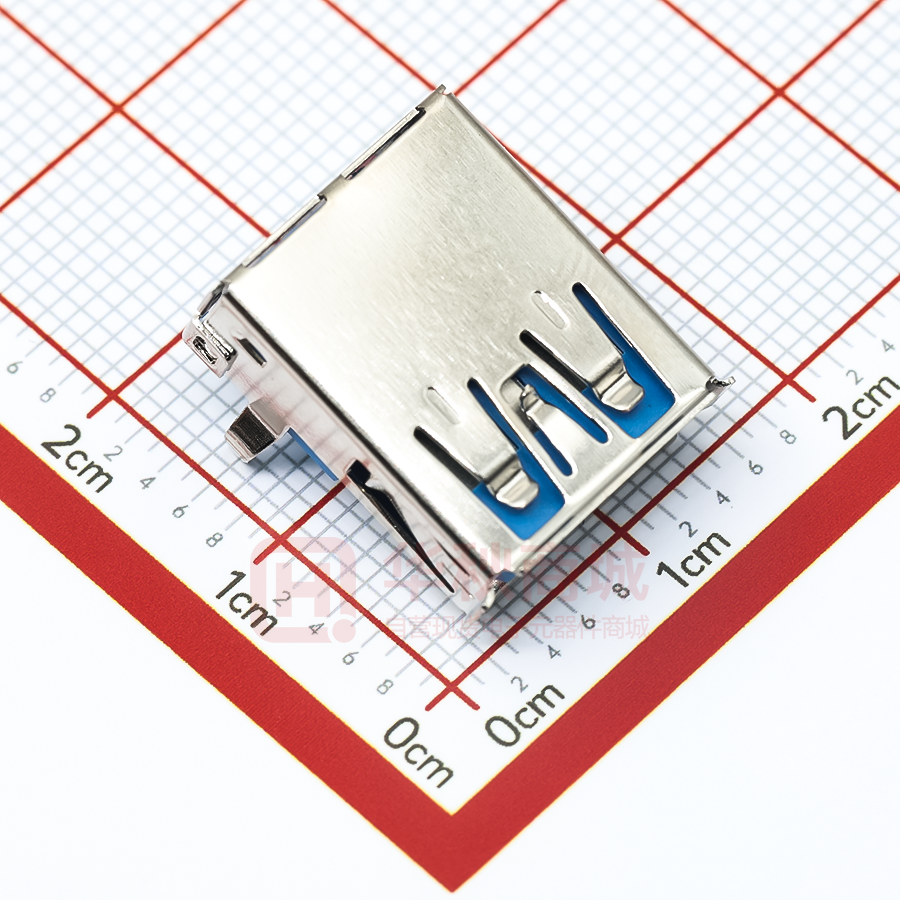

www.gct.co Performance USB A Connectors That Last Product Release USB1130 & USB1135 Vital Stats GCT has launched two USB A connectors with extended mating cycles and enhanced current rating over standard products. The USB1130 and USB1135 are the latest additions to the USB range and are perfect for fast charging and high traffic applications, rated to 10,000 and 20,000 mating cycles respectively. USB1130 USB USB Type A 2.0 Type A 3.0 Mating Cycles Mating Cycles 10,000 20,000 Current Rating Current Rating 3 Amp 3 Amp USB1135 USB1130 Plan View 3 3.22 mm 6.99 mm 15.60mm 5 2.71 mm 6 14.16mm 2 12.50mm 5.12 mm 4 1 gct.co/connector/usb1130 1 2 3 4 5 6 Horizontally mounted socket Stainless steel tabs improves retention force 4 pin USB Type A 2.0 interface Rated for 10,000 mating cycles 3 Amp current rating 2 Sprung PCB shell stakes USB1135 Plan View 3 6.95 mm 3.84 mm 15.47mm 5 2 6 16.50mm 11.78 mm 12.50mm 6.96 mm 4 1 gct.co/connector/usb1135 1 2 3 4 5 6 Horizontally mounted socket Stainless steel tabs improves retention force 9 pin USB Type A 3.0 interface Rated for 20,000 mating cycles 3 Amp current rating 2 Sprung PCB shell stakes Alternative USB A Products USB1086 • • • • Vertical top-mount USB A 3.0 socket Tested to 20,000 mating cycles Blue insulator to denote USB superspeed and reliability Perfect for high-traffic docking and charging applications USB1125 • • • • Horizontal top-mount USB A 2.0 socket Short 1mm shell depth for space-restricted designs No lead-in mating tabs in for panel-flush finish Tested to 5000 mating cycles USB1115 • • • • view on gct.co Horizontal mid-bottom mount USB A 3.0 socket Sculpted, mating tab-less entry face Perfect for compact, flush designs Tested to 5000 mating cycles
