BZT52B2V4S-BZT52B75S
Surface Mount Zener Diodes

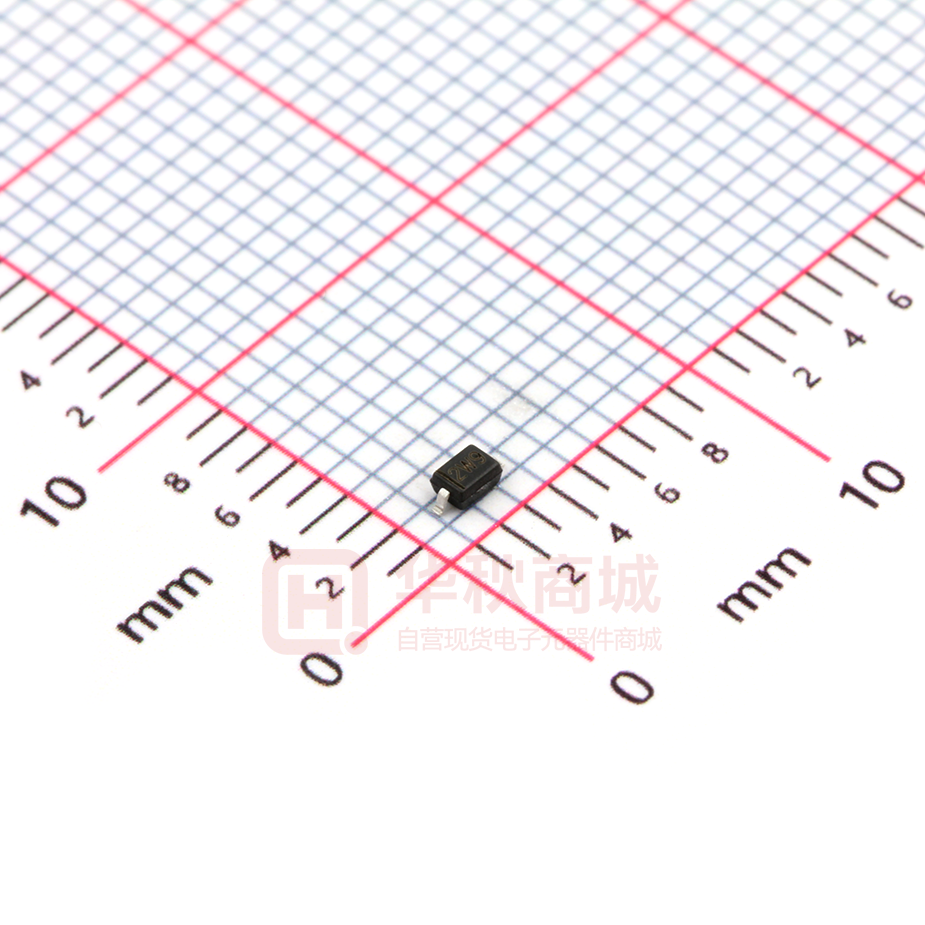

SOD-323
Features
Wide zener voltage range selection:2.4V to 75V .
VZ Tolerance selection of ±2%(B series).
Ideally suited for automated assembly processes.
Moisture sensitivity level 1.
Dimensions in inches and (millimeters)
Applications
Zener diode.
Ultra-small surface mount package.
Ordering Information
Type No.
BZT52C2V4S-BZT52C39S
Marking
Package Code
See table 2
SOD-323
MAXIMUM RATING @ Ta=25℃ unless otherwise specified
Characteristic
Symbol
Value
Unit
VF
1
V
Power Dissipation
Pd
200
mW
Thermal resistance, junction to ambient air
RθjA
625
℃/W
Junction temperature
Tj
150
℃
Storage temperature range
Tstg
-65 to+150
℃
Forward Voltage
@ IF=10mA
Notes: These ratings are limiting values above which the serviceability of the diodes may be impaired.
ht t p : //
Revision:20170701-P1
www.lgesemi .c o m
mail:lge@lgesemi.com
BZT52B2V4S-BZT52B75S
Surface Mount Zener Diodes
ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified
Type Number
Zener Voltage Range
Marking
Code
VZ@IZT
Maximum
Reverse
Current
Maximum Zener
Impedance
IZT
ZZT@IZT
IZK
ZZK@IZK
IR
@VR
Nom(V)
Min(V)
Max(V)
mA
Ω
mA
Ω
μA
V
BZT52B2V4S
0Z
2.4
2.35
2.45
5
94
1
564
45
1
BZT52B2V7S
1Z
2.7
2.65
2.75
5
94
1
564
18
1
BZT52B3V0S
2Z
3.0
2.94
3.06
5
89
1
564
9
1
BZT52B3V3S
3Z
3.3
3.23
3.37
5
89
1
564
4.5
1
BZT52B3V6S
4Z
3.6
3.53
3.67
5
84
1
564
4.5
1
BZT52B3V9S
5Z
3.9
3.82
3.98
5
84
1
564
2.7
1
BZT52B4V3S
6Z
4.3
4.21
4.39
5
84
1
564
2.7
1
BZT52B4V7S
7Z
4.7
4.61
4.79
5
75
1
564
2.7
2
BZT52B5V1S
8Z
5.1
5.00
5.20
5
56
1
470
1.8
2
BZT52B5V6S
9Z
5.6
5.49
5.71
5
37
1
451
0.9
2
BZT52B6V2S
AZ
6.2
6.08
6.32
5
9
1
376
2.7
4
BZT52B6V8S
BZ
6.8
6.66
6.94
5
14
1
141
1.8
4
BZT52B7V5S
CZ
7.5
7.35
7.65
5
14
1
75
0.9
5
BZT52B8V2S
DZ
8.2
8.04
8.36
5
14
1
75
0.63
5
BZT52B9V1S
EZ
9.1
8.92
9.28
5
14
1
94
0.45
6
BZT52B10S
FZ
10
9.80
10.20
5
18
1
141
0.18
7
BZT52B11S
GZ
11
10.78
11.22
5
18
1
141
0.09
8
BZT52B12S
HZ
12
11.76
12.24
5
23
1
141
0.09
8
BZT52B13S
JZ
13
12.74
13.26
5
28
1
160
0.09
8
BZT52B15S
KZ
15
14.70
15.30
5
28
1
188
0.045
10.5
BZT52B16S
LZ
16
15.68
16.32
5
37
1
188
0.045
11.2
BZT52B18S
MZ
18
17.64
18.36
5
42
1
212
0.045
12.6
BZT52B20S
NZ
20
19.60
20.40
5
51
1
212
0.045
14.0
BZT52B22S
PZ
22
21.56
22.44
5
51
1
235
0.045
15.4
BZT52B24S
RZ
24
23.52
24.48
5
65
1
235
0.045
16.8
BZT52B27S
SZ
27
26.46
27.54
5
75
0.5
282
0.045
18.9
BZT52B30S
TZ
30
29.40
30.60
5
75
0.5
282
0.045
21.0
BZT52B33S
UZ
33
32.34
33.66
5
75
0.5
306
0.045
23.0
BZT52B36S
VZ
36
35.28
36.72
5
84
0.5
329
0.045
25.2
BZT52B39S
WZ
39
38.22
39.78
5
122
0.5
329
0.045
27.3
BZT52B43S
XZ
43
42.14
43.86
5
141
0.5
353
0.045
30.1
BZT52B47S
YZ
47
46.06
47.94
5
160
0.5
353
0.045
33.0
BZT52B51S
-Z
51
49.98
52.02
5
169
0.5
376
0.045
35.7
ht t p : //
Revision:20170701-P1
www.lgesemi .c o m
mail:lge@lgesemi.com
BZT52B2V4S-BZT52B75S
Surface Mount Zener Diodes
Type Number
Zener Voltage Range
Marking
Code
VZ@IZT
Maximum
Reverse
Current
Maximum Zener
Impedance
IZT
ZZT@IZT
IZK
ZZK@IZK
IR
@VR
Nom(V)
Min(V)
Max(V)
mA
Ω
mA
Ω
μA
V
BZT52B56S
=Z
56
54.88
57.12
5
188
0.5
400
0.045
39.2
BZT52B62S
≡Z
62
60.76
63.24
5
202
0.5
423
0.045
43.4
BZT52B68S
>Z
68
66.64
69.36
5
226
0.5
447
0.045
47.6
BZT52B75S
