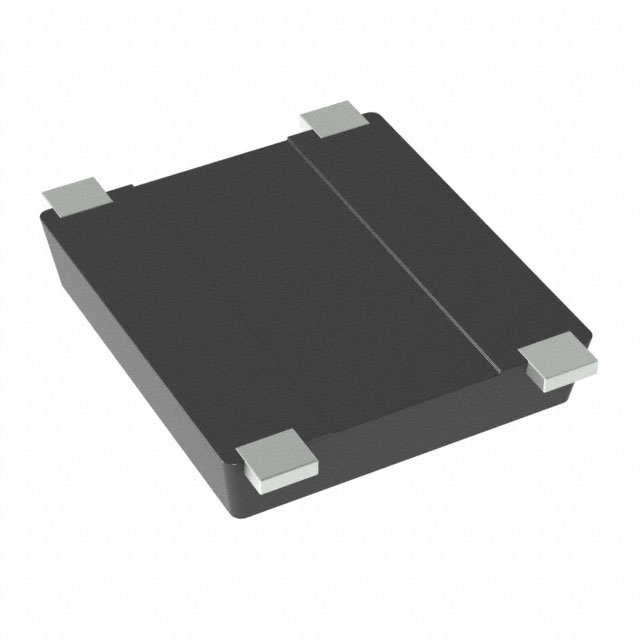

RYBS30M M2G

RYBS30M Taiwan Semiconductor 3A, 1000V Fast Recovery Bridge Rectifier FEATURES ● ● ● ● ● ● KEY PARAMETERS Glass passivated chip junction Ideal for automated placement UL Recognized File # E-326854 Moisture sensitivity level: level 1, per J-STD-020 RoHS Compliant Halogen-free according to IEC 61249-2-21 APPLICATIONS ● Switching mode power supply (SMPS) ● Adapters ● Lighting application PARAMETER VALUE UNIT IF 3 A VRRM 1000 V IFSM 90 A TJ MAX 150 °C Package YBS Configuration Quad MECHANICAL DATA ● ● ● ● ● ● Case: YBS Molding compound meets UL 94V-0 flammability rating Matte tin plated leads, solderable per J-STD-002 Meet JESD 201 class 1 whisker test Polarity: As marked Weight: 0.220g (approximately) YBS ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise noted) PARAMETER SYMBOL RYBS30M UNIT RY30M Marking code on the device Repetitive peak reverse voltage VRRM 1000 V Reverse voltage, total rms value VR(RMS) 700 V IF 3 A 90 A Forward current Surge peak forward current t = 8.3ms single half sine-wave superimposed t = 1.0ms on rated load per diode Rating for fusing (t
