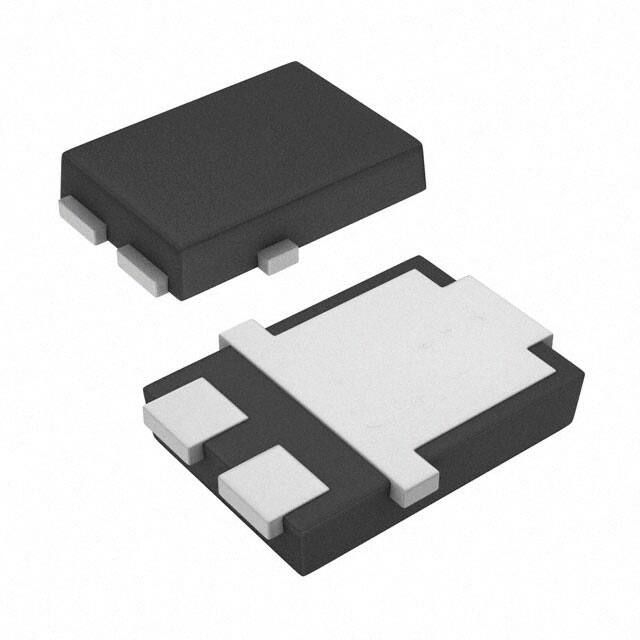

TSUP5M60SH Taiwan Semiconductor 5A, 60V Trench Schottky Rectifier FEATURES ● ● ● ● ● ● ● ● KEY PARAMETERS AEC-Q101 qualified Patented Trench Schottky technology Low power loss, high efficiency Ideal for automated placement Wettable flank Moisture sensitivity level: level 1, per J-STD-020 RoHS Compliant Halogen-free according to IEC 61249-2-21 PARAMETER VALUE UNIT IF 5 A VRRM 60 V IFSM 110 A TJ MAX 175 °C Package TO-277A (SMPC4.6U) Configuration Single die APPLICATIONS ● ● ● ● ● Switching mode power supply (SMPS) Adapters Lighting application On-board DC/DC converter Automotive MECHANICAL DATA ● ● ● ● ● ● Case: TO-277A (SMPC4.6U) Molding compound meets UL 94V-0 flammability rating Terminal: Matte tin plated leads, solderable per J-STD-002 Meet JESD 201 class 2 whisker test Polarity: Indicated by cathode band Weight: 0.104g (approximately) TO-277A (SMPC4.6U) ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise noted) PARAMETER SYMBOL Marking code on the device TSUP5M60SH UNIT 5M60 Repetitive peak reverse voltage VRRM 60 V Reverse voltage, total rms value VR(RMS) 42 V IF 5 A Forward current Surge peak forward current single half sine-wave superimposed on rated load t = 8.3ms t = 1.0ms IFSM 110 180 A Junction temperature TJ -55 to +175 °C Storage temperature TSTG -55 to +175 °C 1 Version: B2103 TSUP5M60SH Taiwan Semiconductor THERMAL PERFORMANCE PARAMETER SYMBOL TYP UNIT Junction-to-lead thermal resistance RӨJL 5 °C/W Junction-to-ambient thermal resistance RӨJA 45 °C/W Junction-to-case thermal resistance RӨJC 9 °C/W Thermal Performance Note: Units mounted on PCB (16mm x 16mm Cu pad test board) ELECTRICAL SPECIFICATIONS (TA = 25°C unless otherwise noted) PARAMETER CONDITIONS SYMBOL IF = 2.5A, TJ = 25°C Forward voltage IF = 5.0A, TJ = 25°C (1) IF = 2.5A, TJ = 125°C VF IF = 5.0A, TJ = 125°C Reverse current @ rated VR (2) Junction capacitance TJ = 25°C IR TJ = 125°C 1MHz, VR = 4.0V CJ TYP MAX UNIT 0.52 - V 0.59 0.64 V 0.45 - V 0.57 0.60 V - 200 µA - 7 mA 346 - pF Notes: 1. Pulse test with PW = 0.3ms 2. Pulse test with PW = 30ms ORDERING INFORMATION ORDERING CODE PACKAGE PACKING TSUP5M60SH TO-277A (SMPC4.6U) 6,000 / Tape & Reel 2 Version: B2103 TSUP5M60SH Taiwan Semiconductor CHARACTERISTICS CURVES (TA = 25°C unless otherwise noted) Fig.2 Typical Junction Capacitance 6 1000 5 CAPACITANCE (pF) 4 3 2 100 1 f=1.0MHz Vsig=50mVp-p 0 10 0 25 50 75 100 125 150 175 1 10 LEAD TEMPERATURE (°C) INSTANTANEOUS FORWARD CURRENT (A) Fig.4 Typical Forward Characteristics 10000 TJ=150°C TJ=125°C 100 TJ=175°C 10 1 TJ=25°C 0.1 10 20 30 40 50 60 70 80 90 100 100 10 1 UF1DLW TJ=175°C TJ=150°C TJ=125°C 10 TJ=25°C TJ=25°C 0.1 TJ=125°C 1 0.01 Pulse 300μs Pulse width width Pulse 300μswidth 1% duty cycle 0.001 0.1 0.3 0.4 0.5 0.6 0.7 0.8 0.9 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 PERCENT OF RATED PEAK REVERSE VOLTAGE (%) 1 1 1.1 FORWARD VOLTAGE (V) Fig.5 Typical Transient Thermal Impedance TRANSIENT THERMAL IMPEDANCE (°C/W) INSTANTANEOUS REVERSE CURRENT (μA) Fig.3 Typical Reverse Characteristics 1000 100 REVERSE VOLTAGE (V) (A) AVERAGE FORWARD CURRENT (A) Fig.1 Forward Current Derating Curve 100 10 1 0.1 0.01 0.001 0.0001 0.000001 0.00001 0.0001 0.001 0.01 0.1 1 10 100 PULSE DURATION (s) 3 Version: B2103 1.2 TSUP5M60SH Taiwan Semiconductor PACKAGE OUTLINE DIMENSIONS TO-277A (SMPC4.6U) SUGGESTED PAD LAYOUT MARKING DIAGRAM P/N YW F 4 = Marking Code = Date Code = Factory Code Version: B2103 TSUP5M60SH Taiwan Semiconductor Notice Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf, assumes no responsibility or liability for any errors or inaccuracies. Purchasers are solely responsible for the choice, selection, and use of TSC products and TSC assumes no liability for application assistance or the design of Purchasers’ products. Information contained herein is intended to provide a product description only. No license, express or implied, to any intellectual property rights is granted by this document. Except as provided in TSC’s terms and conditions of sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty, relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright, or other intellectual property right. The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify TSC for any damages resulting from such improper use or sale. 5 Version: B2103
