ESD3Z5.0C
Transient Voltage Suppressors for ESD protection
DESCRIPTION
ESD3Z5.0C is designed to protect voltage
sensitive components from ESD and transient
voltage events. Excellent clamping capability, low
leakage, and fast response time, make these parts
ideal for ESD protection on designs where board
space is at a premium.
This device has been specifically designed to
protect sensitive components which are connected
to data and transmission lines from overvoltage
caused by ESD (electrostatic discharge), CDE
(Cable Discharge Events),and EFT (electrical fast
transients).
FEATURES
IEC61000-4-2 (ESD) ±15kV (air),
±8kV (contact)
IEC61000-4-4 (EFT) 40A (5/50ηs)
Peak power dissipation: 200W (8/20μs)
Protects one directional I/O line
Low clamping voltage
Working voltages : 5V
Low leakage current
MACHANICAL DATA

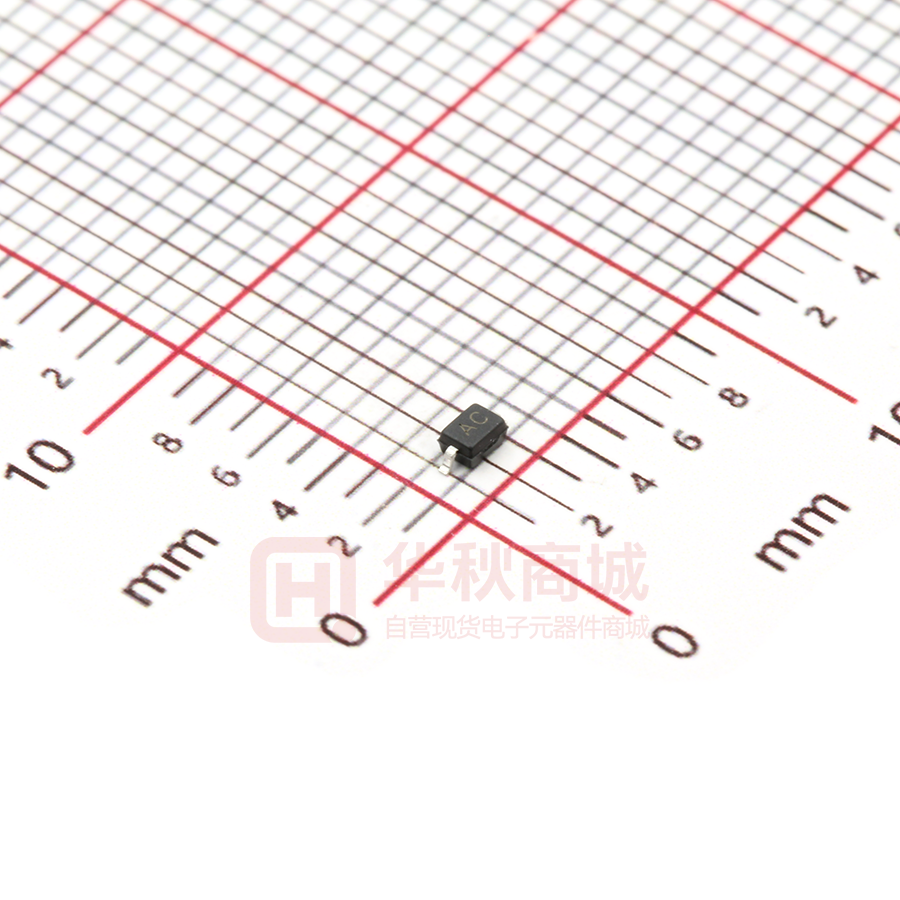

SOD-323 package
Terminals: Gold plated, solderable per
MIL-STD-750, method 2026
Packaging: Tape and Reel
Reel size: 7 inch
ORDERING INFORMATION
APPLICATIONS
Package: SOD-323
High Speed Line :USB1.0/2.0, VGA, DVI, SDI,
Serial and Parallel Ports
Notebooks, Desktops, Servers
Projection TV
Cellular handsets and accessories
Portable instrumentation
Peripherals
Material: Halogen free
Packing: Tape & Reel
Quantity per reel: 3,000pcs
PIN CONFIGURATION
PACKAGE OUTLINE
www.cj-elec.com
1/3
ESD3Z5.0C
Transient Voltage Suppressors for ESD protection
ABSOLUTE MAXIMUM RATING
Symbol
Parameter
Value
Units
VESD
ESD per IEC 61000-4-2 (Air)
ESD per IEC 61000-4-2 (Contact)
±15
±8
kV
PPP
Peak Pulse Power (8/20μs)
100
W
TOPT
Operating Temperature
-40~150
°C
TSTG
Storage Temperature
-40~150
°C
ELECTRICAL CHARACTERISTICS (Tamb=25°C)
Symbol
Parameter
Test Condition
VRWM
Reverse Working Voltage
VBR
Reverse Breakdown
Voltage
IT = 1mA
IR
Reverse Leakage Current
VC
Max
Units
5.0
V
7.8
V
VRWM = 5V
1.0
μA
Clamping Voltage
IPP = 5A, tp = 8/20μs
11.6
V
VC
Clamping Voltage
IPPmax = 8A , tp = 8/20μs
16.0
V
CJ
Junction Capacitance
VR = 0V, f = 1MHz
15
pF
ELECTRICAL CHARACTERISTICS CURVE
www.cj-elec.com
2/3
Min
Typ
5.6
10
ESD3Z5.0C
Transient Voltage Suppressors for ESD protection
SOD-323 PACKAGE OUTLINE DIMENSIONS
www.cj-elec.com
3/3
