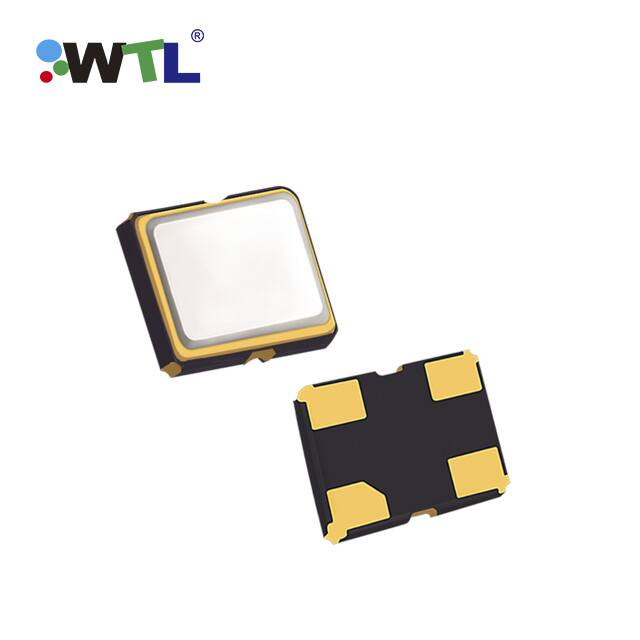

Crystal Oscillator, Series TC3
3.2 ×2.5 mm SMD Crystal Oscillator
Feature
Typical 3.2 x 2.5 x 0.95mm SMD package.
Tight symmetry (45 to 55%) available.
Operation voltage: 1.8V, 2.5V, 3.3V
Tri-state enable/disable
RoHS compliant/Pb-free
Electrical Specifications
Dimension(mm)
0.1 µF
BOTTOM VIEW
TOP VIEW
2.10±0.15
#3
#1
#2
#2
2.10
0.90±0.15
SIDE VIEW
1.20
0.95±0.15
0.35
#1
1.60
2.50±0.15
1.65±0.15
#4
1.10
#3
0.65±0.15
3.20±0.15
#4
Solder Pad Layout(mm)
http://www.wtlcrystals.com
Pin#
1
2
3
4
Function
Tri-State
GND
Output
VDD
