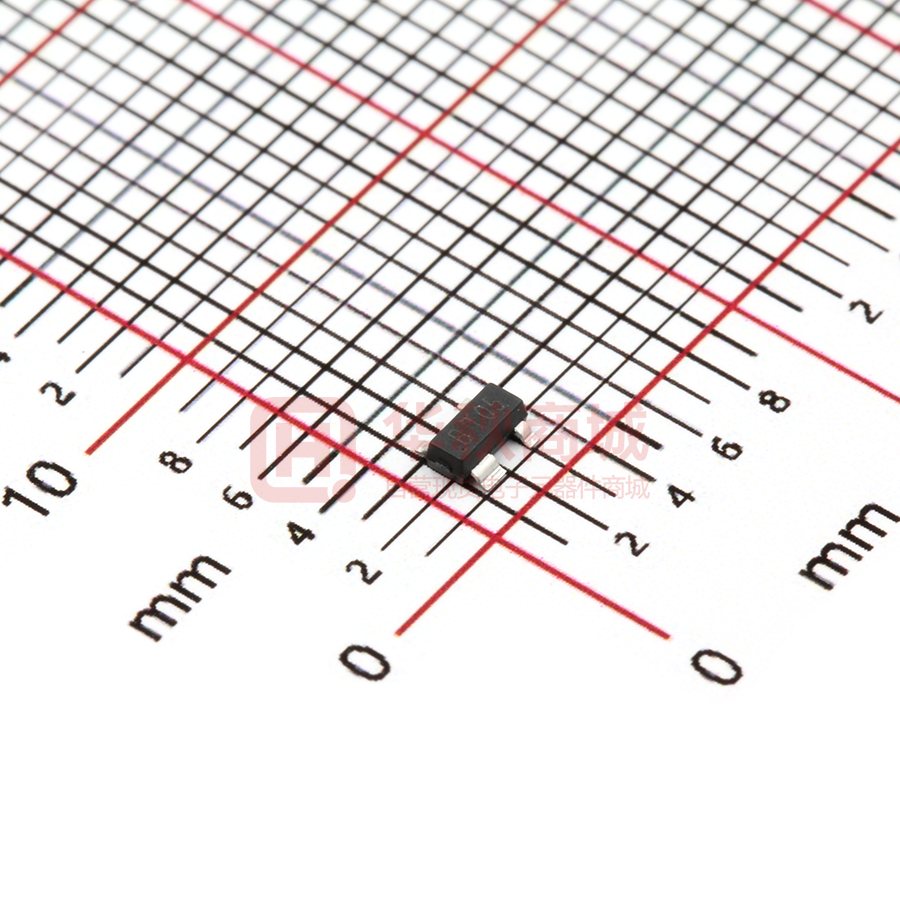

UDT14A05L03 Electrostatic Discharged Protection Devices (ESD) Data Sheet Description UDT14A05L03 is surge rated diode arrays designed to protect high speed data interfaces. It has been specifically designed to protect sensitive components which is connected to data and transmission lines from overvoltage caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning. The unique design of the device incorporates one surge rated, and two data lines. Low capacitance steering diodes and a TVS diode in a single package. The low capacitance array configuration allows the user to protect two high speed data or transmission lines. The two inductance construction minimizes voltage overshoot during high current surges. Features ● ● ● ● ● ● ● ● ● ● ● ● ● ● IEC61000-4-2 ESD 30KV Air, 30KV contact compliance SOT-143 surface mount package Protects two high-speed data lines and one power line Array of surge rated, low capacitance diodes Working voltage: 5V Low leakage current Low clamping voltage Solid-state silicon avalanche technology RoHS compliant Solder reflow temperature: Pure Tin-Sn, 260~270℃ Flammability rating UL 94V-0 Meets MSL level 1, per J-STD-020 AEC-Q101 qualified Marking: B T05 4 3 1 2 Pin Configuration Applications ● ● ● ● ● ● ● ● VBUS DD+ GND USB power and data line protection Ethernet 10BaseT Video line protection I2C bus protection WAN/LAN equipment ISDN S/T interface Microcontroller input protection Portable electronics Revision:ESD-UDT14A05L03-001(A1) Connector USB 2.0 Protection 1/5 http://brightking.pulseelectronics.com UDT14A05L03 Maximum Ratings Rating Peak pulse current (tp=8/20μs waveform) Symbol Value Unit IPP 12 A ESD voltage (Contact discharge) ±30 VESD kV ESD voltage (Air discharge) ±30 Storage & operating temperature range TSTG ,TJ ℃ -55~+150 Electrical Characteristics (TJ=25℃) Parameter Reverse stand-off voltage Reverse breakdown voltage Symbol Condition Min. Typ. VRWM Max. Unit 5 V VBR IBR=1mA Reverse leakage current IR VR=5V 5 μA Clamping voltage (tp=8/20μs) VC IPP=1A 9.8 V Clamping voltage (tp=8/20μs) VC IPP=12A 25 V Off state junction capacitance CJ 0Vdc,f=1MHz Between I/O pins and GND 3 pF Revision:ESD-UDT14A05L03-001(A1) 2/5 6 V 1.5 http://brightking.pulseelectronics.com UDT14A05L03 ESD Protection Standards IEC61000-4-2 Interfaces of consumer electronic equipment are widely specified according to the International Electrotechnical Commission standard IEC61000-4-2. This standard is not targeted towards particular devices but towards general equipment, systems and subsystems that may be involved in electrostatic discharge. consists of a 150pF capacitor and a 330Ω series resistor representing the counterpart to the Device Under Test (DUT). IPP 100% 330Ω 50MΩ to 100MΩ v high-voltage generator 90% DUT 150pF 10% 001aaf202 t tr=0.7ns to 1ns Test circuit according IEC61000-4-2 30ns 60ns ESD surge according IEC61000-4-2 Human Body Model (HBM, MIL-883E method 3015.7) The HBM standard simulates an ESD surge generated by human contact to electronic components. IPP 1.5kΩ 10MΩ to 100MΩ Ir
