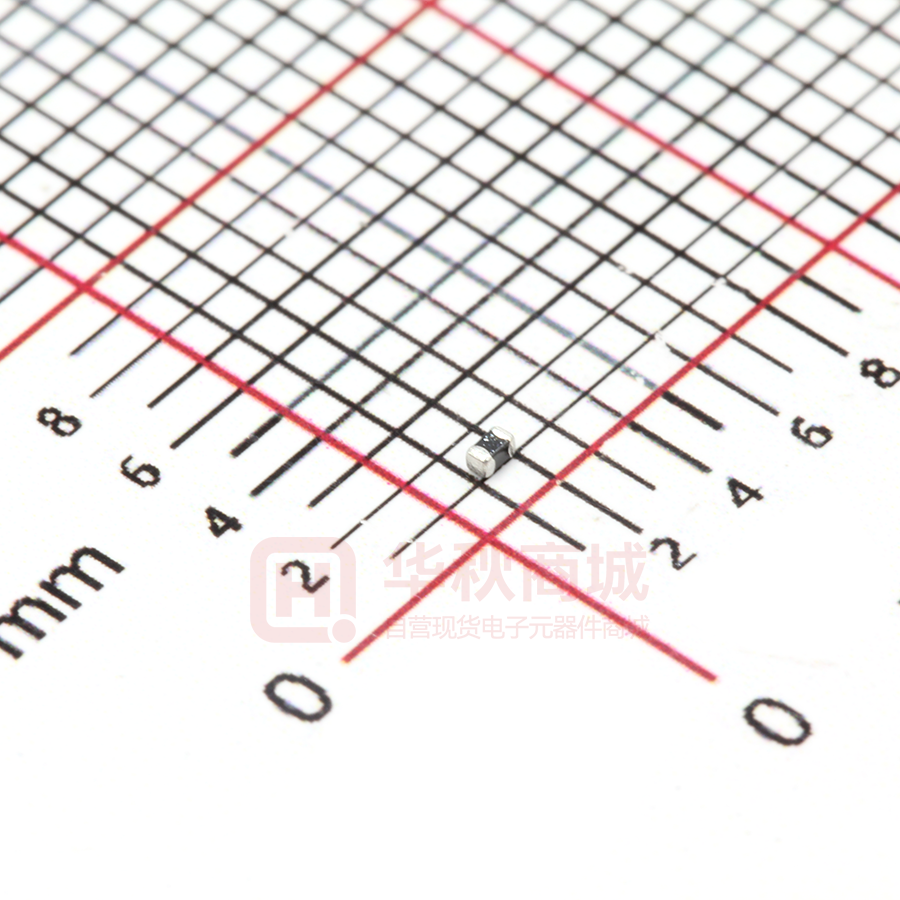

SDNT1005X473F4050FTF 数据手册
Chip Temp. Sensing NTC Thermistor – SDNT Series
Operating Temp. : -55℃~+125℃
FEATURES
SMD type suitable for high density mounting
Series of B constant for various applications
Excellent solder ability
●
●
●
APPLICATIONS
Telecommunication equipments such as cellular phone, automobile phone, etc.
Office automation such as printer, facsimile, word processor, etc.
Battery, CPU temperature protection.
●
●
●
PRODUCT IDENTIFICATION
SDNT
1005
X
103
F
3380
F
T
F
①
②
③
④
⑤
⑥
⑦
⑧
⑨
②
①
Type
SDNT
③
External Dimensions (L×W) (mm)
Chip NTC Thermistor
④
0603 [0201]
0.6×0.3
1005 [0402]
1.0×0.5
1608 [0603]
1.6×0.8
2012 [0805]
2.0×1.25
Tolerance of Resistance
F
±1%
H
±3%
J
±5%
K
±10%
⑦
⑧
Tolerance of B Constant
F
±1%
H
±3%
X
C
⑥
⑤
Zero-power Resistance
Example
Nominal Value
472
4.7kΩ
103
10kΩ
Internal Code
Packing
Tape & Reel
T
B Constant (25-50℃)
Example
Nominal Value
3380
3380K
4250
4250K
⑨
Hazardous Substance
Free Products
F
SHAPE AND DIMENSIONS
Unit: mm [inch]
Type
Sunlord
L
W
T
a
SDNT0603
0.6±0.05
0.3±0.05
0.3±0.05
0.15±0.05
[0201]
[.024±.002]
[.012±.002]
[.012±.002]
[.006±.002]
SDNT1005
1.0±0.15
0.5±0.15
0.5±0.15
0.25±0.1
[0402]
[.039±.006]
[.020±.006]
[.020±.006]
[.010±.004]
SDNT1608
1.6±0.15
0.8±0.15
0.8±0.15
0.3±0.2
[0603]
[.063±.006]
[.031±.006]
[.031±.006]
[.012±.008]
SDNT2012
2.0±0.2
1.25±0.2
0.85±0.2
0.5±0.3
[0805]
[.079±.008]
[.049±.008]
[.033±.008]
[.020±.012]
Specifications subject to change without notice. Please check our website for latest information.
Revised 2021/05/15
Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com
SPECIFICATIONS
SDNT0603 TYPE
Part Number
Resistance B Constant
at 25℃
(25-50℃)
Max. Permissive
Operating
Current (25℃)
Thermal Time Dissipation Rated Electric
Constant
Factor
Power
Units
kΩ
K
mA
sec
mW/℃
mW
t
C
P
