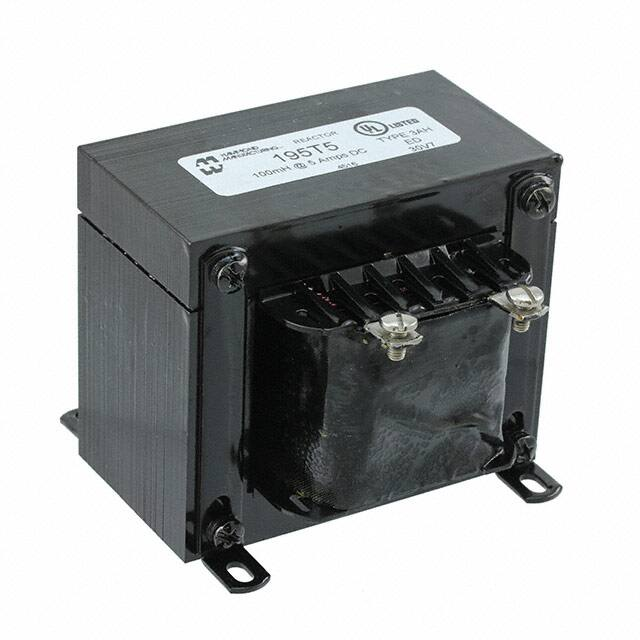

10/3/22, 1:36 AM Heavy Current Chassis Mount (195-196 Series) - Hammond Mfg. Quality Products. Service Excellence. Heavy Current Chassis Mount 195-196 Series Features Open core & coil, 4-slot bracket mounting chokes. Tolerance of 15% on both inductance & resistance. Inductances measured at rated D.C. current. The "195" series is single coil The "196" series is dual coil - allowing more versatility Recommended maximum operating voltage 600 VAC (winding to core). Hipot tested at 2,500 VAC Connections are made to a screw terminal or heavy copper tabs with holes Perfect for high current power supply filtering. All chokes are UL approved under Type 3AH, E207860, 30V7 For AC applications 60 Hz to 10,000 Hz try our 197 Series   195 Series Inductance mH D.C. Current Resistance Insulation Part No. (Millihenries) (Amps) (Ohms) Class A B Dimensions C D E Mounting Slot Weight G 195A200 0.3 200 0.0012 - 7.50 7.00 6.50 6.00 5.25 0.28 x 0.56 (lbs.) 46 195B100 0.5 100 0.002 - 6.38 6.25 5.38 5.25 4.13 0.28 x 0.56 31 195B150 0.5 150 0.0018 B 5.25 5.50 4.47 4.38 4.13 0.28 x 0.56 26 195C20 1 20 0.013 A 3.00 3.06 2.50 2.50 2.25 0.20 x 0.38 3 195C30 1 30 0.010 A 3.75 3.85 3.13 3.13 2.50 0.20 x 0.38 6 195C50 1 50 0.006 A 4.50 5.25 3.75 3.75 3.50 0.20 x 0.38 14.5 195C75 1 75 0.004 A 5.25 6.00 4.47 4.38 4.63 0.28 x 0.56 23 195C100 1 100 0.0036 B 5.25 6.50 4.47 4.38 5.13 0.28 x 0.56 26 195D50 1.4 50 0.005 - 6.38 5.50 5.38 5.25 3.88 0.28 x 0.56 28 195E20 2.5 20 0.022 A 3.75 4.20 3.13 3.13 2.75 0.20 x 0.38 6.5 195E30 2.5 30 0.013 A 4.50 5.25 3.75 3.75 3.50 0.20 x 0.38 12.5 195E50 2.5 50 0.008 A 5.25 6.00 4.47 4.38 4.63 0.28 x 0.56 23.5 https://www.hammfg.com/electronics/transformers/choke/195-196 1/3 10/3/22, 1:36 AM Heavy Current Chassis Mount (195-196 Series) - Hammond Mfg. Inductance mH D.C. Current Resistance Insulation Part No. (Millihenries) (Amps) (Ohms) Class A B Dimensions C D E Mounting Slot Weight G 195E75 2.5 75 0.008 B 6.00 6.63 5.16 5.00 4.88 0.28 x 0.56 (lbs.) 32.5 195E100 2.5 100 0.008 B 9.00 9.75 7.50 7.00 6.00 0.44 x 0.75 88 195F30 4 30 0.018 - 6.38 5.00 5.38 5.25 3.25 0.28 x 0.56 23 195G10 5 10 0.04 A 3.75 3.60 3.13 3.13 2.25 0.20 x 0.38 5.5 195G20 5 20 0.025 A 4.50 4.75 3.75 3.75 3.00 0.20 x 0.38 10.5 195G25 5 25 0.014 - 5.25 6.00 4.44 4.38 3.63 0.28 x 0.56 18 195G30 5 30 0.020 A 5.25 5.00 4.47 4.38 3.63 0.28 x 0.56 16 195G50 5 50 0.021 B 7.50 6.50 6.25 6.00 4.50 0.38 x 0.63 38 195G75 5 75 0.011 B 9.00 9.50 7.76 7.00 7.00 0.44 x 0.75 87 195H20 7 20 0.062 - 5.25 6.00 4.44 4.38 3.63 0.28 x 0.56 17 195J10 10 10 0.087 A 3.75 4.35 3.13 3.13 3.00 0.20 x 0.38 8 195J12 10 12.5 0.072 B 4.12 3.25 3.44 3.44 2.34 0.20 x 0.38 - 195J20 10 20 0.045 A 5.25 5.00 4.47 4.38 3.63 0.28 x 0.56 17.5 195J30 10 30 0.036 A 6.00 7.50 5.00 5.00 5.88 0.31 x 0.50 36 195J50 10 50 0.023 B 9.00 9.75 7.50 7.00 6.25 0.44 x 0.75 79 195K12 15 12 0.062 - 5.25 5.50 4.44 4.38 3.13 0.28 x 0.56 14 195K16 15 16 0.062 - 5.25 6.00 4.44 4.38 3.63 0.28 x 0.56 17 195M10 20 10 0.135 A 4.50 4.75 3.75 3.75 3.00 0.20 x 0.38 10.2 195M20 20 20 0.079 A 6.00 7.50 5.00 5.00 5.88 0.31 x 0.50 34 195M30 20 30 0.065 B 6.00 7.63 5.16 5.00 5.88 0.28 x 0.56 41 195P5 30 5 0.23 A 3.75 4.20 3.13 3.13 2.75 0.20 x 0.38 6.5 195P8 30 8 0.3 - 4.12 3.75 3.50 3.43 3.00 0.20 x 0.38 - 195P10 30 10 0.17 A 4.50 5.25 3.75 3.75 3.50 0.20 x 0.38 16 195P20 30 20 0.123 B 5.25 6.91 4.47 4.38 5.54 0.28 x 0.56 28 195Q2 35 2 0.61 B 2.63 2.00 2.21 2.19 1.75 0.19 x 0.38 - 195Q6 40 6 0.4 - 3.75 3.62 3.25 3.12 3.00 0.20 x 0.38 - 195R10 50 10 0.163 A 5.25 5.50 4.47 4.38 4.13 0.28 x 0.56 26 195R20 50 20 0.13 B 9.00 8.25 7.50 7.00 5.75 0.44 x 0.75 72 195S2 70 2 0.9 - 3.37 2.75 2.87 2.81 2.12 0.20 x 0.38 - 195S4 70 4 0.6 - 3.75 3.25 3.13 3.13 2.50 0.20 x 0.38 - 195T1 100 1 1.5 - 3.00 2.50 2.50 2.50 2.00 0.20 x 0.38 - 195T5 100 5 0.64 A 4.50 5.25 3.75 3.75 3.50 0.20 x 0.38 14 195T10 100 10 0.400 B 7.50 6.00 6.25 6.00 4.25 0.38 x 0.63 35 196 Series - Dual Coil - Heavy Current Chokes Parallel Connected Series Connected Resistance Mounting Inductance mH D.C. Current Inductance mH Part No. (Millihenries) (Amps) (Millihenries) D.C. Current (Each Winding) Insulation (Amps) (Ohms) Class Overall Dimensions 196B50 0.125 100 0.5 50 0.018 - 4.50 4.50 3.75 3.75 3.00 0.28 x 0.56 8.00 196D25 0.3 50 1.2 25 0.006 - 3.75 4.25 3.13 3.13 2.75 0.28 x 0.56 6.45 196G12 1.2 24 4.8 12 0.024 - 3.38 3.56 2.81 2.81 3.00 0.20 x 0.38 6 196K6 3 12 12 6 0.052/0.056 - 3.37 3.06 2.81 2.81 2.50 0.20 x 0.38 4.45 196M4 5 8 20 4 0.11 - 3.00 2.87 2.50 2.50 2.50 0.20 x 0.38 3.3 196Q2 10 4 40 2 0.24 - 3.12 2.12 2.75 2.81 - 0.19 1.85 196S1 18 2 72 1 0.553 - 2.00 2.00 2.31 2.38 - 0.19 1.4 A B C D E Slot Weight G (lbs.) Data subject to change without notice © 2022. Hammond Manufacturing Ltd. All rights reserved. https://www.hammfg.com/electronics/transformers/choke/195-196 2/3 10/3/22, 1:36 AM Heavy Current Chassis Mount (195-196 Series) - Hammond Mfg. https://www.hammfg.com/electronics/transformers/choke/195-196 3/3
