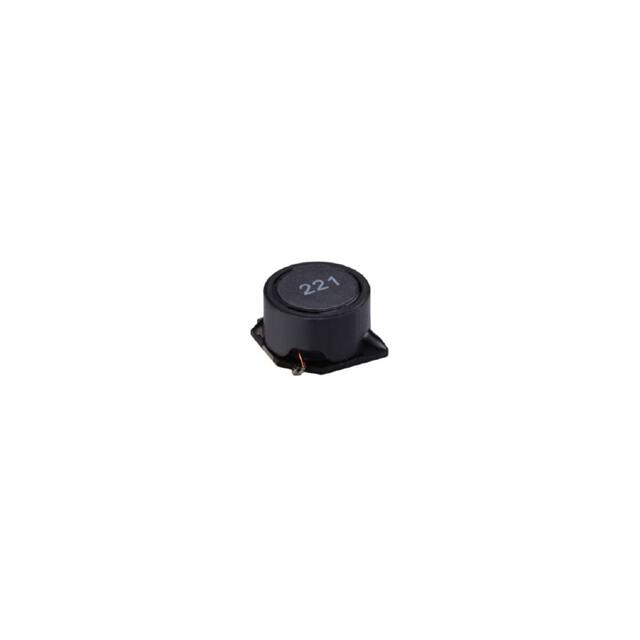

PCDR1045MT151

Data Sheet Customer: Product: Shielded SMD Power Inductor – PCDR Series Sizes.: 0628/0728/0730/0732/0745/1045/1255/1265/1275 Issued Date: 02-Jul-20 Edition: REV.B5 VIKING TECH CORPORATION 光頡科技股份有限公司 VIKING TECH CORPORATION KAOHSIUNG BRANCH 光頡科技股份有限公司高雄分公司 VIKING ELECTRONICS (WUXI) CO., LTD. 光頡電子(無錫)有限公司 No.70, Guangfu N. Rd., Hukou Township, Hsinchu County 303, Taiwan (R.O.C) No.248-3, Sin-Sheng Rd., Cian-Jhen Dist., Kaohsiung, 806, Taiwan TEL:886-3-5972931 FAX:886-3-5972935•886-3-5973494 E-mail:sales@viking.com.tw TEL:886-7-8217999 FAX:886-7-8228229 E-mail:sales@viking.com.tw No.22 Xixia Road, Machinery & Industry Park, National Hi-Tech Industrial Development Zone of Wuxi, Wuxi, Jiangsu Province, China Zip Code:214028 TEL:86-510-85203339 FAX:86-510-85203667•86-510-85203977 E-mail:china@viking.com.tw Produced by (QC) Checked (QC) Approved by (QC) Prepared by (Sales) 02-Jul-20 02-Jul-20 02-Jul-20 02-Jul-20 Kris Chen Ben Chang Ben Chang Accepted by (Customer) 【PCDR Series】 Shielded SMD Power Inductor PCDR 0728 / 0730 / 0732 / 0745 / 1045 PCDR 0628 / 1255 / 1265 / 1275 ■Dimensions ■Features －Compact, low profile with low DCR and large current Type PCDR0628 PCDR0728 PCDR0730 PCDR0732 PCDR0745 PCDR1045 PCDR1255 PCDR1265 PCDR1275 －With magnetically shielded against radiation －Flat bottom surface allows reliable mounting onto the board －Available on tape and reel for auto surface mounting ■Applications －Portable Telephones －Personal Computers Unit:mm A 6.0±0.20 7.0±0.20 7.0±0.20 7.0±0.20 7.0±0.20 10.1±0.30 12.5±0.30 12.5±0.30 12.5±0.30 C 2.8±0.20 2.8±0.20 3.0±0.20 3.2±0.20 4.5±0.30 4.5±0.30 5.5±0.35 6.5±0.35 7.5±0.35 D 4.00 4.00 4.00 4.00 4.00 6.00 8.60 8.60 8.60 E 2.00 2.00 2.00 2.00 2.00 3.00 3.00 3.00 3.00 H 2.20 2.20 2.20 2.20 2.20 3.20 3.20 3.20 3.20 －DC/DC Converters, etc. ■Inductance and rated current ranges －Other Various Electronic Appliances －PCDR0628 1.0～1000μH －PCDR0728 3.3～56μH －PCDR0730 3.3～100μH －PCDR0732 1.0～1000μH －PCDR0745 1.0～1500μH －PCDR1045 1.0～1500μH －PCDR1255 6.0～1500μH －PCDR1265 2.0～150μH －PCDR1275 1.2～330μH －Test equipment: L: HP4284A LCR meter DCR: Milli-ohm meter －Electrical specifications at 25°C ■Characteristics －Saturation Rated Current (I sat): The current when the inductance becomes 30% lower than its nominal value. (Ta=25°C) －Temperature Rated Current (I rms): The actual current when the temperature of coil becomes to △ 40°C. (Ta=25°C) －Operating temperature range: -40～125°C ■Product Identification PCDR 0628 M Product Type Dimensions (AxC) Inductor Tolerance 0628: 6.0×2.8 M: ±20% 0728: 7.0×2.8 N: ±30% T Packaging Style T: Tape and Reel I 1.50 1.50 1.50 1.50 1.50 2.50 2.50 2.50 2.50 J 4.00 4.00 4.00 4.00 4.00 5.60 8.60 8.60 8.60 2.1～0.12A 1.6～0.5A 1.8～0.35A 2.2～0.13A 4.0～0.10A 7.8～0.22A 3.6～0.29A 10～1.00A 13～1.10A 101 Inductance 1R0: 1.0μH 470: 47μH 101: 100μH 0730: 7.0×3.0 0732: 7.0×3.2 0745: 7.0×4.5 1045: 10.1×4.5 1255: 12.5×5.5 1265: 12.5×6.5 1275: 12.5×7.5 www.viking.com.tw For detail questions, contact : sales@viking.com.tw 1 Edition : REV.B5 Revision: 02-Jul-2020 【PCDR Series】 Shielded SMD Power Inductor ■Electrical Characteristics PCDR0628 Type(□:Tolerance): Part No L (μH) Tolerance Test Condition DCR (Ω) ±20% IDC (A) max. PCDR0628□T1R0 1.0 M 1KHz, 0.5V 0.024 2.10 PCDR0628□T1R5 1.5 M 1KHz, 0.5V 0.025 2.00 PCDR0628□T1R8 1.8 M 1KHz, 0.5V 0.026 1.95 PCDR0628□T2R2 2.2 M 1KHz, 0.5V 0.022 1.90 PCDR0628□T2R8 2.8 M 1KHz, 0.5V 0.025 1.80 PCDR0628□T3R5 3.5 M 1KHz, 0.5V 0.030 1.70 PCDR0628□T4R1 4.1 M 1KHz, 0.5V 0.035 1.65 PCDR0628□T4R7 4.7 M 1KHz, 0.5V 0.036 1.60 PCDR0628□T6R8 6.8 M 1KHz, 0.5V 0.052 1.50 PCDR0628□T8R2 8.2 M 1KHz, 0.5V 0.061 1.35 PCDR0628□T100 10 M 1KHz, 0.5V 0.068 1.30 PCDR0628□T120 12 M 1KHz, 0.5V 0.081 1.10 PCDR0628□T150 15 M 1KHz, 0.5V 0.100 1.00 PCDR0628□T180 18 M 1KHz, 0.5V 0.129 0.87 PCDR0628□T220 22 M 1KHz, 0.5V 0.120 0.77 PCDR0628□T270 27 M 1KHz, 0.5V 0.179 0.71 PCDR0628□T330 33 M 1KHz, 0.5V 0.180 0.69 PCDR0628□T390 39 M 1KHz, 0.5V 0.239 0.61 PCDR0628□T470 47 M 1KHz, 0.5V 0.270 0.59 PCDR0628□T560 56 M 1KHz, 0.5V 0.330 0.51 PCDR0628□T680 68 M 1KHz, 0.5V 0.390 0.50 PCDR0628□T820 82 M 1KHz, 0.5V 0.459 0.43 PCDR0628□T101 100 M 1KHz, 0.5V 0.620 0.42 PCDR0628□T121 120 M 1KHz, 0.5V 0.659 0.33 PCDR0628□T151 150 M 1KHz, 0.5V 0.919 0.30 PCDR0628□T181 180 M 1KHz, 0.5V 1.049 0.28 PCDR0628□T221 220 M 1KHz, 0.5V 1.219 0.25 PCDR0628□T271 270 M 1KHz, 0.5V 1.598 0.22 PCDR0628□T331 330 M 1KHz, 0.5V 1.789 0.21 PCDR0628□T391 390 M 1KHz, 0.5V 2.289 0.20 PCDR0628□T471 470 M 1KHz, 0.5V 2.698 0.18 PCDR0628□T561 560 M 1KHz, 0.5V 3.198 0.16 PCDR0628□T681 680 M 1KHz, 0.5V 4.310 0.15 PCDR0628□T821 820 M 1KHz, 0.5V 4.698 0.13 PCDR0628□T102 1000 M 1KHz, 0.5V 5.790 0.12 Part No L (μH) Tolerance Test Condition DCR (Ω) ±20% IDC (A) max. PCDR0728□T3R3 3.3 M 1KHz, 0.5V 0.037 1.60 PCDR0728□T4R7 4.7 M 1KHz, 0.5V 0.045 1.50 PCDR0728□T6R8 6.8 M 1KHz, 0.5V 0.059 1.30 PCDR0728□T100 10 M 1KHz, 0.5V 0.083 1.10 PCDR0728□T150 15 M 1KHz, 0.5V 0.130 0.88 PCDR0728□T220 22 M 1KHz, 0.5V 0.180 0.75 PCDR0728□T330 33 M 1KHz, 0.5V 0.240 0.65 PCDR0728□T470 47 M 1KHz, 0.5V 0.340 0.54 PCDR0728□T560 56 M 1KHz, 0.5V 0.420 0.50 PCDR0728 Type(□:Tolerance): www.viking.com.tw For detail questions, contact : sales@viking.com.tw 2 Edition : REV.B5 Revision: 02-Jul-2020 【PCDR Series】 Shielded SMD Power Inductor ■Electrical Characteristics PCDR0730 Type(□:Tolerance): Part No L (μH) Tolerance Test Condition DCR (Ω) ±20% IDC (A) max. PCDR0730□T3R3 3.3 M 1KHz, 0.5V 0.023 1.80 PCDR0730□T4R7 4.7 M 1KHz, 0.5V 0.036 1.60 PCDR0730□T6R8 6.8 M 1KHz, 0.5V 0.041 1.50 PCDR0730□T100 10 M 1KHz, 0.5V 0.053 1.30 PCDR0730□T150 15 M 1KHz, 0.5V 0.084 1.00 PCDR0730□T220 22 M 1KHz, 0.5V 0.110 0.86 PCDR0730□T330 33 M 1KHz, 0.5V 0.160 0.65 PCDR0730□T470 47 M 1KHz, 0.5V 0.240 0.57 PCDR0730□T560 56 M 1KHz, 0.5V 0.280 0.53 PCDR0730□T680 68 M 1KHz, 0.5V 0.310 0.49 PCDR0730□T101 100 M 1KHz, 0.5V 0.450 0.35 Part No L (μH) Tolerance Test Condition DCR (Ω) ±20% IDC (A) max. PCDR0732□T1R0 1.0 M 1KHz, 0.5V 0.019 2.20 PCDR0732□T2R2 2.2 M 1KHz, 0.5V 0.021 2.00 PCDR0732□T3R3 3.3 M 1KHz, 0.5V 0.023 1.90 PCDR0732□T3R9 3.9 M 1KHz, 0.5V 0.029 1.85 PCDR0732□T4R7 4.7 M 1KHz, 0.5V 0.036 1.70 PCDR0732□T5R6 5.6 M 1KHz, 0.5V 0.039 1.65 PCDR0732□T6R8 6.8 M 1KHz, 0.5V 0.041 1.60 PCDR0732□T8R2 8.2 M 1KHz, 0.5V 0.049 1.50 PCDR0732□T100 10 M 1KHz, 0.5V 0.053 1.40 PCDR0732□T120 12 M 1KHz, 0.5V 0.071 1.20 PCDR0732□T150 15 M 1KHz, 0.5V 0.075 1.10 PCDR0732□T180 18 M 1KHz, 0.5V 0.099 1.00 PCDR0732□T220 22 M 1KHz, 0.5V 0.110 0.96 PCDR0732□T270 27 M 1KHz, 0.5V 0.150 0.85 PCDR0732□T330 33 M 1KHz, 0.5V 0.160 0.75 PCDR0732□T390 39 M 1KHz, 0.5V 0.230 0.70 PCDR0732□T470 47 M 1KHz, 0.5V 0.240 0.67 PCDR0732□T560 56 M 1KHz, 0.5V 0.300 0.60 PCDR0732□T680 68 M 1KHz, 0.5V 0.310 0.59 PCDR0732□T820 82 M 1KHz, 0.5V 0.424 0.49 PCDR0732□T101 100 M 1KHz, 0.5V 0.450 0.45 PCDR0732□T121 120 M 1KHz, 0.5V 0.620 0.40 PCDR0732□T151 150 M 1KHz, 0.5V 0.650 0.37 PCDR0732□T181 180 M 1KHz, 0.5V 1.020 0.30 PCDR0732□T221 220 M 1KHz, 0.5V 1.050 0.29 PCDR0732□T271 270 M 1KHz, 0.5V 1.530 0.24 PCDR0732□T331 330 M 1KHz, 0.5V 1.670 0.22 PCDR0732□T391 390 M 1KHz, 0.5V 1.990 0.21 PCDR0732□T471 470 M 1KHz, 0.5V 2.050 0.20 PCDR0732□T561 560 M 1KHz, 0.5V 3.100 0.17 PCDR0732□T681 680 M 1KHz, 0.5V 3.150 0.16 PCDR0732□T821 820 M 1KHz, 0.5V 4.500 0.14 PCDR0732□T102 1000 M 1KHz, 0.5V 4.780 0.13 PCDR0732 Type(□:Tolerance): www.viking.com.tw For detail questions, contact : sales@viking.com.tw 3 Edition : REV.B5 Revision: 02-Jul-2020 【PCDR Series】 Shielded SMD Power Inductor ■Electrical Characteristics PCDR0745 Type(□:Tolerance): Part No L (μH) Tolerance Test Condition DCR (Ω) ±20% IDC (A) max. PCDR0745□T1R0 1.0 M 1KHz, 0.5V 0.019 4.00 PCDR0745□T1R2 1.2 M 1KHz, 0.5V 0.019 3.20 PCDR0745□T3R3 3.3 M 1KHz, 0.5V 0.020 2.50 PCDR0745□T4R7 4.7 M 1KHz, 0.5V 0.029 2.00 PCDR0745□T6R8 6.8 M 1KHz, 0.5V 0.039 1.70 PCDR0745□T100 10 M 1KHz, 0.5V 0.036 1.30 PCDR0745□T150 15 M 1KHz, 0.5V 0.052 1.10 PCDR0745□T220 22 M 1KHz, 0.5V 0.061 0.90 PCDR0745□T330 33 M 1KHz, 0.5V 0.096 0.82 PCDR0745□T470 47 M 1KHz, 0.5V 0.125 0.75 PCDR0745□T560 56 M 1KHz, 0.5V 0.130 0.67 PCDR0745□T680 68 M 1KHz, 0.5V 0.200 0.60 PCDR0745□T820 82 M 1KHz, 0.5V 0.244 0.52 PCDR0745□T101 100 M 1KHz, 0.5V 0.250 0.50 PCDR0745□T151 150 M 1KHz, 0.5V 0.480 0.40 PCDR0745□T221 220 M 1KHz, 0.5V 0.850 0.33 PCDR0745□T331 330 M 1KHz, 0.5V 1.100 0.25 PCDR0745□T471 470 M 1KHz, 0.5V 1.050 0.22 PCDR0745□T681 680 M 1KHz, 0.5V 2.080 0.20 PCDR0745□T102 1000 M 1KHz, 0.5V 2.280 0.14 PCDR0745□T152 1500 M 1KHz, 0.5V 3.500 0.10 PCDR1045 Type(□:Tolerance): Part No L (μH) Tolerance Test Condition DCR (Ω) ±20% IDC (A) max. PCDR1045□T1R0 1.0 M 1KHz, 0.5V 0.012 7.80 PCDR1045□T1R5 1.5 M 1KHz, 0.5V 0.014 5.80 PCDR1045□T2R2 2.2 M 1KHz, 0.5V 0.015 5.60 PCDR1045□T3R3 3.3 M 1KHz, 0.5V 0.016 5.10 PCDR1045□T3R9 3.9 M 1KHz, 0.5V 0.018 4.10 PCDR1045□T4R7 4.7 M 1KHz, 0.5V 0.020 3.70 PCDR1045□T5R6 5.6 M 1KHz, 0.5V 0.022 3.40 PCDR1045□T6R8 6.8 M 1KHz, 0.5V 0.025 3.20 PCDR1045□T8R2 8.2 M 1KHz, 0.5V 0.027 3.10 PCDR1045□T100 10 M 1KHz, 0.5V 0.036 3.00 PCDR1045□T120 12 M 1KHz, 0.5V 0.033 2.50 PCDR1045□T150 15 M 1KHz, 0.5V 0.047 2.40 PCDR1045□T180 18 M 1KHz, 0.5V 0.052 2.20 PCDR1045□T220 22 M 1KHz, 0.5V 0.059 2.10 PCDR1045□T270 27 M 1KHz, 0.5V 0.073 1.70 PCDR1045□T330 33 M 1KHz, 0.5V 0.082 1.60 PCDR1045□T390 39 M 1KHz, 0.5V 0.099 1.50 PCDR1045□T470 47 M 1KHz, 0.5V 0.100 1.40 PCDR1045□T560 56 M 1KHz, 0.5V 0.110 1.30 PCDR1045□T680 68 M 1KHz, 0.5V 0.140 1.20 PCDR1045□T820 82 M 1KHz, 0.5V 0.190 1.10 PCDR1045□T101 100 M 1KHz, 0.5V 0.200 1.00 PCDR1045□T121 120 M 1KHz, 0.5V 0.280 0.80 PCDR1045□T151 150 M 1KHz, 0.5V 0.350 0.79 PCDR1045□T181 180 M 1KHz, 0.5V 0.420 0.69 PCDR1045□T221 220 M 1KHz, 0.5V 0.470 0.65 www.viking.com.tw For detail questions, contact : sales@viking.com.tw 4 Edition : REV.B5 Revision: 02-Jul-2020 【PCDR Series】 Shielded SMD Power Inductor ■Electrical Characteristics PCDR1045 Type(□:Tolerance): Part No L (μH) Tolerance Test Condition DCR (Ω) ±20% IDC (A) max. PCDR1045□T271 270 M 1KHz, 0.5V 0.620 0.55 PCDR1045□T331 330 M 1KHz, 0.5V 0.680 0.54 PCDR1045□T391 390 M 1KHz, 0.5V 0.900 0.49 PCDR1045□T471 470 M 1KHz, 0.5V 1.030 0.47 PCDR1045□T561 560 M 1KHz, 0.5V 1.300 0.40 PCDR1045□T681 680 M 1KHz, 0.5V 1.600 0.38 PCDR1045□T821 820 M 1KHz, 0.5V 1.800 0.33 PCDR1045□T102 1000 M 1KHz, 0.5V 2.800 0.32 PCDR1045□T152 1500 M 1KHz, 0.5V 3.400 0.22 PCDR1255 Type(□:Tolerance): IDC (A) max. Part No L (μH) Tolerance Test Condition DCR (Ω) ±20% I sat I rms PCDR1255□T6R0 6.0 N 1KHz, 0.5V 0.016 3.60 4.90 PCDR1255□T100 10 M 1KHz, 0.5V 0.022 3.40 4.30 PCDR1255□T150 15 M 1KHz, 0.5V 0.026 2.80 3.90 PCDR1255□T220 22 M 1KHz, 0.5V 0.034 2.30 3.40 PCDR1255□T330 33 M 1KHz, 0.5V 0.042 1.90 3.10 PCDR1255□T470 47 M 1KHz, 0.5V 0.062 1.60 2.50 PCDR1255□T560 56 M 1KHz, 0.5V 0.075 1.45 2.30 PCDR1255□T680 68 M 1KHz, 0.5V 0.083 1.30 2.20 PCDR1255□T101 100 M 1KHz, 0.5V 0.117 1.10 1.80 PCDR1255□T151 150 M 1KHz, 0.5V 0.190 0.88 1.40 PCDR1255□T221 220 M 1KHz, 0.5V 0.270 0.72 1.20 PCDR1255□T331 330 M 1KHz, 0.5V 0.410 0.59 1.00 PCDR1255□T471 470 M 1KHz, 0.5V 0.520 0.49 0.88 PCDR1255□T681 680 M 1KHz, 0.5V 0.760 0.43 0.73 PCDR1255□T102 1000 M 1KHz, 0.5V 1.120 0.34 0.60 PCDR1255□T152 1500 M 1KHz, 0.5V 1.7300 0.29 0.48 Part No L (μH) Tolerance Test Condition DCR (Ω) ±20% I sat I rms PCDR1265□T2R0 2.0 N 1KHz, 0.5V 0.012 10.0 8.00 PCDR1265□T4R2 4.2 N 1KHz, 0.5V 0.015 7.30 5.80 PCDR1265□T7R0 7.0 M 1KHz, 0.5V 0.018 5.70 4.50 PCDR1265□T100 10 M 1KHz, 0.5V 0.020 5.00 4.50 PCDR1265□T150 15 M 1KHz, 0.5V 0.024 4.20 4.40 PCDR1265□T220 22 M 1KHz, 0.5V 0.032 3.50 2.80 PCDR1265□T330 33 M 1KHz, 0.5V 0.041 2.80 2.20 PCDR1265□T470 47 M 1KHz, 0.5V 0.058 2.40 1.90 PCDR1265□T560 56 M 1KHz, 0.5V 0.075 2.20 1.70 PCDR1265□T680 68 M 1KHz, 0.5V 0.079 2.00 1.60 PCDR1265□T101 100 M 1KHz, 0.5V 0.123 1.60 1.30 PCDR1265□T121 120 M 1KHz, 0.5V 0.184 1.30 1.00 PCDR1265□T151 150 M 1KHz, 0.5V 0.273 1.00 0.80 PCDR1265 Type(□:Tolerance): www.viking.com.tw For detail questions, contact : sales@viking.com.tw 5 IDC (A) max. Edition : REV.B5 Revision: 02-Jul-2020 【PCDR Series】 Shielded SMD Power Inductor ■Electrical Characteristics PCDR1275 Type(□:Tolerance): Test Condition DCR (Ω) ±20% N, M 1KHz, 0.5V 2.0 N, M PCDR1275□T2R7 2.7 PCDR1275□T3R3 L (μH) Tolerance PCDR1275□T1R2 1.2 PCDR1275□T2R0 Part No IDC (A) max. I sat I rms 0.007 13.00 10.40 1KHz, 0.5V 0.008 11.00 8.80 N, M 1KHz, 0.5V 0.009 10.00 8.00 3.3 N, M 1KHz, 0.5V 0.010 9.50 7.60 PCDR1275□T3R9 3.9 N, M 1KHz, 0.5V 0.010 9.00 7.20 PCDR1275□T5R6 5.6 N, M 1KHz, 0.5V 0.012 7.80 6.20 PCDR1275□T6R8 6.8 N, M 1KHz, 0.5V 0.013 7.20 5.90 PCDR1275□T100 10 M 1KHz, 0.5V 0.016 5.50 4.40 PCDR1275□T150 15 M 1KHz, 0.5V 0.018 4.70 3.70 PCDR1275□T220 22 M 1KHz, 0.5V 0.026 4.00 3.50 PCDR1275□T330 33 M 1KHz, 0.5V 0.039 3.20 3.40 PCDR1275□T390 39 M 1KHz, 0.5V 0.044 3.00 3.10 PCDR1275□T470 47 M 1KHz, 0.5V 0.053 2.70 3.00 PCDR1275□T560 56 M 1KHz, 0.5V 0.069 2.30 1.80 PCDR1275□T680 68 M 1KHz, 0.5V 0.078 2.00 2.40 PCDR1275□T820 82 M 1KHz, 0.5V 0.110 1.95 1.50 PCDR1275□T101 100 M 1KHz, 0.5V 0.125 1.90 1.50 PCDR1275□T151 150 M 1KHz, 0.5V 0.175 1.60 1.30 PCDR1275□T181 180 M 1KHz, 0.5V 0.200 1.45 1.20 PCDR1275□T221 220 M 1KHz, 0.5V 0.258 1.30 1.00 PCDR1275□T331 330 M 1KHz, 0.5V 0.370 1.10 0.88 www.viking.com.tw For detail questions, contact : sales@viking.com.tw 6 Edition : REV.B5 Revision: 02-Jul-2020 【PCDR Series】 Shielded SMD Power Inductor ▓Tape and Reel specifications INDUCTORS Unit: mm W Tape size P Parts Per Reel 13〞 PCDR0628 16 12 1000 PCDR0728 16 12 1000 PCDR0730 16 12 1000 PCDR0732 16 12 1000 PCDR0745 16 12 1000 PCDR1045 24 16 750 PCDR1255 24 16 500 PCDR1265 24 16 500 PCDR1275 24 16 350 Type www.viking.com.tw For detail questions, contact : sales@viking.com.tw 7 Edition : REV.B5 Revision: 02-Jul-2020 【PCDR Series】 Shielded SMD Power Inductor ■SMD Power Inductor Environmental Specifications General Items Shelf Storage conditions Specifications Temperature range: 15~28℃; Humidity:
