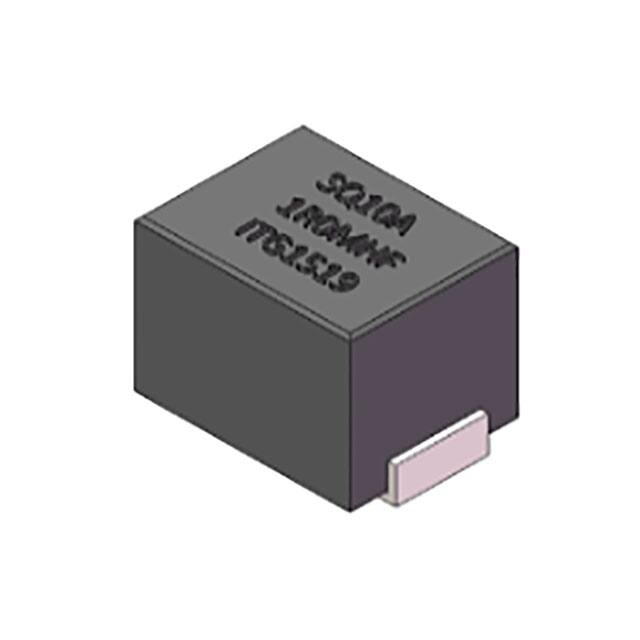

SQ10 Series 1. Features of SQ10 Series: • Ferrite based SMD inductor with lower core loss. • High current output chokes, up to 50.0 Amp with approx. 20% roll off. • Low profile 8.50/10.50mm max height. • Food Print 12.80 x 8.60/8.30mm max footprint. • Perfect for high density designs with limited board space. • Operating frequency of up to 1.0MHz. • Operating temperature range of -55°C to + 130°C. • RoHS & HF compliant. • T & R Qty’s: 400/350pcs, 13'' Reel. 2. Electrical Characteristics of SQ10 Series: ITG Part Number SQ10A-R33MHF SQ10A-R40MHF SQ10A-R47MHF SQ10A-R60MHF SQ10A-1R0MHF SQ10B-1R0MHF SQ10A-2R2MHF SQ10A-3R3MHF SQ10B-3R3MHF SQ10A-4R7MHF SQ10B-4R7MHF OCL1 (uH) ±20% 0.33 0.40 0.47 0.60 1.00 1.00 2.20 3.30 3.30 4.70 4.70 L @ Isat12 (uH) Min. 0.24 0.29 0.34 0.43 0.72 0.72 1.60 2.40 2.40 3.38 3.38 DCR3 (mΩ) ±10% 1.30 1.30 2.30 2.30 2.30 4.05 6.35 8.00 10.20 10.20 12.35 Isat14 (A) @25℃ 50.00 43.00 40.00 32.00 25.00 33.00 17.00 13.00 16.00 11.80 13.00 Isat24 (A) @45℃ 48.00 40.00 38.00 30.00 23.00 32.00 16.00 12.00 15.00 11.00 12.00 Isat34 (A) @100℃ 41.00 34.00 35.00 25.50 19.00 25.00 13.00 9.50 13.00 8.50 10.00 3. Mechanical Dimension of SQ10 Series: D B A 13.0 SQ10x xxxMHF ITGYYWW 8.6 5.0x2 Suggested Pad Layout C a E G b F Part Marking: SQ10x: SQ10 is part size, x:special code. xxx: inductance value in uH(R:decimal point), M = tolerance,HF=halogen free. ITGYYWW: ITG logo ,YYWW : date code. Irms5 Dim. A (A) (mm) @25℃ Max. 33.00 8.60 33.00 8.60 25.00 8.30 25.00 8.30 25.00 8.30 22.00 8.30 15.00 8.30 13.00 8.30 12.00 8.30 12.00 8.30 10.00 8.30 Type A B C D E F G Dim. C (mm) Max. 8.50 8.50 8.50 8.50 8.50 10.50 8.50 8.50 8.50 8.50 8.50 SQ10 Series See table above 12.00 Max. See table above 12.50 ± 0.30 8.70 ± 0.10 4.50 ± 0.50 1.95 ± 0.30 Notes: 1. Open Circuit Inductance (OCL) test condition: 100KHz, 0.25Vrms, 0A DC at 25Ԩ. 2. L @ Isat and L @ Irms Test condition: 100KHz, 0.25Vrm (Ta=25Ԩ). 3. The nominal DCR is measured from point “a” to point “b” as shown above in the mechanical drawing (Ta=25Ԩ). 4. Isat1, Isat2 & Isat3: DC current that will cause inductance to drop approximately by 20%. 5. Irms: DC current for an approximate temperature rise of 40Ԩ without core loss. 6. Derating is necessary for AC currents. 7. Verify and check PCB pad layout, trace thickness, width, air-flow and proximity of other heat generating components as it will have an effect on the temperature rise. 8. It is recommended that the part temperature should not exceed 130°C under worst operating conditions. ● ● New York 1 914 347 2474 ● Taipei 886 2 2698 8669 ● Kaohsiung 886 7 350 2275 Tokyo 81 568 85 2830 ● Shenzhen 86 755 8418 6263 ● Shanghai 86 21 5424 5141 ● Hong Kong 852 9688 9767 ● sales@ITG-Electronics.com ● www.ITG-Electronics.com Revision B: February 26, 2016 *Due to continuous product improvement, all specifications are subject to change without prior notice. Kindly contact an ITG field application engineer or a sales representative prior to purchase. SQ10 Series 4. Inductance Characteristics of SQ10 Series (Inductance vs Current): SQ10A-R33MHF 350.0 300.0 25Ԩ L (nH) 250.0 200.0 45Ԩ 150.0 100.0 100Ԩ 50.0 0.0 0.0 10.0 20.0 30.0 40.0 42.0 44.0 46.0 Direct Current (A) 48.0 50.0 52.0 54.0 56.0 SQ10A-R40MHF 458.5 393.0 25Ԩ L (nH) 327.5 262.0 45Ԩ 196.5 131.0 100Ԩ 65.5 0.0 L (nH) 0.0 10.0 20.0 30.0 35.0 40.0 41.0 42.0 43.0 44.0 45.0 Direct Current (A) 46.0 47.0 48.0 49.0 50.0 51.0 SQ10A-R47MHF 576.0 504.0 432.0 360.0 288.0 216.0 144.0 72.0 0.0 25Ԩ 45Ԩ 100Ԩ 0.0 10.0 20.0 30.0 32.0 34.0 36.0 38.0 Direct Current (A) 40.0 42.0 44.0 46.0 48.0 SQ10A-R60MHF 700.0 600.0 25Ԩ L (nH) 500.0 400.0 45Ԩ 300.0 200.0 100Ԩ 100.0 0.0 0.0 ● 5.0 10.0 15.0 20.0 25.0 30.0 31.0 32.0 33.0 34.0 35.0 36.0 37.0 38.0 39.0 40.0 41.0 42.0 Direct Current (A) ● New York 1 914 347 2474 ● Taipei 886 2 2698 8669 ● Kaohsiung 886 7 350 2275 Tokyo 81 568 85 2830 ● Shenzhen 86 755 8418 6263 ● Shanghai 86 21 5424 5141 ● Hong Kong 852 9688 9767 ● sales@ITG-Electronics.com ● www.ITG-Electronics.com Revision B: February 26, 2016 *Due to continuous product improvement, all specifications are subject to change without prior notice. Kindly contact an ITG field application engineer or a sales representative prior to purchase. AQ10 Series 4. Inductance Characteristics of SQ10 Series (Inductance vs Current): SQ10A-1R0MHF 1050.0 900.0 25Ԩ L (nH) 750.0 600.0 45Ԩ 450.0 300.0 100Ԩ 150.0 0.0 0.0 5.0 10.0 12.0 14.0 15.0 16.0 17.0 18.0 19.0 20.0 Direct Current (A) 21.0 22.0 23.0 24.0 25.0 26.0 27.0 SQ10B-1R0MHF 1050.0 900.0 25Ԩ L (nH) 750.0 600.0 45Ԩ 450.0 300.0 100Ԩ 150.0 0.0 0.0 5.0 10.0 15.0 18.0 20.0 22.0 23.0 24.0 25.0 28.0 Direct Current (A) 30.0 32.0 34.0 35.0 36.0 37.0 SQ10A-2R2MHF 2380.0 2040.0 25Ԩ L (nH) 1700.0 1360.0 45Ԩ 1020.0 680.0 100Ԩ 340.0 0.0 L (nH) 0.0 2.0 4.0 6.0 8.0 14.0 16.0 18.0 20.0 21.0 SQ10A-3R3MHF 3680.0 3220.0 2760.0 2300.0 1840.0 1380.0 920.0 460.0 0.0 25Ԩ 45Ԩ 100Ԩ 0.0 ● 10.0 12.0 Direct Current (A) 1.5 3.0 4.5 6.0 7.0 8.0 9.0 10.5 Direct Current (A) 12.0 13.0 13.5 15.0 16.5 ● New York 1 914 347 2474 ● Taipei 886 2 2698 8669 ● Kaohsiung 886 7 350 2275 Tokyo 81 568 85 2830 ● Shenzhen 86 755 8418 6263 ● Shanghai 86 21 5424 5141 ● Hong Kong 852 9688 9767 ● sales@ITG-Electronics.com ● www.ITG-Electronics.com Revision B: February 26, 2016 *Due to continuous product improvement, all specifications are subject to change without prior notice. Kindly contact an ITG field application engineer or a sales representative prior to purchase. AQ10 Series L (nH) 4. Inductance Characteristics of SQ10 Series (Inductance vs Current): SQ10B-3R3MHF 3680.0 3220.0 2760.0 2300.0 1840.0 1380.0 920.0 460.0 0.0 25Ԩ 45Ԩ 100Ԩ L (nH) 0.0 1.5 3.0 4.5 6.0 7.5 9.0 10.5 Direct Current (A) 12.0 13.5 15.0 16.5 18.0 SQ10A-4R7MHF 5600.0 4900.0 4200.0 3500.0 2800.0 2100.0 1400.0 700.0 0.0 25Ԩ 45Ԩ 100Ԩ 0.0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 Direct Current (A) 10.0 10.5 11.0 11.8 12.0 13.0 SQ10B-4R7MHF 5250.0 4500.0 25Ԩ L (nH) 3750.0 3000.0 45Ԩ 2250.0 1500.0 100Ԩ 750.0 0.0 0.0 ● 1.5 3.0 4.5 6.0 7.0 7.5 9.0 10.5 11.0 Direct Current (A) 11.5 12.0 12.5 13.5 14.5 15.0 16.5 ● New York 1 914 347 2474 ● Taipei 886 2 2698 8669 ● Kaohsiung 886 7 350 2275 Tokyo 81 568 85 2830 ● Shenzhen 86 755 8418 6263 ● Shanghai 86 21 5424 5141 ● Hong Kong 852 9688 9767 ● sales@ITG-Electronics.com ● www.ITG-Electronics.com Revision B: February 26, 2016 *Due to continuous product improvement, all specifications are subject to change without prior notice. Kindly contact an ITG field application engineer or a sales representative prior to purchase.
