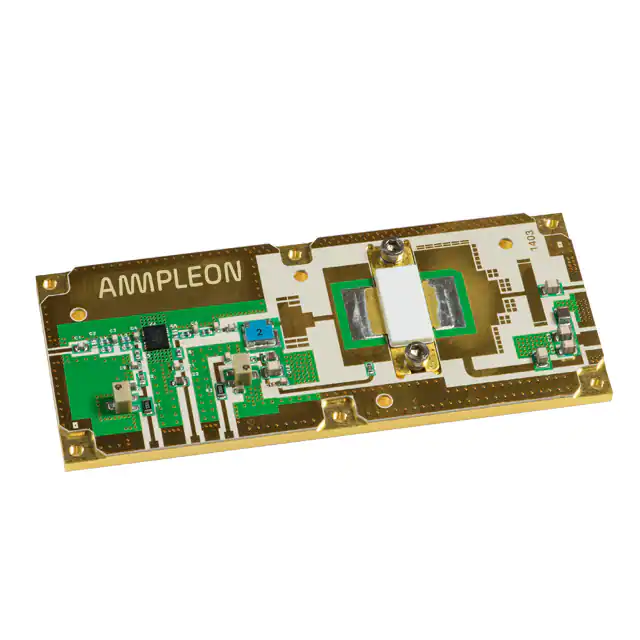

BLL6H1214P2S-250 LDMOS L-band radar power module Rev. 2 — 1 September 2015 Product data sheet 1. Product profile 1.1 General description 250 W LDMOS power module intended for L-band radar applications in the frequency range from 1.2 GHz to 1.4 GHz. Table 1. Test information Typical RF performance at Tcase = 25 C; tp = 1.8 ms;  = 30 %; IDq = 200 mA; Pi = 26 dBm; in a class-AB production test circuit. Test signal pulsed RF f VDS PL Gp add tr tf (MHz) (V) (W) (dB) (%) (ns) (ns) 1195 to 1405 45 190 to 290 27 48 15 5 1.2 Features and benefits        Input/output 50  matched High flexibility with respect to pulse formats Excellent ruggedness High efficiency Excellent thermal stability Designed for broadband operation (1.2 GHz to 1.4 GHz) Compliant to Directive 2002/95/EC, regarding Restriction of Hazardous Substances (RoHS) 1.3 Applications  L-band radar applications in the frequency range 1.2 GHz to 1.4 GHz BLL6H1214P2S-250 LDMOS L-band radar power module 2. Pinning information 2.1 Pinning VDS1 RF_OUT 6 VDS2 5 2 aaa-012790 VGS2 VGS1 4 1 3 RF_IN Top view. Fig 1. Pin configuration 2.2 Pin description Table 2. Pin description Symbol Pin Description RF_IN 1 RF input RF_OUT 2 RF output VGS1 3 gate-source voltage 1 VDS1 4 drain-source voltage 1 VGS2 5 gate-source voltage 2 VDS2 6 drain-source voltage 2 3. Ordering information Table 3. Ordering information Type number Package Name BLL6H1214P2S-250 - Description Version pallet LDMOS; 6 mounting holes; 6 terminations SOM039 4. Block diagram RF_IN RF_OUT VDS2 VGS1 Fig 2. BLL6H1214P2S-250#2 Product data sheet VDS1 VGS2 aaa-012365 Block diagram All information provided in this document is subject to legal disclaimers. Rev. 2 — 1 September 2015 © Ampleon The Netherlands B.V. 2015. All rights reserved. 2 of 10 BLL6H1214P2S-250 LDMOS L-band radar power module 5. Limiting values Table 4. Limiting values In accordance with the Absolute Maximum Rating System (IEC 60134). Symbol Parameter Conditions Min Max Unit VDS drain-source voltage - 50 V VGS gate-source voltage 0.5 +13 V Tamb ambient temperature 5 60 C Tmb mounting base temperature 0 50 C Tstg storage temperature 20 +70 C Tj junction temperature - 225 C [1] [1] Continuous use at maximum temperature will affect the reliability, for details refer to the on-line MTF calculator. 6. Thermal characteristics Table 5. Thermal characteristics Symbol Parameter Conditions Typ Unit Zth(j-c) transient thermal impedance from junction to case Tcase = 50 C; Pi = 26 dBm; tp = 1.8 ms;  = 30 % 0.39 K/W 7. Characteristics Table 6. RF characteristics Test signal: pulsed RF; Pi = 26 dBm; tp = 1.8 ms;  = 30 %; RF performance at VDS = 45 V; IDq = 200 mA; Tcase = 25 C; unless otherwise specified. Symbol Parameter f Min Typ frequency 1210 1300 1405 MHz VDD supply voltage 44.7 45 45.3 V VGS gate-source voltage - 5 6.5 V PL(sat) saturated output power 52.8 53.0 54.3 dBm - - 1.2 dB 0.2 - +0.2 - - 0.5 dB - 27 - dB FL flatness of frequency response PL output power variation Conditions [1] Pi = 26 dBm  0.4 dBm Pdroop(pulse) pulse droop power BLL6H1214P2S-250#2 Product data sheet Unit Gp power gain add power added efficiency 45 48 - % tr rise time - - 50 ns tf fall time - - 50 ns resp(sp) spurious response - - 60 dBc sup(H) harmonic suppression - - 40 dBc MTTF mean time to failure 1  106 - - h [1] 3 dB gain compression Max Power flatness; testing at fixed Pi. All information provided in this document is subject to legal disclaimers. Rev. 2 — 1 September 2015 © Ampleon The Netherlands B.V. 2015. All rights reserved. 3 of 10 BLL6H1214P2S-250 LDMOS L-band radar power module 7.1 Ruggedness in class-AB operation The BLL6H1214P2S-250 is capable of withstanding a load mismatch corresponding to VSWR = 10 : 1 through all phases under the following conditions: VDS = 45 V; IDq = 200 mA; Pi = 26 dBm; tp = 1.8 ms;  = 30 %. 8. Test information 8.1 Graphical data aaa-012167 32 Gp (dB) 60 ηD (%) (1) 30 (2) (3) Gp 50 (1) (2) 28 40 (3) 26 30 24 20 ηD 22 10 20 0 38 42 46 50 54 PL (dBm) 58 VDS = 45 V; IDq = 200 mA. (1) f = 1195 MHz (2) f = 1300 MHz (3) f = 1405 MHz Fig 3. Power gain and drain efficiency as function of output power; typical values BLL6H1214P2S-250#2 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 2 — 1 September 2015 © Ampleon The Netherlands B.V. 2015. All rights reserved. 4 of 10 BLL6H1214P2S-250 LDMOS L-band radar power module aaa-012168 56 PL (dBm) aaa-012169 60 ηD (%) 52 56 (1) (2) (3) 48 52 44 48 40 44 36 10 14 18 22 26 30 Pi (dBm) 40 1150 34 VDS = 45 V; IDq = 200 mA; tp = 1.8 ms;  = 30 %. 1200 1250 1300 1350 1400 f (MHz) 1450 VDS = 45 V; IDq = 200 mA; tp = 1.8 ms;  = 30 %; Pi = 26 dBm. (1) f = 1195 MHz (2) f = 1300 MHz (3) f = 1405 MHz Fig 4. Output power as a function of input power; typical values Fig 5. aaa-012170 29 Gp (dB) Drain efficiency as a function of frequency; typical values aaa-012171 12 RLin (dB) 10 28 8 27 6 4 26 2 25 1150 1200 1250 1300 1350 1400 f (MHz) 0 1150 1450 VDS = 45 V; IDq = 200 mA; tp = 1.8 ms;  = 30 %; Pi = 26 dBm. Fig 6. Power gain as a function of frequency; typical values BLL6H1214P2S-250#2 Product data sheet 1200 1250 1300 1350 1400 f (MHz) 1450 VDS = 45 V; IDq = 200 mA; tp = 1.8 ms;  = 30 %; Pi = 26 dBm. Fig 7. Input return loss as a function of frequency; typical values All information provided in this document is subject to legal disclaimers. Rev. 2 — 1 September 2015 © Ampleon The Netherlands B.V. 2015. All rights reserved. 5 of 10 BLL6H1214P2S-250 LDMOS L-band radar power module 9. Package outline Pallet LDMOS; 6 mounting holes; 6 terminations SOM039 A U1 B q3 q2 U2 F 2 1 q1 6 z1 3 A 4 5 p Z q q 0 20 Dimensions (mm are the original dimensions) Unit mm max nom min 40 mm scale A F p U1 U2 q q1 q2 q3 Z Z1 10.4 5.0 2.7 120.0 50.0 57.1 44.1 55.1 59.1 3.1 3.1 10.1 4.9 2.5 119.8 49.8 56.9 43.9 54.9 58.9 2.9 2.9 som039_po Outline version References IEC JEDEC JEITA Issue date 14-03-27 14-04-02 SOM039 Fig 8. European projection Package outline SOM039 BLL6H1214P2S-250#2 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 2 — 1 September 2015 © Ampleon The Netherlands B.V. 2015. All rights reserved. 6 of 10 BLL6H1214P2S-250 LDMOS L-band radar power module 10. Handling information CAUTION This device is sensitive to ElectroStatic Discharge (ESD). Observe precautions for handling electrostatic sensitive devices. Such precautions are described in the ANSI/ESD S20.20, IEC/ST 61340-5, JESD625-A or equivalent standards. 11. Abbreviations Table 7. Abbreviations Acronym Description LDMOS Laterally Diffused Metal-Oxide Semiconductor L-band Long wave band MTF Median Time to Failure VSWR Voltage Standing-Wave Ratio 12. Revision history Table 8. Revision history Document ID Release date BLL6H1214P2S-250#2 20150901 Modifications: Product data sheet Change notice Supersedes Product data sheet - BLL6H1214P2S-250#1 • The format of this document has been redesigned to comply with the new identity guidelines of Ampleon. • Legal texts have been adapted to the new company name where appropriate. BLL6H1214P2S-250#1 20140812 BLL6H1214P2S-250#2 Data sheet status Product data sheet - All information provided in this document is subject to legal disclaimers. Rev. 2 — 1 September 2015 - © Ampleon The Netherlands B.V. 2015. All rights reserved. 7 of 10 BLL6H1214P2S-250 LDMOS L-band radar power module 13. Legal information 13.1 Data sheet status Document status[1][2] Product status[3] Objective [short] data sheet Development This document contains data from the objective specification for product development. Preliminary [short] data sheet Qualification This document contains data from the preliminary specification. Product [short] data sheet Production This document contains the product specification. Definition [1] Please consult the most recently issued document before initiating or completing a design. [2] The term ‘short data sheet’ is explained in section “Definitions”. [3] The product status of device(s) described in this document may have changed since this document was published and may differ in case of multiple devices. The latest product status information is available on the Internet at URL http://www.ampleon.com. 13.2 Definitions Draft — The document is a draft version only. The content is still under internal review and subject to formal approval, which may result in modifications or additions. Ampleon does not give any representations or warranties as to the accuracy or completeness of information included herein and shall have no liability for the consequences of use of such information. Short data sheet — A short data sheet is an extract from a full data sheet with the same product type number(s) and title. A short data sheet is intended for quick reference only and should not be relied upon to contain detailed and full information. For detailed and full information see the relevant full data sheet, which is available on request via the local Ampleon sales office. In case of any inconsistency or conflict with the short data sheet, the full data sheet shall prevail. Product specification — The information and data provided in a Product data sheet shall define the specification of the product as agreed between Ampleon and its customer, unless Ampleon and customer have explicitly agreed otherwise in writing. In no event however, shall an agreement be valid in which the Ampleon product is deemed to offer functions and qualities beyond those described in the Product data sheet. 13.3 Disclaimers Limited warranty and liability — Information in this document is believed to be accurate and reliable. However, Ampleon does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of use of such information. Ampleon takes no responsibility for the content in this document if provided by an information source outside of Ampleon. In no event shall Ampleon be liable for any indirect, incidental, punitive, special or consequential damages (including - without limitation - lost profits, lost savings, business interruption, costs related to the removal or replacement of any products or rework charges) whether or not such damages are based on tort (including negligence), warranty, breach of contract or any other legal theory. Notwithstanding any damages that customer might incur for any reason whatsoever, Ampleon’ aggregate and cumulative liability towards customer for the products described herein shall be limited in accordance with the Terms and conditions of commercial sale of Ampleon. Right to make changes — Ampleon reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. This document supersedes and replaces all information supplied prior to the publication hereof. Suitability for use — Ampleon products are not designed, authorized or warranted to be suitable for use in life support, life-critical or safety-critical systems or equipment, nor in applications where failure or malfunction of an BLL6H1214P2S-250#2 Product data sheet Ampleon product can reasonably be expected to result in personal injury, death or severe property or environmental damage. Ampleon and its suppliers accept no liability for inclusion and/or use of Ampleon products in such equipment or applications and therefore such inclusion and/or use is at the customer’s own risk. Applications — Applications that are described herein for any of these products are for illustrative purposes only. Ampleon makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. Customers are responsible for the design and operation of their applications and products using Ampleon products, and Ampleon accepts no liability for any assistance with applications or customer product design. It is customer’s sole responsibility to determine whether the Ampleon product is suitable and fit for the customer’s applications and products planned, as well as for the planned application and use of customer’s third party customer(s). Customers should provide appropriate design and operating safeguards to minimize the risks associated with their applications and products. Ampleon does not accept any liability related to any default, damage, costs or problem which is based on any weakness or default in the customer’s applications or products, or the application or use by customer’s third party customer(s). Customer is responsible for doing all necessary testing for the customer’s applications and products using Ampleon products in order to avoid a default of the applications and the products or of the application or use by customer’s third party customer(s). Ampleon does not accept any liability in this respect. Limiting values — Stress above one or more limiting values (as defined in the Absolute Maximum Ratings System of IEC 60134) will cause permanent damage to the device. Limiting values are stress ratings only and (proper) operation of the device at these or any other conditions above those given in the Recommended operating conditions section (if present) or the Characteristics sections of this document is not warranted. Constant or repeated exposure to limiting values will permanently and irreversibly affect the quality and reliability of the device. Terms and conditions of commercial sale — Ampleon products are sold subject to the general terms and conditions of commercial sale, as published at http://www.ampleon.com/terms, unless otherwise agreed in a valid written individual agreement. In case an individual agreement is concluded only the terms and conditions of the respective agreement shall apply. Ampleon hereby expressly objects to applying the customer’s general terms and conditions with regard to the purchase of Ampleon products by customer. No offer to sell or license — Nothing in this document may be interpreted or construed as an offer to sell products that is open for acceptance or the grant, conveyance or implication of any license under any copyrights, patents or other industrial or intellectual property rights. Export control — This document as well as the item(s) described herein may be subject to export control regulations. Export might require a prior authorization from competent authorities. All information provided in this document is subject to legal disclaimers. Rev. 2 — 1 September 2015 © Ampleon The Netherlands B.V. 2015. All rights reserved. 8 of 10 BLL6H1214P2S-250 LDMOS L-band radar power module Non-automotive qualified products — Unless this data sheet expressly states that this specific Ampleon product is automotive qualified, the product is not suitable for automotive use. It is neither qualified nor tested in accordance with automotive testing or application requirements. Ampleon accepts no liability for inclusion and/or use of non-automotive qualified products in automotive equipment or applications. In the event that customer uses the product for design-in and use in automotive applications to automotive specifications and standards, customer (a) shall use the product without Ampleon’ warranty of the product for such automotive applications, use and specifications, and (b) whenever customer uses the product for automotive applications beyond Ampleon’ specifications such use shall be solely at customer’s own risk, and (c) customer fully indemnifies Ampleon for any liability, damages or failed product claims resulting from customer design and use of the product for automotive applications beyond Ampleon’ standard warranty and Ampleon’ product specifications. 13.4 Trademarks Notice: All referenced brands, product names, service names and trademarks are the property of their respective owners. Any reference or use of any ‘NXP’ trademark in this document or in or on the surface of Ampleon products does not result in any claim, liability or entitlement vis-à-vis the owner of this trademark. Ampleon is no longer part of the NXP group of companies and any reference to or use of the ‘NXP’ trademarks will be replaced by reference to or use of Ampleon’s own Any reference or use of any ‘NXP’ trademark in this document or in or on the surface of Ampleon products does not result in any claim, liability or entitlement vis-à-vis the owner of this trademark. Ampleon is no longer part of the NXP group of companies and any reference to or use of the ‘NXP’ trademarks will be replaced by reference to or use of Ampleon’s own trademarks. Translations — A non-English (translated) version of a document is for reference only. The English version shall prevail in case of any discrepancy between the translated and English versions. 14. Contact information For more information, please visit: http://www.ampleon.com BLL6H1214P2S-250#2 Product data sheet For sales office addresses, please visit: http://www.ampleon.com/sales All information provided in this document is subject to legal disclaimers. Rev. 2 — 1 September 2015 © Ampleon The Netherlands B.V. 2015. All rights reserved. 9 of 10 BLL6H1214P2S-250 LDMOS L-band radar power module 15. Contents 1 1.1 1.2 1.3 2 2.1 2.2 3 4 5 6 7 7.1 8 8.1 9 10 11 12 13 13.1 13.2 13.3 13.4 14 15 Product profile . . . . . . . . . . . . . . . . . . . . . . . . . . 1 General description . . . . . . . . . . . . . . . . . . . . . 1 Features and benefits . . . . . . . . . . . . . . . . . . . . 1 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Pinning information . . . . . . . . . . . . . . . . . . . . . . 2 Pinning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Pin description . . . . . . . . . . . . . . . . . . . . . . . . . 2 Ordering information . . . . . . . . . . . . . . . . . . . . . 2 Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Limiting values. . . . . . . . . . . . . . . . . . . . . . . . . . 3 Thermal characteristics . . . . . . . . . . . . . . . . . . 3 Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Ruggedness in class-AB operation . . . . . . . . . 4 Test information . . . . . . . . . . . . . . . . . . . . . . . . . 4 Graphical data . . . . . . . . . . . . . . . . . . . . . . . . . 4 Package outline . . . . . . . . . . . . . . . . . . . . . . . . . 6 Handling information. . . . . . . . . . . . . . . . . . . . . 7 Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . 7 Legal information. . . . . . . . . . . . . . . . . . . . . . . . 8 Data sheet status . . . . . . . . . . . . . . . . . . . . . . . 8 Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Disclaimers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Contact information. . . . . . . . . . . . . . . . . . . . . . 9 Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Please be aware that important notices concerning this document and the product(s) described herein, have been included in section ‘Legal information’. © Ampleon The Netherlands B.V. 2015. All rights reserved. For more information, please visit: http://www.ampleon.com For sales office addresses, please visit: http://www.ampleon.com/sales Date of release: 1 September 2015 Document identifier: BLL6H1214P2S-250#2
