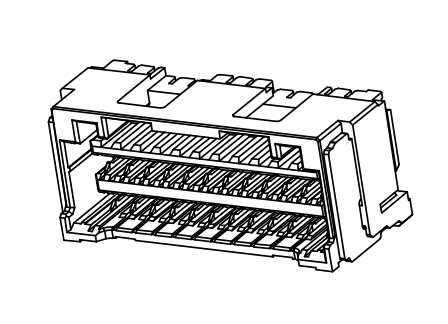

1515WRS-2x13

Specifications: 规格： Voltage rating:100V AC/DC 额定电压：100V AC/DC Current rating:1.5A AC/DC 额定电流：1.5A AC/DC Withstanding voltage:500V AC/minute 耐受电压：500V AC/分钟 Temperature range:-40℃- 105℃ 温度范围：-40℃- 105℃ Insulation resistance: 500M 绝缘电阻： 500M Contact resistance: 20m 接触电阻： 20m 1515 W 1 2x04Pin / 2x05Pin With Mylar 9.55 [0.375] A±0.15 9.2 [0.362] 6.15 [0.242] 4.65 [0.183] 0.55 [0.022] 1.2 [0.047] 0.75 [0.029] Pin 1 A Recommended PCB Layout Tolerance:±0.05 A B C D 2x04 4.50 10.30 7.40 8.95 2x05 6.00 11.80 8.90 10.45 2x06 7.50 13.30 10.40 11.95 2x07 9.00 14.80 11.90 13.45 2x08 10.50 16.30 13.40 14.95 2x09 12.00 17.80 14.90 16.45 2x10 13.50 19.30 16.40 17.95 2x11 15.00 20.80 17.90 19.45 2x12 16.50 22.30 19.40 20.95 2x13 18.00 23.80 20.90 22.45 2x14 19.50 25.30 22.40 23.95 new Phosphor Bronze Material Pin ECN BO. 1515H-A Suitable Hanyones Housing mm 2.7 [0.106] 1.2 [0.048] Material 5 Dimensions 2.23 [0.087] 1.48 [0.058] PART N0 4 Poles D±0.15 C LCP 3 0.10 Max 2x04Pin 2x05Pin 1515WRS-2xXX 2 1.Series No 2.Category:W-Wafer 3.Welding Board Angle:R-Stright 90 4.Welding Way:S-SMT 5.Row No.Pin No:2xXX-2x04 2x14P B Pin N R S- 2xXX DESIGNED CHECKED DESCRIPTION. APPROVAL Tom Jerry A REV. SCALT: 1/2 DRAWING NUMBER PART NAME Mikey 2015/5/3 DATE. SCALE: 3:1 1515WRS-2x13 MODEL NAME 1515WRS-2x13 3RD ANGLE PROJ HANYONES TECH CO.,LTD FILE.NO.
