PRODUCT DATASHEET
Surface Mount PTC Devices

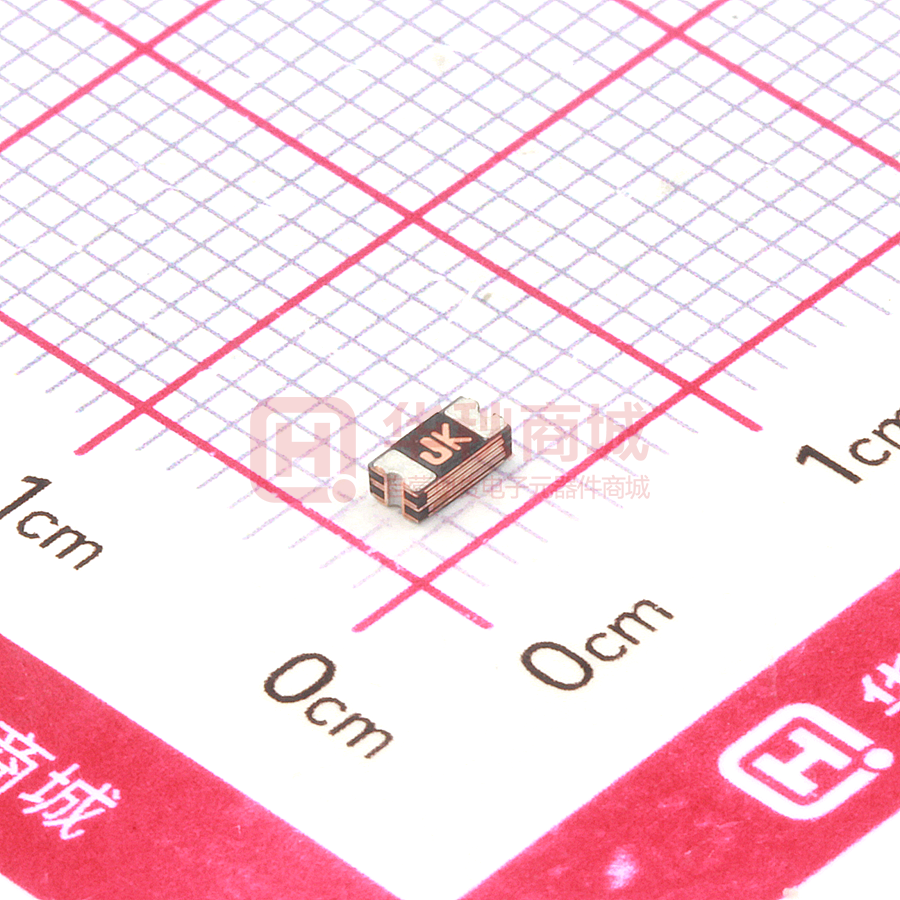

ASMD1206 Series Surface Mount PTC Devices
ASMD1206 Series Surface Mount PTC Devices
Description
The ASMD1206 series provides miniature surface
mount overcurrent protection with holding current from
0.05A to 3.5A.
This series is suitable for wide range of applications
in modern electronics where space is limited.
Features
● RoHS compliant and lead-free
● Low profile
● Halogen-free
● Fast response to fault current
● Compact design saves board space
● Compatible with high temperature solders
Agency Approvals
Agency
Applications
File Number
E472196
● Battery PCM
● Game console port protection
● USB hubs, ports and peripherals
● Optical disk drives
● Set-top-box and HDMI
● General electronics
Regulation
Standard
2002/95/EC
EN14582
JDT Fuse Industrial Co., Ltd
www.jdtfuse.com
Page 1/8
Revised 04/02/20
ASMD1206 Series Surface Mount PTC Devices
Performance Specification
Model
V max
(V dc)
I max
(A)
I hold
I trip
Pd
@25°C
(A)
@25°C
(A)
Typ.
(W)
Maximum
Time To Trip
Resistance
Current
(A)
Time
(Sec)
R i min
R1max
(Ω)
(Ω)
ASMD1206-005
60.0
100
0.05
0.15
0.4
0.25
1.5
3.60
50
ASMD1206-005-24V
24.0
100
0.05
0.15
0.4
0.25
1.5
3.60
50
ASMD1206-010
60.0
100
0.1
0.25
0.4
0.5
1.0
1.60
15
ASMD1206-010-24V
24.0
100
0.1
0.25
0.4
0.5
1.0
1.60
15
ASMD1206-012
60.0
100
0.12
0.29
0.4
0.5
1.0
1.60
15
ASMD1206-012-24V
24.0
100
0.12
0.29
0.4
0.5
1.0
1.60
15
ASMD1206-016
16.0
100
0.16
0.37
0.4
1.0
0.3
1.00
6.0
ASMD1206-016-24V
24.0
100
0.16
0.37
0.4
1.0
0.3
1.00
6.0
ASMD1206-016-33V
33.0
100
0.16
0.37
0.4
1.0
0.3
1.00
6.0
ASMD1206-020
24.0
100
0.2
0.46
0.6
8.0
0.08
0.35
3.5
ASMD1206-020-30V
30.0
100
0.2
0.46
0.6
8.0
0.08
0.35
3.5
ASMD1206-020-48V
48.0
100
0.2
0.46
0.6
8.0
0.08
0.35
3.5
ASMD1206-025
16.0
100
0.25
0.5
0.6
8.0
0.08
0.35
2.7
ASMD1206-025-24V
24.0
100
0.25
0.5
0.6
8.0
0.08
0.35
2.7
ASMD1206-025-30V
30.0
100
0.25
0.5
0.6
8.0
0.08
0.35
2.7
ASMD1206-025-48V
48.0
100
0.25
0.5
0.6
8.0
0.08
0.35
2.7
ASMD1206-035
6.0
100
0.35
0.75
0.6
8.0
0.1
0.25
1.5
ASMD1206-035-16V
16.0
100
0.35
0.75
0.6
8.0
0.1
0.25
1.5
ASMD1206-035-30V
30.0
100
0.35
0.75
0.6
8.0
0.1
0.25
1.5
ASMD1206-050
6.0
100
0.5
1.0
0.6
8.0
0.1
0.15
0.7
ASMD1206-050-13.2V
13.2
100
0.5
1.0
0.6
8.0
0.1
0.15
0.7
ASMD1206-050-16V
16.0
100
0.5
1.0
0.6
8.0
0.1
0.15
0.7
ASMD1206-050-30V
30.0
100
0.5
1.0
0.6
8.0
0.1
0.15
0.7
ASMD1206-075
6.0
100
0.75
1.5
0.6
8.0
0.2
0.09
0.5
ASMD1206-075-16V
16.0
100
0.75
1.5
0.6
8.0
0.2
0.09
0.5
ASMD1206-075-30V
30.0
100
0.75
1.5
0.6
8.0
0.2
0.09
0.5
ASMD1206-100
6.0
100
1.0
1.8
0.6
8.0
0.3
0.05
0.27
ASMD1206-100-16V
16.0
100
1.0
1.8
0.6
8.0
0.3
0.05
0.27
ASMD1206-100-24V
24.0
100
1.0
1.8
0.6
8.0
0.3
0.05
0.27
ASMD1206-110
6.0
100
1.1
2.2
0.6
8.0
0.3
0.04
0.25
ASMD1206-110-16V
16.0
100
1.1
2.2
0.6
8.0
0.3
0.04
0.25
ASMD1206-110-24V
24.0
100
1.1
2.2
0.6
8.0
0.3
0.04
0.25
ASMD1206-150
6.0
100
1.5
3.0
0.8
8.0
0.3
0.025
0.13
ASMD1206-150-13.2V
13.2
100
1.5
3.0
0.8
8.0
0.3
0.025
0.13
ASMD1206-200
6.0
100
2.0
3.5
0.8
8.0
1.5
0.015
0.08
ASMD1206-200-12V
12.0
100
2.0
3.5
0.8
8.0
1.5
0.015
0.08
ASMD1206-200-16V
16.0
100
2.0
3.5
0.8
8.0
1.5
0.015
0.08
ASMD1206-260
6.0
100
2.6
5.2
0.8
8.0
2.0
0.01
0.06
ASMD1206-300
6.0
100
3.0
6.0
1.0
8.0
4.0
0.01
0.05
ASMD1206-350
6.0
100
3.5
7.0
1.2
10.0
5.0
0.005
0.04
JDT Fuse Industrial Co., Ltd
www.jdtfuse.com
Page 2/8
Revised 04/02/20
ASMD1206 Series Surface Mount PTC Devices
I hold = Hold Current. Maximum current device will not trip in 25°C still air.
I trip = Trip Current. Minimum current at which the device will always trip in 25°C still air.
V max = Maximum operating voltage device can withstand without damage at rated current (Imax).
I max = Maximum fault current device can withstand without damage at rated voltage (V max).
= Power dissipation when device is in the tripped state in 25°C still air environment at rated voltage.
Pd
Ri min/max = Minimum/Maximum device resistance prior to tripping at 25°C.
R1max = Maximum device resistance is measured one hour post reflow.
CAUTION : Operation beyond the specified ratings may result in damage and possible arcing and flame.
Environmental Specifications
Conditions
Test
Resistance change
Passive aging
+85°C, 1000 hrs.
±5% typical
Humidity aging
+85°C, 85% R.H. , 168 hours
±5% typical
Thermal shock
+85°C to -40°C, 20 times
±33% typical
Resistance to solvent
MIL-STD-202,Method 215
No change
Vibration
MIL-STD-202,Method 201
No change
Ambient operating conditions : - 40 °C to +85 °C
Maximum surface temperature of the device in the tripped state is 125 °C
Thermal Derating Curve
Percentage of Derated Current
Derating Curves for ASMD1206 Series
160
140
120
100
80
60
40
20
0
-40
-20
0
20
40
60
80
Temperature (°C )
JDT Fuse Industrial Co., Ltd
www.jdtfuse.com
Page 3/8
Revised 04/02/20
ASMD1206 Series Surface Mount PTC Devices
Average Time-Current Curve
3.5
3.0
2.6
2.5
2.0
1.5
1.0
1.1
A
750
500
350
250
160
200
125
100
100
50
mA
TIME IN SECONDS
10
1
0.1
0.01
0.10
1
10
CURRENT IN AMPERES
Thermal Derading Chart
Model
Maximum ambient operating temperature (Tmao) vs. hold current (Ihold)
- 40°C
- 20°C
0°C
25°C
40°C
50°C
60°C
70°C
85°C
ASMD1206-005
0.074
0.066
0.058
0.05
0.0425
0.0375
0.035
0.03
0.0275
ASMD1206-010
0.148
0.132
0.116
0.10
0.085
0.075
0.07
0.06
0.055
ASMD1206-012
0.18
0.16
0.14
0.12
0.10
0.09
0.08
0.07
0.07
ASMD1206-016
0.24
0.21
0.18
0.16
0.14
0.13
0.12
0.11
0.10
ASMD1206-020
0.30
0.26
0.23
0.20
0.17
0.15
0.14
0.12
0.11
ASMD1206-025
0.37
0.33
0.29
0.25
0.22
0.20
0.17
0.15
0.12
ASMD1206-035
0.50
0.45
0.40
0.35
0.30
0.27
0.24
0.21
0.15
ASMD1206-050
0.71
0.64
0.57
0.50
0.42
0.39
0.35
0.31
0.25
ASMD1206-075
1.14
1.01
0.88
0.75
0.65
0.59
0.54
0.49
0.41
ASMD1206-100
1.45
1.31
1.15
1.00
0.84
0.77
0.69
0.61
0.48
ASMD1206-110
1.60
1.45
1.30
1.10
0.95
0.80
0.72
0.66
0.55
ASMD1206-150
2.18
1.94
1.72
1.50
1.28
1.17
1.06
0.96
0.77
ASMD1206-200
2.88
2.63
2.34
2.00
1.74
1.58
1.42
1.17
0.93
ASMD1206-260
3.43
3.22
2.93
2.60
2.23
2.03
1.87
1.57
1.35
ASMD1206-300
4.05
3.66
3.36
3.00
2.50
2.28
2.00
1.62
1.35
ASMD1206-350
4.65
4.23
3.92
3.50
2.92
2.68
2.35
1.91
1.42
JDT Fuse Industrial Co., Ltd
www.jdtfuse.com
Page 4/8
Revised 04/02/20
ASMD1206 Series Surface Mount PTC Devices
Soldering Parameters
TP 20~40 S
TP 260
Ramp-up
Profile Feature
Critical Zone
TL to TP
TL 217
tL
Tsmax
Temperature (°C )
Preheat
Tsmin
Ramp-down
ts
Preheat 60~180 s
25
3℃/second max.
(Ts max to T p)
60~150 s
200
150
Average Ramp-Up Rate
Pb-Free Assembly
-Temperature Min(Ts min)
150℃
-Temperature Max(Ts max)
200℃
-Time(Ts min to Ts max)
60~180 seconds
Time maintained above:
t 25°C to peak
Time
Recommended reflow methods: IR, vapor phase oven,
hot air oven, N2 environment for lead-free
Recommended maximum paste thickness is 0.25mm
Devices can be cleaned using standard industry methods
and solvents.
Note 1:All temperature refer to topside of the package,
measured on the package body surface.
Note 2: If reflow temperatures exceed the recommended
profile, devices may not meet the performance
requirements.
-Temperature(TL)
217℃
-Time(tL)
60~150 seconds
Peak Temperature(Tp)
260℃
Ramp-Down Rate
6℃/second max.
Time 25℃ to Peak Temperature
8 minutes max
Storage Condition
0℃~35℃,≤70%RH
Physical Dimensions(mm.)
JDT Fuse Industrial Co., Ltd
www.jdtfuse.com
Page 5/8
Revised 04/02/20
ASMD1206 Series Surface Mount PTC Devices
A
Model
B
C
D
E
Min.
Max.
Min.
Max.
Min.
Max.
Min.
Min.
ASMD1206-005
3.0
3.6
1.5
1.9
0.6
1.2
0.15
0.1
ASMD1206-010
3.0
3.6
1.5
1.9
0.6
1.2
0.15
0.1
ASMD1206-012
3.0
3.6
1.5
1.9
0.6
1.2
0.15
0.1
ASMD1206-016
3.0
3.6
1.5
1.9
0.4
1.0
0.15
0.1
ASMD1206-020
3.0
3.6
1.5
1.9
0.4
1.0
0.15
0.1
ASMD1206-020-30V
3.0
3.6
1.5
1.9
0.4
1.0
0.15
0.1
ASMD1206-020-48V
3.0
3.6
1.5
1.9
0.4
1.0
0.15
0.1
ASMD1206-025
3.0
3.6
1.5
1.9
0.4
1.0
0.15
0.1
ASMD1206-025-30V
3.0
3.6
1.5
1.9
0.4
1.0
0.15
0.1
ASMD1206-025-48V
3.0
3.6
1.5
1.9
0.4
1.0
0.15
0.1
ASMD1206-035
3.0
3.6
1.5
1.9
0.35
0.8
0.15
0.1
ASMD1206-035-16V
3.0
3.6
1.5
1.9
0.35
0.8
0.15
0.1
ASMD1206-035-30V
3.0
3.6
1.5
1.9
0.4
0.9
0.15
0.1
ASMD1206-050
3.0
3.6
1.5
1.9
0.35
0.8
0.15
0.1
ASMD1206-050-13.2V
3.0
3.6
1.5
1.9
0.35
0.8
0.15
0.1
ASMD1206-050-16V
3.0
3.6
1.5
1.9
0.35
0.8
0.15
0.1
ASMD1206-050-30V
3.0
3.6
1.5
1.9
0.5
1.0
0.15
0.1
ASMD1206-075
3.0
3.6
1.5
1.9
0.35
0.8
0.15
0.1
ASMD1206-075-16V
3.0
3.6
1.5
1.9
0.5
1.0
0.15
0.1
ASMD1206-075-30V
3.0
3.6
1.5
1.9
0.5
1.0
0.15
0.1
ASMD1206-100
3.0
3.6
1.5
1.9
0.35
0.8
0.15
0.1
ASMD1206-100-16V
3.0
3.6
1.5
1.9
0.5
1.0
0.15
0.1
ASMD1206-100-24V
3.0
3.6
1.5
1.9
0.5
1.0
0.15
0.1
ASMD1206-110
3.0
3.6
1.5
1.9
0.35
0.8
0.15
0.1
ASMD1206-110-16V
3.0
3.6
1.5
1.9
0.5
1.0
0.15
0.1
ASMD1206-110-24V
3.0
3.6
1.5
1.9
0.5
1.0
0.15
0.1
ASMD1206-150
3.0
3.6
1.5
1.9
0.5
1.0
0.15
0.1
ASMD1206-150-13.2V
3.0
3.6
1.5
1.9
1.0
1.6
0.15
0.1
ASMD1206-200
3.0
3.6
1.5
1.9
0.7
1.6
0.15
0.1
ASMD1206-200-12V
3.0
3.6
1.5
1.9
0.7
1.6
0.15
0.1
ASMD1206-200-16V
3.0
3.6
1.5
1.9
0.7
1.6
0.15
0.1
ASMD1206-260
3.0
3.6
1.5
1.9
1.0
1.6
0.15
0.1
ASMD1206-300
3.0
3.6
1.5
1.9
1.0
1.6
0.15
0.1
ASMD1206-350
3.0
3.5
1.5
1.9
1.0
1.6
0.15
0.1
Termination Pad Characteristics
Terminal pad materials:Tin-plated Nickel-Copper
Terminal pad solder ability:Meets EIA specification RS186-9E and ANSI/J-STD-002 Category 3
JDT Fuse Industrial Co., Ltd
www.jdtfuse.com
Page 6/8
Revised 04/02/20
ASMD1206 Series Surface Mount PTC Devices
Packaging Quantity and Marking
2.0±0.1
Part Number
1.9±0.1
Quantity
ASMD1206
3500 pcs/reel
Tape & reel packaging per EIA481-1
1.0±0.1
1.0±0.1
Tape And Reel Specifications (mm)
Governing Specifications
EIA 481-1
W
8.15 ± 0.3
P0
4.0 ± 0.10
P1
4.0 ± 0.10
P2
2.0 ± 0.05
A0
1.95 ± 0.10
B0
3.40 ± 0.10
B1max.
4.35
D0
1.50 + 0.1, -0
F
3.5 ± 0.05
E1
1.75 ± 0.10
E2min.
6.25
T
0.6
T1max.
0.1
K0
1.04 ± 0.1
Leader min.
390
Trailer min.
160
Reel Dimensions
A max.
178
N min.
60
W1
9 ± 0.5
W2
12.6 ± 0.5
Storage And Handling
● Storage conditions:40°C max, 70% R.H.
● Devices may not meet specified performance
if storage conditions are exceeded.Technology Corp.
JDT Fuse Industrial Co., Ltd
www.jdtfuse.com
P1
P2
D0
P0
E1
F
W
T
D2
K0
A0
B0
H
W4
W3
D
C
W2
W
F
W1
H1
Page 7/8
Revised 04/02/20
ASMD1206 Series Surface Mount PTC Devices
Part Number System
ASMD 1206 -
Special Voltage Rating(Optional)
Holding Current Rating
Device Dimensions:
Length/width(Unit:1/100 inch) Size 3216 mm / 1206 inch
Surface Mount Device
Cross Reference
Cross Reference
Model
Tyco / PolySwitch®
Littelfuse / POLY-FUSE®
Polytronics / EVERFUSE®
ASMD1206-005
-
-
-
ASMD1206-010
-
-
-
ASMD1206-012
nanoSMDC012F
1206L012
SMD1206P012TF
ASMD1206-020
nanoSMDC020F
1206L020
SMD1206P020TF/24
ASMD1206-025
-
1206L025
SMD1206P025TF
ASMD1206-035
nanoSMDC035F
1206L035
-SMD1206P035TF
ASMD1206-050
nanoSMDC050F
1206L050
SMD1206P050TF
ASMD1206-050-13.2V
nanoSMDC050F/13.2
1206L050/15
SMD1206P050TF/15
ASMD1206-075
nanoSMDC075F
1206L075
SMD1206P075TF
ASMD1206-075-16V
nanoSMDC075F/16
1206L075/16
SMD1206P075TF/16
ASMD1206-100
-
-
-
ASMD1206-110
nanoSMDC110F
1206L110
SMD1206P110TF
ASMD1206-150
nanoSMDC150F
1206L150
SMD1206P150TF
ASMD1206-200
nanoSMDC200F
1206L200
SMD1206P200TF
“PolySwitch” is a registered trademark of Tyco Electronics.
“POLY-FUSE” is a registered trademark of Littelfuse,Inc.
“EVERFUSE” is a registered trademark of Polytronics Technology Corp.
JDT Fuse Industrial Co., Ltd
www.jdtfuse.com
Page 8/8
Revised 04/02/20
很抱歉,暂时无法提供与“ASMD1206-200-16V”相匹配的价格&库存,您可以联系我们找货
免费人工找货- 国内价格
- 20+0.52440
- 100+0.45290
- 300+0.38140
- 1000+0.28600
- 3500+0.23840
- 17500+0.22650
- 国内价格
- 5+0.45401
- 50+0.37038
- 150+0.32856
- 500+0.29720
- 3500+0.26384
- 7000+0.25129
- 国内价格
- 1+0.36000
- 100+0.33600
- 300+0.31200
- 500+0.28800
- 2000+0.27600
- 5000+0.26880
