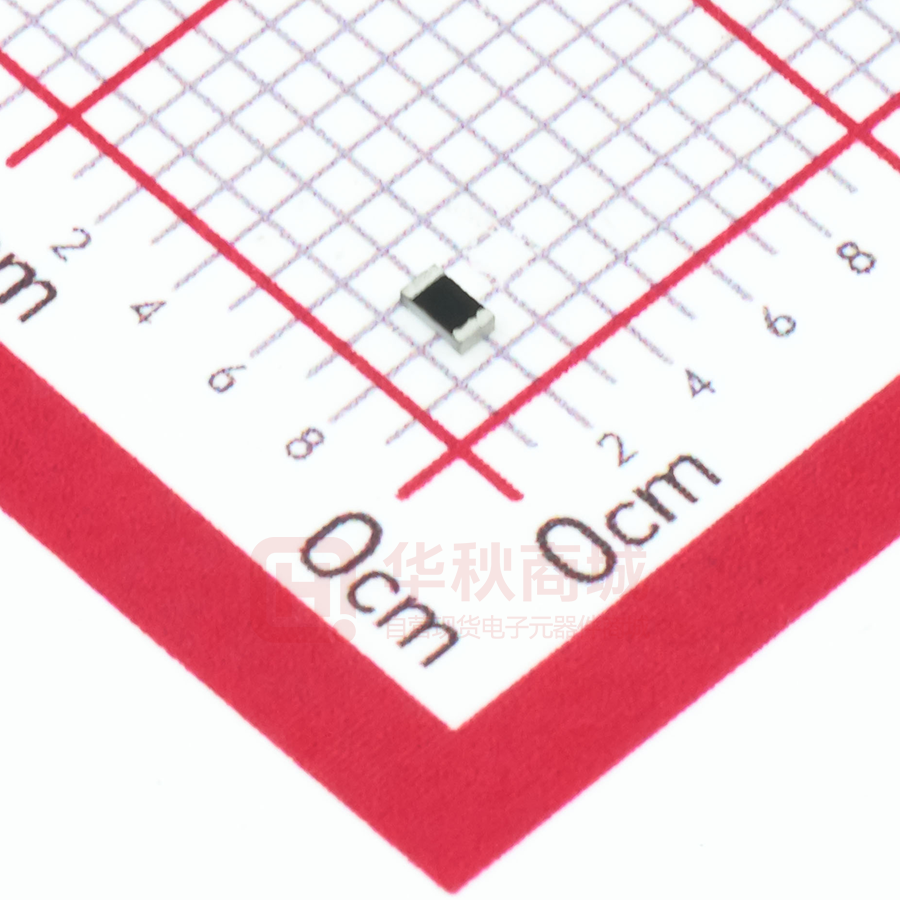

ARG03FTC4001N

Data Sheet Customer： Product : Thin Film Chip Resistor - ARG Series Size: 0402/0603/0805/1206 Issued Date: 19-Jul-16 Edition : REV. A3 VIKING TECH CORPORATION 光頡科技股份有限公司 VIKING TECH CORPORATION KAOHSIUNG BRANCH 光頡科技股份有限公司高雄分公司 WUXI TMTEC CO., LTD. 無錫泰銘電子有限公司 No.70, Guangfu N. Rad., No.248-3, Sin-Sheng Rd., Cian-Jhen Dist., Kaohsiung, No.1A,(Xixia Road),Machinery & Industry Park, Hsin Chu Industrial Park, 806, Taiwan National Hi-Tech Industrial Development Zone of Hukou Hsiang, Hsin Chu Hsien, Wuxi, Wuxi, Jiangsu Province, China 303, Taiwan Zip Code:214028 TEL:886-3-5972931 TEL:886-7-8217999 TEL:86-510-85203339 FAX:886-3-5972935•886-3-5973494 FAX:886-7-8228229 FAX:86-510-85203667•86-510-85203977 E-mail:sales@viking.com.tw E-mail:sales@viking.com.tw E-mail:wuxisales@tmtec.com.tw Produced by (QC) Checked (QC) 19-Jul-16 19-Jul-16 Chun Ben Chang Approved by (QC) 19-Jul-16 Ben Chang Prepared by (Sales) Accepted by (Customer) 【ARG Series】 Thin Film Chip Resistor Thin Film Chip Resistor (ARG Series) ■Features －Advanced thin film technology －SMD Type designed for automatic insertion －Wide resistance range 1ohm ~ 2.49Mega ohm ■Applications －Medical Equipment －Testing / Measurement Equipment －Printer Equipment －Automatic Equipment Controller －Converters －Communication Device, Cell Phone, GPS, PDA ■Construction L D1 W     T   D2   Alumina Substrate  Bottom Electrode  Top Electrode  Edge Electrode  Barrier Layer  External Electrode  Resistor Layer  Overcoat  Marking ■Dimensions Unit: mm Type Size (Inch) L W T D1 D2 ARG02 ARG03 ARG05 ARG06 0402 0603 0805 1206 1.00±0.05 1.60±0.10 2.00±0.15 3.10±0.15 0.50±0.05 0.80±0.10 1.25±0.15 1.55±0.15 0.30±0.10 0.45±0.10 0.50±0.10 0.55±0.10 0.20±0.10 0.30±0.20 0.30±0.20 0.42±0.20 0.20±0.10 0.30±0.20 0.40±0.20 0.35±0.25 Weight (g) (1000pcs) 0.54 1.83 4.71 9.02 ■Part Numbering ARG 03 F T C 1001 N Product Type Dimensions (L×W) Resistance Tolerance Packaging Code TCR (PPM/°C) Resistance Marking Code 02: 0402 03: 0603 05: 0805 06: 1206 B: ±0.1% C: ±0.25% D: ±0.5% F: ±1% www.viking.com.tw T: Taping Reel B: Bulk C: ±25 D: ±50 0010: 1Ω 4R70: 4.7Ω 1001: 1KΩ 1004: 1MΩ For detail questions, contact : sales@viking.com.tw 1 : Standard Marking for E96 / E24 N: No Marking Edition : REV.A3 Revision: 19-Jul-2016 【ARG Series】 Thin Film Chip Resistor ■Derating Curve Power ratio(%) 100 80 60 40 20 0 0 20 40 60 80 100 120 140 160 180 Ambient Temperature(℃) ■Standard Electrical Specifications Item Power Rating at 70°C Operating Temp. Range Max. Operating Voltage Max. Overload Voltage ARG02 (0402 ) 1/16W -55 ~ +155°C 50V 100V 4.7Ω – 255KΩ ±25 ±50 ARG03 (0603) 1/10W -55 ~ +155°C 75V 150V 1Ω - 1MΩ ±25 ±50 ARG05 (0805) 1/8W -55 ~ +155°C 150V 300V 1Ω - 2MΩ ±25 ±50 ARG06 (1206) 1/4W -55 ~ +155°C 200V 400V 1Ω - 2.49MΩ ±25 ±50 Type TCR Resistance Range ±0.1% ±0.25% ±0.5% ±1% (PPM/°C) Operating Voltage=√(P*R) or Max. operating voltage listed above, whichever is lower. Overload Voltage=2.5*√(P*R) or Max. overload voltage listed above, whichever is lower. Viking is capable of manufacturing the optional spec based on customer’s requirement. (Lower Resistance:1~10Ω ; High Power Rating) www.viking.com.tw For detail questions, contact : sales@viking.com.tw 2 Edition : REV.A3 Revision: 19-Jul-2016 【ARG Series】 Thin Film Chip Resistor ■Environmental Characteristics Item Requirement Test Method Temperature Coefficient of Resistance As Spec. (T.C.R.) MIL-STD-202 Method 304 +25/-55/+25/+125/+25C Short Time Overload ∆R±0.2% JIS-C-5201-1 5.5 RCWV*2.5 or Max. overload voltage whichever is lower for 5 seconds Insulation Resistance >9999 MΩ MIL-STD-202 Method 302 Apply 100VDC for 1 minute Endurance ∆R±0.5% MIL-STD-202 Method 108A 702C, RCWV for 1000 hrs with 1.5 hrs “ON” and 0.5 hrs “OFF” Damp Heat with Load ∆R±0.5% MIL-STD-202 Method 103B 402C, 90~95% R.H. RCWV for 1000 hrs with 1.5 hrs “ON” and 0.5 hrs “OFF” Bending Strength ∆R±0.1% JIS-C-5201-1 6.1.4 Bending amplitude 3 mm for 10 seconds Solderability 95% min. coverage MIL-STD-202 Method 208H 2455C for 3 seconds Resistance to Soldering Heat ∆R±0.1% MIL-STD-202 Method 210E 260±5C for 10 seconds Dielectric Withstand Voltage By Type MIL-STD-202 Method 301 Max. overload voltage for 1 minute Thermal Shock ∆R±0.2% MIL-STD-202 Method 107G -55C ~150C, 100 cycles Low Temperature Operation ∆R±0.5% JIS-C-5201-1 7.1 1 hour, -65C, followed by 45 minutes of RCWV RCWV(Rated continuous working voltage)= √(P*R) or Max. Operating voltage whichever is lower Storage Temperature: 15~28C; Humidity < 80%RH ■Soldering Condition IR Reflow Soldering Wave Soldering (Flow Soldering) (1) Time of IR reflow soldering at maximum temperature point 260C：10s (2) Time of wave soldering at maximum temperature point 260C：10s (3) Time of soldering iron at maximum temperature point 410C：5s www.viking.com.tw For detail questions, contact : sales@viking.com.tw 3 Edition : REV.A3 Revision: 19-Jul-2016 【ARG Series】 Thin Film Chip Resistor ▓Marking 0603 3digit marking 3digit marking for Example: 14C=13K7Ω 14C 68B=4K99Ω 13C=13K3Ω 68X=49.9Ω Marking Table Code E96 Code E96 Code E96 Code E96 01 100 25 178 49 316 73 562 02 102 26 182 50 324 74 576 03 105 27 187 51 332 75 590 04 107 28 191 52 340 76 604 05 110 29 196 53 348 77 619 06 113 30 200 54 357 78 634 07 115 31 205 55 365 79 649 08 118 32 210 56 374 80 665 09 121 33 215 57 383 81 681 10 124 34 221 58 392 82 698 11 127 35 226 59 402 83 715 12 130 36 232 60 412 84 732 13 133 37 237 61 422 85 750 14 137 38 243 62 432 86 768 15 140 39 249 63 442 87 787 16 143 40 255 64 453 88 806 17 147 41 261 65 464 89 825 18 150 42 267 66 475 90 845 19 154 43 274 67 487 91 866 20 158 44 280 68 499 92 887 21 162 45 287 69 511 93 909 22 165 46 294 70 523 94 931 23 169 47 301 71 536 95 953 24 174 48 309 72 549 96 976 Code A B C D E F G H X Y Z Multiplier 100 101 102 103 104 105 106 107 10-1 10-2 10-3 0603 3digit marking for E24 E24 10 11 12 0805~2512 4digit marking www.viking.com.tw 13 Example: 101=100Ω 102=1KΩ 15 16 18 20 22 24 27 30 33 36 39 43 47 51 56 62 68 75 82 91 Example Resistance 100Ω 2.2KΩ 10KΩ 49.9KΩ 100KΩ marking 1000 2201 1002 4992 1003 For detail questions, contact : sales@viking.com.tw 4 Edition : REV.A3 Revision: 19-Jul-2016 【ARG Series】 Thin Film Chip Resistor ■Packaging Unit :mm Packing Quantity & Reel Specifications W T Paper Tape (EA) Emboss Plastic Tape (EA) ARG02 178.0±1.0 60.0+1.0 13.5±0.7 9.5±1.0 11.5±1.0 10,000 - ARG03 178.0±1.0 60.0+1.0 13.5±0.7 9.5±1.0 11.5±1.0 5,000 - ARG05 178.0±1.0 60.0+1.0 13.5±0.7 9.5±1.0 11.5±1.0 5,000 - ARG06 178.0±1.0 60.0+1.0 13.5±0.7 9.5±1.0 11.5±1.0 5,000 - Type ØA ØB ØC Paper Tape Specifications Top Tape Bottom Tape ψ D0 E A F B T P1 Resistor Paper Tape P0 P2 W direction of unreeling Unit: mm Type A B W E F P0 P1 P2 ΦD0 T ARG02 0.70±0.05 1.16±0.05 8.00±0.10 1.75±0.05 3.5±0.05 4.00±0.10 2.00±0.05 2.00±0.05 1.55±0.05 0.40±0.03 ARG03 1.10±0.05 1.90±0.05 8.00±0.10 1.75±0.05 3.5±0.05 4.00±0.10 4.00±0.10 2.00±0.05 1.55±0.05 0.60±0.03 ARG05 1.60±0.05 2.37±0.05 8.00±0.10 1.75±0.05 3.5±0.05 4.00±0.10 4.00±0.10 2.00±0.05 1.55±0.05 0.75±0.05 ARG06 2.00±0.05 3.55±0.05 8.00±0.10 1.75±0.05 3.5±0.05 4.00±0.10 4.00±0.10 2.00±0.05 1.55±0.05 0.75±0.05 Peel force of top cover tape The peel speed shall be about 300mm/min±5% The peel force of top cover tape shall be between 8gf to 60gf Unit: mm www.viking.com.tw For detail questions, contact : sales@viking.com.tw 5 Edition : REV.A3 Revision: 19-Jul-2016 【ARG Series】 Thin Film Chip Resistor ■Recommend Land Pattern Unit: mm C B www.viking.com.tw Type A B C ARG02 0.50 0.50 0.60±0.2 ARG03 0.80 1.00 0.90±0.2 ARG05 1.00 1.00 1.35±0.2 ARG06 2.00 1.15 1.70±0.2 A For detail questions, contact : sales@viking.com.tw 6 Edition : REV.A3 Revision: 19-Jul-2016 【ARG Series】 Thin Film Chip Resistor REVISION HISTORY REVISION DATE CHANGE NOTIFICATION DESCRIPTION Version A1 May 08, 2015 - - Correct the element of Top Electrode. Version A2 May 02, 2016 - - Modify Storage Temperature. - Remove Material Description. Version A3 July 19, 2016 - - Add Resistance Range (±0.1% and 0.25%) - Update requirements of Environmental Characteristics. www.viking.com.tw For detail questions, contact : sales@viking.com.tw 7 Edition : REV.A3 Revision: 19-Jul-2016
