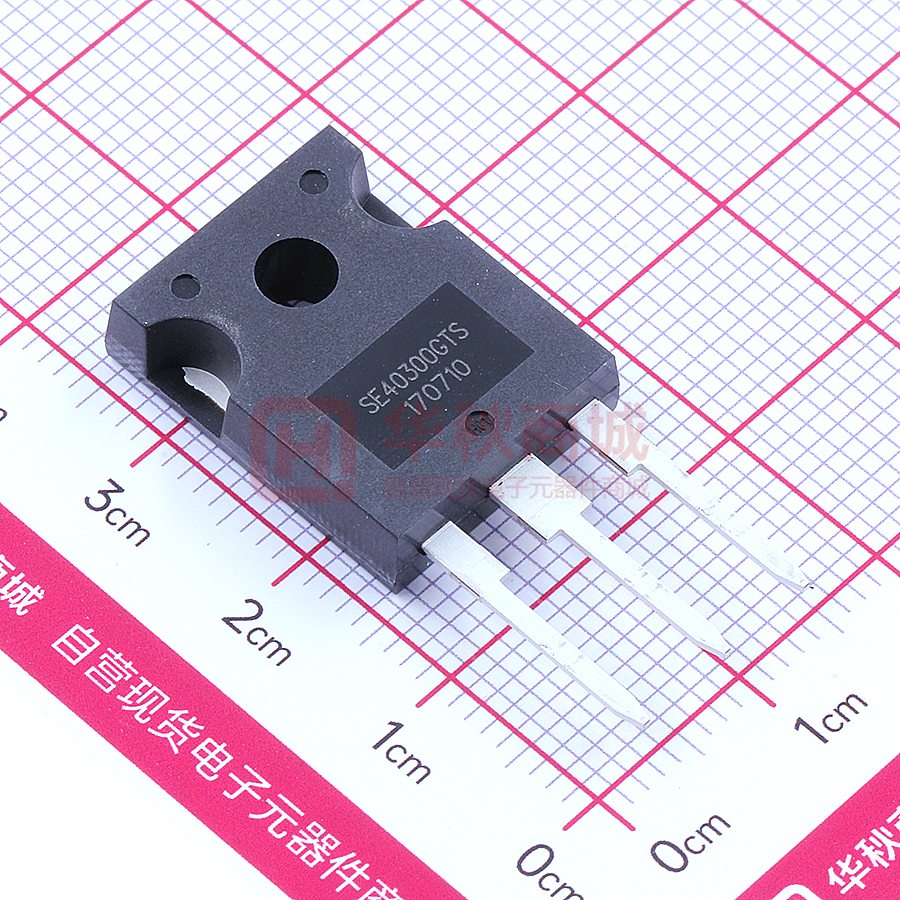

SE40300GTS
N-Channel Enhancement-Mode MOSFET
Revision: A
Features
General Description
Thigh Density Cell Design For Ultra Low
For a single MOSFET
On-Resistance Fully Characterized Avalanche
Voltage and Current Improved Shoot-Through FOM
Simple Drive Requirement
Small Package Outline
Surface Mount Device
VDS = 40V
RDS(ON) = 1.7mΩ @ VGS=10V
Pin configurations
See Diagram below
TO-220
TO-247
TO-263
Absolute Maximum Ratings
Parameter
Symbol
Rating
Units
Drain-Source Voltage
VDS
40
V
Gate-Source Voltage
VGS
±20
V
Drain Current
Continuous
Pulsed
Single Pulse Avalanche Energy
Peak Diode Recovery
Total Power Dissipation
@TA=25℃
Operating Junction Temperature Range
ShangHai Sino-IC Microelectronic Co., Ltd.
ID
288
780
A
EAS
1080
mJ
dv/dt
5
V/ns
PD
250
W
TJ
-55 to 150
℃
1.
SE40300GTS
Electrical Characteristics
Symbol
(TJ=25℃ unless otherwise noted)
Parameter
Test Conditions
Min
Typ
Max
Units
OFF CHARACTERISTICS (Note 2)
BVDSS
Drain-Source Breakdown Voltage
ID=250μA, VGS=0 V
IDSS
Drain to Source Leakage Current
VDS= 120V, VGS=0V
10
μA
IGSS
Gate-Body Leakage Current
VGS=20 V
100
nA
2.0
3.0
V
1.7
2.0
mΩ
VGS(th)
RDS(ON)
Gate Threshold Voltage
VDS= VGS, ID=250μA
Static Drain-Source On-Resistance
2
VGS=10V, ID=20A
40
1.0
V
DYNAMIC PARAMETERS
Ciss
Input Capacitance
VGS=0V, VDS=25V,
Coss
Output Capacitance
Crss
Reverse Transfer Capacitance
f=1MHz
7500
pF
1420
pF
530
pF
96
nC
22
nC
10
nC
SWITCHING PARAMETERS
Qg
Total Gate Charge 2
VGS=10V, VDS=80V,
Qgs
Gate Source Charge
Qgd
Gate Drain Charge
td(on)
Turn-On Delay Time
VGS=10V, VDS=80V,
24
ns
td(off)
Turn-Off Delay Time
RGEN=3.9Ω
72
ns
td(r)
Turn-On Rise Time
ID=20A
26
ns
td(f)
Turn-Off Fall Time
31
ns
TO-220
Units
ID=20A
Thermal Resistance
Symbol
Parameter
RθJC
Junction to Case
0.6
℃/W
RθJA
Junction to Ambient (t≦10s)
60
℃/W
ShangHai Sino-IC Microelectronic Co., Ltd.
2.
SE40300GTS
Test Circuits and Waveform
ShangHai Sino-IC Microelectronic Co., Ltd.
3.
SE40300GTS
Typical Characteristics
ShangHai Sino-IC Microelectronic Co., Ltd.
4.
SE40300GTS
ShangHai Sino-IC Microelectronic Co., Ltd.
5.
SE40300GTS
Package Outline Dimension
TO-220
ShangHai Sino-IC Microelectronic Co., Ltd.
6.
SE40300GTS
Package Outline Dimension
TO-247
ShangHai Sino-IC Microelectronic Co., Ltd.
7.
SE40300GTS
Package Outline Dimension
TO-263
ShangHai Sino-IC Microelectronic Co., Ltd.
8.
The SINO-IC logo is a registered trademark of ShangHai Sino-IC Microelectronics
Co., Ltd.
© 2005 SINO-IC - Printed in China - All rights reserved.
SHANGHAI SINO-IC MICROELECTRONICS CO., LTD
Add: Building 3, Room 3401-03, No.200 Zhangheng Road,
ZhangJiang Hi-Tech Park, Pudong, Shanghai 201203, China
Phone:
+86-21-33932402
33932403
33932405 33933508 33933608
Fax: +86-21-33932401
Email: szrxw002@126.com
Website: http://www.sino-ic.net
ShangHai Sino-IC Microelectronic Co., Ltd.
9.
