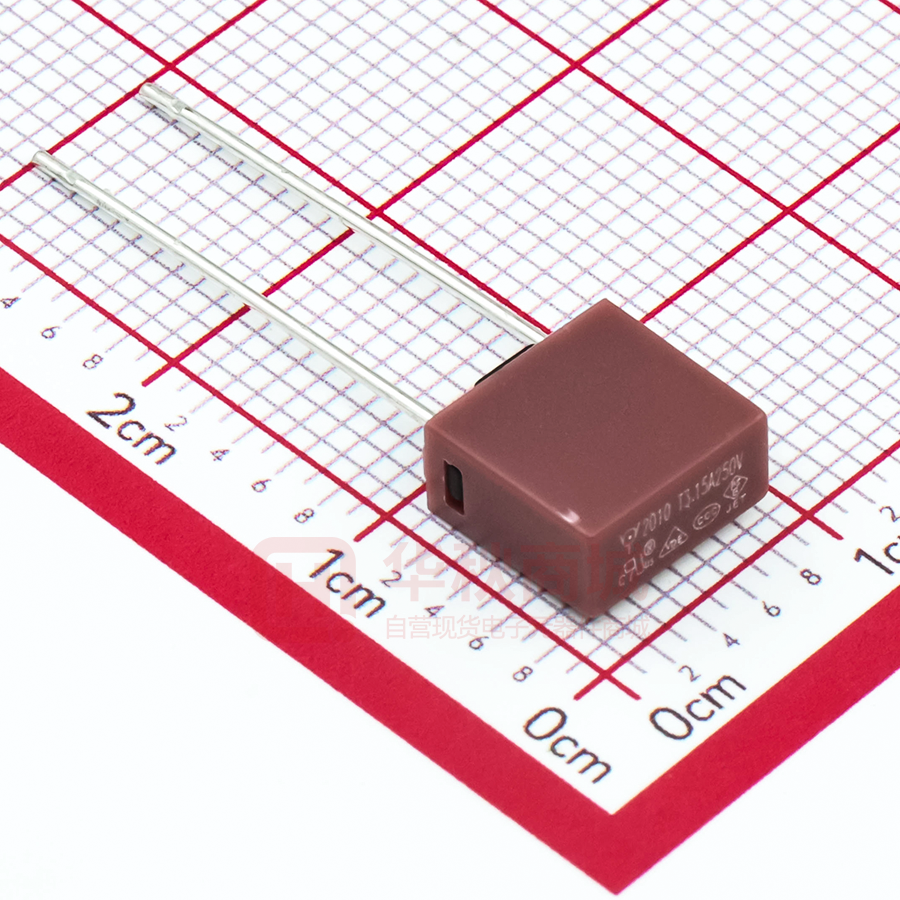

2010T3.15A250V

Subminiature Fuses 2010 Series / 8.5x8.5x4mm (Square) / Time-Lag Type I-T Characteristics / 時間-電流特性 Ampere Rating 額定電流 % of Ampere Rating 額定電流% 100mA~6.3A Opening Time 熔斷時間 150% 1 Hrs Min. / 最短1小時 210% 2Min Max. / 最長2分鐘 275% 400ms Min.10s Max. / 最短400毫秒, 最長10秒 400% 150ms Min. 3s Max. / 最短150毫秒, 最長3秒 1000% 20ms Min. 150s Max. / 最短20毫秒, 最長150毫秒 In accordance with IEC60127-3 standard,sheet4 / 遵循 IEC60127-3, 規格單4 Product Features / 產品特性 Body / 本體：thermoplastic / 耐熱性塑料 UL94 V-0 Lead / 引線：tinned copper wire / 鍍錫銅線 -55℃ to +125℃ (consider de-rating / 需考慮溫度折減) Storage Conditions 儲存條件 Hand welding parameter / 手工焊 Soldering iron temperature / 烙鐵溫度：350±5℃ Solder dwell time / 焊接時間：1∼2s Max. 8.5 Max 5.08±0.2 0.5 Min 0.5 Min 3.85±0.2 Wave soldering parameter / 波峰焊 Soldering pot temperature / 錫爐溫度：260℃ Max Solder dwell time / 焊接時間：2∼5s Ø0.6±0.1 L 8.5 Max 260℃, 10s. (wave / 波峰焊) 350℃, 3s. (soldering iron / 烙鐵焊) 9.0±0.2 Recommended Soldering Parameters 建議焊錫參數 8.5 Max 18.0±1.0 Resistance to Soldering Heat 耐焊接熱 4.0±0.2 8.5 Max 12.7±0.2 260℃, ≤ 3s. (wave / 波峰焊) 350±10℃, ≤ 3s. (soldering iron / 烙鐵焊) Solderability 可焊性 (Unit / 單位:mm) 6.0 Min Operating Temperature 操作溫度 Dimensions / 尺寸圖 19.2±0.5 Materials 材質 5.08±0.2 5.08±0.2 Ø1 .0 6.35±0.2 Can be stored for 3 years under tight seal condition at temperature of +10℃~60℃, relative humidity ≤ 75%. 在溫度+10℃~60℃,相對濕度 ≤ 75% 的密閉條件下可存放 3 年。 At most can be kept 30 days at temperature +10℃~60℃, ±0 .1 Ø4.0±0.2 12.7±0.2 Long Leads / 長引線：L＝19.2±0.5mm Short Leads / 短引線：L＝4.5±0.5mm relative humidity ≤ 95% under covered conditions. 在溫度+10℃~60℃，相對濕度為 95% 的非露天下最多可存放 30 天。 Electrical Characteristics / 電氣特性 Safety Approvals 安全認證 Rated Current Rated Voltage Breaking Capacity 額定電流 額定電壓 分斷能力 100mA 250V/300V ● ● ● ● ● 125mA 250V/300V ● ● ● ● ● 160mA 250V/300V ● ● ● ● ● 200mA 250V/300V ● ● ● ● ● 250mA 250V/300V 100A@250V AC ● ● ● ● ● 315mA 250V/300V & ● ● ● ● ● 400mA 250V/300V 130A@250V AC ● ● ● ● ● 500mA 250V/300V ● ● ● ● ● 630mA 250V/300V ● ● ● ● ● 800mA 250V/300V ● ● ● ● ● 1.00A 250V/300V ● ● ● ● ● ● 1.25A 250V/300V ● ● ● ● ● ● 1.60A 250V/300V ● ● ● ● ● ● 2.00A 250V/300V 50A@300V AC ● ● ● ● ● ● 2.50A 250V/300V & ● ● ● ● ● ● 3.15A 250V/300V 100A@300V AC ● ● ● ● ● ● 4.00A 250V/300V ● ● ● ● ● ● 5.00A 250V/300V ● ● ● ● ● ● 6.30A 250V/300V ● ● ● ● ● ● 8.00A 250V/300V ● ● ● ● 10.0A 250V/300V ● ● ● ● Remark: For , , , For , , ,50A at 300V AC For ,100A at 300V AC www.walterfuse.com , ,130A at 250V AC and 100A at 250V AC ; Subminiature Fuses : 2010 Series 18
