AA.107.301111

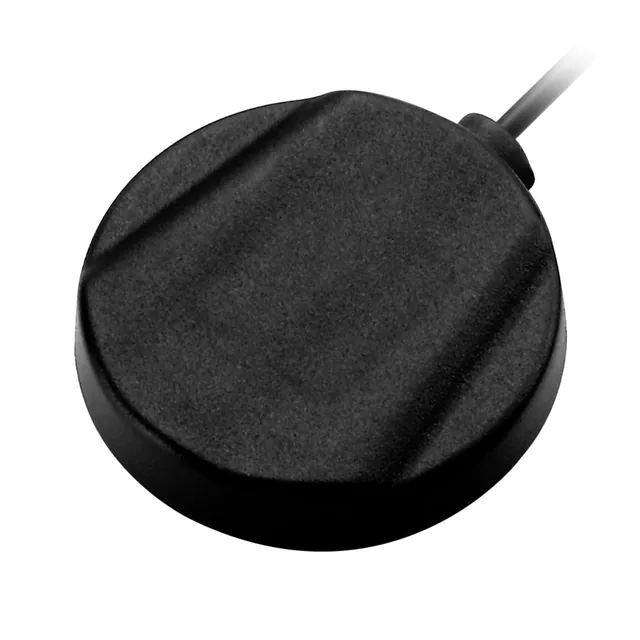

SPECIFICATION Part No. : AA.107.301111 Product Name : Stingray Low Profile Adhesive Mount GPS-GLONASS Antenna Feature : 1575.42/1602MHz 55mm*51.7mm*10.8mm 3.3V 3M RG174 SMA(M) IP65 Rated Custom cables and connectors available RoHS  SPE-13-8-038/C/WY Page 1 of 11 1. Introduction The Stingray low profile Adhesive Mount (only 10.8mm in height) GNSS antenna is designed for applications which require high positioning accuracy by combining signals from GPS and GLONASS systems. A high gain wide-band patch antenna on an integral ground delivers reliable performance, ideal for those applications that require durability, small size and covert installation, and reliable reception and transmission crossing through different mobile networks. Its high quality low profile covert housing can be attached onto the glass or even out of sight under the dashboard. The standard version has 3 metres RG174 cable and SMA(M) connector. The cables and connectors are completely customizable according to customer request. 2. Antenna Block Diagram SPE-13-8-038/C/WY Page 2 of 11 3. Specification Centre Frequency LNA Gain at 3.3V ELECTRICAL GPS: 1574.42MHz±3MHz GLONASS: 1602MHz±0.5MHz 28dB Typ. VSWR 2.0:1 Impedance 50Ω Return Loss 10dB Min. Impedance 50Ω DC power Input 3.3V Noise Figure 2.2dB Typ. Power Consumption 10mA Typ. MECHANICAL Antenna Dimensions 55 x 51.7 x 10.8mm Housing Material UV Resistant ABS Cable 3M RG174 (fully customizable) Connector SMA(M) (fully customizable) ENVIRONMENTAL Operation Temperature -40°C to 85°C Storage Temperature -40°C to 85°C Relative Humidity 40% to 95% SPE-13-8-038/C/WY Page 3 of 11 4. GPS/GLONASS Antenna -Setup SPE-13-8-038/C/WY Page 4 of 11 4.1 GPS/GLONASS Antenna 4.1.1 Smith Chart - Impedance 4.1.2 VSWR SPE-13-8-038/C/WY Page 5 of 11 4.1.3 Return loss 4.2 GPS/GLONASS Antenna Radiation Patterns 1575MHz XZ Plane YZ Plane SPE-13-8-038/C/WY Page 6 of 11 1602MHz XZ Plane YZ Plane 4.3 GPS/GLONASS Antenna Gain Chart Frequency(MHz) Peak Gain(dBi) Efficiency(%) 1575 1.36 50.13 1602 0.09 52.64 SPE-13-8-038/C/WY Page 7 of 11 4.4 GPS/GLONASS LNA Gain 4.5 GPS/GLONASS LNA Output Return Loss SPE-13-8-038/C/WY Page 8 of 11 5. Drawing SPE-13-8-038/C/WY Page 9 of 11 6. Packaging SPE-13-8-038/C/WY Page 10 of 11 Taoglas makes no warranties based on the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. Taoglas reserves all rights to this document and the information contained herein. Reproduction, use or disclosure to third parties without express permission is strictly prohibited. Copyright © Taoglas Ltd. SPE-13-8-038/C/WY Page 11 of 11
