WA.500W.301151

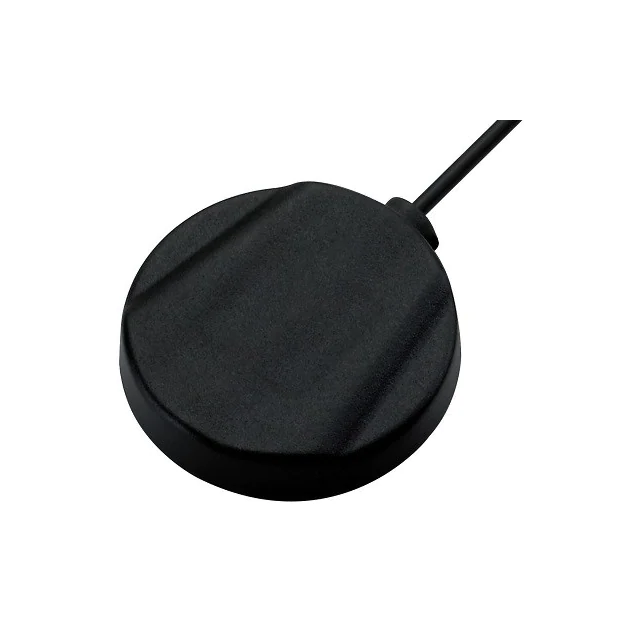

Specification Part No. : WA.500w.301151 Product Name : Stingray Adhesive Mount Wi-Fi/Zigbee Antenna Features Dual Band 2.4-2.5 GHz, 4.9-6.0 GHz IP-65 Water Resistance RG-174 – 3M, RP-SMA(M) RoHS Compliant : SPE-13-8-045/E/SS Page 1 of 20 1. Introduction The WA.500w Stingray is a high efficiency, high gain adhesive mount dual band wireless antenna. Its high quality low profile covert housing can be attached onto the glass or plastic. The WA.500w is designed for applications that require omni-directional gain across both bands to ensure wide coverage area and constant reception and transmission for Wi-Fi and ZigBee applications. Many module manufacturers specify peak gain limits for any antennas that are to be connected to that module. Those peak gain limits are based on free-space conditions. In practice, the peak gain of an antenna tested in free-space can degrade by at least 1 or 2dBi when put inside a device. So ideally you should go for a slightly higher peak gain antenna than mentioned on the module specification to compensate for this effect, giving you better performance. Upon testing of any of our antennas with your device and a selection of appropriate layout, integration technique, or cable, Taoglas can make sure any of our antennas’ peak gain will be below the peak gain limits. Taoglas can then issue a specification and/or report for the selected antenna in your device that will clearly show it complying with the peak gain limits, so you can be assured you are meeting regulatory requirements for that module. For example, a module manufacturer may state that the antenna must have less than 2dBi peak gain, but you don’t need to select an embedded antenna that has a peak gain of less than 2dBi in free-space. This will give you a less optimized solution. It is better to go for a slightly higher free-space peak gain of 3dBi or more if available. Once that antenna gets integrated into your device, performance will degrade below this 2dBi peak gain due to the effects of GND plane, surrounding components, and device housing. If you want to be absolutely sure, contact Taoglas and we will test. Choosing a Taoglas antenna with a higher peak gain than what is specified by the module manufacturer and enlisting our help will ensure you are getting the best performance possible without exceeding the peak gain limits. Cables and Connectors are customizable. SPE-13-8-045/E/SS Page 2 of 20 2. Specifications 2.1 Dimensions Parameter Specification Base Diameter 55mm Base Height 10.8mm 2.2 Electrical Characteristics Parameter Specification Frequency 2.4/5.8GHz Polarization Linear Impedance 50Ω VSWR 1.92 Max 2.3 Mechanical Parameter Specification Dimensions Diameter 55mm Height 10.80mm Colour Black Connector RP-SMA(M) Fully Customizable Cable RG174 Length = 3M Fully Customizable Weight 62g SPE-13-8-045/E/SS Page 3 of 20 2.4 Efficiency, Average Gain, & Peak Gain without cable Frequency Efficiency (%) Average Gain dBi Peak Gain dBi On Plastic On Glass On Plastic On Glass On Plastic On Glass 2400 30.421 48.78 -6.957 -4.475 2.452 5.382 2450 48.09 49.605 -4.217 -4.329 4.2 6.886 2500 57 46.247 -3.473 -4.687 4.933 5.844 5000 67.232 42.28 -2.45967 -3.64833 8.991 3.736 5150 71 42.7 -2.11333 -3.94167 9.161 4.532 5200 65.933 43.03 -2.448 -4.434 8.901 4.481 5250 72 43.398 -1.852 -4.18833 9.154 5.129 5300 63.761 40.8 -2.279 -4.954 8.502 4.369 5350 72.267 43.751 -1.65933 -4.11033 8.906 5.757 5400 61.363 42.88 -2.311 -4.658 7.905 5.056 5450 68.398 43.649 -1.74467 -4.076 8.135 4.739 5500 68.624 43.413 -1.69933 -4.00933 7.985 4.564 5550 70.21 45.55 -1.51533 -3.73533 7.907 5.094 5600 66.97 44.11 -1.72333 -3.898 7.656 4.863 5650 66.678 43.04 -1.78233 -3.841 7.635 4.205 5700 62.174 41.88 -2.12867 -3.92433 7.394 4.062 5750 68.187 42.21 0.311333 -4.013 7.859 4.917 5800 70.44 44.052 -1.505 -3.76133 7.901 4.308 5825 67.31 42.43 -2.113 -4.32467 7.769 3.615 5850 69.353 40.583 -1.62233 -4.21933 7.899 3.487 5875 76.068 45.984 -1.22067 -3.56 8.091 3.856 5900 69.981 43.385 -2.24767 -3.78733 7.611 3.990 5925 70.424 43.379 -1.581 -3.83533 7.701 4.262 5950 70.742 42.749 -1.59033 -3.876 7.755 3.899 6000 72.374 56.95 -1.51533 -3.48933 7.701 3.239 Plastic Dimension 520*520*13.8mm3, PC+ABS Glass Dimension 500*500*3mm3 SPE-13-8-045/E/SS Page 4 of 20 SPE-13-8-045/E/SS Page 5 of 20 SPE-13-8-045/E/SS Page 6 of 20 SPE-13-8-045/E/SS Page 7 of 20 3.Drawing SPE-13-8-045/E/SS Page 8 of 20 4. Testing SPE-13-8-045/E/SS Page 9 of 20 SPE-13-8-045/E/SS Page 10 of 20 SPE-13-8-045/E/SS Page 11 of 20 SPE-13-8-045/E/SS Page 12 of 20 SPE-13-8-045/E/SS Page 13 of 20 SPE-13-8-045/E/SS Page 14 of 20 SPE-13-8-045/E/SS Page 15 of 20 SPE-13-8-045/E/SS Page 16 of 20 SPE-13-8-045/E/SS Page 17 of 20 SPE-13-8-045/E/SS Page 18 of 20 5. Packaging SPE-13-8-045/E/SS Page 19 of 20 Taoglas makes no warranties based on the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. Taoglas reserves all rights to this document and the information contained herein. Reproduction, use or disclosure to third parties without express permission is strictly prohibited. Copyright © Taoglas Ltd. SPE-13-8-045/E/SS Page 20 of 20
