MA412.A.BI.001

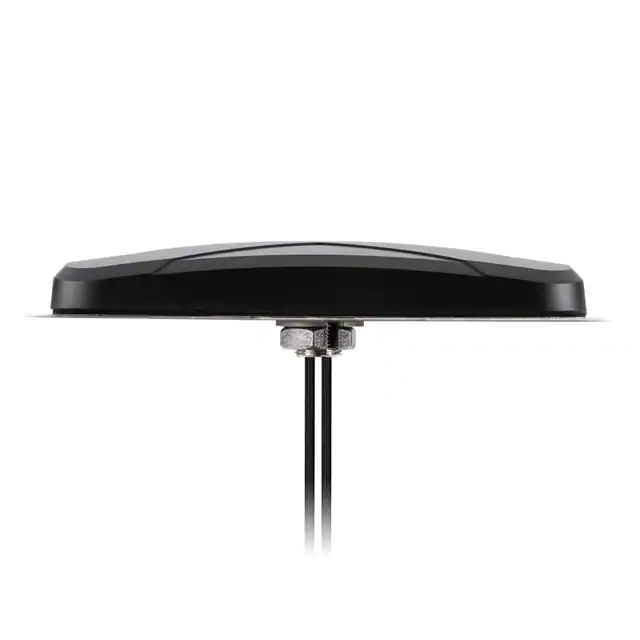

SPECIFICATION Part No. : MA412.A.BI.001 Product Name : MA412 Storm 2in1 Screwmount Antenna LTE MIMO 2in1 Features : 2* LTE MIMO 698 to 960MHz/1710 to 2170MHz/ 2490 to 2690MHz Antenna Screw-Mount [Permanent Mount] Worldwide 4G Bands including 3G and 2G Suitable for worldwide HSPA/GSM/GPRS/CDMA/UMTS Aerodynamic, Super Low-profile Vandal Resistant Housing IP67 Enclosure Dims: 216.24*93.25*30.95mm 0.3M CFD-200 with Fakra connectors as standard Custom Cables and Connectors Available Product conforms to the EMC directive 2014/30/EU. RoHS Compliant Side view SPE-15-8-007/G/WY Page 1 of 55 1. Introduction The Storm MA412 LTE MIMO antenna is a low profile, heavy-duty, fully IP67 waterproof external M2M antenna for use in worldwide telematics applications which require best in class LTE performance. This unique product, only 30mm high, delivers powerful worldwide 4G LTE MIMO antenna technology at 700/800/900/1700/1800M/1900M/2600MHz. Typical applications - HD Video over LTE - First Responder and Emergency Services - Intelligent Transport Systems - Internet of Things (IoT market) - High Definition Video Broadcast Systems - Wireless LTE MIMO M2M Devices - Digital Signage LTE 4G applications demand high speed data uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges. Taoglas also takes care to have high isolation between the two MIMO antennas to prevent self-interference. The MA412 does not require a ground plane. Low loss cables are used to keep efficiency high over long cable lengths. In contrast, smaller MIMO antennas with poorer quality thinner cables will have much reduced efficiency and isolation, which would lead to a large drop in system throughput or drops, and may indeed not make a system connection at all. We have a version with SMA(M) also as standard MA412.A.BI.003. Cable length and connector types are customizable. Conformity is declared under the following standard: Conformity is declared under the following standard: EN55022 Class B This is to declare that the product listed above conform to the EMC directive SPE-15-8-007/G/WY Page 2 of 55 2014/30/EU. 2. Specification 2G/3G/4G MIMO1 Antenna Frequency (MHz) LTE700 GSM850 GSM900 698~803 824~894 880~960 DCS PCS UMTS1 LTE2600 LTE3500 1710~1880 1850~1990 1920~2170 2490~2690 3300~3600 Efficiency (%) 30cm 1M 2M 3M 5M 30cm 1M 2M 3M 5M 62.06 59.27 55.31 51.62 44.25 65.08 62.15 58.00 54.13 46.39 41.76 39.88 36.93 34.20 28.85 48.08 45.91 42.54 39.46 33.24 49.16 46.95 42.81 39.76 33.36 55.44 52.95 48.29 44.80 37.60 On the 50*50cm ground plane 30cm 1M 2M 3M 5M -2.22 -2.42 -2.72 -3.02 -3.70 -3.98 -4.18 -4.51 -4.84 -5.58 -3.20 -3.40 -3.80 -4.13 -4.88 In free space 30cm 1M 2M 3M 5M -2.02 -2.22 -2.52 -2.82 -3.50 -3.19 -3.39 -3.72 -4.05 -4.79 -2.60 -2.80 -3.20 -3.52 -4.28 On the 50*50cm ground plane In free space 44.93 40.98 36.86 32.65 25.50 49.41 45.06 40.62 35.92 28.10 59.56 54.46 48.53 42.73 32.98 57.62 52.69 46.96 41.31 31.89 59.39 54.71 48.56 42.47 32.90 59.92 55.18 48.99 42.84 33.19 55.42 50.55 43.53 36.84 28.22 54.98 50.14 43.17 36.53 27.99 37.39 33.33 27.99 23.59 16.96 38.19 34.83 29.65 24.66 19.14 -3.55 -3.95 -4.40 -4.94 -6.00 -2.27 -2.66 -3.16 -3.72 -4.84 -2.27 -2.63 -3.14 -3.73 -4.84 -2.57 -2.97 -3.62 -4.35 -5.50 -3.11 -3.51 -3.97 -4.50 -5.57 -2.42 -2.81 -3.31 -3.86 -4.98 -2.23 -2.59 -3.10 -3.69 -4.80 -2.62 -3.02 -3.67 -4.39 -5.55 -4.36 -4.86 -5.61 -6.36 -7.79 -4.25 7.04 6.64 6.14 5.64 4.44 6.57 6.17 5.67 5.07 3.97 7.11 6.81 6.31 5.71 4.61 6.69 6.35 5.79 5.19 4.09 7.91 7.51 6.91 6.21 5.11 8.11 7.71 7.11 6.41 5.31 Average Gain(dBi) -4.65 -5.35 -6.15 -7.25 Peak Gain(dBi) On the 50*50cm ground plane In free space 30cm 1M 2M 3M 5M 30cm 1M 2M 3M 5M 5.37 5.17 4.87 4.57 3.87 3.54 3.34 3.04 2.74 2.04 3.66 3.46 3.06 2.76 2.06 4.07 3.87 3.47 3.17 2.37 4.35 4.15 3.75 3.45 2.65 4.13 3.93 3.53 3.23 2.43 6.24 5.84 5.34 4.84 3.74 4.67 4.27 3.77 3.27 2.17 SPE-15-8-007/G/WY 6.46 5.96 5.16 4.46 4.82 6.27 5.87 5.17 4.37 3.27 Page 3 of 55 2G/3G/4G MIMO2 Antenna Frequency (MHz) LTE700 GSM850 GSM900 698~803 824~894 880~960 DCS PCS UMTS1 LTE2600 LTE3500 1710~1880 1850~1990 1920~2170 2490~2690 3300~3600 Efficiency (%) On the 50*50cm ground plane In free space 30cm 1M 2M 3M 5M 30cm 1M 2M 3M 5M 64.02 61.13 57.05 53.25 45.57 55.35 52.86 49.33 46.04 39.41 46.23 44.15 40.91 37.91 31.95 40.93 39.09 36.19 33.55 28.29 45.95 43.91 40.05 37.20 31.19 43.23 41.29 37.65 34.96 29.34 66.28 60.45 54.37 48.10 37.61 62.98 57.44 51.67 45.71 35.75 61.93 56.58 50.43 44.46 34.31 59.12 54.01 48.14 42.45 32.75 55.94 51.48 45.69 39.97 30.95 53.24 49.00 43.49 38.04 29.46 67.23 61.32 52.80 44.69 34.23 67.13 61.23 52.73 44.63 34.18 32.20 28.70 24.24 20.32 14.73 31.79 28.99 24.68 20.53 15.93 Average Gain(dBi) On the 50*50cm ground plane In free space 30cm 1M 2M 3M 5M 30cm 1M 2M 3M 5M -2.17 -2.37 -2.67 -2.97 -3.64 -2.87 -3.38 -3.58 -3.91 -4.23 -4.98 -3.93 -3.48 -3.68 -4.08 -4.41 -5.17 -3.71 -1.84 -2.24 -2.69 -3.23 -4.29 -2.04 -2.17 -2.56 -3.06 -3.62 -4.74 -2.39 -2.57 -2.93 -3.44 -4.03 -5.14 -2.80 -1.73 -2.13 -2.78 -3.50 -4.66 -1.73 -5.25 -5.75 -6.50 -7.25 -8.68 -5.28 -3.07 -3.37 -3.67 -4.35 -4.13 -4.46 -4.79 -5.53 -3.91 -4.31 -4.63 -5.39 -2.44 -2.90 -3.43 -4.50 -2.78 -3.28 -3.84 -4.96 -3.16 -3.67 -4.26 -5.37 -2.13 -2.78 -3.51 -4.67 -5.68 -6.38 -7.18 -8.28 8.06 7.66 7.16 6.66 5.46 7.48 7.08 6.58 6.08 4.98 7.89 7.49 6.99 6.49 5.29 7.29 6.89 6.39 5.88 4.69 8.16 7.76 7.16 6.46 5.36 8.13 7.73 7.13 6.43 5.33 5.48 4.98 4.28 3.48 2.18 5.37 4.97 4.27 3.47 2.37 Peak Gain(dBi) On the 50*50cm ground plane In free space 30cm 1M 2M 3M 5M 30cm 1M 2M 3M 5M 6.51 6.31 6.01 5.71 5.01 5.21 5.01 4.71 4.41 3.71 4.09 3.89 3.59 3.19 2.49 2.85 2.65 2.25 1.95 1.15 3.82 3.62 3.22 2.92 2.22 3.16 2.96 2.56 2.26 1.46 7.93 7.53 7.03 6.53 5.43 7.48 7.08 6.58 6.08 4.98 SPE-15-8-007/G/WY Page 4 of 55 Impedance 50Ω Polarization Linear VSWR < 3.5 Cable 0.3 meter CFD200 standard, fully customizable Connector Fakra(Jack) standard connector , fully customizable MECHANICAL Antenna Dimensions 216.24*93.25*30.95mm Casing ABS+PC Base and thread Nickel Plated Aluminum Weight 400g Ingress Protection Rating IP67 Maximum Assembly Torque 39.2 N-m ENVIRONMENTAL Operation Temperature -40°C to 85°C Storage Temperature -40°C to 90°C Humidity Non-condensing 65°C 95% RH SPE-15-8-007/G/WY Page 5 of 55 LTE BANDS LTE/LTE- Advanced /WCDMA/HSPA.HSPA+ Band Number Uplink Downlink 1 UL: 1920 to 1980 DL: 2110 to 2170 2 UL: 1850 to 1910 DL: 1930 to 1990 3 UL: 1710 to 1785 DL: 1805 to 1880 4 UL: 1710 to 1755 DL: 2110 to 2155 5 UL: 824 to 849 DL: 869 to 894 7 UL: 2500 to 2570 DL:2620 to 2690 8 UL: 880 to 915 DL: 925 to 960 9 UL: 1749.9 to 1784.9 DL: 1844.9 to 1879.9 11 UL: 1427.9 to 1447.9 DL: 1475.9 to 1495.9 12 UL: 699 to 716 DL: 729 to 746 13 UL: 777 to 787 DL: 746 to 756 14 UL: 788 to 798 DL: 758 to 768 17 UL: 704 to 716 DL: 734 to 746 (LTE only) 18 UL: 815 to 830 DL: 860 to 875 (LET only) 19 UL: 830 to 845 DL: 875 to 890 20 UL: 832 to 862 DL: 791 to 821 21 UL: 1447.9 to 1462.9 DL: 1495.9 to 1510.9 22 UL: 3410 to 3490 DL: 3510 to 3590 23 UL:2000 to 2020 DL: 2180 to 2200 (LTE only) 24 UL:1625.5 to 1660.5 DL: 1525 to 1559 (LTE only) 25 UL: 1850 to 1915 DL: 1930 to 1995 26 UL: 814 to 849 DL: 859 to 894 27 UL: 807 to 824 DL: 852 to 869 (LTE only) 28 UL: 703 to 748 DL: 758 to 803 (LTE only) 29 UL: - DL: 717 to 728 (LTE only) 30 UL: 2305 to 2315 DL: 2350 to 2360 (LTE only) 31 UL: 452.5 to 457.5 DL: 462.5 to 467.5 (LTE only) 32 UL: - DL: 1452 - 1496 35 1850 to 1910 38 2570 to 2620 39 1880 to 1920 40 2300 to 2400 41 2496 to 2690 42 3400 to 3600 43 3600 to 3800 Covered Covered                                                                       SPE-15-8-007/G/WY Page 6 of 55 3. Antenna Characteristics 3.1 LTE MIMO Antenna 3.1.1 Test Setup In free space on the 50*50cm ground plane SPE-15-8-007/G/WY Page 7 of 55 3.1.2 LTE Antenna Return Loss Setup on the 50*50cm ground plane with 0.3 meter cable length Setup in free space with 0.3 meter cable length SPE-15-8-007/G/WY Page 8 of 55 3.1.3 LTE Antenna Efficiency Setup on the 50*50cm ground plane with 0.3 meter cable length Setup in free space with 0.3 meter cable length SPE-15-8-007/G/WY Page 9 of 55 3.1.4 LTE Antenna Peak Gain Setup on the 50*50cm ground plane with 0.3 meter cable length Setup in free space with 0.3 meter cable length SPE-15-8-007/G/WY Page 10 of 55 3.1.5 LTE Antenna Average gain Setup on the 50*50cm ground plane with 0.3 meter cable length Setup in free space with 0.3 meter cable length SPE-15-8-007/G/WY Page 11 of 55 3.1.6 Test Setup For Antenna Radiation Pattern (ETS Anechoic chamber) Y X Z On the 50*50cm ground plane SPE-15-8-007/G/WY Page 12 of 55 3.1.7 2D Radiation pattern (MIMO1 with 0.3M cable length on the 50*50 ground plane) XY Plane X Y X Y SPE-15-8-007/G/WY Page 13 of 55 X Y X Y SPE-15-8-007/G/WY Page 14 of 55 XZ Plane Z X Z X SPE-15-8-007/G/WY Page 15 of 55 Z X Z X SPE-15-8-007/G/WY Page 16 of 55 YZ Plane Z Y Z Y SPE-15-8-007/G/WY Page 17 of 55 Z Y Z Y SPE-15-8-007/G/WY Page 18 of 55 3.1.8 3D Radiation pattern (MIMO1 with 0.3M cable length on the 50*50 ground plane 704MHz 960MHz 1710MHz 2170MHz 2690MHz 3500MHz SPE-15-8-007/G/WY Page 19 of 55 3.1.9 2D Radiation pattern (MIMO2 with 0.3M cable length on the 50*50 ground plane XY Plane X Y X Y SPE-15-8-007/G/WY Page 20 of 55 X Y X Y SPE-15-8-007/G/WY Page 21 of 55 XZ Plane Z X Z X SPE-15-8-007/G/WY Page 22 of 55 Z X Z X SPE-15-8-007/G/WY Page 23 of 55 YZ Plane Z Y Z Y SPE-15-8-007/G/WY Page 24 of 55 Z Y Z Y SPE-15-8-007/G/WY Page 25 of 55 3.1.10 3D Radiation pattern (MIMO2 with 0.3M cable length on the 50*50 ground plane 704MHz 960MHz 1710MHz 2170MHz 2690MHz 3500MHz SPE-15-8-007/G/WY Page 26 of 55 3.1.11 Test Setup For Antenna Radiation Pattern (ETS Anechoic chamber) Y X Z In free space SPE-15-8-007/G/WY Page 27 of 55 3.1.12 2D Radiation pattern (MIMO1 with 0.3M cable length in free space) XY Plane X Y X Y SPE-15-8-007/G/WY Page 28 of 55 X Y X Y SPE-15-8-007/G/WY Page 29 of 55 XZ Plane Z X Z X SPE-15-8-007/G/WY Page 30 of 55 Z X Z X SPE-15-8-007/G/WY Page 31 of 55 YZ Plane Z Y Z Y SPE-15-8-007/G/WY Page 32 of 55 Z Y Z Y SPE-15-8-007/G/WY Page 33 of 55 3.1.13 3D Radiation pattern (MIMO1 with 0.3M cable length in free space) 704MHz 1710MHz 2690MHz 960MHz 2170MHz 3500MHz SPE-15-8-007/G/WY Page 34 of 55 3.1.14 2D Radiation pattern (MIMO2 with 0.3M cable length in free space) XY Plane X Y X Y SPE-15-8-007/G/WY Page 35 of 55 X Y X Y SPE-15-8-007/G/WY Page 36 of 55 XZ Plane Z X Z X SPE-15-8-007/G/WY Page 37 of 55 Z X Z X SPE-15-8-007/G/WY Page 38 of 55 YZ Plane Z Y Z Y SPE-15-8-007/G/WY Page 39 of 55 Z Y Z Y SPE-15-8-007/G/WY Page 40 of 55 3.1.15 2D Radiation pattern (MIMO2 with 0.3M cable length in free space) 704MHz 960MHz 1710MHz 2170MHz 2690MHz 3500MHz SPE-15-8-007/G/WY Page 41 of 55 4. Mechanical Drawing (units: mm) SPE-15-8-007/G/WY Page 42 of 55 4.1 Connector Drawing (units mm)  Detail “A” SPE-15-8-007/G/WY Page 43 of 55 5. Installation SPE-15-8-007/G/WY Page 44 of 55 6. Packaging SPE-15-8-007/G/WY Page 45 of 55 7. Application Note (LTE MIMO Antenna) The MA412 antenna performance with different cable lengths and different environments is shown below. 7.1 On the 50*50cm ground plane 7.1.1 Return Loss (MIMO_1 on the 50*50cm ground plane) 7.1.2 Return Loss (MIMO_2 on the 50*50cm ground plane) SPE-15-8-007/G/WY Page 46 of 55 7.1.3 Insertion Loss (on the 50*50cm ground plane) 7.1.4 Efficiency (MIMO_1 on the 50*50cm ground plane) SPE-15-8-007/G/WY Page 47 of 55 7.1.5 Efficiency (MIMO_2 on the 50*50cm ground plane) 7.1.6 Average Gain (MIMO_1 on the 50*50cm ground plane) SPE-15-8-007/G/WY Page 48 of 55 7.1.7 Average Gain (MIMO_2 on the 50*50cm ground plane) 7.1.8 Peak Gain (MIMO_1 on the 50*50cm ground plane) SPE-15-8-007/G/WY Page 49 of 55 7.1.9 Peak Gain (MIMO_2 on the 50*50cm ground plane) 7.2 In free space 7.2.1 Return Loss (MIMO_1 in free space) SPE-15-8-007/G/WY Page 50 of 55 7.2.2 Return Loss (MIMO_2 in free space) 7.2.3 Insertion Loss (in free space) SPE-15-8-007/G/WY Page 51 of 55 7.2.4 Efficiency (MIMO_1 in free space) 7.2.5 Efficiency (MIMO_2 in free space) SPE-15-8-007/G/WY Page 52 of 55 7.2.6 Average Gain (MIMO_1 in free space) 7.2.7 Average Gain (MIMO_2 in free space) SPE-15-8-007/G/WY Page 53 of 55 7.2.8 Peak Gain (MIMO_1 in free space) 7.2.9 Peak Gain (MIMO_2 in free space) SPE-15-8-007/G/WY Page 54 of 55 Taoglas makes no warranties based on the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time. Taoglas reserves all rights to this document and the information contained herein. Reproduction, use or disclosure to third parties without express permission is strictly prohibited. Copyright © Taoglas SPE-15-8-007/G/WY Page 55 of 55
