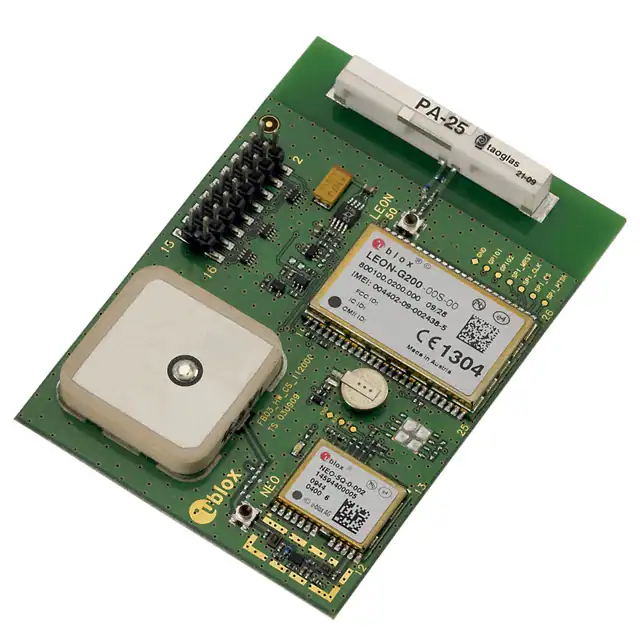

SPECIFICATION Model No. : SGP.25D Part No. : SGP.1575.25.4.D.02 Product Name : GPS SMT Patch Antenna Features 25mm*25mm*4mm 1575MHz Centre Frequency Patent Pending RoHS Photo  Halogen Free Compliant : SPE-11-8-140/C/SS Page 1 of 11 1. Introduction This ceramic GPS patch antenna is based on smart XtremeGain™ technology. It is mounted via SMT process and has been tuned as the optimal solution for the ublox C16-G25Q GSM/GPS Integrated reference Design. The C16-G25Q GSM/GPS reference design is a complete and integrated solution for telematics applications such as fleet management, asset tracking, road pricing, and security/surveillance. It demonstrates the integration of u-blox’ NEO-5Q GPS receiver with a LEON-G200 GPRS/GSM module. This 100% SMD solution uses SMT passive GPS (Taoglas SGP.25D) and GSM antenna (Taoglas PA.25A) and an on-board SIM Chip with activated phone number (SIM holder optional for mechanical (SIM). On the test fixture of 63.2 x 50.03 mm (GND Plane) the antenna has a centre frequency of 1567MHz ± 3MHz 2. Specification No Parameter Specification 1 Range of Receiving Frequency 1575MHz +/- 1.023MHz 2 Bandwidth 22 MHz min with Return Loss
