Part No:
CGGBP.35.3.A.02
Description:

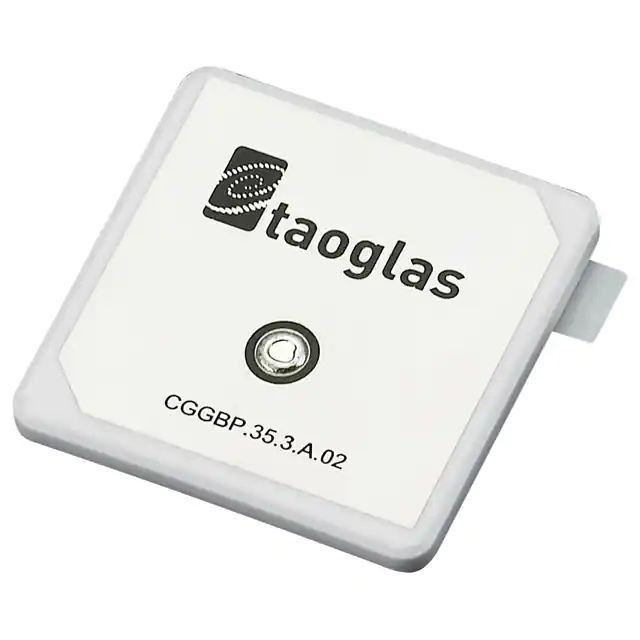

35mm*35mm*3mm 4dBi+ GPS/GLONASS/Galileo/BeiDou/QZSS
Ceramic Patch Antenna
Features:
Stable gain across most major GNSS applications
Excellent radiation pattern coverage
Dielectric Ceramic
Pin (Through hole) Mount
RoHS & Reach Compliant
SPE-15-8-010-C
1.
Introduction
3
2.
Specifications
4
3.
Antenna Characteristics
9
4.
Radiation Patterns
10
5.
Mechanical Drawing
14
6.
CGGBPD.35.B Evaluation Board
16
7.
PCB Footprint Recommendation
17
8.
Packaging
18
Changelog
19
Taoglas makes no warranties based on the accuracy or completeness of the contents of this document and reserves the right to
make changes to specifications and product descriptions at any time without notice. Taoglas reserves all rights to this document and
the information contained herein. Reproduction, use or disclosure to third parties without express permission is strictly prohibited.
SPE-15-8-010-C
www.taoglas.com
2
1.
Introduction
1.
Introduction
1.
Introduction
1.
Introduction
1.
Introduction
This CGGBP.35 35mm*35mm embedded ceramic GPS/GLONASS/Galileo/ BeiDou patch antenna has a wide
band of operation, leading to excellent gain and radiation pattern stability on all three GNSS system bands.
The CGGBP.35.3 is ideal for devices where height may be at a premium, at just 3mm this low profile patch
1.
antenna can be placed in areas where thicker antennas may not fit.
Introduction
Typical Applications Include:
1.
-
Wearables
Introduction
RTK
-
Navigation
-
Transportation
Compared to using a smaller antenna, this will translate into the GNSS system having much higher location
1.
Introduction
accuracy, improved reliability of lock in urban areas, better signal reception, with more satellites acquired
and a quicker time to first fix.
The patch is mounted via pin and double-sided adhesive. This antenna has been manufactured in an
IATF16969 approved facility.
While the antenna will operate well in most device environments (Note cannot be covered with metal
enclosure), tuning and further optimization of this antenna to different ground-planes and enclosures can be
done if required, also including a pin length change. These changes would be subject to possible NRE and a
minimum order quantity. For further information contact your regional Taoglas customer support team
SPE-15-8-010-C
www.taoglas.com
3
2.
Specifications
3.
GNSS Frequency Band
AntennaL1 Characteristics2.
Specifications
L2
L5
L6
GPS/QZSS
1575.42MHz
1227.6MHz
1176.45MHz
1278.75MHz
■
□
□
□
L5R
L3PT
L2PT
L1CR
1575.42MHz
L1PT
1602MHz
□
□
□
■
■
E5a
1176.45MHz
E5b
1201.5MHz
E4
1215MHz
E3
1256MHz
E6
1278.75MHz
E2
1561MHz
L1
1575.42MHz
□
■
■
3. GLONASS
Antenna
Characteristics
1176.45MHz
1201.5MHz
1246MHz
Galileo
4.
Antenna□ Radiation
Patterns3.Antenna
□
□
□
B1
BeiDou
Characteristics2.
1561MHz
Compass
3.
B3
Specifications
1268.52MHz
■
□
E5B(B2)/ E6(B3)
1268.56MHz
E2(B1)
1561MHz
Omnistar
1542.5MHz
WAAS/EGN OS
1575.42MHz
□
Antenna□ Characteristics2.
■
SBAS
3.
B2
1207.14MHz
Specifications
■
Antenna□ Characteristics
GNSS Electrical
Frequency (MHz)
4.
1575.42
1602
-18
-13
63
65.6
67
-2.01
-1.83
-1.74
3.82
3.97
Antenna
Radiation Patterns3.Antenna
Return Loss (dB)
-30
Efficiency (%)
Characteristics
Average Gain (dB)
4.
1561
Antenna
Radiation
Patterns
Peak Gain at Zenith
(dBi)
4.05
Polarization
4.
RHCP
Impedance(Ω)
Antenna
Radiation Patterns3.Antenna
50
Characteristics
4.
Antenna Radiation Patterns3.Antenna
Characteristics2.
SPE-15-8-010-C
Specifications
www.taoglas.com
4
Field Test Result with 70*70mm ground plane
GPS L1
Galileo E1
GLONASS G1
BeiDou B1I
1563-1587
1559-1591
1598-1605
1559-1563
Carrier-to-Noise Values(dBHz)
41.7
38.2
40.1
40.2
2*DRMS Positioning
Accuracy (cm) without RTK
83
83
83
83
2*DRMS Positioning
Accuracy (cm) with RTK
1.4
1.4
1.4
1.4
TTFF(s)
25.4
25.4
25.4
25.4
Group Delay @ Zenith
Variation Across Single
Constellation(ns)
3.2
3.2
3.2
3.2
Phase Centre Offset PCO
(cm)
3.5
3.5
3.5
3.5
Phase Centre Variation
PCV (mm)
35
35
35
35
Axial Ratio (dB)
2
2
2
2
Frequency
*All outdoor measurements performed on the roof top of the Taoglas R&D Labs facility in Dublin Ireland.
** Recommended Minimum C/No for Standard Precision Acquisition/ Tracking (dB-Hz): 26-30/ 12-15.
***Data Measured Free Space.
****Group Delay, PCO, PCV and Axial Ratio values includes Active Circuitry.
*****Ublox C099-F9P application board is used for Field test Measurements.
SPE-15-8-010-C
www.taoglas.com
5
Mechanical
Dimensions
35 x 35 x 3mm
Material
Ceramic
Pin Diameter
0.9mm
Pin Length
2.4mm
Weight
13.5g
Environmental
Environmental
Temperature Range
-40°C to 85°C
Humidity
Non-condensing 65°C 95% RH
SPE-15-8-010-C
www.taoglas.com
6
3.
4.
Antenna Characteristics
3.1
Return Loss
Antenna Radiation Patterns3.Antenna
Characteristics
4.
Antenna Radiation Patterns
4.
Antenna Radiation Patterns3.Antenna
Characteristics
4.
Antenna Radiation Patterns3.Antenna
Characteristics
3.2
Efficiency
4.
Antenna Radiation Patterns
4.
Antenna Radiation Patterns
4.
Antenna Radiation Patterns
4.
Antenna Radiation Patterns3.Antenna
Characteristics
4.
Antenna Radiation Patterns3.Antenna
SPE-15-8-010-C
www.taoglas.com
7
Average Gain
3.4
Peak Gain
dBi
3.3
SPE-15-8-010-C
www.taoglas.com
8
3.5
Axial Ratio @ L1
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
Axial Ratio [dB]
L1 Phi=0
L1 Phi=90
-80
SPE-15-8-010-C
-60
-40
-20
0
Degrees [˚]
20
40
60
80
www.taoglas.com
9
4.
4.
Radiation Patterns
4.1
Antenna Radiation Patterns
4.
Test Setup – on 70*70mm Ground Plane
4.
Antenna Radiation Patterns
4.
Antenna Radiation Patterns
4.
Antenna Radiation Patterns
4.
Antenna Radiation Patterns
Y
X
4.
Antenna Radiation Patterns
4.
Antenna Radiation Patterns
SPE-15-8-010-C
Z
www.taoglas.com
10
4.2
1561MHz 3D and 2D Radiation Patterns
XY Plane
SPE-15-8-010-C
XZ Plane
YZ Plane
www.taoglas.com
11
4.3
1575.42MHz 3D and 2D Radiation Patterns
XY Plane
SPE-15-8-010-C
XZ Plane
YZ Plane
www.taoglas.com
12
4.4
1602MHz 3D and 2D Radiation Patterns
XY Plane
SPE-15-8-010-C
XZ Plane
YZ Plane
www.taoglas.com
13
5.
Mechanical Drawing (Units:mm)
5.1
4.
Mechanical Drawing
Antenna Radiation Patterns3.Antenna
Characteristics
4.
Antenna Radiation Patterns
4.
Antenna Radiation Patterns3.Antenna
Characteristics
4.
Antenna Radiation Patterns3.Antenna
Characteristics
4.
Antenna Radiation Patterns
4.
Antenna Radiation Patterns
4.
Antenna Radiation Patterns
4.
Antenna Radiation Patterns3.Antenna
Characteristics
SPE-15-8-010-C
www.taoglas.com
14
5.2
Adhesive Thickness
SPE-15-8-010-C
www.taoglas.com
15
6.
6.1
4.
CGGBPD.35.B Evaluation Board(unit:mm)
Evaluation Board Drawing
Antenna Radiation Patterns3.Antenna
Characteristics
4.
Antenna Radiation Patterns
4.
Antenna Radiation Patterns3.Antenna
Characteristics
4.
Antenna Radiation Patterns3.Antenna
Characteristics
4.
Antenna Radiation Patterns
4.
Antenna Radiation Patterns
4.
Antenna Radiation Patterns
4.
Antenna Radiation Patterns3.Antenna
SPE-15-8-010-C
Characteristics
www.taoglas.com
16
7.
PCB Footprint Recommendation
SPE-15-8-010-C
www.taoglas.com
17
8.
Packaging
SPE-15-8-010-C
www.taoglas.com
18
Changelog for the datasheet
SPE-15-8-010 – CGGBP.35.3.A.02
Revision: C (Current Version)
Date:
Changes:
Changes Made by:
2021-06-09
Updated pin length to 2.4mm
Updated mechanical drawing
Dan Cantwell
Previous Revisions
Revision: B
Date:
Changes:
Changes Made by:
2020-03-18
Updated Data
Jack Conroy
Revision: A (Original First Release)
Date:
Notes:
Author:
SPE-15-8-010-C
2017-10-11
Initial Datasheet Release
Jack Conroy
www.taoglas.com
19
www.taoglas.com
© Taoglas
SPE-15-8-010-C
www.taoglas.com
20
