PC.104.07.0165C

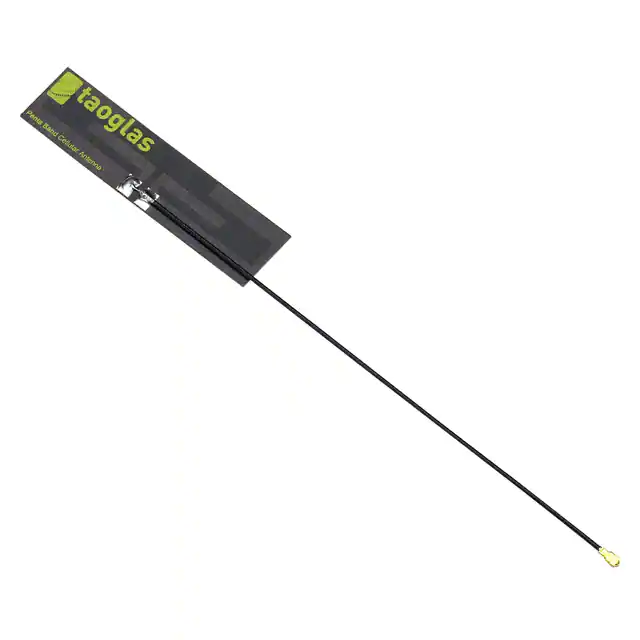

SPECIFICATION Penta-band Cabled Embedded PCB Adhesive Mount Antenna Part No. : PC104.07.0165C Product Name : Penta-Band PCB Antenna Feature : GSM / CDMA /DCS /PCS / WCDMA / UMTS / HSDPA / GPRS / EDGE 850/900/1800/1900/2100 MHz bands High Efficiency 164.9mm Φ1.37 coaxial cable with IPEX connector 80mm*20.8mm*1mm Low profile With 3M adhesive, easy stick on client enclosure RoHS Compliant SPE-13-8-012/B/PK Page 1 of 10 1. Introduction The high efficiency PC104 Penta-band PCB antenna's slim-line design allows for convenient installation inside the customer device. Omni-directional gain across all bands ensures constant reception and transmission. With its unique dipole design, the PC104 has exceptional industry performance characteristics considering its very low profile at 2.4mm and has a compact size 80mm*20mm. It is suitable for clients that appreciate highest performance with lower price. This antenna has 3M adhesive on the back, and is tuned and designed to be mounted on 2mm thickness plastic (not on metal). Cable lengths and connectors are fully customizable. However for good efficiency performance the shortest cable length should not be less than 100mm, for requirements with shorter cable lengths the alternative product the FXP.14 can be used. SPE-13-8-012/B/PK Page 2 of 10 2. Specification Table GSM Band GSM 850 GSM 900 DCS PCS WCDMA I Frequency (MHz) 824~896 880~960 1710~1880 1850~1990 1920~2170 Peak Gain (dBi)* 0.77 0.99 2.26 2.13 2.39 Average Gain (dBi)* -3.26 -2.92 -1.32 -1.59 -1.52 Efficiency (%)* 47 51 73 69 70 Return Loss (dB)* < -7 < -5 < -10 < -10 < -10 Polarization Linear Impedance 50 Ω MECHANICAL Antenna Dimensions 80mm x 20mm x 1mm Material FR4 Cable type Φ1.37 Coaxial Cable Cable length 164.9mm Connector type IPEX Adhesive 3M 467 ENVIRONMENTAL Operation Temperature -40°C ~ +85°C Storage Temperature -40°C ~ +85°C * Antenna is tested on a 2mm thickness ABS material base substrate. SPE-13-8-012/B/PK Page 3 of 10 3. Antenna Characteristics 3.1. Return Loss 3.2. Maximum Gain SPE-13-8-012/B/PK Page 4 of 10 3.3. Average Gain 3.4. Efficiency SPE-13-8-012/B/PK Page 5 of 10 4. Antenna Radiation Patterns Antenna setup in 3D Anechoic chamber Y X Z SPE-13-8-012/B/PK Page 6 of 10 Radiation Patterns XY plane X Y X Y SPE-13-8-012/B/PK Page 7 of 10 XZ plane Z X Z X SPE-13-8-012/B/PK Page 8 of 10 5. Drawing SPE-13-8-012/B/PK Page 9 of 10 6. Application Note We measured PC.104 antenna with different cable length, the results as below, Return Loss Antenna Efficiency SPE-13-8-012/B/PK Page 10 of 10
