MA530.A.CG.003

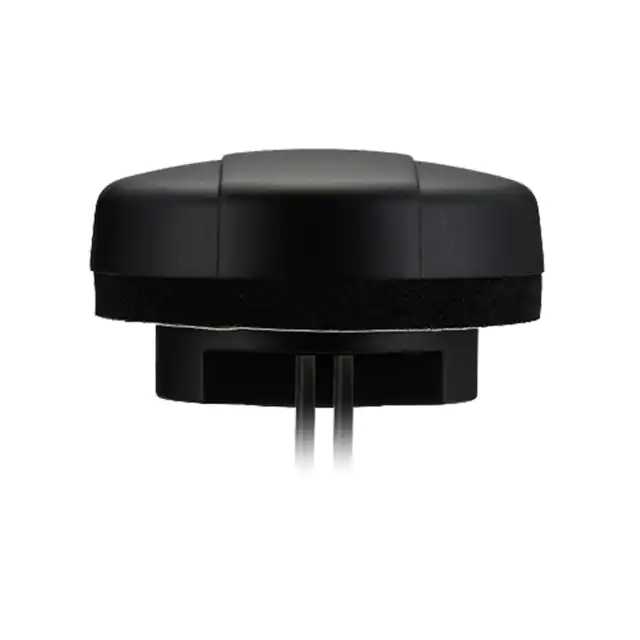

SPECIFICATION Part No. : MA530.A.CG.003 Product Name : Taoglas “Ultima” Antenna Heavy Duty Screw Mount Antenna 2 x MIMO Dual-Band 2.4/5.0GHz Features : 2.4GHz/5.0GHz suitable for ISM Bands/ZigBee/WLAN/Bluetooth IEEE.802.11n/IEEE.802.11ac High Isolation between Antenna Elements PC housing Waterproof IP67 & IP69K Rated Height 19.6mm Diameter 55.23mm RoHS Compliant SPE-14-8-031/A/WY Page 1 of 17 MA.530.A.C101151.G101151 1. Introduction The MIMO communication system has been one of the most promising technologies, well suited for high data rate communication. A MIMO (Multiple-Input-Multiple-Output) system use at least two antenna structures and is more advantageous than single-input single-output (SISO) in an aspect of increasing channel capacity and reducing transmitting power. MIMO antennas should have compact structure, high radiation efficiency, low envelope correlation, and high isolation between the signal ports. In small structures (antennas spaced closely), the application of MIMO technology has been restricted by high degree of coupling and spatial correlation between antenna elements due to the limited available space. The isolation between antennas become critical as it can deteriorate the system performance and decreases channel capacity. The Ultima MA530 MIMO antenna is low profile, heavy-duty, fully IP67 waterproof external M2M antenna for use, transportation and remote monitoring applications. This unique omnidirectional antenna provide high efficiency and high isolation between antennas elements in a heavy-duty low profile compact structure, delivering powerful MIMO antenna technology for Wi-Fi 802.11n and emerging 802.11ac. The antenna screws down permanently onto a roof or metal panel and can be pole or wallmounted. One antenna elements is vertically polarized and one is horizontally polarized to increase the isolation between antennas. For industries such as remote monitoring, smart meter systems, construction equipment, public safety at only 19.6mm high, the Ultima MA530 MIMO antenna provides an unobtrusive, robust, rugged antenna that is durable even in extreme environments. SPE-14-8-031/A/WY Page 2 of 17 MA.530.A.C101151.G101151 2. Specification Antenna Ultima MA530 MIMO MIMO 1 Operation Frequency (GHz) 2.4~2.5 5.15~5.85 Polarization Linear Impedance (ohms) Max Isolation (dB) to other port 50 50 -11 -20 Max VSWR 3.0:1 3.0:1 Max Return Loss (dB) -5 -5 Peak Gain (dBi) 3.5 1.6 Efficiency (%) 39.6 26.5 Average Gain (dB) -4.0 -5.8 Radiation Properties Omni Omni Max Input Power 5W max MIMO 2 Operation Frequency (GHz) 2.4~2.5 5.15~5.85 Polarization Linear Impedance (ohms) Max Isolation (dB) to other port 50 50 -11 -20 Max VSWR 3.0:1 3.0:1 Max Return Loss (dB) -5 -5 Peak Gain (dBi) 5.5 2.3 Efficiency (%) 45.1 26.8 Average Gain (dB) -3.4 -5.7 Max Input Power 5W max MECHANICAL Dimensions (mm) Height=19.6 Diameter=55.23 Cable 1M RG-174,Fully Customizable Casing PC Base and Thread Plastic Weather proof gasket CR4305 foam with 3M9448B double-side adhesive Connector RP-SMA Male, Fully Customizable Thread Diameter (mm) M24 Sealant Rubber Stopper Weight 0.06Kg SPE-14-8-031/A/WY Page 3 of 17 MA.530.A.C101151.G101151 ENVIRONMENTAL Protection IP67 & IP69K rated Temperature Range 40ºC to +85ºC Thermal Shock 100 cycles -40 C to +885 C Humidity Non-condensing 65 C 95% RH Shock (Drop Test) 1m drop on concrete 6 axes * The Ultima MA.530 MIMO antenna performance was measured with RG174 coaxial cable at 1 meter cable length. Table 1. Detail information of MA530 Antenna Characteristics. 3. Antenna Characteristics 3.1 Test set-up Y X Z Figure 1. Peak gain, efficiency and radiation pattern measurements. SPE-14-8-031/A/WY Page 4 of 17 MA.530.A.C101151.G101151 3.2 Return Loss Figure 2. Return loss of the Ultima MA530 MIMO antenna. 3.3 Insertion Loss of Two Ports Figure 3. Insertion Loss of the Ultima MA530 MIMO antenna SPE-14-8-031/A/WY Page 5 of 17 MA.530.A.C101151.G101151 3.4 Efficiency Figure 4. Efficiency of the Ultima MA530 MIMO antenna. 3.5 Peak Gain Figure 5. Peak Gain of the Ultima MA530 MIMO antenna. SPE-14-8-031/A/WY Page 6 of 17 MA.530.A.C101151.G101151 3.6 Average Gain Figure 6. Average Gain of the Ultima MA530 MIMO antenna. SPE-14-8-031/A/WY Page 7 of 17 MA.530.A.C101151.G101151 3.7 3D Radiation Patterns 3.7.1 MIMO Antenna 1 XY-Plane SPE-14-8-031/A/WY Page 8 of 17 MA.530.A.C101151.G101151 XZ-Plane SPE-14-8-031/A/WY Page 9 of 17 MA.530.A.C101151.G101151 YZ-Plane SPE-14-8-031/A/WY Page 10 of 17 MA.530.A.C101151.G101151 Figure 7. 2D Radiation Pattern of the MA530 MIMO1 Antenna. SPE-14-8-031/A/WY Page 11 of 17 MA.530.A.C101151.G101151 3.7.2 MIMO Antenna 2 XY-Plane SPE-14-8-031/A/WY Page 12 of 17 MA.530.A.C101151.G101151 XZ-Plane SPE-14-8-031/A/WY Page 13 of 17 MA.530.A.C101151.G101151 YZ-Plane Figure 8. 2D Radiation Pattern of the MA530 MIMO2 Antenna. SPE-14-8-031/A/WY Page 14 of 17 MA.530.A.C101151.G101151 4. Antenna Drawing Figure 9. Antenna Drawing SPE-14-8-031/A/WY Page 15 of 17 MA.530.A.C101151.G101151 5. Installation Figure 10. Installation SPE-14-8-031/A/WY Page 16 of 17 MA.530.A.C101151.G101151 6. Packaging  1 piece MA530 per PE Bag [Weight 0.06kg]  100 pieces per carton [Weight 7.2kg]  3600 pieces per Pallet [36 Cartons on 1 Pallet (4 layers of 9 Cartons)] 310mm 380mm 320mm Figure 11. Packaging Info SPE-14-8-031/A/WY Page 17 of 17 MA.530.A.C101151.G101151
