MA510.C.CG.005

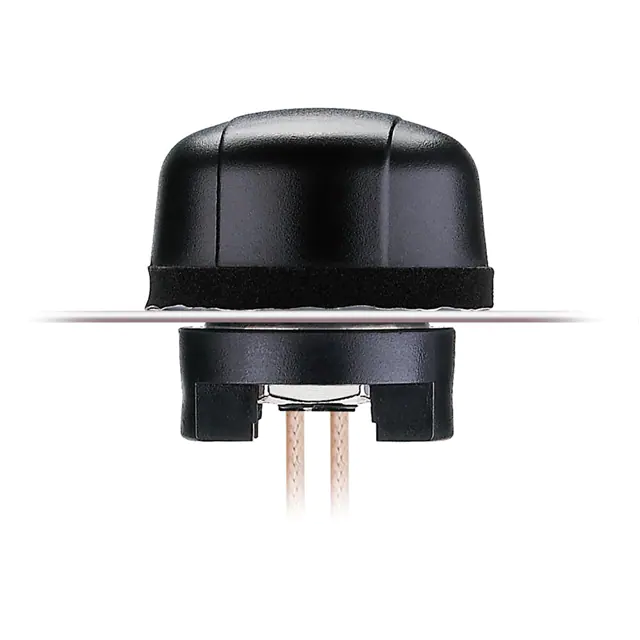

SPECIFICATION Part No. : MA510.C.CG.005 Product Name : Heavy Duty Screw Mount Antenna MIMO Dual Band 2.4/5.8GHz Features : 2.4GHz/5.8GHz suitable for ISM Bands/ZigBee/WLAN/Bluetooth IEEE.802.11n/IEEE.802.11ac High Isolation between Antenna Elements Vandal resistant PC housing IP65 Rated Enclosure Height 29mm Diameter 49mm RoHS & REACH Compliant SPE-13-8-086-H Page 1 of 19 1. Introduction The MIMO communication system has been one of the most promising technologies, well suited for high data rate communication. A MIMO (Multiple-Input-Multiple-Output) system use at least two antenna structures and is more advantageous than singleinput single-output (SISO) in an aspect of increasing channel capacity and reducing transmitting power. MIMO antennas should have compact structure, high radiation efficiency, low envelope correlation, and high isolation between the signal ports. In small structures (antennas spaced closely), the application of MIMO technology has been restricted by high degree of coupling and spatial correlation between antenna elements due to the limited available space. The isolation between antennas become critical as it can deteriorate the system performance and decreases channel capacity. The Hercules MA510 MIMO antenna is low profile, heavy-duty, IP65 waterproof external M2M antenna for use, transportation and remote monitoring applications. This unique omnidirectional antenna provides high efficiency and high isolation between antennas elements in a heavy-duty low profile compact structure, delivering powerful MIMO antenna technology for Wi-Fi 802.11n and emerging 802.11ac. The antenna screws down permanently onto a roof or metal panel and can be pole or wall-mounted. The two antenna elements are vertically polarized. For industries such as remote monitoring, smart meter systems, construction equipment, public safety at only 29mm high, the Hercules MA510 MIMO antenna provides an unobtrusive, robust, rugged antenna that is durable even in extreme environments. SPE-13-8-086-H Page 2 of 19 2. Specification Antenna Hercules MA510 MIMO ELECTRICAL Operation Frequency (GHz) 2.4~2.5 4.8~5.8 Polarization Linear Linear Impedance (ohms) 50 50 Min Isolation (dB) -22 -28 Max VSWR 2.0:1 2.0:1 Max Return Loss (dB) -10 -10 Peak Gain (dBi) 4.2 4.0 Efficiency (%) 60 40 Average Gain (dB) -2.2 -3.9 Radiation Properties Omni Omni Max Input Power 2W max MECHANICAL Dimensions (mm) Height=29 Diameter=49 Cable 1M RG316- Fully Customizable Casing PC Base and Thread Nickel Plated Zinc Alloy Weather proof gasket CR4305 foam with 3M9448B double-side adhesive Connector RP-SMA Male Fully Customizable Thread Diameter (mm) 18 Sealant Rubber Stopper Recommended Torque for Mounting 24.5N·m Max Torque for Mounting 29.4N·m ENVIRONMENTAL Corrosion 5% NACI for 96hrs- Nickel plated zinc alloy base and thread Temperature Range -40ºC to +85ºC Thermal Shock 100 cycles -40°C to +85°C Humidity Non-condensing 65°C 95% RH Shock (Drop Test) 1m drop on concrete 6 axes Ingress Protection IP65 * The Hercules MA510 MIMO antenna performance was measured with RG316 coaxial cable at 1 meter cable length on a 30x30 cm ground plane. SPE-13-8-086-H Page 3 of 19 3. Antenna Characteristics 3.1. Test set-up Figure 1. Impedance measurements. Y Z X Figure 2. Peak gain, efficiency and radiation pattern measurements. SPE-13-8-086-H Page 4 of 19 3.2. Return Loss Figure 3. Return loss of the Hercules MA510 MIMO antenna from 2100 MHz to 2700 MHz. Figure 4. Return loss of the Hercules MA510 MIMO antenna from 4500 MHz to 6000 MHz. SPE-13-8-086-H Page 5 of 19 3.3. VSWR Figure 5. VSWR of the Hercules MA510 MIMO antenna from 2100 MHz to 2700 MHz. Figure 6. VSWR of the Hercules MA510 MIMO antenna from 4500 MHz to 6000 MHz SPE-13-8-086-H Page 6 of 19 3.4. Isolation Figure 7. Isolation of the Hercules MA510 MIMO antenna from 2100 MHz to 2700 MHz Figure 8. Isolation of the Hercules MA510 MIMO antenna from 4500 MHz to 6000 MHz SPE-13-8-086-H Page 7 of 19 3.5. Envelope Correlation Coefficient (ECC) Figure 9. ECC of the Hercules MA510 MIMO antenna from 2300 MHz to 2600 MHz. Figure 10. ECC of the Hercules MA510 MIMO antenna from 4800 MHz to 6000 MHz. SPE-13-8-086-H Page 8 of 19 3.6. Efficiency Figure 11. Efficiency of the Hercules MA510 MIMO antenna from 2300 MHz to 2600 MHz. Figure 12. Efficiency of the Hercules MA510 MIMO antenna from 4800 MHz to 6000 MHz. SPE-13-8-086-H Page 9 of 19 3.7. Peak Gain Figure 13. Peak Gain of the Hercules MA510 MIMO antenna from 2300 MHz to 2600 MHz. Figure 14. Peak Gain of the Hercules MA510 MIMO antenna from 4800 MHz to 6000 MHz. SPE-13-8-086-H Page 10 of 19 3.8. Average Gain Figure 15. Average Gain of the Hercules MA510 MIMO antenna from 2300 MHz to 2600 MHz. Figure 16. Average Gain of the Hercules MA510 MIMO antenna from 4800 MHz to 6000 MHz. SPE-13-8-086-H Page 11 of 19 3.9. 3D Radiation Patterns 3.9.1. MIMO Antenna 1 Figure 17. 3D Radiation Pattern at 2450 MHz (left side), Radiation Pattern at 5400 MHz (right side) of the MA510 Antenna. 3.9.2. MIMO Antenna 2 Figure 18. 3D Radiation Pattern at 2450 MHz (left side), Radiation Pattern at 5400 MHz (right side) of the MA510 Antenna SPE-13-8-086-H Page 12 of 19 3.10. 2D Radiation Patterns 3.10.1. MIMO Antenna 1 2400 MHz Band Figure 19. 2D Radiation Pattern at 2400MHz band SPE-13-8-086-H Page 13 of 19 3.10.2. MIMO Antenna 1 5800 MHz Band Figure 20. 2D Radiation Pattern at 5800MHz band SPE-13-8-086-H Page 14 of 19 3.10.3. MIMO Antenna 2 2400 MHz Band Figure 21. 2D Radiation Pattern at 2400MHz band SPE-13-8-086-H Page 15 of 19 3.10.4. MIMO Antenna 2 5800 MHz Band Figure 22. 2D Radiation Pattern at 5800MHz band SPE-13-8-086-H Page 16 of 19 4. Antenna Drawing (Unit: mm) Figure 23. Antenna Drawing SPE-13-8-086-H Page 17 of 19 5. Installation Figure 24. Installation SPE-13-8-086-H Page 18 of 19 6. Packaging Taoglas makes no warranties based on the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. Taoglas reserves all rights to this document and the information contained herein. Reproduction, use or disclosure to third parties without express permission is strictly prohibited. © Taoglas SPE-13-8-086-H Page 19 of 19
