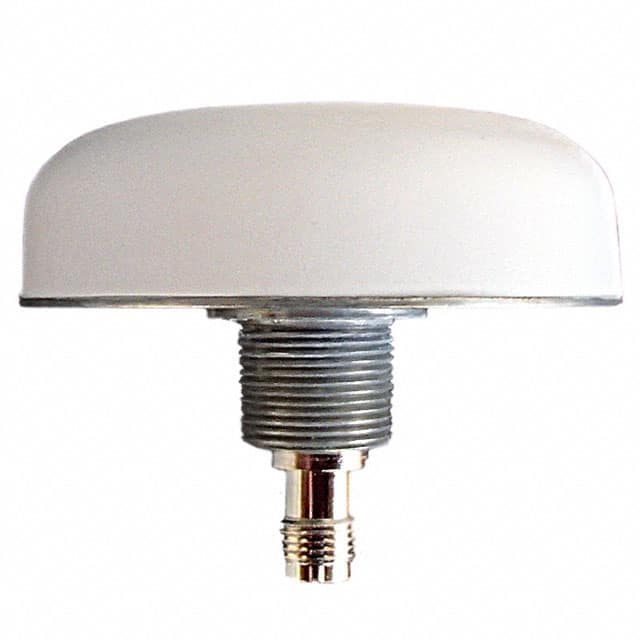

A Tallysman Accutenna® TW3600 Permanent Mount Iridium® Antenna The TW3600 employs Tallysman’s unique Accutenna technology in a permanent mount, passive right hand circularly polarised antenna for the 1616 to 1626.5 MHz frequency band, specially designed to maximise the performance of Iridium™ voice and data modems. The TW3600 features a high performance dualfeed patch element that provides great axial ratio (3dB max) over the entire Iridium™ frequency band, thus signals at the band edges remain truly circular, unlike the response of single feed antennas. TW3600 Dimensions (mm) The TW3600 is housed in a permanent mount industrial-grade weather-proof enclosure and comes with a TNC Jack (female) connector, allowing for the Iridium™ modem to be mounted out of the elements and reach, and still providing excellent Iridium™ signal coverage. Applications       Iridium® Voice and Data Applications Sea & Land Container Tracking Military & Security Fleet Management & Asset Tracking Marine & Avionics Systems Law Enforcement & Public Safety Features Benefits             Custom high gain, 4.25 dBic dual-feed patch Great axial ratio, 3 dB over full bandwidth 15 KV ESD circuit protection IP67 weather proof housing Robust Industrial grade enclosure Surface, bracket or mast mount Excellent circular polarized signal transmission Industrial temperature range Rugged Design Ideal for harsh environments RoHS and REACH compliant Remote antenna TW3600 Permanent Mount Iridium® Antenna Specifications Vcc = 3V, over full bandwidth, T=25°C Antenna Architecture Antenna Gain (100mm ground plane) Axial Ratio (over full bandwidth) Radiated Bandwidth (-0.5 dB) Dual, quadrature feeds 4.25 dBic ≤3 dB 1605 MHz to 1635 MHz Electrical Architecture Frequency Bandwidth Polarization Gain flatness VSWR (at antenna) Return Loss (-10 dB bandwidth) ESD Circuit protection Hybrid 90° phase signal splitter 1616 to 1626.5 MHz RHCP ≤0.5 dB, from 1616 to 1626.5 MHz 20 MHz 15 KV air discharge Mechanicals & Environmental Mechanical Size Cable (Option) Operating Temp. Range Enclosure Weight Attachment Method Environmental Shock Vibration Warranty Salt Spray 66.5 mm dia. x 21 mm H Custom cable assembly available. -40 to +85 °C Radome: EXL9330, Base: Zamak White Metal 150 g Permanent ¾” (19mm) through hole mount IP67 and RoHS compliant Vertical axis: 50 G, other axes: 30 G 3 axis, sweep = 15 min, 10 to 200 Hz sweep: 3 G One year, parts and labour MIL-STD-810F Section 509.4 Ordering Information TW3600 – Iridium® antenna 33-3600-xx-yy-zzzz Where xx = connector type, yy = shape and colour of radome and zzzz = cable length in mm (where applicable) Please refer to the Ordering Guide (http://www.tallysman.com/orderingguide.php) for the current and complete list of available radomes and connectors. Tallysman Wireless Inc 36 Steacie Drive Ottawa ON K2K 2A9 Canada Canada Tel 613 591 3131 Fax 613 591 3121 sales@tallysman.com The information provided herein is intended as a guide only and is subject to change without notice. This document is not to be regarded as a guarantee of performance. Tallysman Wireless Inc. hereby disclaims any or all warranties and liabilities of any kind. © 2010 Tallysman Wireless Inc. All rights reserved. Rev 3.2
