AA.105.301621

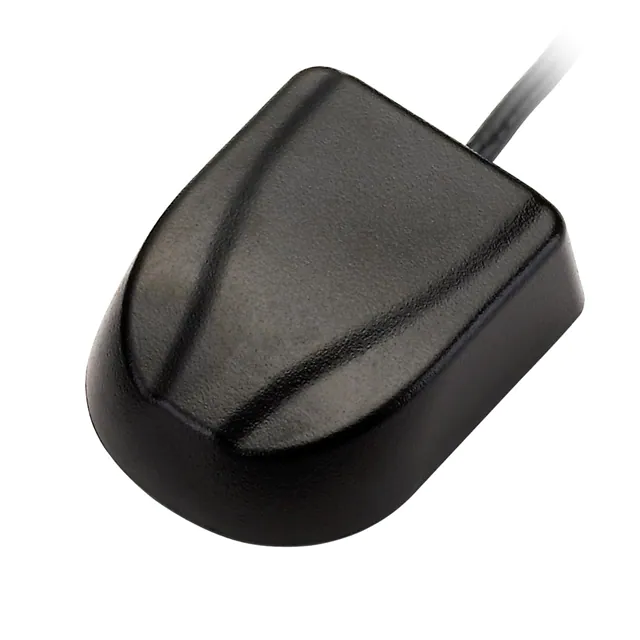

SPECIFICATION Part No. : AA.105.301621 Product Name : Titan GPS/GALILEO Antenna AA.105 3M RG174 Fakra Code C Blue SMB(F) Features : Magnetic Mount Covert stylish design Wide band input voltage 28db Gain Gain is Customizable IP-67 Waterproof SPE-12-8-025/E/SS Page 1 of 10 1. Introduction Our AA.105 Titan magnetic mount external antenna is ideal for robust, covert installations where durability and small size is paramount. It is used in telematics and M2M applications, for example in commercial vehicle installations for fleet management. It is fully waterproof to IP67 rating. 2. Specifications GPS/GALILEO Antenna Outline Dimension 25*25*4mm Ground Size 25*25*4mm Center Frequency 1575.42±3MHz Bandwidth 10MHz VSWR 1.92 Max Axial ratio 3dB Typ. Gain @ Zenith 2dBi Typ. Impedance 50Ω Polarization RHCP LNA Frequency Impedance VSWR Gain Gain at Connector* DC Power Input Noise Figure Weight 1575.42MHz 50Ω 1.92 Max. 30dB Typ. 28.4dB 2.7~5V 1.5dB Typ. 75g Power Consumption 4.7mA @2.7V 6mA @3.3V 10.3mA @5V Operating temp Storage Temp -40°C ~ +85°C -40°C ~ +90°C SPE-12-8-025/E/SS Page 2 of 10 3. Ceramic Antenna S11 (with housing) SPE-12-8-025/E/SS Page 3 of 10 4. Ceramic Antenna Radiation Pattern (with housing) SPE-12-8-025/E/SS Page 4 of 10 SPE-12-8-025/E/SS Page 5 of 10 5. LNA gain SPE-12-8-025/E/SS Page 6 of 10 6. LNA S22 SPE-12-8-025/E/SS Page 7 of 10 7. Drawing SPE-12-8-025/E/SS Page 8 of 10 Packaging (Unit: mm) SPE-12-8-025/E/SS Page 9 of 10 Taoglas makes no warranties based on the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. Taoglas reserves all rights to this document and the information contained herein. Reproduction, use or disclosure to third parties without express permission is strictly prohibited. Copyright © Taoglas Ltd. SPE-12-8-025/E/SS Page 10 of 10
