PC27.09.0100A

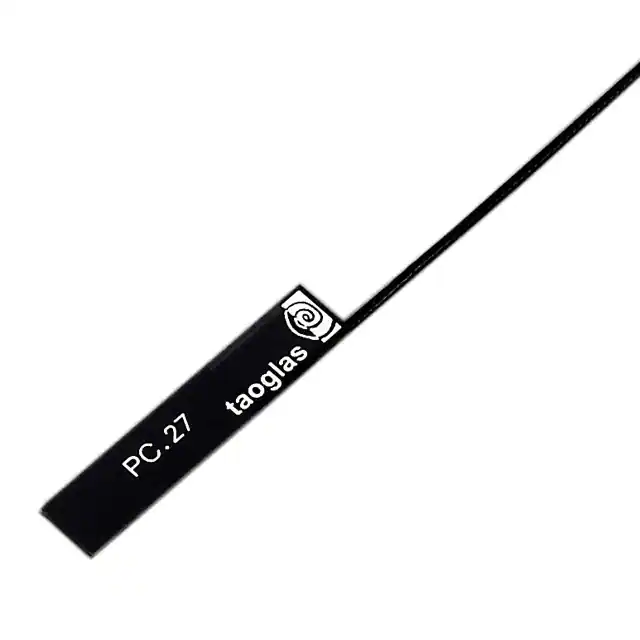

Specification Part No. : PC27.09.0100A Product Name : TheStripe™ 850 / 900 / 1800 / 1900MHz GSM PCB Antenna W/100mm 1.13 Coaxial Cable MMCX (M) R/A Connector Feature : 100mm long, 1.13 mm diameter 850 / 900 / 1800 / 1900MHz GSM Miniature Co-Axial Cable MMCX(M)RA Dims: 34mm*7mm*0.8mm RoHS Compliant SPE-11-8-152/A Page 1 of 9 1. Introduction This miniaturized low profile PCB antenna is based on smart TheStripe™ antenna technology. It consists of a PCB antenna and 1.13mm coaxial cable with MMCX(M) 90 degree connector. Further optimization can be done upon receipt of the client’s device at a local Taoglas facility. 2. Specifications CELLULAR Communication system AMPS GSM DCS PCS Frequency Band 800MHz 900MHz 1800MHz 1900MHz VSWR 3.59 2.02 2.21 2.3 Return Loss -4.96 dB -9.48 dB -8.46 dB -8.06 dB Efficiency 56.84% 72.98% 63.52% 55.79% Peak Gain 0.01dBi 1.2dBi 2.66dBi 1.25dBi Average Gain -2.45dB - 1.37dB - 1.97dB -2.53dB Impedance 50 Ohm Radiation Pattern Omnidirectional Polarization Horizontal MECHANCIAL Dimensions RF Cable RF Connector 34 * 7 * 0.8mm RF Coaxial Cable ψ1.13 ± 0.1mm, L = 100 mm Gray Color MMCX(M)RA ENVIRONMENTAL Operation Temperature -20°C to + 55°C Storage Temperature -30°C to + 75°C Relative Humidity 40% to 95% SPE-11-8-152/A Page 2 of 9 3. Antenna Characteristics 3.1. Return loss SPE-11-8-152/A Page 3 of 9 3.2. VSWR SPE-11-8-152/A Page 4 of 9 4. Reliability Test Items Procedure Requirement Thermal Shock Starting at -40 for 30 minutes and then cycled to +85 to remain 30 minutes (a complete cycle). To repeat 5 complete cycles. (Refer to IEC 68-2-14 Method Na) 1. The value of return loss must be within product specifications after this test. 2. No physical deformation should be evident. Storage Temperature (Cold) Samples must be put into -30°C chamber for 72 hours and samples shall be powered during test. (Refer to IEC 68-2-1 Method Aa) 1. The value of return loss must be within product specifications after this test. 2. No physical deformation should be evident. Storage Temperature (Dry Heat) Samples must be put into +75°C chamber for 72 hours and samples shall be powered during test. (Refer to IEC 68-2-1 Method Ba) 1. The value of return loss must be within product specifications after this test. 2. No physical deformation should be evident. Operating Temperature (Cold) Samples must be put into -20°C chamber for 2 hours and samples shall be powered during test. (Refer to IEC 68-2-1 Method Aa) 1. The value of return loss must met specification during test/after test 2. No mechanical defects after test. Operating Temperature (Dry Heat) Samples must be put into +65°C chamber for 72 hours and samples shall be powered during test. (Refer to IEC 68-2-1 Method Ba) 1. The value of return loss must met specification during test/after test 2. No mechanical defects after test. SPE-11-8-152/A Page 5 of 9 5. Antenna Test Procedures and Setup 5.1. 3D Radiation Pattern Testing Test Setup Diagram SPE-11-8-152/A Page 6 of 9 5.2. 3D Radiation Pattern Testing 850 MHz 1800 MHz 900 MHz 1900 MHz SPE-11-8-152/A Page 7 of 9 5.3. 3D Chamber Testing – Tabular Results SPE-11-8-152/A Page 8 of 9 6. Mechanical Drawings (Unit: mm) 6.1. Dimensions and Drawing Taoglas makes no warranties based on the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. Taoglas reserves the rights to this document and the information contained herein. Reproduction, use or disclosure to third parties without express permission is strictly prohibited. Copyright © Taoglas Ltd. SPE-11-8-152/A Page 9 of 9
